- Designed for the Agena Multiple Reticle Finder
- CNC-Machined from solid aluminum, anodized matte black
- Supplied with a quick release shoe and two M5 mounting screws
- Underside of the bracket is felt lined to prevent rotation and scratching the telescope finish

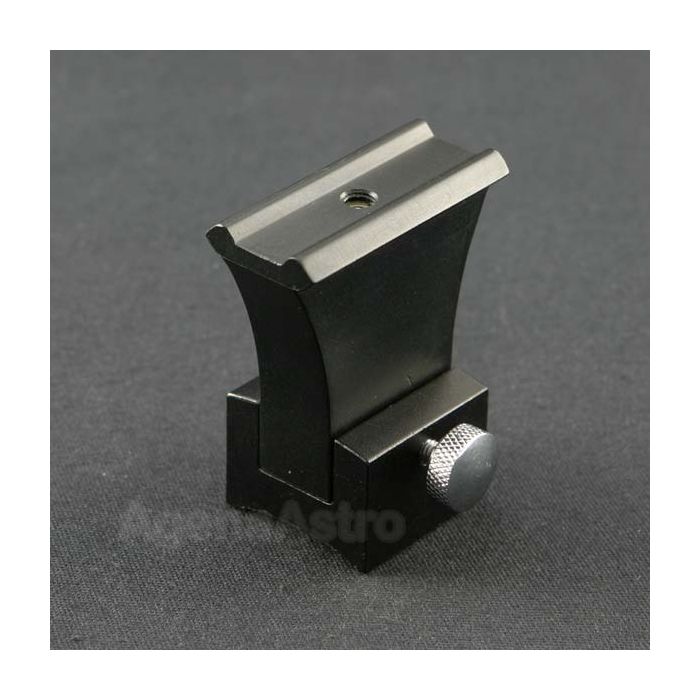

Agena Type B0 Mounting Bracket and M5 Base for Agena Multi Reticle Reflex Finder.
This Type B0 bracket/base is a spare two-part mounting system for the Agena Multiple Reticle Finder (MRF). The base can be attached to any telescope that has an M5 screw hole for attaching finder brackets. Examples of this are all William Optics telescopes and many Astro-Tech telescopes and clones.
This item is included with the Agena MRF (with Type B0 mounting bracket version) as a standard item, but we also sell this additional stalk and base separately so that you can use the same finder on more than one telescope. Also, if you have the Agena MRF (with B1 Synta-style base), then you can remove the B1 base and replace it with this item should the need arise to change the bracket/base type for a different telescope.
This base is CNC-machined from solid aluminum and is anodized matte black. The included locking knob is chrome-plated. The underside of the mounting shoe is felt-lined to keep from scratching the finish of the telescope on which it’s mounted. This also adds friction and prevents the mount from rotating on the focuser or telescope tube.
The mounting bracket is 13.5mm wide. Agena supplies a quick release shoe and two M5 mounting screws with this item.
You may also be able to use this mount on a catadioptric telescope by replacing the included M5 mounting screws with others compatible with your SCT. Note that when mounting the bracket shoe on a catadioptric telescope (SCT), there may be a slight gap between the shoe’s underside and the scope due to the larger diameter of most SCTs relative to a refractor.
