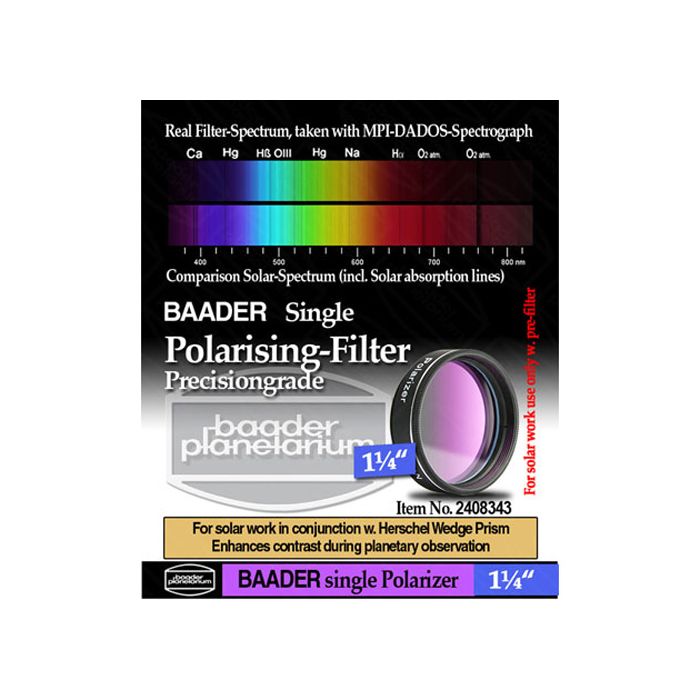

Baader 1.25" Single Polarization Filter # FPOL-1 2408343

Our #: OFIL-BP-FPOL-1
Mfg #: 2408343
Our Price: $54.00
Free shipping for this item in the US
More Info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

Out of Stock
Availability: No ETA available from the manufacturer at this time

Important Note About Torn Baader Filter Seals:

Recently, Baader started applying a new filter label on many filters that goes over the edge of the case and also acts as a seal. Unfortunately, these labels rip far too easily during transport, giving the false appearance that the filter case has been previously opened. Many filters we now get from Baader arrive like the ones shown in the photos below, and many others will rip en route from us to you. Rest assured that ALL filters we ship to you are brand new and unopened as received from Baader, whether the seal is intact or partially/completely ripped.


Baader has agreed to revert to their old design of 2-piece labels, but until they use up their current labels, we will continue to have this problem for a while and you might also get a mix of different filter label types. Thank you for your understanding.

Product Details

Baader Planetarium's 1.25" Single Polarizing Filter is designed for perfect light management when viewing bright objects. It reduces passing light by a factor of two. Reducing image brightness can help improve contrast in terrestrial viewing and imaging, especially in daytime photography. A polarizer also helps when viewing the Moon and planets by reducing brightness and glare to make it easier to see fine detail, or it can help split bright binary stars.

Baader's single polarising filter is a perfect complement for their solar Herschel wedge. A particularly handy attribute of the Herschel Wedge is its partial polarizing effect on the solar image. This permits a very convenient means of variably adjusting the image brightness, simply by using a single polarizing filter between the Herschel wedge and the eyepiece. The filter/eyepiece combination can then be rotated, and the image is variably dimmed which is very useful to easily achieve the optimum brightness for maximum visual contrast at any magnification.

This 1.25" filter (with M28.5x0.6 threads) is made for Baader in Japan, and it can be threaded on to 1.25" eyepieces directly.

Please Note: Polarizing filters are intended for visual use and if used for solar viewing, they must only be used in conjunction with the existing internal ND=3.0 filter in the Herschel wedge. A polarizing filter does not provide sufficient blocking by itself, nor is it able to block IR wavelengths as completely as an ND filter. Also, the polarizing filter must be used on the eyepiece or eyepiece reducer, never ahead of the ND3.0 filter (the polarizing filter must be located after the ND3.0 filter to prevent damage to the delicate internal layers of the polarizing filter).

Manufacturer part number: 2408343 or FPOL-1.

Useful Resources

Filter Cell Specifications

D = Filter Cell Diameter = 30.9mm / 1.21"

T = Total Filter Height = 7.6mm / 0.29"

C = Filter Cell Height (Excluding Male Thread) = 5.9mm / 0.23"

M = Male Thread Length = 1.7mm / 0.06"

F = USABLE Female Filter Thread Length = 2.5mm / 0.09"

S = Glass Substrate Thickness = 2.0mm / 0.07"

CA = Clear Aperture = 26.5mm / 1.04"





Other Information

  • Country of Manufacture: Germany
