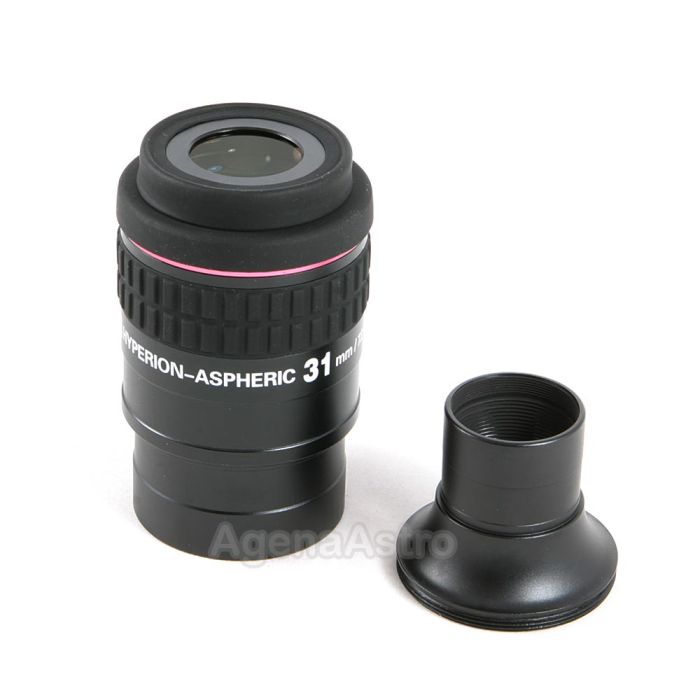

Baader Planetarium has evolved the wide-field astronomical eyepiece to a new level. Introducing the worlds first production Astronomical Eyepieces to use aspheric surfaces, the 31mm and 36mm Baader Hyperion-Aspheric 72 Modular Eyepieces. This new technology has allowed Baader to eliminate eyepiece aberrations without the usual penalty of extra lens elements, excessive size and weight, or high cost.
• The Hyperion-Aspherics freedom from blackouts, kidney beaning, and lack of distortion combines with their long eye relief to produce a view that is uncommonly comfortable and natural for all users (including eye-glass wearers and users of popular astigmatism correcting lenses).
• The ultra-wide 72° field is extremely flat and distortionless (virtually free of angular magnification distortion).
• Baaders renowned Phantom Group Multi-Coatings and thorough internal baffling produce an extremely bright and high contrast view that is free of scatter.
• Hyperion Modularity • Superb for projection imaging. The Hyperion-Aspherics are threaded to accept the full line of Hyperion Digital T-Rings, for a robust direct attachment of almost any camera. The clever use of 2"x24 TPI SCT threads for attaching the 2" barrel permits the Hyperion-Aspherics to directly thread onto the rear cell of popular SCTs. This results in the highest rigidity possible for imaging.
• Dual Barrel Configuration two barrel sizes are provided with each Hyperion Aspheric. The standard 2 barrel provides the full 72 field size, and a special wide-field 1.25 barrel provides the maximum true field ever in a 1.25 format, with a field stop size of 1.265(32mm)! - perfect for extracting every bit of field possible in 1.25 telescopes or binoviewers.
• Accepts popular astigmatism correcting lenses.
• Weight: 390 g (13.8 oz)
| Eyepiece Series | Hyperion-Aspheric |
|---|---|
| Focal Length | 31mm |
| Barrel Size | 1.25" (31.7mm) and 2" (50.8mm) |
| Apparent Field of View (Mfg Specified) | 72° |
| Filter Threads | Standard 1.25" (M28.5 x 0.6) or 2" (M48 x 0.75) Filter Thread |
| Coatings | Fully Broadband Multi-Coated (Phantom Group) |
| Blackened Lens Edges | Yes |
| Barrel Security Recess | Yes |
| Protective Bolt Case | Yes - Free Agena AstroProducts Bolt Case |
| Protective Bolt Case Size | Agena 65x120mm |
| End Caps | 3 |
| Field Stop Diameter | 32mm (1.265") |
| Rubber Eye Guard | Yes |
| Weight | 13.8 oz (390 g) |
