Bob's Knobs for C14 f/11 Secondary with Factory Phillips Collimation Screws with Metric Threads #C14metphi

Our #: PAOA-BK-C14metphi
Mfg #: C14metphi
Our Price: $23.95
Free shipping for this item in the US
More Info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

$25 Order Minimum Applies
In Stock (3 Available)
Stock listed above is accurate & shown in real time
Ships by Next Business Day

Special Note: The Celestron 14” SCT uses either standard 6-32 or metric M3 collimation screws. Headless set-style and silver Phillips factory collimation screws have standard threads. Generally black Phillips collimation screws have metric threads but a few have standard threads.

Product Details

Collimate your Catadioptric or Newtonian reflector style telescopes without tools!

It's easy...just grab a Bob's Knob collimation thumbscrew and turn. You can even do it while looking through the eyepiece on most scopes. These thumbscrews are also much easier to use with gloves on. And perhaps most importantly, you'll never drop that pesky little Allen wrench or screwdriver into the grass again. Installation is a snap with the included instructions, and you can undo the modification at any time.

Part: C14metphi

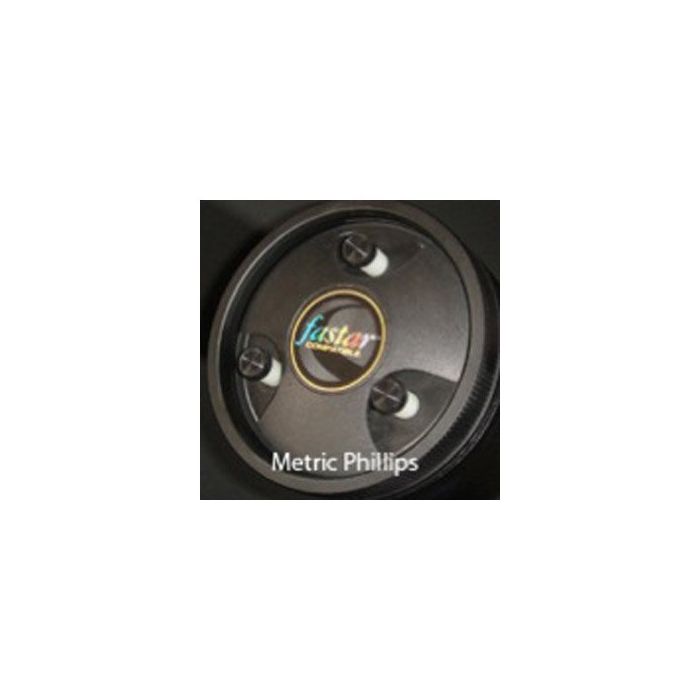

Fits: Celestron 14” (36 cm) f/11 SCT versions with metric thread factory Phillips collimation screws with Fastar and with or without EdgeHD optics (see third photo).

Knobs: Black plastic, 15 mm (5/8”) diameter
Threads: Black oxide steel

Notes:

  1. See the special note above for information on standard and metric threads.
  2. Collimation screws on these telescopes are small with very fine threads. Knobs must be tightened gently (just enough to hold the secondary in place) to prevent damage to either the knob or secondary assembly.
  3. The factory dust cover will fit normally with Bob's Knobs installed.
  4. If your telescope has a rotary secondary cover, it must remain open when knobs are installed. The cover is cosmetic only and will not affect operation of the telescope.
  5. Our knobs cannot protrude above the Trifid-style rotary cover or they will interfere with the factory dust cover. For better knob access, you can peel off the vinyl escutcheon and remove the cover (see fourth photo) or simply access the knobs partly from the side.

Other Information

  • Country of Manufacture: United States
