Website Special - FREE Agena plastic bolt case / storage container included with this eyepiece (a $3.25 value)!

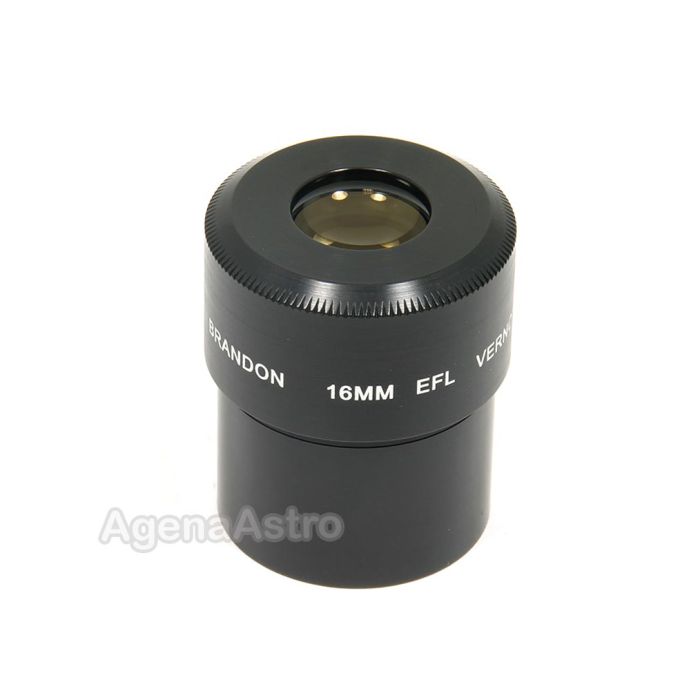

- Effective focal length (EFL): 16mm
- Apparent field of view (AFOV): 43 degrees, as calculated from the focal length and field stop diameter
- Eye relief: about 16mm
- Field stop diameter: 12mm, as measured with caliper
- Weight: 1.6 oz
Brandon eyepieces, made by Vernonscope in the USA, are noted for their exceptional contrast and extremely dark background, two reasons why Questar Corporation has been including them with their telescopes since 1971. All Brandon eyepieces are parfocal.
The famous Brandon oculars incorporate the original optical designs of Chester Brandon and are acclaimed by leading astronomers as unquestionably the finest oculars in the world. In a test of many eyepieces, noted deep-sky observer, Ron Morales, rated Brandon eyepieces #1 for contrast which is perhaps the single most important characteristic for any eyepiece.
Some question why Brandon lenses are not multi-coated. In the past, several sets of Brandons were made with 7-layer multi-coatings with no improvement. In fact, not using multi-coating eliminates or greatly reduces the phenomenon known as narrow angle light scatter. Multi-coatings have more narrow angle light scatter than standard eyepiece coatings. This effect readily can be seen when viewing bright objects like Venus, Mars, or Jupiter, where this scatter greatly interferes with low-contrast detail.
Using Vernonscope's Brandon eyepieces, you also will notice a significant difference in the background darkness immediately surrounding a bright object, especially important for planetary or double-star observing. In addition, lunar detail such as the bands of Aristarchus are much better defined.
All Brandon eyepieces are assembled and tested in Raleigh, NC, to assure consistent high quality.
Leave the world of ordinary eyepieces behind and step up to Brandons!
Please note: Brandon eyepieces are threaded for filters, but Brandon uses a proprietary filter thread and not the industry-standard M28.5x0.6 filter thread. Brandon sells 1.25" color and neutral density (ND) filters that can be directly threaded to Brandon eyepieces. However, the use of other non-Brandon filters on these eyepieces requires the purchase of an optional thread conversion adapter.
Manufacturer part: VB16FT
|Eyepiece Series||Brandon Ocular|
|Barrel Size||1.25" (31.7mm)|
|Apparent Field of View (Mfg Specified)||43°|
|Eye Relief (Designed)||16mm|
|Filter Threads||Brandon-proprietary filter thread|
|Barrel Type||Smooth sided|
|Protective Plastic Storage Container||Yes - Free Agena Eyepiece Container|
|Protective Plastic Storage Container Size||Agena 42x60mm|
|Field Stop Diameter||12mm|
|Country of Manufacture||USA|
