Brandon 1.25" Magic Dakin Barlow with Brandon Thread - 1.5x Magnification # MDB150xBrandon

Our #: OBAR-VS-MDB150B
Mfg #: MDB150xBrandon
Our Price: $149.00
Free shipping for this item in the US
More Info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

Out of Stock
Availability: Please contact us for an update

Product Details

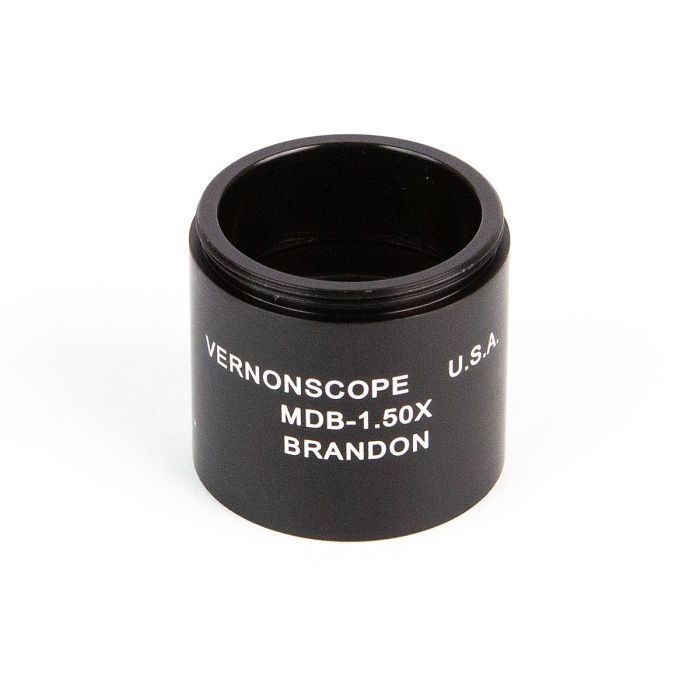

The Brandon Magic Dakin Barlow (MDB) is available in four versions - with Brandon-proprietary or standard 1.25" threads on the male thread end (where it would connect with other eyepieces or adapters), and with 1.25x or 1.5x magnification factors. This listing is for the 1.5x barlow with Brandon male threads.

This small Barlow is amazing. It is a true Dakin Barlow in a small package, made with a superb lens, manufactured in the USA. This MDB has Vernonscope Brandon threads. Owners of Brandon and Questar eyepieces use this MDB directly on the eyepieces with no adapter. To screw it onto the nosethread of a binoviewer or the standard thread of non-Vernonscope eyepieces, you will require a thread conversion adapter (# 114ADAPTVERN, sold separately).

The goal is to improve the usability of all binoviewers and eyepieces in addition to providing magnification. Screwed onto the nosepiece of a binoviewer, it gives a bit more back focus (focuser in-travel). On an eyepiece, it gives a little more eye relief. It also increases the f number of the telescope, making all eyepieces work just a bit better. An f/6 scope with a 1.5x MDB will become an f/9.

Because of its small size, and the way it screws onto the filter thread of the eyepiece, it fits into 1.25" eye tubes and adapters. Even though it is small, do check when using with a diagonal to make sure you have clearance from the bottom of the MDB to the mirror surface.

This barlow provides a nominal magnification factor of 1.5x which is an estimate of the magnification achieved when screwed onto the bottom of eyepieces. When used on binoviewers, the magnification will be higher because of the longer optical path. For the Vernonscope binoviewer, with an optical path of 80mm, the 1.5x MDB will provide approximately 3.4x magnification.

Please note that the bottom end of this barlow features a female Brandon-proprietary thread. It will accept Brandon filters directly. To use standard 1.25" filters on the bottom of this barlow instead, you will need to first attach Brandon's # 114ADAPTBRNDN adapter (sold separately).

Specifications:

  • Total length (excluding male thread): 25.6mm
  • Total length (including male thread): 28.5mm
  • Weight: 20g / 0.7oz

Manufacturer part number: MDB150xBrandon

Other Information

  • Country of Manufacture: United States
