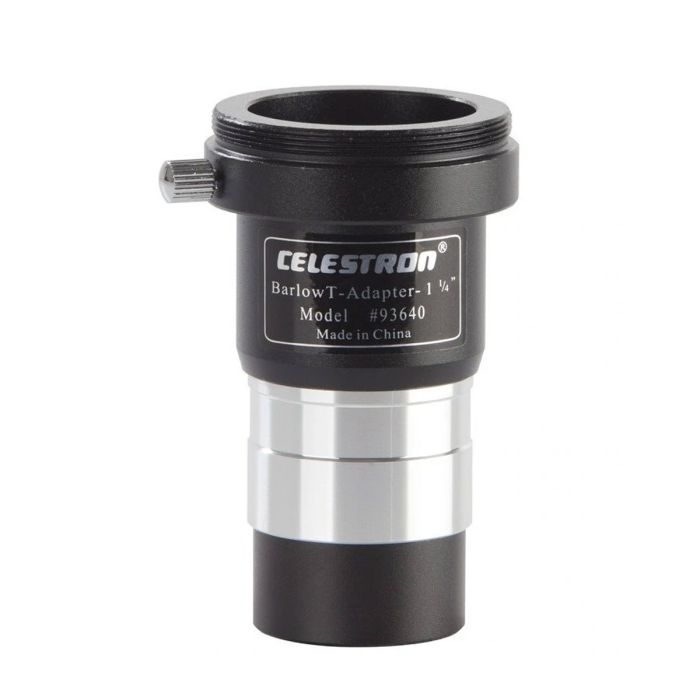

Universal 1¼" T-Adapter #93640. Similar to #93625 but in addition includes an integral 2x barlow lens which can be used visually or photographically.
A T-Adapter allows you to attach your 35mm SLR camera to the prime focus of your telescope or spotting scope. This arrangement is used for terrestrial photography and short exposure lunar and planetary photography. It can also be used for long exposure deep-sky photography when using a separate guidescope. Both a T-Adapter (this item) and T-Ring (not included) are required to mount a 35mm SLR camera to your instrument.
You can also insert standard 1.25" eyepieces into the barlow tube and use it as a conventional 2x barlow.
The barlow lens cell can be unscrewed from the tube. The bottom of the tube has standard 1.25" filter threads (M28.5x0.6), as does the top of the barlow cell. So you can:
(i) Use the upper T-threaded tube as a standard 1.25" T adapter
(ii) Screw the barlow cell directly into eyepieces for approx. 1.5x magnification
(iii) Attach standard 1.25" filters between the tube and the barlow element (you cannot attach filters to the bottom of the barlow element).
Weight = 2.4oz; Length = 2.91" (74mm); Clear aperture = 0.87" (22mm); Includes 2 end caps; Made in China.
Product carries two-year manufacturer limited warranty (within US/Canada only).
|Size Format||1.25 inch|
|Number of Lens Elements|
|Total Length||2.91 inches / 74 mm|
|Length of Nosepiece||1.5 inches / 38 mm|
|Outside Length of Upper Body||1.45 inches / 36.9 mm|
|Insertion Depth||1.38 inches / 35 mm|
|Max Diameter Excluding Thumbscrew||2.11 inches / 53.5 mm|
|Clear Aperture||0.87 inches / 22 mm|
|Weight||2.4 oz / 68 g|
|Barlow Lens Cell Removable||Yes|
|Filter Threads at Bottom of Barlow Cell||No|
|Filter Threads Between Barlow Cell and Tube||Yes - 1.25" (M28.5x0.6) Filter Threads|
|Barrel Type||With safety undercut|
|Compatible Agena Bolt Case (with Screw Removed)|
|Compatible Bolt Case (with Screw Attached)||52x80|
|Number of Thumbscews||1|
|Thumbscrew Thread Specification||Coming Soon|
|End Caps (Subject to change without notice)||2|
|Compression Band/Ring in Eyepiece Holder||No|
|Country of Manufacture||China|
