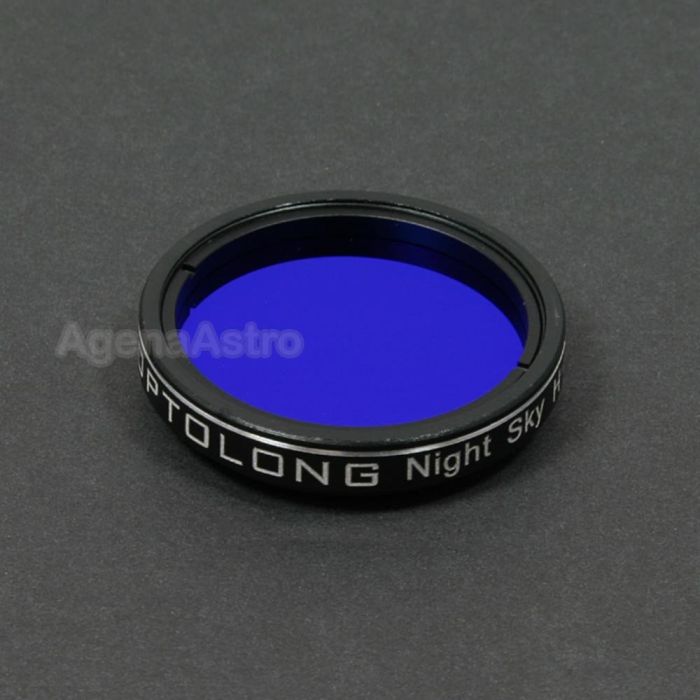

A. About Optolong's Night Sky H-alpha Filter
The Optolong Night Sky H-alpha (Hydrogen-Alpha) filter can be used in IR-LRGB imaging to produce a sharper luminance image for the best planetary contrast as atmospheric seeing and distortion is much reduced at longer IR wavelengths.
The sensor of CCD or CMOS cameras is capable of detecting light in the 350-1100nm range including infrared wavelengths. Thus RGB planetary images taken with IR as the luminance channel have visible-enhanced contrast and surface detail than standard LRGB images.
C. Spectral Curve Transmission Characteristics
- This filter is effectively an IR Pass Filter above 650nm
- 50% transition from blocking to passing at about 640nm and 95% or above transmission at wavelengths longer than 650nm.
D. Technical Specifications
- Both surfaces are fine optically polished, accurate to 1/4 wavelength or better, and parallel to within 30 seconds or arc.
- 2mm thick Schott B270 optical glass substrate material.
- Very high surface quality of 60/40 or better (US Military Spec MIL-O-13830).
E. Optical Coating Specifications
- Multi layer anti-reflection coated.
- Non-cementing optical substrate coating.
- Electron-beam gun evaporation with Ion-assisted deposition coating technology for durability and resistance to scratching, as well as stability on CWL (central wavelength) so that there is no deviation due to temperature changes during use.
- Precise and homogeneous coatings ensure high values of desired passband and blocking of unwanted offband.
- Every single filter is tested and passed by Optolong before shipping to dealers.
- 1.25" astronomy filter with standard M28.5x0.6 male filter thread (no female thread, so it cannot be stacked with other filters).
- Ultra-thin filter cell to minimize vignetting; clear optical aperture of 26mm.
- Precision CNC-machined metal filter cell with sand blasted black anodized finish, anti-reflection treatment, and laser engraving.
- High quality protective plastic storage case.
WARNING: Optolong filters are not designed for direct solar observation. NEVER use these filters for observing the Sun, or permanent eye and equipment damage will result.
While Optolong is a relative newcomer to the astronomy industry, they are no strangers to optics and filters. Optolong is a division of Yulong Optics Company, a high tech company specializing in optical filter design and production. Their products include bandpass filters, flourescence filters, edge filters, longpass and shortpass filters, beam splitters, anti-reflection coatings, optical mirrors and, of course, astronomical filters.
Established in 1999 and based in Kunming City, China, Optolong/Yulong provides nearly 2000 types of optical filter coatings annually to customers worldwide in a wide variety of industries and applications. We invite you to learn more about Optolong/Yulong, their products, facilities, and processes by viewing the short video below:
