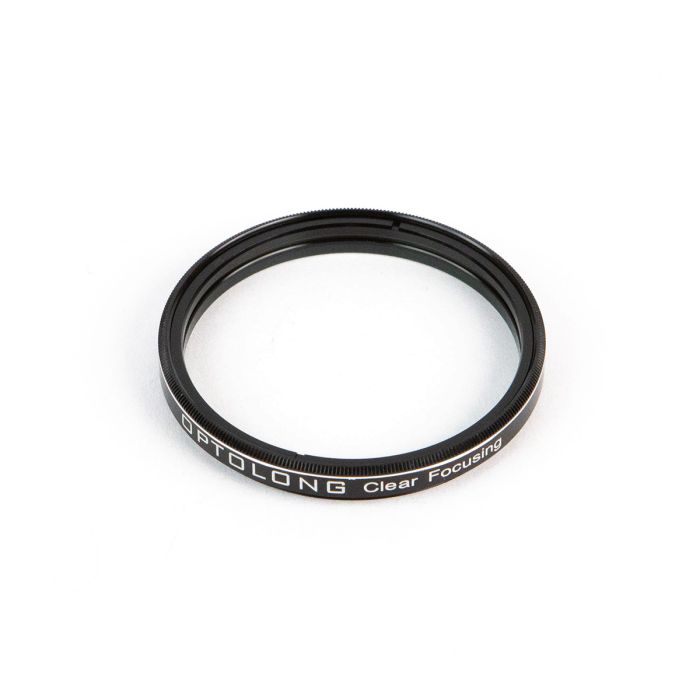

A. About Optolong's Clear Focusing Filter
The Optolong Clear Focusing filter is designed to highly pass the visible spectral region from 420-680nm at 98.5% transmission.
B. Main Uses and Performance
- Use of astrophotography filters, especially narrowband filters, often results in dim images which can be difficult to focus. Clear focusing filter can be used first to clearly focus the image and then replaced by other Optolong imaging filters.
- Use with modified DSLRs for higher efficiency and sensitivity by passing visible range with 98.5% transmission.
- Act as an outstanding dust shield, which prevents the possibility of dust settling on the lens during long time exposure.
C. Spectral Curve Transmission Characteristics
- 98.5% transmission over the visible spectral region over 420-680nm.
D. Technical Specifications
- Both surfaces are fine optically polished, accurate to 1/4 wavelength or better, and parallel to within 30 seconds or arc.
- 2mm thick Schott B270 optical glass substrate material.
- Very high surface quality of 60/40 or better (US Military Spec MIL-O-13830).
E. Optical Coating Specifications
- Multi layer anti-reflection coated.
- Non-cementing optical substrate coating.
- Electron-beam gun evaporation with Ion-assisted deposition coating technology for durability and resistance to scratching, as well as stability on CWL (central wavelength) so that there is no deviation due to temperature changes during use.
- Precise and homogeneous coatings ensure high values of desired passband and blocking of unwanted offband.
- Every single filter is tested and passed by Optolong before shipping to dealers.
- 2" astronomy filter with standard M48x0.75 male filter thread (no female thread, so it cannot be stacked with other filters).
- Ultra-thin filter cell to minimize vignetting; clear optical aperture of 45mm.
- Precision CNC-machined metal filter cell with sand blasted black anodized finish, anti-reflection treatment, and laser engraving.
- High quality protective plastic storage case.
WARNING: Optolong filters are not designed for direct solar observation. NEVER use these filters for observing the Sun, or permanent eye and equipment damage will result.
While Optolong is a relative newcomer to the astronomy industry, they are no strangers to optics and filters. Optolong is a division of Yulong Optics Company, a high tech company specializing in optical filter design and production. Their products include bandpass filters, flourescence filters, edge filters, longpass and shortpass filters, beam splitters, anti-reflection coatings, optical mirrors and, of course, astronomical filters.
Established in 1999 and based in Kunming City, China, Optolong/Yulong provides nearly 2000 types of optical filter coatings annually to customers worldwide in a wide variety of industries and applications. We invite you to learn more about Optolong/Yulong, their products, facilities, and processes by viewing the short video below:
