- 10" (254 mm) Dobsonian-style Newtonian
- 1200 mm focal length (f/5)
- 2" Crayford-style focuser with 1.25" adapter
- 4-element Plossl;ssl 25 mm and 10 mm 1.25" eyepieces
- 8x50 right angle erect-image finderscope
- Solid rocker-mount with Teflon bearings and tension clutch for altitude
- Teflon bearing for azimuth
- Eyepiece height at zenith: 48”

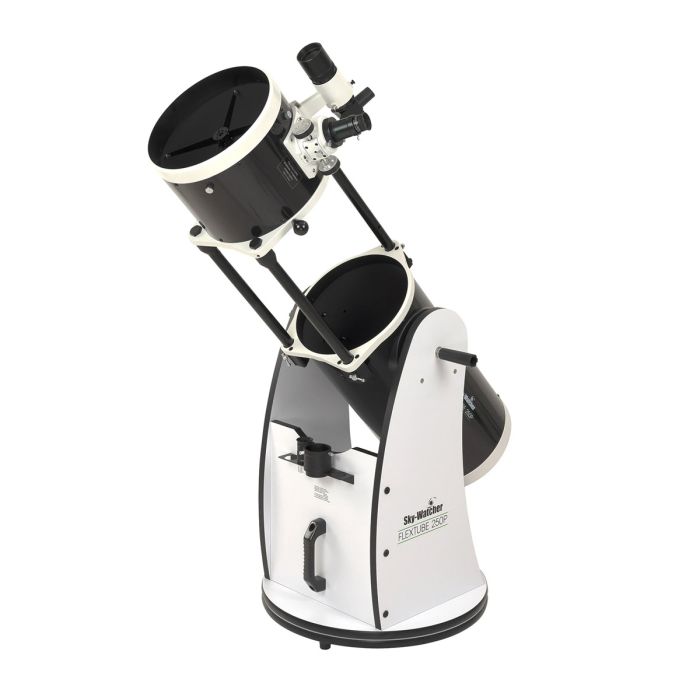

The Sky-Watcher 10" Dobsonian Telescope: The Sweet-Spot for Aperture and Value!
This is a big, friendly horse of a telescope you can ride off into the sunset with, and then thrill to well resolved celestial views when twilight fades. The SW 10" Dob is an very satisfying telescope to own, an instrument that will provide a lifetime of continuing exploration of the heavens. This telescope will hit the sweet-spot for many amateurs, providing all the capability and value you are seeking in a large aperture telescope. Sky-Watcher's revolutionary truss-support concept allows the optical tube's front and back cells to collapse together, aligning on the truss support rods which can then be locked down for easy and secure telescope transport. This one piece, low-hassle OTA design is mechanically simple and results in a large aperture telescope that can be reasonably handled and transported by one individual. This innovation gives Sky-Watcher users tremendous functional ease-of-transportability.
Viewing with the SW 10"—Size Does Matter
In viewing deep-space, aperture matters—big time! With this telescope you have tremendous light gathering power. Prominent deep-space objects seen well in an 8" SW Dob, such as diffuse emission nebulae in the summer sky like the Lagoon (M8), Trifid (M20), and Swan (M17); the stunning globular star clusters M13 and M92 in Constellation Hercules; the awesome winter sky's Great Orion Nebula (M42) in Constellation Orion, and our enormous local galaxy group companion the Andromeda Galaxy (M31) in Constellation Andromeda, to name a very few, will appear more spectacular, brilliant, and wider in extension in a SW 10" Dob.
Many challenging objects for an 8" aperture now come into their own with the SW 10" Dob: the planetary nebula the Crab (M1), a supernova remnant, requires a 10" aperture to truly begin to appreciate the several subtle, gaseous filamentary structures. M33 the spiral galaxy in Constellation Triangulum exhibits significantly more open arm structure. The Rosette Nebula in Monoceros begins to show the discernable pattern of a blooming rose. M51, the fascinating spiral Whirlpool Galaxy, displays remarkable greater structural detail in a 10" aperture vs. 8" diameter size telescope.
There is no question the incremental resolving power of a 10-inch aperture is visually impressive when compared to an 8-inch. Therefore, it is no wonder then that the 10" aperture is overtaking the 8" as the serious amateur astronomer's aperture of choice in a Dobsonian telescope. Sky-Watcher's compact, collapsible optical tube design makes the decision to step up in aperture to a 10" even easier.
Sky-Watcher 10" Dob – a Class Act!
The Sky-Watcher 10" Dob utilizes quality components throughout. Pride of workmanship manifests itself in high quality standards of optical and mechanical fabrication. The polishing process for primary and diagonal mirror yields smooth mirror surfaces ensuring good contrast, and properly corrected optics show minimum alterations to the optical wave-front.
On each parabolic primary mirror, and elliptical diagonal mirror aluminum is vacuum deposited to the front glass surface and then over coated with hard quartz (SiO4). Additional layers of Titanium Dioxide (TiO2) and (SiO4) are then applied
The mechanical and structural components of the OTA exhibit rigid construction and outstanding stability. The mount construction is sturdy and rigid. Mount design, while simple, facilitates smooth motions about both axes. Quality accessories enhance the observer's viewing experience.
Sky-Watcher Dobsonians Epitomize Ease-of-Use
Observing with a Dobsonian has been described akin to shooting ducks in a gallery because it is so easy to find your target. Just swing your SW DOB to the quadrant of sky to be searched, and scan the vicinity. An 8x50mm Right Angle optical viewfinder provides both magnification and light gathering to help narrow your search for those elusive fuzzies when star-hopping. The standard-equipment backlash-free 2" Crayford Focuser insures ultra smooth focusing adjustments. Multi-coated, 4-element Plosl eyepieces (25mm and 10mm) provide a spacious 52-deg Apparent Field of View.
To ensure mechanical ease-of-use, SW uses a high-performance Teflon bearing system in both axes combined with tension adjustment in altitude to facilitate setting the appropriate amount of friction, assuring smooth vertical and horizontal manual movement without free-play from small bumps or gusts of wind. This also eliminates the need to have a balanced optical tube as in an equatorial mount. Sky-Watcher's Teflon bearing system is preferable to the use of ball-bearings. Ball-bearings make unintended movement of the optical tube more difficult to control. Fortunately, at low power, deep-space objects leisurely drift through the field of the SW 10" Dob, so constant mechanical adjustment of the telescope's orientation isn't needed to keep objects in the field of view.
- OTA length retracted: 31.5"
- OTA length extended: 44"
- OTA width: 11.375"
- OTA weight (with accessories): 33 lbs
- Base weight: 26.5 lbs
- Base dimensions: 29.5 x 20"
- Zenith eyepiece height: 48"
Product carries full 2 year Sky Watcher factory limited warranty (within US only).
Manufacturer part number: S11720
|OTA Length||31.5"/44" (Retract/Ext.)|
|OTA Outer Diameter||11.375"|
|OTA Weight (with accessories)||33 lb
|Mirror Coatings||94% Aluminum|
|True Aperture (mm)||257
|Primary Aperture (mm)||254|
|Primary Edge Thickness||N/A|
|Focal Length (mm)||1200|
|Secondary Obstruction (by diameter)||25%|
|Secondary Obstruction by Area||6%|
|Included Finder||8x50 RACI|
|Included Eyepieces||25/10 Plossl|
|Magnification w/ Included Eyepieces||48x/120x|
|Light Gathering (compared to next size down)||57%|
