Spectrum Telescope Thin Polymer Film Solar Filter: 4" Cell Inside Diameter # ST400BP1

Our #: OFIL-SP-ST400BP1
Mfg #: ST400BP1
Our Price: $66.95
Free shipping for this item in the US
More Info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

In Stock (2 Available)
Stock listed above is accurate & shown in real time
Ships by Next Business Day

ALL SALES FINAL. NO RETURNS OR EXCHANGES. PLEASE MEASURE YOUR TELESCOPE/LENS OUTSIDE DIAMETER VERY CAREFULLY AS EXPLAINED BELOW BEFORE ORDERING.

Product Details

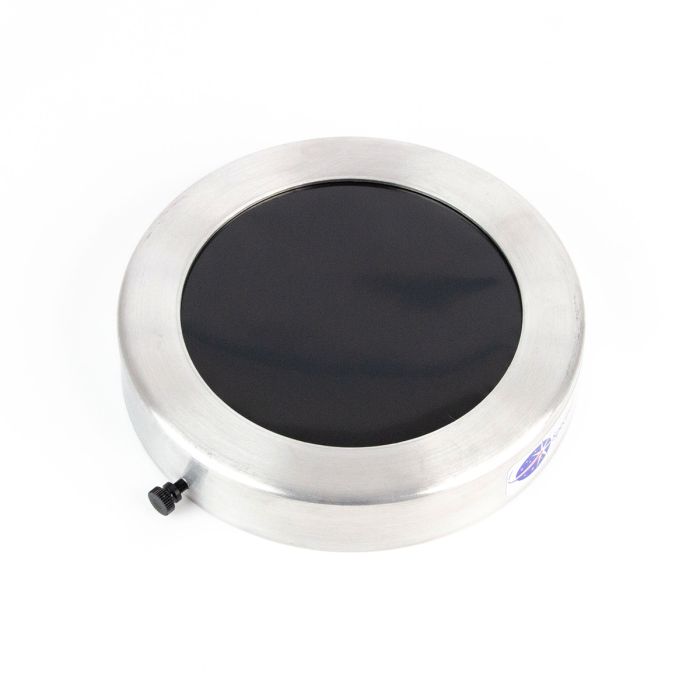

Spectrum Telescopes thin film polymer solar filter mounted in a 4" inside diameter cell # ST400BP1.

1. Selecting the Correct Solar Filter for your Telescope

This solar filter is designed to be fitted on the front (sky-end) of your telescope, spotting scope, or camera lens. The filter slides over the front of the tube and is locked down in place with the included thumbscrew.

This filter cell has an inside diameter of approx. 4" and has a clear filter aperture of 3.15" (80mm). It is meant to fit on tubes with an outside diameter between 3-5/8" (92mm) to 3-7/8" (98mm).

This filter is known to fit the following items:

  • Celestron 80 (old)
  • Meade: DS-70, ETX-80 AT-TC, DS 2080
  • Orion ShortTube 80, Observer 70, Astroview 80/90, Explorer 80/90
  • Takahashi SKY 9011
  • Vixen ED80sf
  • Swarovski AT80, STS 80 & STS 80 HD Spotting Scopes
  • Others? Let us know!

However, we very strongly recommend that you buy this filter only after measuring your tube size carefully (as explained below), even if your telescope is mentioned in the list above.

To get the proper fit, measure the outside diameter very carefully by using a caliper, ruler, or tape measure. See the 3rd product photo above. Measure the widest distance of the telescope tube starting from the exterior of the casing, across the center and to the exterior part of the casing on the other side. After you have your measurements, you should order a size slightly larger than what you measured. This is because your measurement is being compared with the solar filter ID (inside diameter). For instance, if you measure 4" across the outside of the tube end, you should order a 4.25" inside diameter size solar filter. This will make it just a little bigger than the measurement you took.

Also, for example, If you have a 4" telescope, do not buy a 4" solar filter! Telescope aperture is not the same as telescope tube size. The telescope tube diameter will always be slightly larger than the telescope aperture. Measure it carefully before ordering to avoid disappointment and expensive returns.

2. Filter Film and Cell Details

This full aperture thin film solar filter allows only a safe amount of light to pass through your telescope, spotting scope, etc. for solar viewing or imaging. It is an ND 5 filter and therefore blocks 99.999% of the Sun's visible light. The .002" thick black plastic polymer used for the filter substrate is an extremely durable, high quality material that will last you for many years with proper care and handling. It is a single-layer design with absorptive filtering material spread throughout the substrate. Note that slight warps, bends or wrinkles present in the film will not affect the solar image. The Sun appears in a natural looking yellowish-orange color.

The filter film is mounted in an aluminum cell than can be securely attached to the telescope tube with the included nylon thumb screw. This filter comes packaged in a foam-lined shipping/storage box.

3. Warning

Never look at the sun without special eye protection. When viewing the Sun, use this filter in front of your optical instrument at all times when any part of the Sun is visible.

Other Information

  • Country of Manufacture: United States
