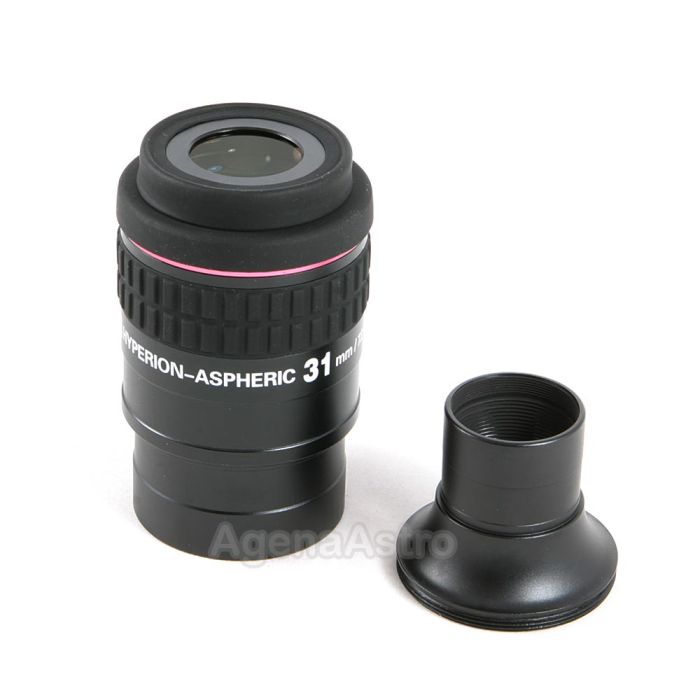

Baader Hyperion-Aspheric Eyepiece - 31mm
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Baader Planetarium has evolved the wide-field astronomical eyepiece to a new level. Introducing the worlds first production Astronomical Eyepieces to use aspheric surfaces, the 31mm and 36mm Baader Hyperion-Aspheric 72-deg Modular Eyepieces. This new technology has allowed Baader to eliminate eyepiece aberrations without the usual penalty of extra lens elements, excessive size and weight, or high cost.
• The Hyperion-Aspherics freedom from blackouts, kidney beaning, and lack of distortion combines with their long eye relief to produce a view that is uncommonly comfortable and natural for all users (including eye-glass wearers and users of popular astigmatism correcting lenses).
• The ultra-wide 72° field in the 2" mode is extremely flat and distortionless (virtually free of angular magnification distortion).
• Baaders renowned Phantom Group Multi-Coatings and thorough internal baffling produce an extremely bright and high contrast view that is free of scatter.
• Hyperion Modularity Superb for projection imaging. The Hyperion-Aspherics are threaded to accept the full line of Hyperion Digital T-Rings, for a robust direct attachment of almost any camera. The clever use of 2"x24 TPI SCT threads for attaching the 2" barrel permits the Hyperion-Aspherics to directly thread onto the rear cell of popular SCTs. This results in the highest rigidity possible for imaging.
• Dual Barrel Configuration two barrel sizes are provided with each Hyperion Aspheric. The standard 2" barrel provides the full 72-deg field size, and a special wide-field 1.25" barrel provides an apparent field of viewof 55-deg, with a field stop size of 1.265 (32mm)! - perfect for extracting every bit of field possible in 1.25" telescopes or binoviewers.
• Accepts popular astigmatism correcting lenses.
• Weight: 390 g (13.8 oz)
Other Information
- Country of Manufacture: China
Baader Planetarium has evolved the wide-field astronomical eyepiece to a new level. Introducing the worlds first production Astronomical Eyepieces to use aspheric surfaces, the 31mm and 36mm Baader Hyperion-Aspheric 72-deg Modular Eyepieces. This new technology has allowed Baader to eliminate eyepiece aberrations without the usual penalty of extra lens elements, excessive size and weight, or high cost.
• The Hyperion-Aspherics freedom from blackouts, kidney beaning, and lack of distortion combines with their long eye relief to produce a view that is uncommonly comfortable and natural for all users (including eye-glass wearers and users of popular astigmatism correcting lenses).
• The ultra-wide 72° field in the 2" mode is extremely flat and distortionless (virtually free of angular magnification distortion).
• Baaders renowned Phantom Group Multi-Coatings and thorough internal baffling produce an extremely bright and high contrast view that is free of scatter.
• Hyperion Modularity Superb for projection imaging. The Hyperion-Aspherics are threaded to accept the full line of Hyperion Digital T-Rings, for a robust direct attachment of almost any camera. The clever use of 2"x24 TPI SCT threads for attaching the 2" barrel permits the Hyperion-Aspherics to directly thread onto the rear cell of popular SCTs. This results in the highest rigidity possible for imaging.
• Dual Barrel Configuration two barrel sizes are provided with each Hyperion Aspheric. The standard 2" barrel provides the full 72-deg field size, and a special wide-field 1.25" barrel provides an apparent field of viewof 55-deg, with a field stop size of 1.265 (32mm)! - perfect for extracting every bit of field possible in 1.25" telescopes or binoviewers.
• Accepts popular astigmatism correcting lenses.
• Weight: 390 g (13.8 oz)
| Manufacturer | Baader Planetarium |
|---|---|
| Eyepiece Series | Hyperion-Aspheric |
| Focal Length | 31mm |
| Barrel Size | 1.25" (31.7mm) and 2" (50.8mm) |
| Apparent Field of View (Mfg Specified) | 72° (in 2" mode) or 55° (in 1.25" mode) |
| Eye Relief (Designed) | 17mm |
| Filter Threads | Standard 1.25" (M28.5 x 0.6) and 2" (M48 x 0.75) Filter Thread |
| Coatings | Fully Broadband Multi-Coated (Phantom Group) |
| Lens Elements | 6 |
| Lens Groups | 4 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety undercut |
| Protective Storage Container Included | No |
| Protective Plastic Storage Container Size (Sold Separately) | Agena 65x120mm |
| Maximum Width | 59.5mm |
| End Caps | 3 |
| Field Stop Diameter | 32mm (1.265") |
| Parfocal | Yes |
| Rubber Eye Guard | Yes |
| Weight | 13.8 oz (390 g) |
Baader Planetarium has evolved the wide-field astronomical eyepiece to a new level. Introducing the worlds first production Astronomical Eyepieces to use aspheric surfaces, the 31mm and 36mm Baader Hyperion-Aspheric 72-deg Modular Eyepieces. This new technology has allowed Baader to eliminate eyepiece aberrations without the usual penalty of extra lens elements, excessive size and weight, or high cost.
• The Hyperion-Aspherics freedom from blackouts, kidney beaning, and lack of distortion combines with their long eye relief to produce a view that is uncommonly comfortable and natural for all users (including eye-glass wearers and users of popular astigmatism correcting lenses).
• The ultra-wide 72° field in the 2" mode is extremely flat and distortionless (virtually free of angular magnification distortion).
• Baaders renowned Phantom Group Multi-Coatings and thorough internal baffling produce an extremely bright and high contrast view that is free of scatter.
• Hyperion Modularity Superb for projection imaging. The Hyperion-Aspherics are threaded to accept the full line of Hyperion Digital T-Rings, for a robust direct attachment of almost any camera. The clever use of 2"x24 TPI SCT threads for attaching the 2" barrel permits the Hyperion-Aspherics to directly thread onto the rear cell of popular SCTs. This results in the highest rigidity possible for imaging.
• Dual Barrel Configuration two barrel sizes are provided with each Hyperion Aspheric. The standard 2" barrel provides the full 72-deg field size, and a special wide-field 1.25" barrel provides an apparent field of viewof 55-deg, with a field stop size of 1.265 (32mm)! - perfect for extracting every bit of field possible in 1.25" telescopes or binoviewers.
• Accepts popular astigmatism correcting lenses.
• Weight: 390 g (13.8 oz)
Other Information
- Country of Manufacture: China
| Manufacturer | Baader Planetarium |
|---|---|
| Eyepiece Series | Hyperion-Aspheric |
| Focal Length | 31mm |
| Barrel Size | 1.25" (31.7mm) and 2" (50.8mm) |
| Apparent Field of View (Mfg Specified) | 72° (in 2" mode) or 55° (in 1.25" mode) |
| Eye Relief (Designed) | 17mm |
| Filter Threads | Standard 1.25" (M28.5 x 0.6) and 2" (M48 x 0.75) Filter Thread |
| Coatings | Fully Broadband Multi-Coated (Phantom Group) |
| Lens Elements | 6 |
| Lens Groups | 4 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety undercut |
| Protective Storage Container Included | No |
| Protective Plastic Storage Container Size (Sold Separately) | Agena 65x120mm |
| Maximum Width | 59.5mm |
| End Caps | 3 |
| Field Stop Diameter | 32mm (1.265") |
| Parfocal | Yes |
| Rubber Eye Guard | Yes |
| Weight | 13.8 oz (390 g) |
