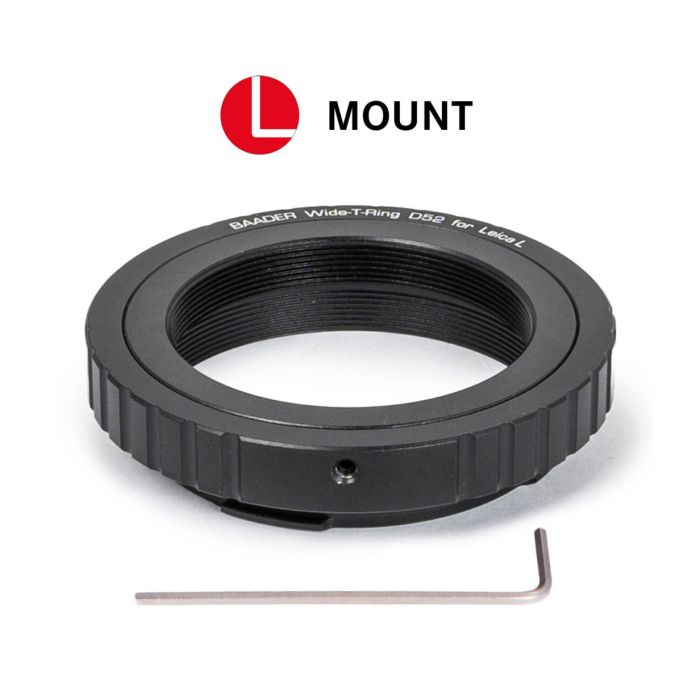

Baader Wide T Ring for Leica, Sigma, Panasonic-L with D52i to T-2 and S52
Sku:
PAAR-BP-TRING-LSPW
Mfg #:
2408337
Item Can Ship:
Worldwide
$48.00
In Stock
(Only 1 left)
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
SKU:
PAAR-BP-TRING-LSPW
Mfg #:
2408337
Item Can Ship:
Worldwide
Description
Description
- Baader Wide-T-Ring to connect Leica, Sigma, Panasonic-L cameras on the Astro T-2 system
- All Baader Wide-T-rings have an S52 dovetail in addition to the inserted T-2 ring. This allows the T-ring to be modified to an M48 female thread using the Reducing piece S52 / M48 (# 2958552) , or to use the 2" / S52 Nosepiece (# 2958551) without the T-2 reduction. With the S52 / M68 adapter (# 2458252), the Wide-T-Ring can be directly attached to an M68 male thread to securely fasten your camera to the widest possible aperture.
- All Baader Wide T-rings can be directly adapted to an UFC (Universal Filter Changer) with the optional Baader S52 dovetail Camera-Adapter for Wide-T-rings (optical height: 2 mm) (# 2459119), in order to change different filter sizes directly in front of the camera sensor.
- Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
- On the camera side: Leica, Sigma, Panasonic L-Mount
- Telescope side: S52 dovetail clamp incl. S52/T-2 internal thread with 0.75mm pitch
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 2408337
- EAN Code 4047825051165
- Optical length (mm): 8.3
- Camera Adaptable: Leica, Sigma, Panasonic L-Bayonet
- Inner Diameter / Clear Aperture: 46 mm
- Outer Diameter: 61 mm
- Inner Connection (lens sided): S52, T-2 (M42 x 0.75)
- Outer Connection (eyepiece/-camera-sided): Bayonet
- Compatible Brands: Astro T-2, Baader Planetarium, Other
- Type of Adapter: Camera Adapter
Other Information
- Country of Manufacture: China
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
- Baader Wide-T-Ring to connect Leica, Sigma, Panasonic-L cameras on the Astro T-2 system
- All Baader Wide-T-rings have an S52 dovetail in addition to the inserted T-2 ring. This allows the T-ring to be modified to an M48 female thread using the Reducing piece S52 / M48 (# 2958552) , or to use the 2" / S52 Nosepiece (# 2958551) without the T-2 reduction. With the S52 / M68 adapter (# 2458252), the Wide-T-Ring can be directly attached to an M68 male thread to securely fasten your camera to the widest possible aperture.
- All Baader Wide T-rings can be directly adapted to an UFC (Universal Filter Changer) with the optional Baader S52 dovetail Camera-Adapter for Wide-T-rings (optical height: 2 mm) (# 2459119), in order to change different filter sizes directly in front of the camera sensor.
- Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
- On the camera side: Leica, Sigma, Panasonic L-Mount
- Telescope side: S52 dovetail clamp incl. S52/T-2 internal thread with 0.75mm pitch
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 2408337
- EAN Code 4047825051165
- Optical length (mm): 8.3
- Camera Adaptable: Leica, Sigma, Panasonic L-Bayonet
- Inner Diameter / Clear Aperture: 46 mm
- Outer Diameter: 61 mm
- Inner Connection (lens sided): S52, T-2 (M42 x 0.75)
- Outer Connection (eyepiece/-camera-sided): Bayonet
- Compatible Brands: Astro T-2, Baader Planetarium, Other
- Type of Adapter: Camera Adapter
Read Full Description
Reviews / Q&A
Reviews / Q&A
Description
Reviews / Q&A
Description
- Baader Wide-T-Ring to connect Leica, Sigma, Panasonic-L cameras on the Astro T-2 system
- All Baader Wide-T-rings have an S52 dovetail in addition to the inserted T-2 ring. This allows the T-ring to be modified to an M48 female thread using the Reducing piece S52 / M48 (# 2958552) , or to use the 2" / S52 Nosepiece (# 2958551) without the T-2 reduction. With the S52 / M68 adapter (# 2458252), the Wide-T-Ring can be directly attached to an M68 male thread to securely fasten your camera to the widest possible aperture.
- All Baader Wide T-rings can be directly adapted to an UFC (Universal Filter Changer) with the optional Baader S52 dovetail Camera-Adapter for Wide-T-rings (optical height: 2 mm) (# 2459119), in order to change different filter sizes directly in front of the camera sensor.
- Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
- On the camera side: Leica, Sigma, Panasonic L-Mount
- Telescope side: S52 dovetail clamp incl. S52/T-2 internal thread with 0.75mm pitch
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 2408337
- EAN Code 4047825051165
- Optical length (mm): 8.3
- Camera Adaptable: Leica, Sigma, Panasonic L-Bayonet
- Inner Diameter / Clear Aperture: 46 mm
- Outer Diameter: 61 mm
- Inner Connection (lens sided): S52, T-2 (M42 x 0.75)
- Outer Connection (eyepiece/-camera-sided): Bayonet
- Compatible Brands: Astro T-2, Baader Planetarium, Other
- Type of Adapter: Camera Adapter
Other Information
- Country of Manufacture: China
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
