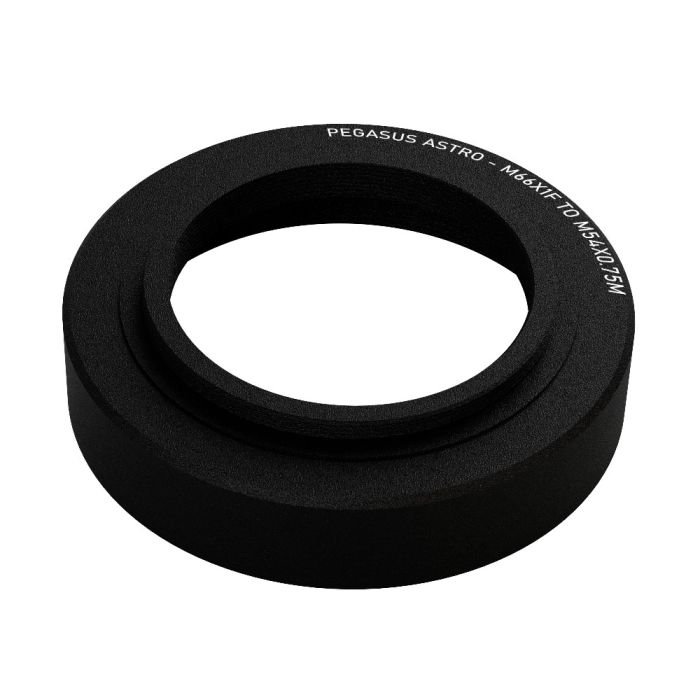

Pegasus Astro M66x1 Female to M54x0.75 Male Thread Adapter for SW Esprit 100 Flattener
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Description/Uses:
- Connects the SW Esprit 100 Flattener to female threaded M54x0.75 accessories. For example: SW Esprit 100 + M66F–M54M Adapter + Indigo OAG + Indigo Filter Wheel + QHY268M = 63 mm of backfocus.
- The telescope side has M66x1 female threads, while the other has M54x0.75 male
Features:
- Constructed of matte black anodized aluminum
- Preserves proper backfocus for imaging when connected to M54 accessories
- Precision threading ensures secure connections with compatible products
Specifications:
- Total length = 19 mm (0.75 in)
- Length of M54x0.75 male thread (including unthreaded undercut) = 3 mm (0.12 in)
- Length of M66x1 female thread = 6.5 mm (0.26 in)
- Optical length = 16 mm (0.63 in)
- Clear aperture = 47.2 mm (1.86 in)
- Maximum outside diameter = 75 mm (2.95 in)
- Weight = 2.1 oz (60 g)
Other Information
- Country of Manufacture: China
Description/Uses:
- Connects the SW Esprit 100 Flattener to female threaded M54x0.75 accessories. For example: SW Esprit 100 + M66F–M54M Adapter + Indigo OAG + Indigo Filter Wheel + QHY268M = 63 mm of backfocus.
- The telescope side has M66x1 female threads, while the other has M54x0.75 male
Features:
- Constructed of matte black anodized aluminum
- Preserves proper backfocus for imaging when connected to M54 accessories
- Precision threading ensures secure connections with compatible products
Specifications:
- Total length = 19 mm (0.75 in)
- Length of M54x0.75 male thread (including unthreaded undercut) = 3 mm (0.12 in)
- Length of M66x1 female thread = 6.5 mm (0.26 in)
- Optical length = 16 mm (0.63 in)
- Clear aperture = 47.2 mm (1.86 in)
- Maximum outside diameter = 75 mm (2.95 in)
- Weight = 2.1 oz (60 g)
Description/Uses:
- Connects the SW Esprit 100 Flattener to female threaded M54x0.75 accessories. For example: SW Esprit 100 + M66F–M54M Adapter + Indigo OAG + Indigo Filter Wheel + QHY268M = 63 mm of backfocus.
- The telescope side has M66x1 female threads, while the other has M54x0.75 male
Features:
- Constructed of matte black anodized aluminum
- Preserves proper backfocus for imaging when connected to M54 accessories
- Precision threading ensures secure connections with compatible products
Specifications:
- Total length = 19 mm (0.75 in)
- Length of M54x0.75 male thread (including unthreaded undercut) = 3 mm (0.12 in)
- Length of M66x1 female thread = 6.5 mm (0.26 in)
- Optical length = 16 mm (0.63 in)
- Clear aperture = 47.2 mm (1.86 in)
- Maximum outside diameter = 75 mm (2.95 in)
- Weight = 2.1 oz (60 g)
Other Information
- Country of Manufacture: China
