Agena Deluxe Cordless Illuminator for Reticle Eyepieces

Our #: E-AG-CILL
Mfg #: E-AG-CILL
Our Price: $27.95
Free shipping for this item in the US
More Info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

Out of Stock
Availability: Expected late April

Product Details

This is the same illuminator that we include with our popular Agena 20mm SWA and 20mm Reticle Eyepieces. It is also offered separately as a replacement illuminator for many brands of reticle eyepieces on the market.

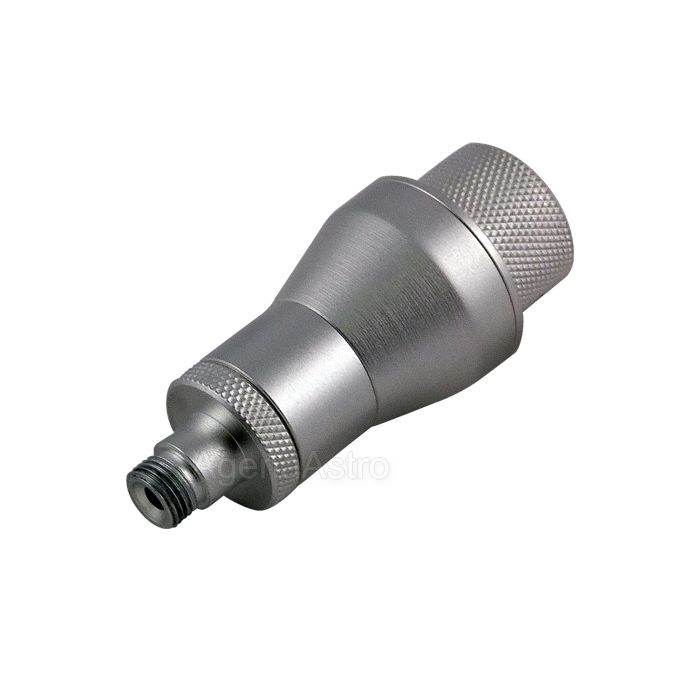

The adjustable brightness red LED (light emitting diode) illuminator features an all metal body with combination On/Off switch. It is threaded at one end to fit reticle eyepieces with a standard 8mm female threaded port (M8x0.75 thread specification). Requires two LR44 batteries (included). Weight = 1.1oz. Made in China.

This item has been tested to fit and work well with the following reticle eyepieces which feature an M8x0.75 thread:

  • Agena 20mm SWA Cordless IRE (E-AG-SWA20IRE)
  • Agena 24mm Cordless XRE (E-AG-24XRE)
  • Antares 1.25" Illuminated Reticle Kellner Eyepiece - 10mm (# IRK10)
  • Antares 1.25" Illuminated Reticle Kellner Eyepiece - 27mm (# IRK27)
  • Astro-Tech 24mm Illuminated Centering Eyepiece (# AT24IL)
  • Celestron 1.25" Micro Guide Eyepiece - 12.5mm (# 94171)
  • Meade 1.25" Plossl Wireless IRE - 9mm (# 07068)
  • Meade 1.25" Wireless IRE - MA 12mm (# 07066)
  • Meade 1.25" Wireless IR Astrometric Eyepiece - MA 12mm (# 07069)
  • Meade 1.25" Plossl CCD Framing Eyepiece - 25mm (# 07568)
  • Orion 20mm Illuminated Centering Telescope Eyepiece (# 08239)
This illuminator may possibly be used with the following items, all of which feature an M8x1 thread. The illuminator catches on only by a thread or two due to thread pitch differences, which is not ideal but will be adequate.
  • Agena 12.5mm Cordless IRE (E-AG-IRE12.5)
  • Celestron 50mm Right Angle Finder (# 93781):
  • Celestron CrossAim Reticle Eyepiece (# 93235)

If your reticle eyepiece is not  listed above, then we cannot confirm whether this item will work for you or not.

Useful Resources

User Manual: Agena Cordless Illuminator Manual (PDF format, 102KB)

Other Information

  • Country of Manufacture: China
