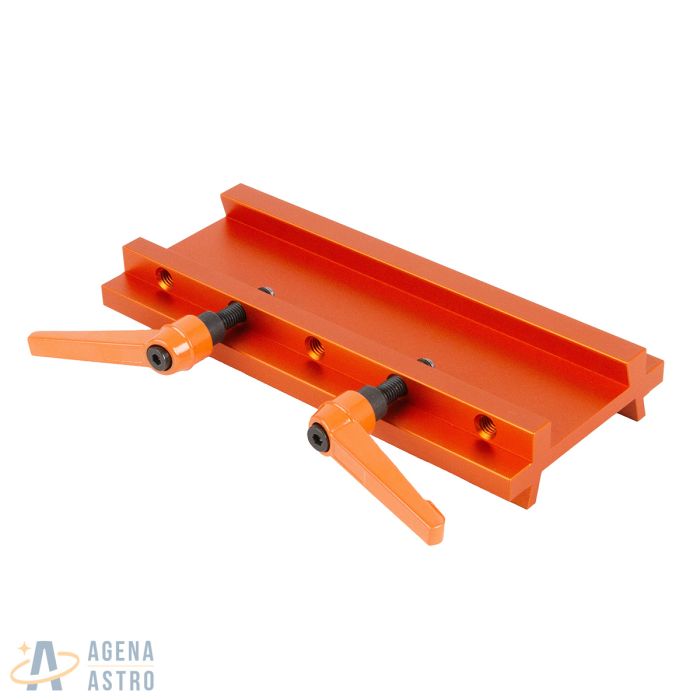

Agena Dovetail Converter to Convert D Series Losmandy Mount to V Series Vixen Mount (Orange) - 205mm (8.0") Length
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
This dovetail saddle will allow you to adapt telescopes and equipment that use Vixen-style dovetail bars to a mount saddle that only accepts the larger and wider Losmandy D style. There are five screw holes on the side of the saddle so you can select the width of the locking screws. The adapter is CNC machined and there is no mounting tool required for installation.
Specifications:
- Length: 206mm (8.1")
- Width: 95.3mm (3.75")
-
Height: 31.9mm (1.25")
-
Vixen dovetail max opening width: 47.5mm (1.87")
-
Vixen dovetail min opening width: 38.5mm (1.51")
-
(5x) threaded M8x1.25 holes
-
(2x) adjustable locking screws with handles
-
Weight: 27.3oz (1.70lbs)
Other Information
- Country of Manufacture: China
This dovetail saddle will allow you to adapt telescopes and equipment that use Vixen-style dovetail bars to a mount saddle that only accepts the larger and wider Losmandy D style. There are five screw holes on the side of the saddle so you can select the width of the locking screws. The adapter is CNC machined and there is no mounting tool required for installation.
Specifications:
- Length: 206mm (8.1")
- Width: 95.3mm (3.75")
-
Height: 31.9mm (1.25")
-
Vixen dovetail max opening width: 47.5mm (1.87")
-
Vixen dovetail min opening width: 38.5mm (1.51")
-
(5x) threaded M8x1.25 holes
-
(2x) adjustable locking screws with handles
-
Weight: 27.3oz (1.70lbs)
This dovetail saddle will allow you to adapt telescopes and equipment that use Vixen-style dovetail bars to a mount saddle that only accepts the larger and wider Losmandy D style. There are five screw holes on the side of the saddle so you can select the width of the locking screws. The adapter is CNC machined and there is no mounting tool required for installation.
Specifications:
- Length: 206mm (8.1")
- Width: 95.3mm (3.75")
-
Height: 31.9mm (1.25")
-
Vixen dovetail max opening width: 47.5mm (1.87")
-
Vixen dovetail min opening width: 38.5mm (1.51")
-
(5x) threaded M8x1.25 holes
-
(2x) adjustable locking screws with handles
-
Weight: 27.3oz (1.70lbs)
Other Information
- Country of Manufacture: China
