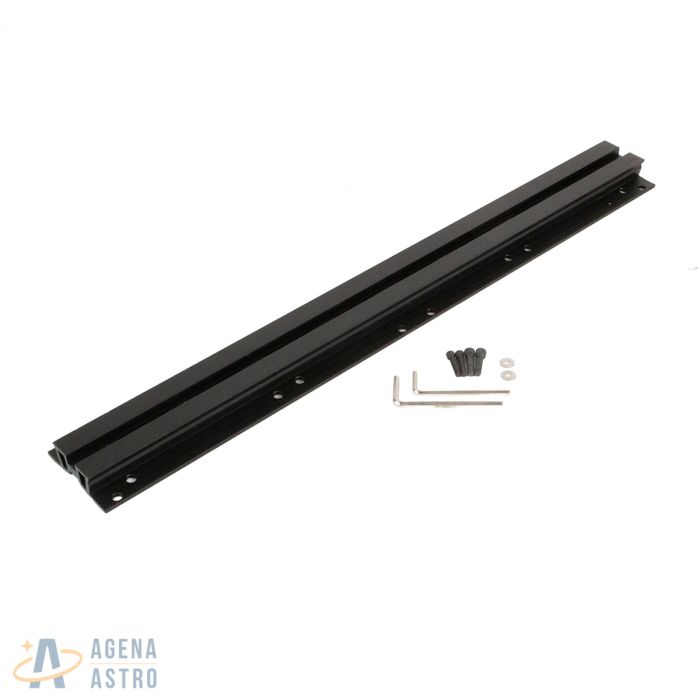

Agena V Series Vixen-Style Dovetail Plate - 530mm (20.8") Length
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
This Agena Vixen-style dovetail bar will allow you to mount your telescope to any saddle that accepts Vixen dovetails such as Vixen, Celestron, SkyWatcher, IOptron, ZWO, Losmandy and others. Includes thirteen threaded and twenty non-threaded mounting holes. Anodized black.
Specifications:
- Length: 530mm (20.8")
- Width: 70mm (3.75")
- Height: 20.0mm (1.25")
- Max dovetail width: 43.3mm (1.7")
- Weight: 24.48oz (1.53lbs)
- (4x) threaded M5x0.8 holes
- (9x) threaded 1/4"-20 holes
- (20x) non-threaded holes
- (2x) 8-32 socket head cap screws
- (2x) 10-24 socket head cap screws
- (2x) Allen keys
- (2x) washers
Other Information
- Country of Manufacture: China
This Agena Vixen-style dovetail bar will allow you to mount your telescope to any saddle that accepts Vixen dovetails such as Vixen, Celestron, SkyWatcher, IOptron, ZWO, Losmandy and others. Includes thirteen threaded and twenty non-threaded mounting holes. Anodized black.
Specifications:
- Length: 530mm (20.8")
- Width: 70mm (3.75")
- Height: 20.0mm (1.25")
- Max dovetail width: 43.3mm (1.7")
- Weight: 24.48oz (1.53lbs)
- (4x) threaded M5x0.8 holes
- (9x) threaded 1/4"-20 holes
- (20x) non-threaded holes
- (2x) 8-32 socket head cap screws
- (2x) 10-24 socket head cap screws
- (2x) Allen keys
- (2x) washers
This Agena Vixen-style dovetail bar will allow you to mount your telescope to any saddle that accepts Vixen dovetails such as Vixen, Celestron, SkyWatcher, IOptron, ZWO, Losmandy and others. Includes thirteen threaded and twenty non-threaded mounting holes. Anodized black.
Specifications:
- Length: 530mm (20.8")
- Width: 70mm (3.75")
- Height: 20.0mm (1.25")
- Max dovetail width: 43.3mm (1.7")
- Weight: 24.48oz (1.53lbs)
- (4x) threaded M5x0.8 holes
- (9x) threaded 1/4"-20 holes
- (20x) non-threaded holes
- (2x) 8-32 socket head cap screws
- (2x) 10-24 socket head cap screws
- (2x) Allen keys
- (2x) washers
Other Information
- Country of Manufacture: China
Agena V Series Vixen-Style Dovetail Plate - 530mm (20.8") Length
