Agena V Series Vixen-Style Dovetail Rail - 220mm (8.7") Length
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.

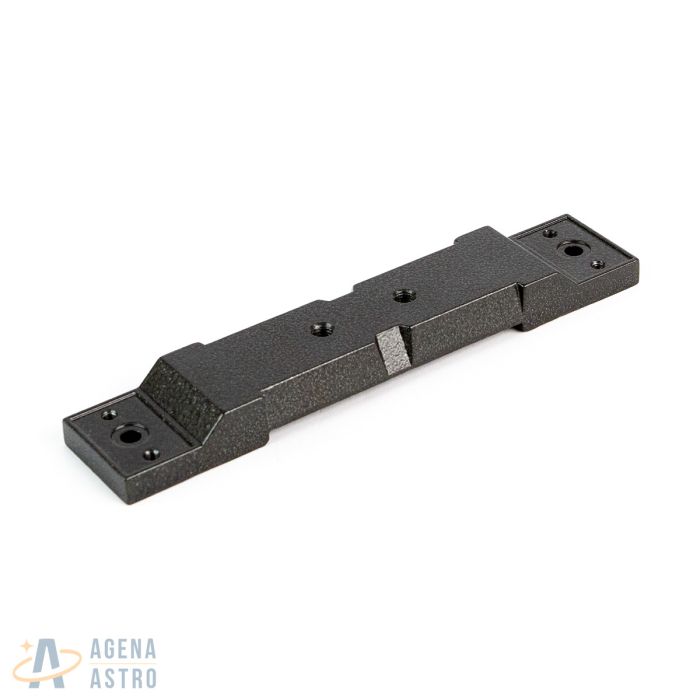

The Agena Vixen-style 8.7" dovetail bar is made of aluminum and features a gunmetal gray finish similar to the color of many equatorial mounts sold today. This will allow you to couple telescope tubes to a telescope mount. It will fit most Vixen, Synta and other mounts that use a Vixen standard mounting base. The dovetail bar is 8.7" long and 1.67" wide. The two center M8x1.25 holes are threaded while the other two M8x1.25 holes are non-threaded. The two M8x1.25 holes in the center of the plate are 1.39" apart (center-to-center) and the two M8x1.25 holes at the edges are 7.5" apart. There are also four 10-32" threaded holes. Two at each end spaced 1.06" apart. Weight = 6.34oz / 180g.
Other Information
- Country of Manufacture: Taiwan
The Agena Vixen-style 8.7" dovetail bar is made of aluminum and features a gunmetal gray finish similar to the color of many equatorial mounts sold today. This will allow you to couple telescope tubes to a telescope mount. It will fit most Vixen, Synta and other mounts that use a Vixen standard mounting base. The dovetail bar is 8.7" long and 1.67" wide. The two center M8x1.25 holes are threaded while the other two M8x1.25 holes are non-threaded. The two M8x1.25 holes in the center of the plate are 1.39" apart (center-to-center) and the two M8x1.25 holes at the edges are 7.5" apart. There are also four 10-32" threaded holes. Two at each end spaced 1.06" apart. Weight = 6.34oz / 180g.
The Agena Vixen-style 8.7" dovetail bar is made of aluminum and features a gunmetal gray finish similar to the color of many equatorial mounts sold today. This will allow you to couple telescope tubes to a telescope mount. It will fit most Vixen, Synta and other mounts that use a Vixen standard mounting base. The dovetail bar is 8.7" long and 1.67" wide. The two center M8x1.25 holes are threaded while the other two M8x1.25 holes are non-threaded. The two M8x1.25 holes in the center of the plate are 1.39" apart (center-to-center) and the two M8x1.25 holes at the edges are 7.5" apart. There are also four 10-32" threaded holes. Two at each end spaced 1.06" apart. Weight = 6.34oz / 180g.
Other Information
- Country of Manufacture: Taiwan
