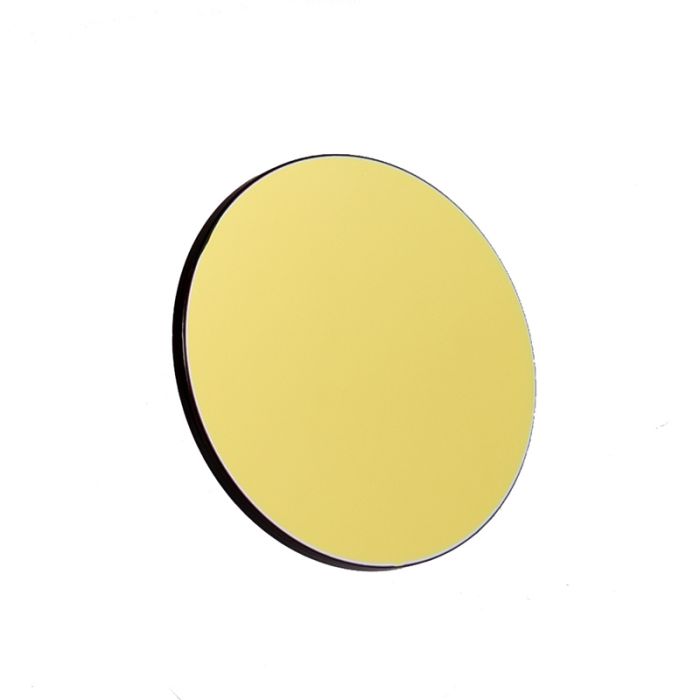

Antlia 3.5nm Narrowband H-Alpha (Ha) Imaging Filter - 36mm Unmounted
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Closeout - All Sales Final
The Antlia H-Alpha (Ha) 3.5nm filter is suitable for imaging of H-Alpha emissions from nebulas, planetary nebulas and supernova remnants. The 3.5nm bandwidth delivers a high transmission at a center wavelength of 656.3nm. The extreme narrowness in bandwidth enables astro-imaging from heavily light polluted locations and delivers improved contrast at darker sites. The filter effectively suppresses interference from other wavelengths, especially artificial mercury and sodium lamps.
Antlia narrowband filters are designed to bring out the faintest features in nebulosity by reducing the unwanted background frequencies – the narrower the filter, the better. Antlia's H-Alpha filter is designed to deliver 90% transmission at the 656.3nm line. The out-of-band blocking specification is rated OD3 (0.1%) which delivers an excellent signal-to-noise ratio and effective cut-off rate to minimize interference from other wavelengths.
A sharp cut-off rate is a very important performance index since it is designed to sharply attenuate off-band wavelengths. The result is that the Antlia Ha filter delivers excellent contrast with extremely dark backgrounds whilst delivering a high transmission of the Ha signal. The sharp cut-off also minimizes the effect of halos around bright stars.
In the production process, Antlia uses very strict quality control standards. Each filter is individually tested and scanned to ensure that the product meets their high-performance parameters. Their exacting attention to tolerances requires each substrate to have a uniform thickness that achieves no more +/-0.05mm deviation from specification.
Application and Performance:
- Ultra-narrow 3.5 nm bandwidths, designed for astronomy imaging in both light polluted and dark sites.
- Suitable for imaging of H-Alpha emission in nebulas, planetary nebulas and supernova remnants.
- With the Ha, SII, OIII set of filters (SII and OIII sold separately), you are able to process your images to achieve the impressive Hubble color palette.
- The Ha and OIII filters (OIII sold separately) can be used to achieve great narrowband results using the Bi-Color process.
- High transmission of typically 90% and sharp cut-off delivers an excellent boost in contrast for Ha emitting objects.
- All Antlia Narrowband filters are edge blackened to minimize interference from stray light.
- This filter is not suited to deep sky objects that do not contain Ha emissions. It can be used to image Ha regions in galaxies and such images can be combined into LRGB images to better highlight the Ha emitting regions of galaxies.
Technical Data:
- Schott optical substrate
- 36mm round unmounted (2mm thickness +/-0.05mm). Additional sizes available separately
- Surface Quality: 60/40 (Refer to MIL-O-13830)
- 2 sides fine-optically polished to ensure accurate 1/4 wavefront
- 30 arcsec parallelism
- Center-Wavelength of Antlia H-Alpha 3.5nm filter: 656.3nm
- H-Alpha 656.3nm T>90%, 90% transmission at H-Alpha line 656.3nm
- OD3 (0.1%) @ 300-1000nm
- 2 sides Multi-layers anti-reflection coating
- Single / Non-glued substrate
Filter Ring:
- None. 36mm round diameter, Unmounted
Not Recommended:
- Solar Observing and imaging
- Visual observation
- DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will result if you fail to observe the warning.
Other Information
- Country of Manufacture: China
