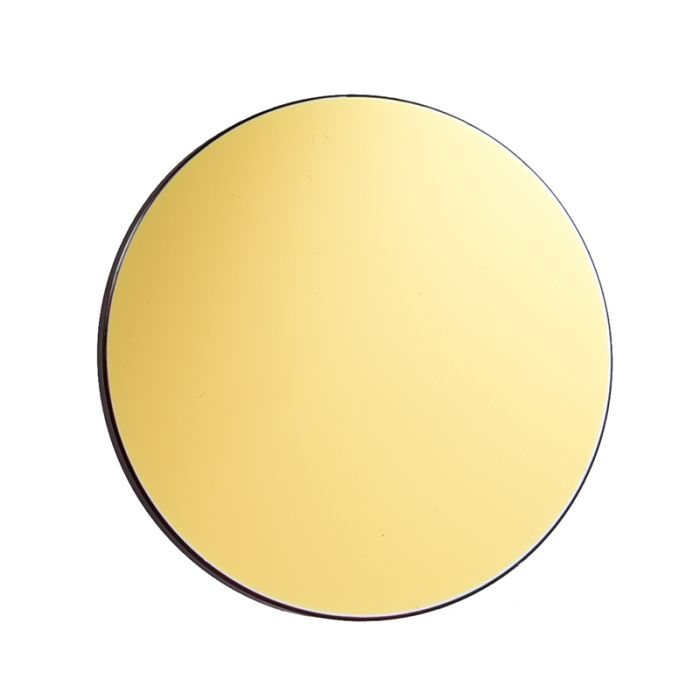

Antlia 3nm Narrowband H-Alpha (Ha) Pro Imaging Filter - 50mm Unmounted
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
This H-alpha 3nm Pro narrowband filter is the upgraded version of the Antlia H-alpha 3.5nm filter. The narrower bandwidth of this filter enhances the contrast of nebulae that emit H-alpha by decreasing transmission of out-of-band wavelengths from light pollution, the moon, and chromatic aberration of bright stars. The filter rejects out-of-band wavelengths by up to 5 OD (99.999%).
This filter is suitable for imaging most emission nebulae, planetary nebulae and supernova remnants with monochrome astronomy cameras. It can bring out a tremendous amount of detail in nebulae where H-alpha emission is present. Because the filter passes little light outside the H-alpha band, longer exposure times and larger apertures or faster focal ratios may be necessary.
The H-Alpha 3nm Pro filter is designed to deliver >90% transmission at the center wavelength of 656.3nm. The transmission of the H-alpha 3nm Pro over its working bandwidth guarantees high transmittance when working with both long focal ratios and fast optical systems (as fast as f/3).
For the H-alpha 3nm Pro narrowband filter, we use latest coating technology to achieve 5 OD (0.001%) out of band blocking. Each filter is individually tested and scanned to ensure that product quality meets our high-performance parameters. The end result is a filter that achieves excellent contrast but with a price-to-performance ratio that compares more favorably than similar premium filters in the market.
Features:
- Extra narrow 3nm bandwidth for superb contrast and ability to record the faintest H-alpha nebula detail
- > 5 OD (0.001%) (out of band blocking) @300-1000nm
- Steep spectral profile minimizes halos around bright stars
- Peak transmittance guaranteed >90% at the emission line 656.3nm to increase the contrast in the shortest possible imaging time
- 3nm Pro Narrowband filters are coated to the edge of the part and are edge blackened to minimize reflections and stray light
- A single substrate to eliminate internal reflections
- 3nm filters can be used with fast optical systems to f/3 with only slight loss of signal
- Parfocal with Antlia LRGB, SII and OIII filters (telescope optics need additional consideration)
- The Ha filter can be used with SII,OIII set of filters to achieve the impressive Hubble color palette
- Superior optical reliability reduces post image processing
- This filter is not suited to deep sky objects that do not contain Ha emissions
- NOT SAFE FOR USE AS A SOLAR FILTER
Specifications:
- 50mm round unmounted (3mm thickness +/-0.05mm)
- Surface Quality: 60/40 (Refer to MIL-O-13830)
- 2 sides fine-optically polished to ensure accurate 1/4 wavefront
- 30 arc second parallelism
- Center-Wavelength of Antlia H-Alpha 3nm Pro filter: 656.3nm
- H-Alpha 656.3nm T＞90%, 90% transmission at H-Alpha line 656.3nm
- > 5 OD(0.001%) @ 300-1000nm
- 2 sides multi-layers anti-reflection coating
- Single / Non-glued substrate
Filter Ring:
- None. 50mm round diameter, Unmounted
Not Recommended:
- Visual observation
- DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS
Other Information
- Country of Manufacture: China
