Antlia 3nm Narrowband Ionized Nitrogen (NII) Pro Imaging Filter - 2" Mounted
- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- 3nm bandwidth to maximize contrast in NII (ionized Nitrogen) emissions.
- Steep spectral profile minimizes halos around bright stars.
- A single substrate to eliminate internal reflections.
- Use in light polluted areas and dark sites.
- Extend imaging time when the moon is up.
- Can be used down to f/3 with minimal loss of signal.
Antlia NII 3nm Pro Narrowband Imaging Filter - 2'-inch Mounted
The Antlia Ionized Nitrogen NII Pro 2-inch mounted narrowband filter boosts the contrast of nebulous targets by minimizing background signal. Its ultra-narrow 3nm bandpass effectively blocks most light pollution and Moon/sky glow, making it a valuable addition to your setup in both urban and dark-sky locations. This NII filter is optimized for long-exposure imaging and is not recommended for visual observation.
Designed to achieve an impressive 88% transmission at the 654.8 nm line, Antlia NII 3 nm Pro filters provide maximum signal and enhance fine nebulous structure. The out-of-band blocking specification is rated at OD5 (0.001%), ensuring excellent signal-to-noise ratio (SNR) and effective cutoff rates to minimize interference from other wavelengths. These improved sharp-cutoff astrophotography 3 nm Pro filters are specifically engineered to reduce halos around bright stars, delivering superior optical reliability that reduces post-image processing. Please note: this filter is not intended for solar imaging or observation.

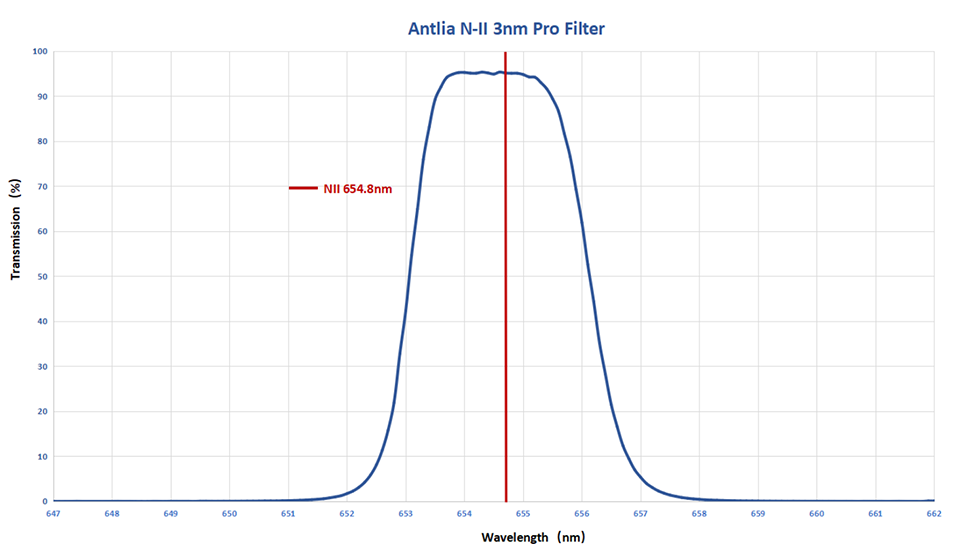

Spectral Curve Chart
Specifications
- FWHM (Full width at half maximum): 3 nm
- CWL (Central wavelength): 654.8 nm
- Peak transmission: 88%
- Blocking: > 5 OD (out of band blocking) @ 300-1100nm
- Filter thickness: 2 mm+/-0.05 mm
- Basic substrate: Optical, Single / Non-glued substrate
- Surface quality: S/D (scratch/dig)= 60/40 (Refer to MIL-O-13830
- Transmitted wavefront: Lambda/4 or better
- Parallelism: Less than 30 arcsec
Filter Ring:
- Thread: 2 in (M48x0.75)
- Material: Black anodized finish
- Laser Engraving No Fading
- Ultra-thin filter cell to minimize vignetting to maximize clear aperture.
Other Information
- Country of Manufacture: China
Antlia NII 3nm Pro Narrowband Imaging Filter - 2'-inch Mounted
The Antlia Ionized Nitrogen NII Pro 2-inch mounted narrowband filter boosts the contrast of nebulous targets by minimizing background signal. Its ultra-narrow 3nm bandpass effectively blocks most light pollution and Moon/sky glow, making it a valuable addition to your setup in both urban and dark-sky locations. This NII filter is optimized for long-exposure imaging and is not recommended for visual observation.
Designed to achieve an impressive 88% transmission at the 654.8 nm line, Antlia NII 3 nm Pro filters provide maximum signal and enhance fine nebulous structure. The out-of-band blocking specification is rated at OD5 (0.001%), ensuring excellent signal-to-noise ratio (SNR) and effective cutoff rates to minimize interference from other wavelengths. These improved sharp-cutoff astrophotography 3 nm Pro filters are specifically engineered to reduce halos around bright stars, delivering superior optical reliability that reduces post-image processing. Please note: this filter is not intended for solar imaging or observation.
Spectral Curve Chart
Specifications
- FWHM (Full width at half maximum): 3 nm
- CWL (Central wavelength): 654.8 nm
- Peak transmission: 88%
- Blocking: > 5 OD (out of band blocking) @ 300-1100nm
- Filter thickness: 2 mm+/-0.05 mm
- Basic substrate: Optical, Single / Non-glued substrate
- Surface quality: S/D (scratch/dig)= 60/40 (Refer to MIL-O-13830
- Transmitted wavefront: Lambda/4 or better
- Parallelism: Less than 30 arcsec
Filter Ring:
- Thread: 2 in (M48x0.75)
- Material: Black anodized finish
- Laser Engraving No Fading
- Ultra-thin filter cell to minimize vignetting to maximize clear aperture.
| Manufacturer | Antlia Filters |
|---|
- 3nm bandwidth to maximize contrast in NII (ionized Nitrogen) emissions.
- Steep spectral profile minimizes halos around bright stars.
- A single substrate to eliminate internal reflections.
- Use in light polluted areas and dark sites.
- Extend imaging time when the moon is up.
- Can be used down to f/3 with minimal loss of signal.
Antlia NII 3nm Pro Narrowband Imaging Filter - 2'-inch Mounted
The Antlia Ionized Nitrogen NII Pro 2-inch mounted narrowband filter boosts the contrast of nebulous targets by minimizing background signal. Its ultra-narrow 3nm bandpass effectively blocks most light pollution and Moon/sky glow, making it a valuable addition to your setup in both urban and dark-sky locations. This NII filter is optimized for long-exposure imaging and is not recommended for visual observation.
Designed to achieve an impressive 88% transmission at the 654.8 nm line, Antlia NII 3 nm Pro filters provide maximum signal and enhance fine nebulous structure. The out-of-band blocking specification is rated at OD5 (0.001%), ensuring excellent signal-to-noise ratio (SNR) and effective cutoff rates to minimize interference from other wavelengths. These improved sharp-cutoff astrophotography 3 nm Pro filters are specifically engineered to reduce halos around bright stars, delivering superior optical reliability that reduces post-image processing. Please note: this filter is not intended for solar imaging or observation.
Spectral Curve Chart
Specifications
- FWHM (Full width at half maximum): 3 nm
- CWL (Central wavelength): 654.8 nm
- Peak transmission: 88%
- Blocking: > 5 OD (out of band blocking) @ 300-1100nm
- Filter thickness: 2 mm+/-0.05 mm
- Basic substrate: Optical, Single / Non-glued substrate
- Surface quality: S/D (scratch/dig)= 60/40 (Refer to MIL-O-13830
- Transmitted wavefront: Lambda/4 or better
- Parallelism: Less than 30 arcsec
Filter Ring:
- Thread: 2 in (M48x0.75)
- Material: Black anodized finish
- Laser Engraving No Fading
- Ultra-thin filter cell to minimize vignetting to maximize clear aperture.
Other Information
- Country of Manufacture: China
| Manufacturer | Antlia Filters |
|---|
