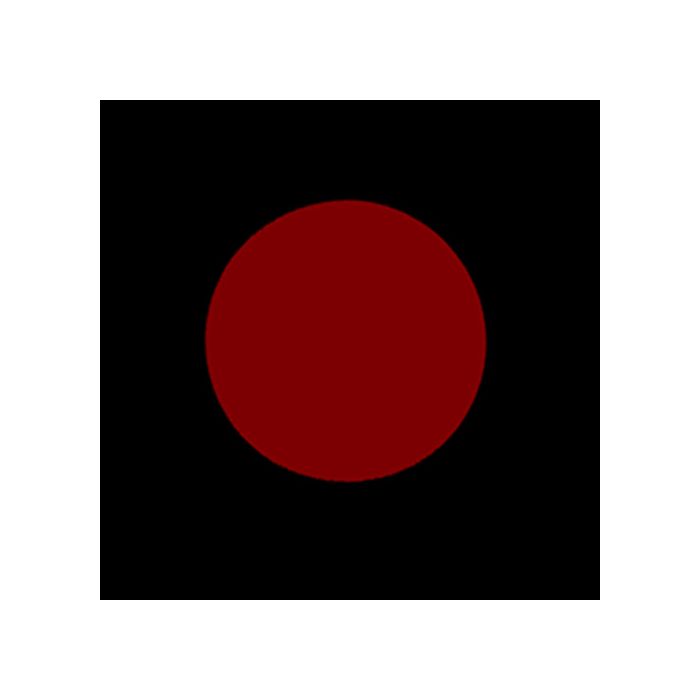

Antlia Dark Series R+ Imaging Filter - 2" Mounted
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
The Antlia LRGBR+ Dark series filters are designed with a full spectrum curve from 390nm to 1000nm, making it sensitive to both UV and IR light for high signal-to-noise ratio and contrast imaging in deep sky full-spectrum photography.
Considering the high quantum efficiency (QE) of the cameras in the near-infrared bands, Antlia incorporates a Red+ 700-1000nm filter into LRGB dark filter series (sold separately) to capture valuable signals that cannot be detected by regular LRGB filters.
In post-processing, combine the R and R+ channels to create a new R channel. The remaining steps for processing are identical to those used as regular LRGB filters.
Applications and Performance:
- Full spectrum design enhances the sensitivity of imaging to both UV and IR light.
- More infrared signal to be found by combining Red+ filter with LRGB Dark filters;
- Out of band blocking specification is designed to OD4.5 (0.005%) to block interference from other wavelengths and minimize halos around bright stars;
- Identical filter thickness to existing standards and double-sided fine polishing , with utmost care for parfocality
- All Antlia filters are coated to the edge of the substrate and unmounted narrowband filters are edge blackened to eliminate internal reflections from stray light
- Filters are resistant to scratches
- Warranty: 3-years against delamination.
Technical Specifications:
Red+ filter:
- Transmission Range: 700-1000nm
- Peak Transmission: 95%
- Substrate: HWB
- Blocking: ≥OD4.5 (0.005%)
- Filter Thickness: 2mm+/-0.05mm
Filter Ring:
- 2" Mounted (M48.5x0.75 thread)
- Ultra-thin filter cell to minimize vignetting by maximizing possible clear aperture
- Black Anodized Finish
- Laser Engraving, No Fading
Not Recommended:
- Solar Observing and imaging
- Night visual observation
DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will result if you fail to observe the warning.
Useful Resources
Filter Cell Specifications
D = Filter Cell Diameter = 50.3 mm / 2.0 in
T = Total Filter Height = 7.3 mm / 0.28 in
C = Filter Cell Height (Excluding Male Thread) = 4.9 mm / 0.19 in
M = Male Thread Length = 2.5 mm / 0.09 in
F = USABLE Female Filter Thread Length = Not threaded, so you cannot stack additional filters
S = Glass Substrate Thickness = 2 mm / 0.07 in
CA = Clear Aperture = 45 mm / 1.77 in
Other Information
- Country of Manufacture: China
The Antlia LRGBR+ Dark series filters are designed with a full spectrum curve from 390nm to 1000nm, making it sensitive to both UV and IR light for high signal-to-noise ratio and contrast imaging in deep sky full-spectrum photography.
Considering the high quantum efficiency (QE) of the cameras in the near-infrared bands, Antlia incorporates a Red+ 700-1000nm filter into LRGB dark filter series (sold separately) to capture valuable signals that cannot be detected by regular LRGB filters.
In post-processing, combine the R and R+ channels to create a new R channel. The remaining steps for processing are identical to those used as regular LRGB filters.
Applications and Performance:
- Full spectrum design enhances the sensitivity of imaging to both UV and IR light.
- More infrared signal to be found by combining Red+ filter with LRGB Dark filters;
- Out of band blocking specification is designed to OD4.5 (0.005%) to block interference from other wavelengths and minimize halos around bright stars;
- Identical filter thickness to existing standards and double-sided fine polishing , with utmost care for parfocality
- All Antlia filters are coated to the edge of the substrate and unmounted narrowband filters are edge blackened to eliminate internal reflections from stray light
- Filters are resistant to scratches
- Warranty: 3-years against delamination.
Technical Specifications:
Red+ filter:
- Transmission Range: 700-1000nm
- Peak Transmission: 95%
- Substrate: HWB
- Blocking: ≥OD4.5 (0.005%)
- Filter Thickness: 2mm+/-0.05mm
Filter Ring:
- 2" Mounted (M48.5x0.75 thread)
- Ultra-thin filter cell to minimize vignetting by maximizing possible clear aperture
- Black Anodized Finish
- Laser Engraving, No Fading
Not Recommended:
- Solar Observing and imaging
- Night visual observation
DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will result if you fail to observe the warning.
The Antlia LRGBR+ Dark series filters are designed with a full spectrum curve from 390nm to 1000nm, making it sensitive to both UV and IR light for high signal-to-noise ratio and contrast imaging in deep sky full-spectrum photography.
Considering the high quantum efficiency (QE) of the cameras in the near-infrared bands, Antlia incorporates a Red+ 700-1000nm filter into LRGB dark filter series (sold separately) to capture valuable signals that cannot be detected by regular LRGB filters.
In post-processing, combine the R and R+ channels to create a new R channel. The remaining steps for processing are identical to those used as regular LRGB filters.
Applications and Performance:
- Full spectrum design enhances the sensitivity of imaging to both UV and IR light.
- More infrared signal to be found by combining Red+ filter with LRGB Dark filters;
- Out of band blocking specification is designed to OD4.5 (0.005%) to block interference from other wavelengths and minimize halos around bright stars;
- Identical filter thickness to existing standards and double-sided fine polishing , with utmost care for parfocality
- All Antlia filters are coated to the edge of the substrate and unmounted narrowband filters are edge blackened to eliminate internal reflections from stray light
- Filters are resistant to scratches
- Warranty: 3-years against delamination.
Technical Specifications:
Red+ filter:
- Transmission Range: 700-1000nm
- Peak Transmission: 95%
- Substrate: HWB
- Blocking: ≥OD4.5 (0.005%)
- Filter Thickness: 2mm+/-0.05mm
Filter Ring:
- 2" Mounted (M48.5x0.75 thread)
- Ultra-thin filter cell to minimize vignetting by maximizing possible clear aperture
- Black Anodized Finish
- Laser Engraving, No Fading
Not Recommended:
- Solar Observing and imaging
- Night visual observation
DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will result if you fail to observe the warning.
Useful Resources
Filter Cell Specifications
D = Filter Cell Diameter = 50.3 mm / 2.0 in
T = Total Filter Height = 7.3 mm / 0.28 in
C = Filter Cell Height (Excluding Male Thread) = 4.9 mm / 0.19 in
M = Male Thread Length = 2.5 mm / 0.09 in
F = USABLE Female Filter Thread Length = Not threaded, so you cannot stack additional filters
S = Glass Substrate Thickness = 2 mm / 0.07 in
CA = Clear Aperture = 45 mm / 1.77 in
Other Information
- Country of Manufacture: China
