Antlia V-Series LRGB Pro Imaging Filter Set - 50mm Square
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
The Antlia LRGB V-series Pro filters are designed for monochrome cameras that use either CCD and CMOS sensors. Suitable sensors include KAF/KAI, Sony, GSENSE and other sensor manufacturers. This filter set is designed to approximately equalize the RGB response from monochrome sensors. The result is that you achieve 1:1:1 equalized RGB exposures with the benefit of simplified post processing and reduced dark frame library.
LRGB V-series filters highlight both the spectral gap design between green and red filters to minimize effect of light pollution and high transmittance of useful emission lines which means that it remains effective for weaker emission lines from galaxies and nebulae. The V-series filters guarantee the high transmission of the OIII band in both the B and G filters (OIII signal >95% in blue and green). The bandwidth of the B channel is narrowed for the purpose of effectively improving the blue overflow around the star due to B channel overexposure when RGB is synthesized.
The Antlia V-series filters block the emission line around 589nm, which suppresses much of the light pollution from high-pressure sodium and mercury street lamps and results in a more natural color balance. The uniformity in substrate thickness delivers good parfocal performance across all of its narrowband filters.
Applications and Performance:
- Designed for monochrome CCD and CMOS cameras
- Great imaging colors for celestial objects, galaxies, star clusters and nebulae
- Transmittance rate > 95%, high optical throughput
- 2 sides AR coating, significant reflection and star halo reduction
- RGB color combine 1:1:1, resulting in well balanced RGB and LRGB images
- Equal RGB exposures means one master dark frame
- Parfocal across all filters in this set
- Improved color separation with suppression of mercury and sodium lines.
Technical Specifications:
- Schott optical substrate
- 50mm square umounted (2mm+/-0.05mm)
- Surface Quality: 60/40 (Refer to MIL-O-13830)
- 2 sides fine-optically polished to ensure accurate 1/4 wavefront
- 30 arcsec parallelism
- Tave > 95%
- OD3 (0.1%) @ 300-1050nm
- Multi-layers anti-reflection coating
- Single Non-glued substrate
Filter Ring:
- None. 50mm square, Unmounted
Not Recommended:
- Solar Observing and imaging
- Visual observation
- DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will result if you fail to observe the warning.
Includes:

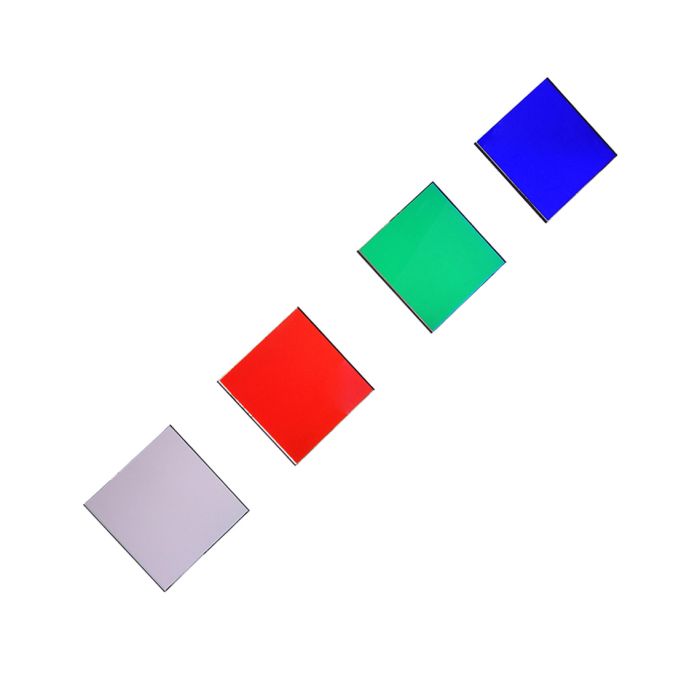

- Set includes 4 filters: Luminance (IR/UV-blocked colorless), Red, Green and Blue filters
Other Information
- Country of Manufacture: China
The Antlia LRGB V-series Pro filters are designed for monochrome cameras that use either CCD and CMOS sensors. Suitable sensors include KAF/KAI, Sony, GSENSE and other sensor manufacturers. This filter set is designed to approximately equalize the RGB response from monochrome sensors. The result is that you achieve 1:1:1 equalized RGB exposures with the benefit of simplified post processing and reduced dark frame library.
LRGB V-series filters highlight both the spectral gap design between green and red filters to minimize effect of light pollution and high transmittance of useful emission lines which means that it remains effective for weaker emission lines from galaxies and nebulae. The V-series filters guarantee the high transmission of the OIII band in both the B and G filters (OIII signal >95% in blue and green). The bandwidth of the B channel is narrowed for the purpose of effectively improving the blue overflow around the star due to B channel overexposure when RGB is synthesized.
The Antlia V-series filters block the emission line around 589nm, which suppresses much of the light pollution from high-pressure sodium and mercury street lamps and results in a more natural color balance. The uniformity in substrate thickness delivers good parfocal performance across all of its narrowband filters.
Applications and Performance:
- Designed for monochrome CCD and CMOS cameras
- Great imaging colors for celestial objects, galaxies, star clusters and nebulae
- Transmittance rate > 95%, high optical throughput
- 2 sides AR coating, significant reflection and star halo reduction
- RGB color combine 1:1:1, resulting in well balanced RGB and LRGB images
- Equal RGB exposures means one master dark frame
- Parfocal across all filters in this set
- Improved color separation with suppression of mercury and sodium lines.
Technical Specifications:
- Schott optical substrate
- 50mm square umounted (2mm+/-0.05mm)
- Surface Quality: 60/40 (Refer to MIL-O-13830)
- 2 sides fine-optically polished to ensure accurate 1/4 wavefront
- 30 arcsec parallelism
- Tave > 95%
- OD3 (0.1%) @ 300-1050nm
- Multi-layers anti-reflection coating
- Single Non-glued substrate
Filter Ring:
- None. 50mm square, Unmounted
Not Recommended:
- Solar Observing and imaging
- Visual observation
- DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will result if you fail to observe the warning.
Includes:
- Set includes 4 filters: Luminance (IR/UV-blocked colorless), Red, Green and Blue filters
The Antlia LRGB V-series Pro filters are designed for monochrome cameras that use either CCD and CMOS sensors. Suitable sensors include KAF/KAI, Sony, GSENSE and other sensor manufacturers. This filter set is designed to approximately equalize the RGB response from monochrome sensors. The result is that you achieve 1:1:1 equalized RGB exposures with the benefit of simplified post processing and reduced dark frame library.
LRGB V-series filters highlight both the spectral gap design between green and red filters to minimize effect of light pollution and high transmittance of useful emission lines which means that it remains effective for weaker emission lines from galaxies and nebulae. The V-series filters guarantee the high transmission of the OIII band in both the B and G filters (OIII signal >95% in blue and green). The bandwidth of the B channel is narrowed for the purpose of effectively improving the blue overflow around the star due to B channel overexposure when RGB is synthesized.
The Antlia V-series filters block the emission line around 589nm, which suppresses much of the light pollution from high-pressure sodium and mercury street lamps and results in a more natural color balance. The uniformity in substrate thickness delivers good parfocal performance across all of its narrowband filters.
Applications and Performance:
- Designed for monochrome CCD and CMOS cameras
- Great imaging colors for celestial objects, galaxies, star clusters and nebulae
- Transmittance rate > 95%, high optical throughput
- 2 sides AR coating, significant reflection and star halo reduction
- RGB color combine 1:1:1, resulting in well balanced RGB and LRGB images
- Equal RGB exposures means one master dark frame
- Parfocal across all filters in this set
- Improved color separation with suppression of mercury and sodium lines.
Technical Specifications:
- Schott optical substrate
- 50mm square umounted (2mm+/-0.05mm)
- Surface Quality: 60/40 (Refer to MIL-O-13830)
- 2 sides fine-optically polished to ensure accurate 1/4 wavefront
- 30 arcsec parallelism
- Tave > 95%
- OD3 (0.1%) @ 300-1050nm
- Multi-layers anti-reflection coating
- Single Non-glued substrate
Filter Ring:
- None. 50mm square, Unmounted
Not Recommended:
- Solar Observing and imaging
- Visual observation
- DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS. Serious eye damage will result if you fail to observe the warning.
Includes:
- Set includes 4 filters: Luminance (IR/UV-blocked colorless), Red, Green and Blue filters
Other Information
- Country of Manufacture: China
