APM 1.25" 6.25x Coma-Correcting ED Double Barlow # APM-Komakorr-DoubleBarlow

Our #: ZZOBAR-ZZAM-KK-DoubleBarlow
Mfg #: APM-Komakorr-DoubleBarlow
Sale Price: $212.00 Our Price: $265.00
Free shipping for this item in the US
More Info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

Out of Stock
Availability: Item has been discontinued by Agena and we no longer carry this item

Product Details

Closeout - All Sales Final

Original APM description below:

APM Coma correcting 1 1/4" ED Double Barlow 6.25 x

Designed by Gerd Düring / Germany

Our worldwide unique photo-visual apochromatic 2.7x Barlow with real ED glass, calculated for the correction of Off-Axis Coma in Newtonian telescopes, can now be combined with a second APM 2.7x Barlow at a specific distance to increase the magnification factor to 6.25x. Needless to say that coma correction is retained as is the corrected flat field.

On its own, a single barlow lens cell has a magnification factor of 2.7x and will provide a fully illuminated imaging field of 26 mm at a back focus of 104.1 mm (measured from the shoulder of the lens cell). It is optimized for F/4 Newtonian type telescopes and when used with such also offers coma correction. This is particularly useful for manual Alt-Az Dobsonian users who can enjoy a coma free view of objects as they drift across the field of view.

To use the barlow in a 6.25x configuration, simply add a second 2.7x lens cell to the other end of the extension so there is a lens at each end. This configuration yields a corrected field of 14mm at a distance of 83.1mm from the shoulder of the lens cell (84mm from the centre of the last element).

The double Barlow permits very high magnification with Newtonian telescopes for planetary imaging while still retaining a respectably low F ratio needed for high frame rates. Simply set your camera sensor back 83.1mm from the shoulder of the last lens cell to have the correct back focus for imaging.

The design of each single Barlow element follows APM’s usual principles of outstanding optical quality. It features a double lense group using the Chinese ED glass FK61 (similar to Ohara FPL51). The lenses are soft cemented and applied on both sides with a broadband multicoating with over 99 % transmission for wavelength from 400 nm to 700 nm.

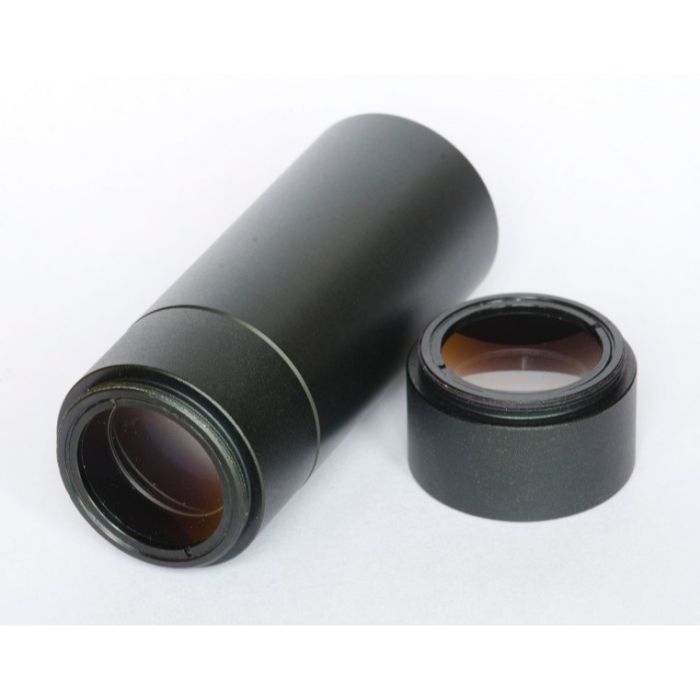

Delivery contents

  • Two 1 1/4" ED-Barlow Element with 28.4 mm Fiter thread
  • 1 1/4 Extension

Specifications:

  • Coating: Broadband Multicoating
  • Housing material: Aluminium
  • Magnification: 6.25x
  • Lenses: 2 x 2 Lenses
  • Optical design: Cemented Doublet
  • Connecting thread: M 28.4 mm Filter thread both sides
  • Backfocus: 84 mm (from the centre of the last element)
  • Made for: Newtonian Telescopes (optimized for f/4)
  • Fully corrected field: 14 mm
  • Fully illuminated field: 14 mm
