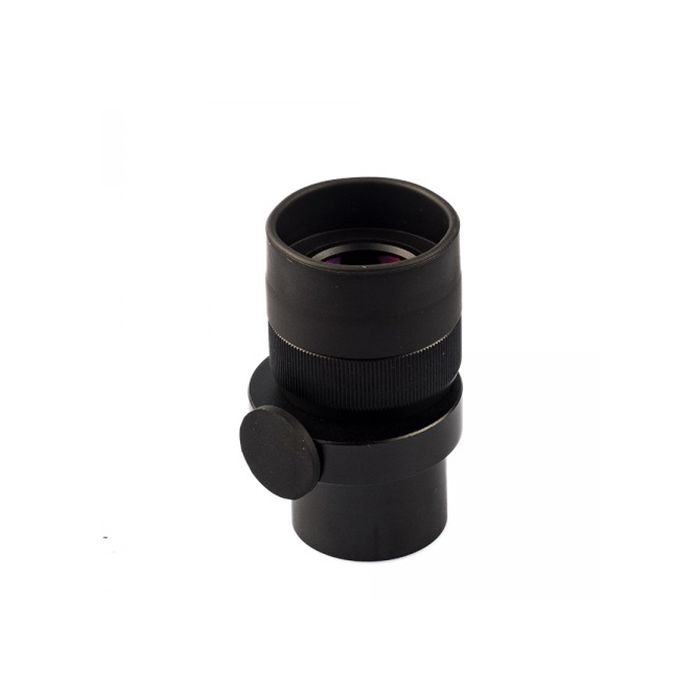

APM 1.25" 52° AFOV Reticle Eyepiece with Focusable Single Crosshair - 24mm
This item has been discontinued by Agena and we no longer offer this.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Closeout - All Sales Final
Original APM description below:
APM Crosshair eyepiece 24 mm 52° - 1.25" barrel
A high quality crosshair eyepiece with comfortable viewing position
A versatile and reasonable priced crosshair eyepiece with 1.25" barrel size, for many purposes:
- Astro photography with short focal lengths where no high magnification is necessary
- Precise alignment of GoTo telescopes
- Amateur making of viewfinders
Laser etched crosshair:
The crosshair is laser etched and unobtrusive. It does not disturb observation. It can be seen black in front of the skies background and red shining if an optional illumination device is used.
Specifications:
- Type of eyepiece: Crosshair Eyepiece
- Focal length: 24 mm
- Field of view: 52°
- Eye relief: 22mm
- Eyegard: Rubber
- Coating: Multicoated
- Barrel size / Filter thread: 1 1/4" with filter thread
- Weight: ca. 5.3 oz
Closeout - All Sales Final
Original APM description below:
APM Crosshair eyepiece 24 mm 52° - 1.25" barrel
A high quality crosshair eyepiece with comfortable viewing position
A versatile and reasonable priced crosshair eyepiece with 1.25" barrel size, for many purposes:
- Astro photography with short focal lengths where no high magnification is necessary
- Precise alignment of GoTo telescopes
- Amateur making of viewfinders
Laser etched crosshair:
The crosshair is laser etched and unobtrusive. It does not disturb observation. It can be seen black in front of the skies background and red shining if an optional illumination device is used.
Specifications:
- Type of eyepiece: Crosshair Eyepiece
- Focal length: 24 mm
- Field of view: 52°
- Eye relief: 22mm
- Eyegard: Rubber
- Coating: Multicoated
- Barrel size / Filter thread: 1 1/4" with filter thread
- Weight: ca. 5.3 oz
| Manufacturer | APM |
|---|---|
| Focal Length | 24mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 52° |
| Eye Relief (Designed) | 22mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Multicoated |
| Protective Storage Container Included | No |
| End Caps | 2 |
| Rubber Eye Guard | Yes |
