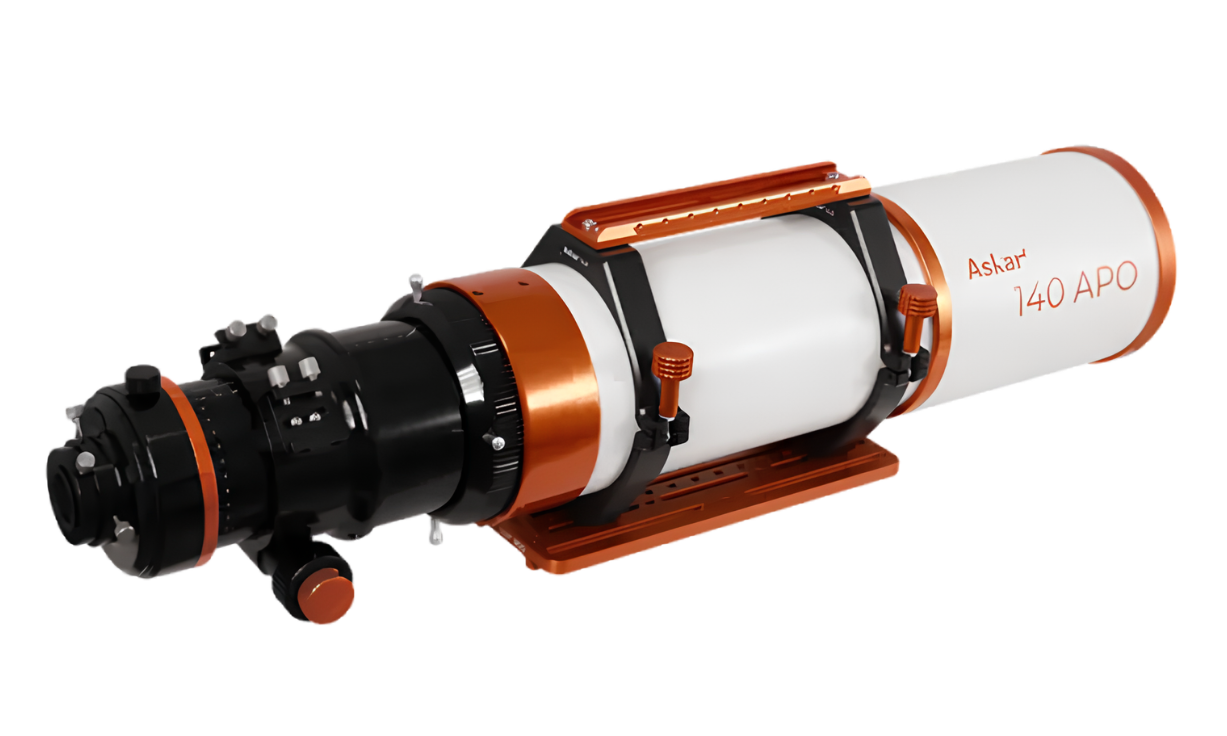

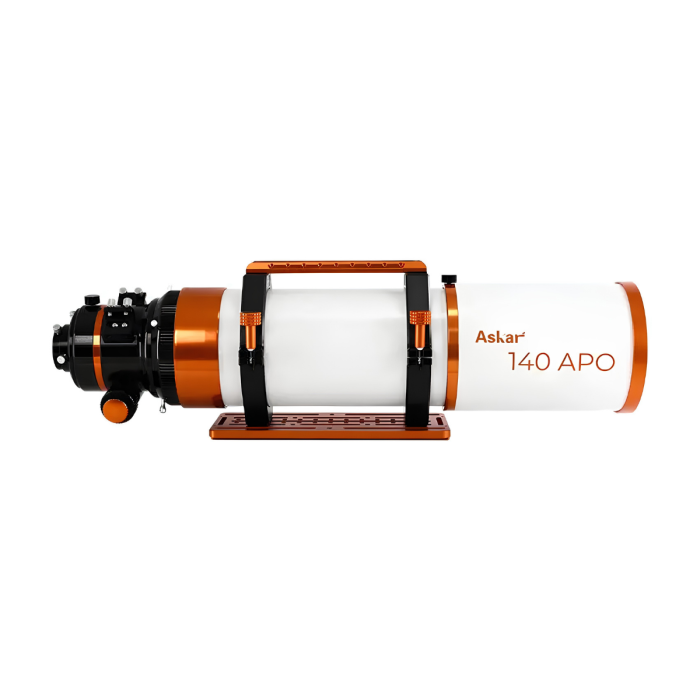

Askar 140 APO 140mm f/7 Triplet Refractor Telescope
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- All Sharpstar/Askar refractors undergo physical, mechanical and optical QC inspections at the factory, and an inspection checklist is included with each telescope.
- We may partially open the scope boxes to ensure that the scope has been inspected/certified by the manufacturer but we do not open the scope and inspect it again.
- However, if you would like us to perform a mechanical and cosmetic inspection of your telescope again before we ship it, just request this in the comments field when you place your order. We will be happy to do this at no extra cost for this scope, but this will delay your shipment by 1-2 business days. Note that we are unable to perform optical tests/inspections.
- 140mm triplet air-spaced APO refractor with ED glass for superior chromatic correction
- 980mm focal length at f/7, reducible to 784mm at f/5.6 with the optional 0.8x reducer
- 3.5-inch dual-speed rack-and-pinion focuser with 360-degree rotator
- Segmented tube design supports 2-inch and 1.25-inch eyepieces plus binoviewer attachment
- Two finder scope bases and a slotted multi-function handle for flexible accessory mounting
- 300 mm extended Losmandy dovetail plate included for secure, balanced mounting
- Lightweight 20.3 lb (9.2 kg) total weight with retractable dew shield for easy transport
Big Optics, Brilliant Views: Askar 140 APO
The Askar 140 APO combines a large 140mm aperture with a 980mm focal length and f/7 focal ratio, delivering excellent light-gathering power and resolution for both visual observing and astrophotography. Its air-spaced triplet APO objective with ED glass provides sharp, high-contrast views with excellent color correction, while the large 3.5-inch rack-and-pinion focuser comfortably supports demanding imaging setups. A retractable dew shield and rear tube, 1.25-inch and 2-inch visual compatibility, and optional reducer/flattener support make the 140 APO a versatile refractor for a wide range of observing and imaging applications.
Standout Features of the Askar 140 APO!
Versatile Imaging Configurations
At its native 980mm focal length and f/7, the 140 APO provides the image scale needed for smaller and mid-size deep-sky targets. Add the optional 0.8x reducer/flattener to transform it into a faster 784mm f/5.6 system with a wider field of view, or use the optional 1.0x flattener to retain the native 980mm focal length. Correctors sold separately
Thoughtful Add-ons
The 140 APO features a retractable dew shield and rear tube to keep its large optical system more manageable during setup and transport. Dual finder bases on the focuser provide convenient mounting points for finders and other accessories, while internal anti-reflective treatment helps suppress stray light for better contrast
Prime Visual Experiences

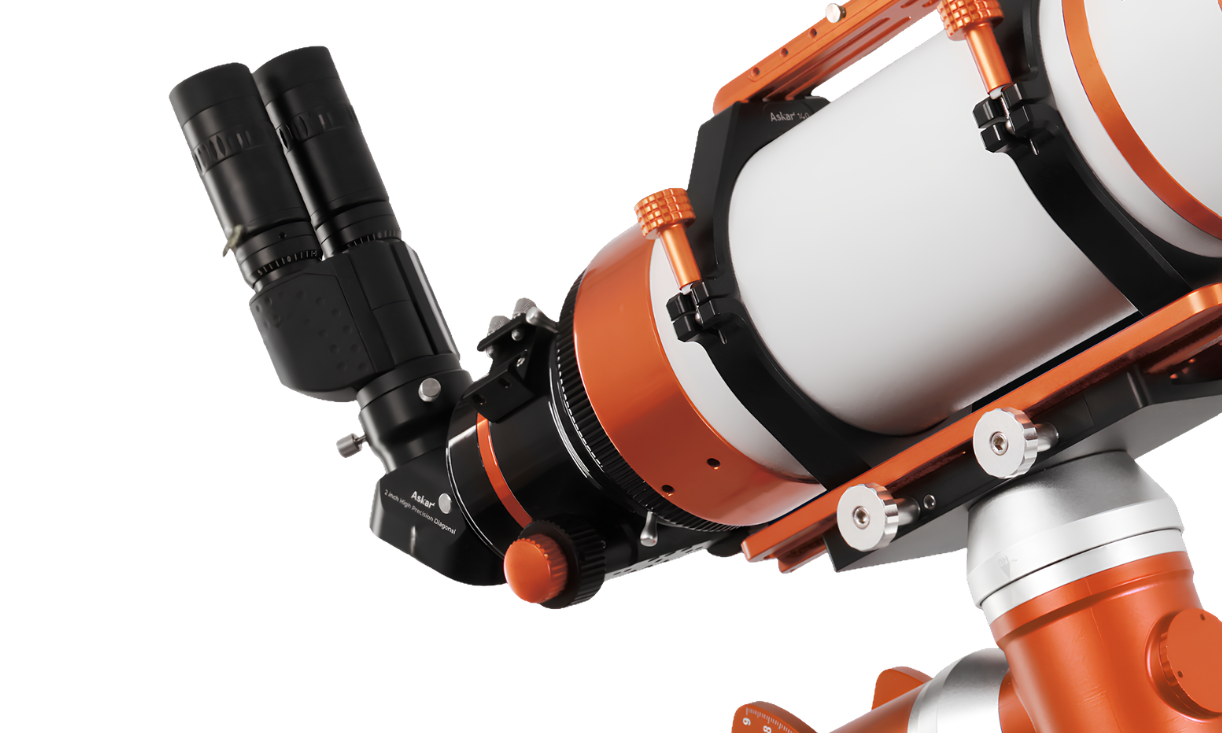

This isn't just an imaging refractor. The 140 APO includes 2-inch and 1.25-inch adapters for easy use with standard diagonals and eyepieces. Its 125mm retractable rear tube also provides additional flexibility for reaching focus with binoviewers, making the scope well suited for immersive two-eyed observing. Diagonal and binoveiwers sold separately.
Askar 140APO in Action!
Theta Tauri
Gear: 140APO, 1x Flattener, ZWO ASI2400MC
IC434
Gear: 140APO, 0.8x Reducer, ZWO ASI2400MC
IC 1396
Gear: 140APO, 0.8x Reducer, ZWO ASI2600MM Pro
The Triplet Advantage

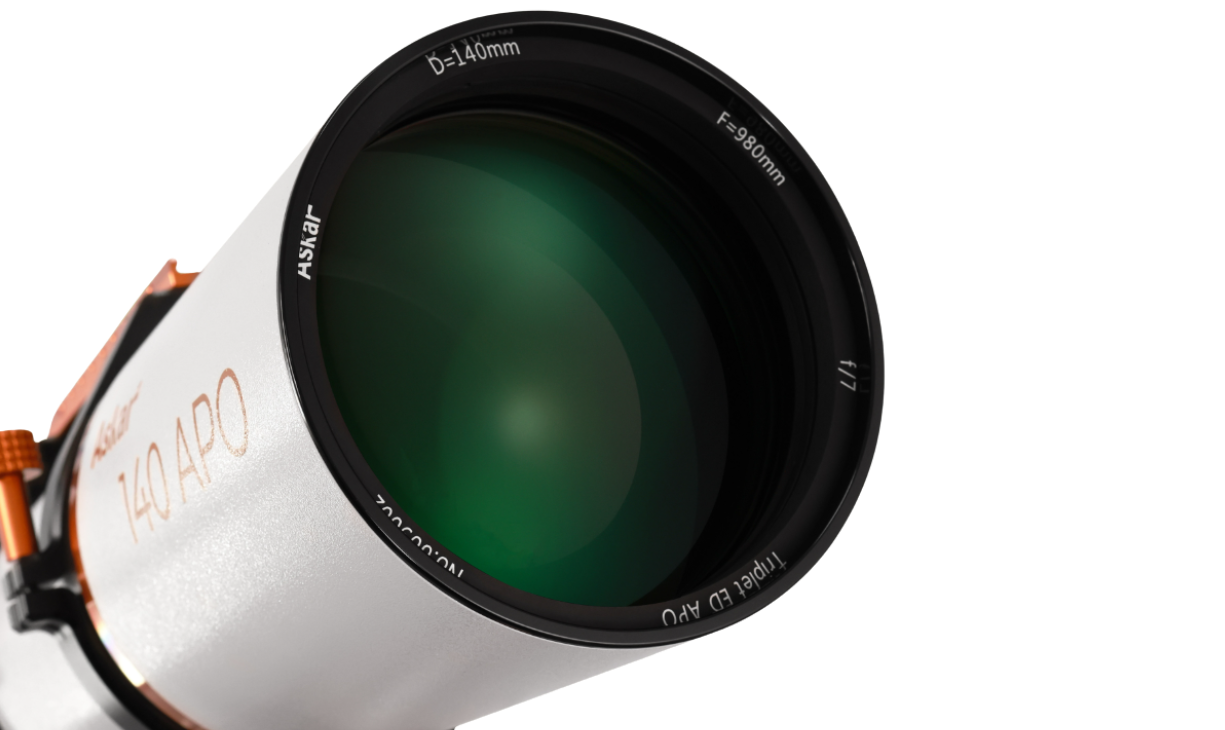

The large perture of 140mm provides increased resolution, brightness, and contrast over smaller aperture telescopes. The Askar 140APO uses a triplet air-spaced APO lens design, including one piece of ED (Extra-low dispersion) glass. While the triplet lens design corrects chromatic aberration providing higher-quality object details and color accuracy.
Built-in Features for Easy Imaging

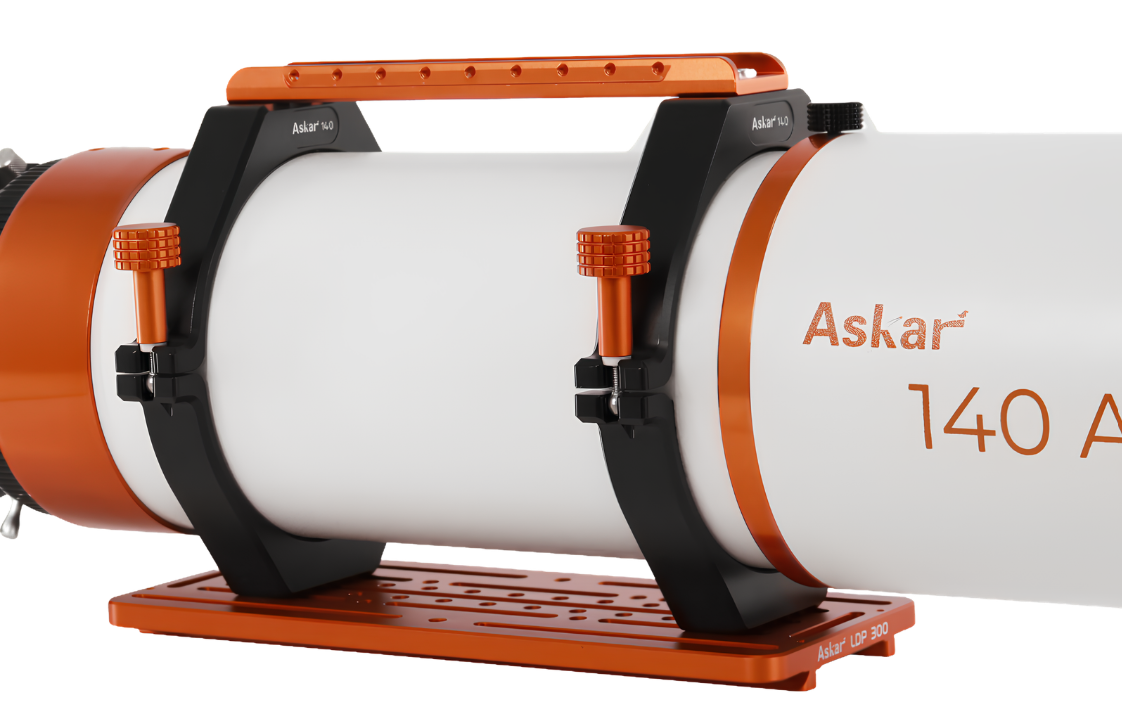

The Askar 140 APO is loaded with thoughtful hardware additions! A retractable dew shield with enlarged locking screw, provide easy adjustment. An 8.6" (220mm) long carry handle with convenient mounting base for a finder scope or other finder show accessories. The dovetail plate is a standard Losmandy, making it compatible with most mount saddles on the market. With the slotted handle, the spacing between the tube rings can be adjusted as desired!
An integrated retractable rear tube maintains optical alignment and stability whether extended or shortened, with a captain’s wheel-style locking ring for quick adjustment. Shorten the tube for binoviewer use, or extend it to accommodate optional reducers and flatteners for imaging or standard 1.25"/2" diagonals and eyepieces, with a 1.25"/2" adapter included.

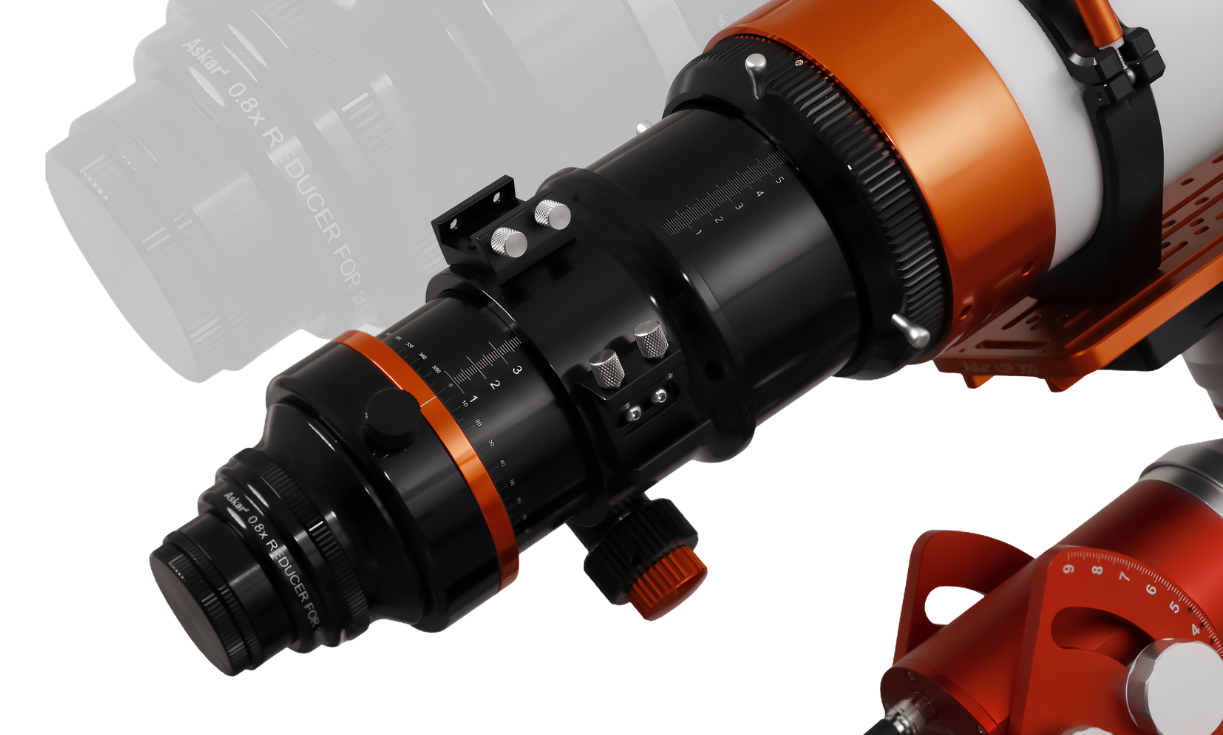

Enhance your Imaging

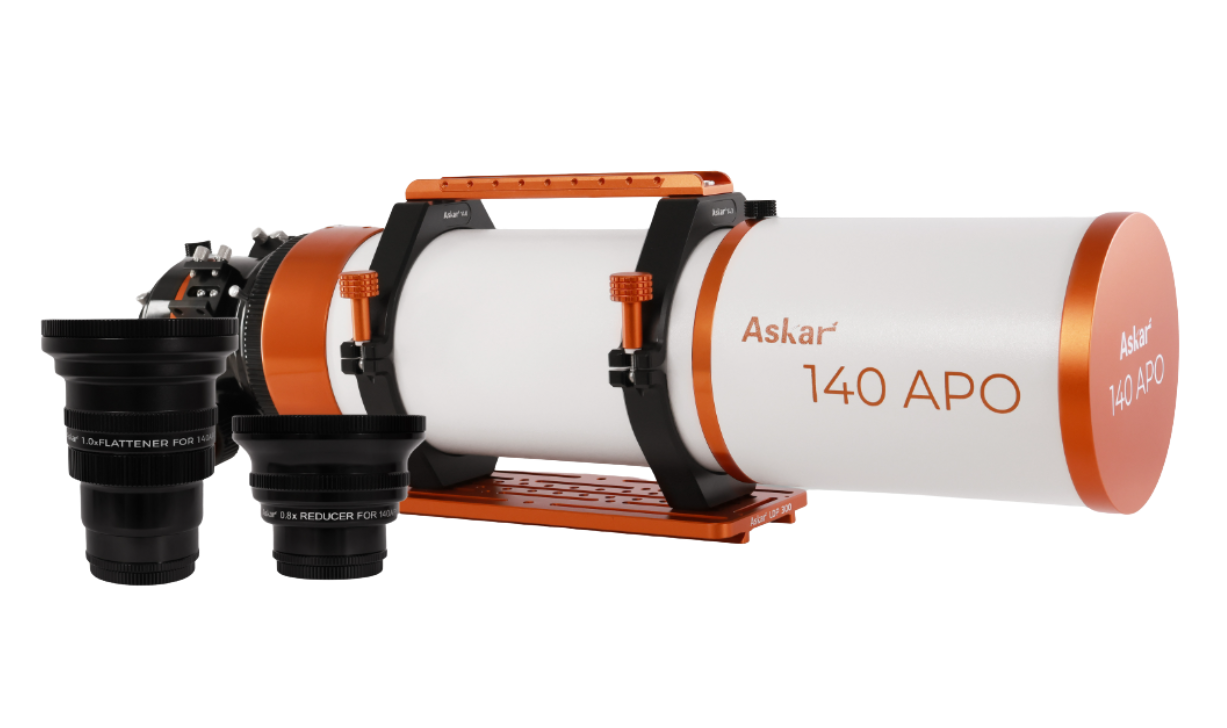

The Askar 140APO has two optional correctors: a 1x flattener and a 0.8x reducer. Both accessories come with a built-in 2" filter thread for direct filter mounting. The 0.8x reducer is equipped with M54/M48 adapters, and the 1x flattener is equipped with M68/M54/M48 adapters for easy connection!
The 1x flattener does not change the telescope's focal ratio itself, it corrects field curvature and coma, resulting in flatter field edges and finer star points. The 0.8x reducer brings the 140APO's focal ratio down to f/5.6 and length to 784mm; making it suitable for capturing larger nebulae, star clusters, and fast-moving objects. Please note: these are not included and sold seperately
Robust 3.5-inch Focuser

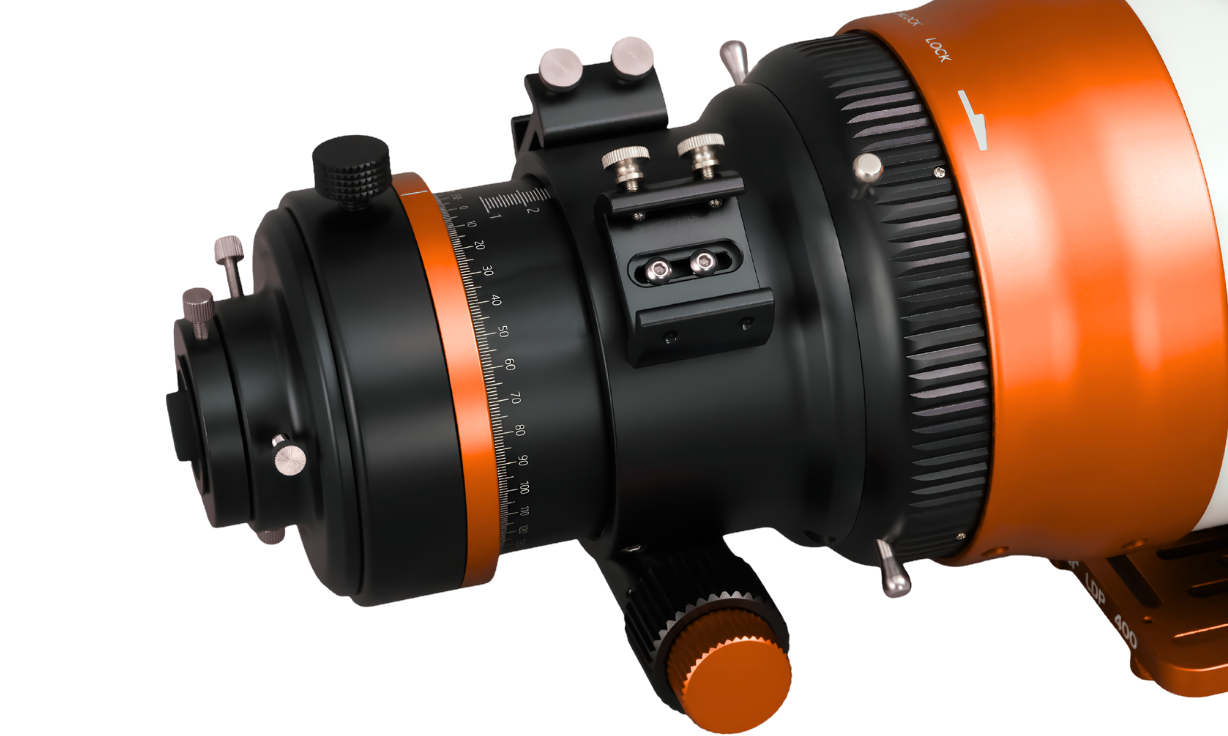

The Askar 140 APO features a robust 3.5" dual-speed rack-and-pinion focuser with 100mm of travel, a precision scale, and compatibility with most motorized focusers. Its CNC-machined, matte-black interior helps reduce reflections and stray light, while dual finder bases provide flexible mounting points for finders and other accessories. A 360° precision rotator with engraved scales and an oversized locking screw makes framing and securing even heavier imaging setups quick and reliable.
Serious Imaging on the Go
Despite its large 140mm aperture and 980mm focal length, the Askar 140 APO is designed with portability in mind, measuring just 735mm at its shortest and weighing 20.3 lb (9.2 kg) for the OTA. With the handle, tube rings, and dovetail plate, the total weight is 24 lb (10.9 kg), while the lightweight 3.7 lb (1.7 kg) tube rings feature convenient thumb-screw locks and a raised base for additional mount clearance. An included protective carrying case makes storage and transportation easier between observing or imaging sessions.
Specifications
Optical Test

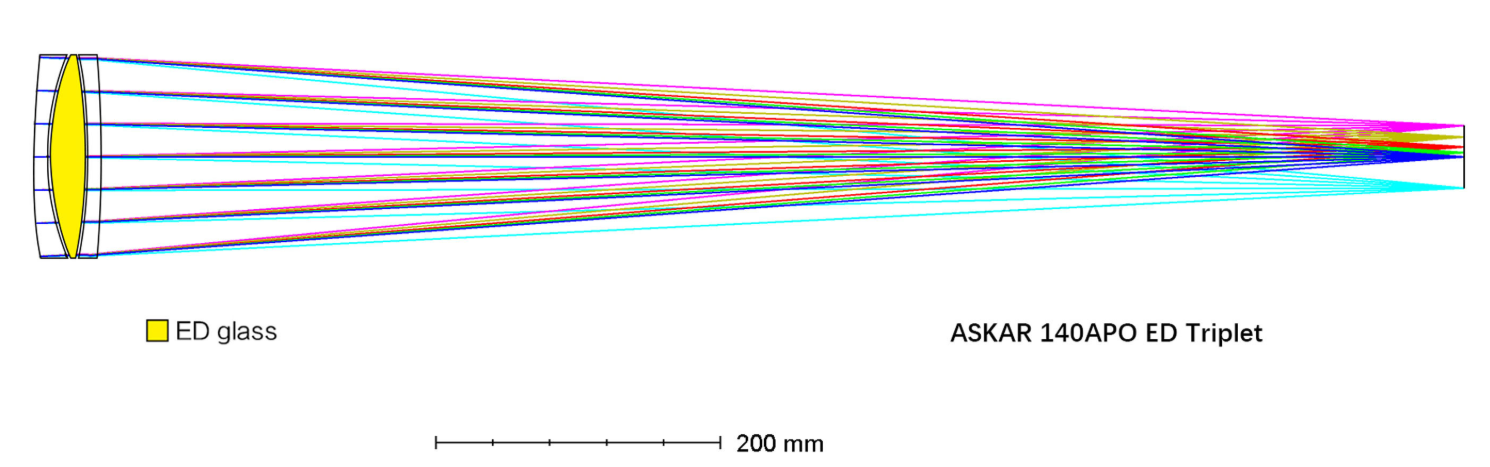

Optical Path Chart

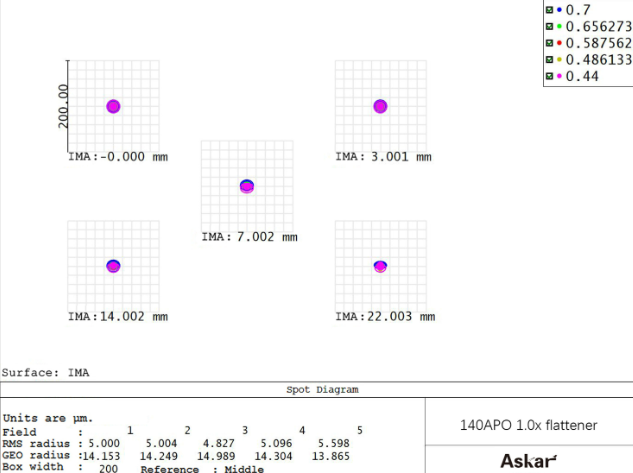

Spot Diagram for 140APO + 1.0x Flattener

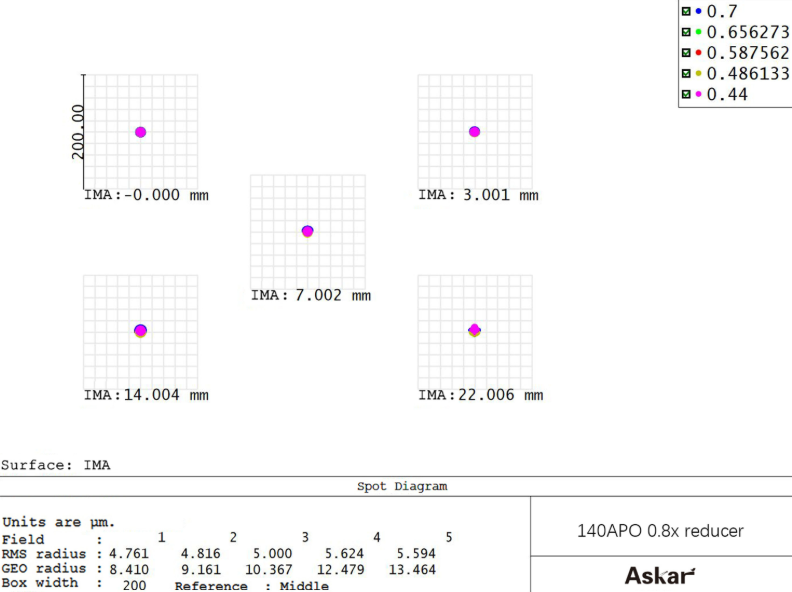

Spot Diagram for 140APO + 0.8x Reducer
Additional Mechanical Diagrams

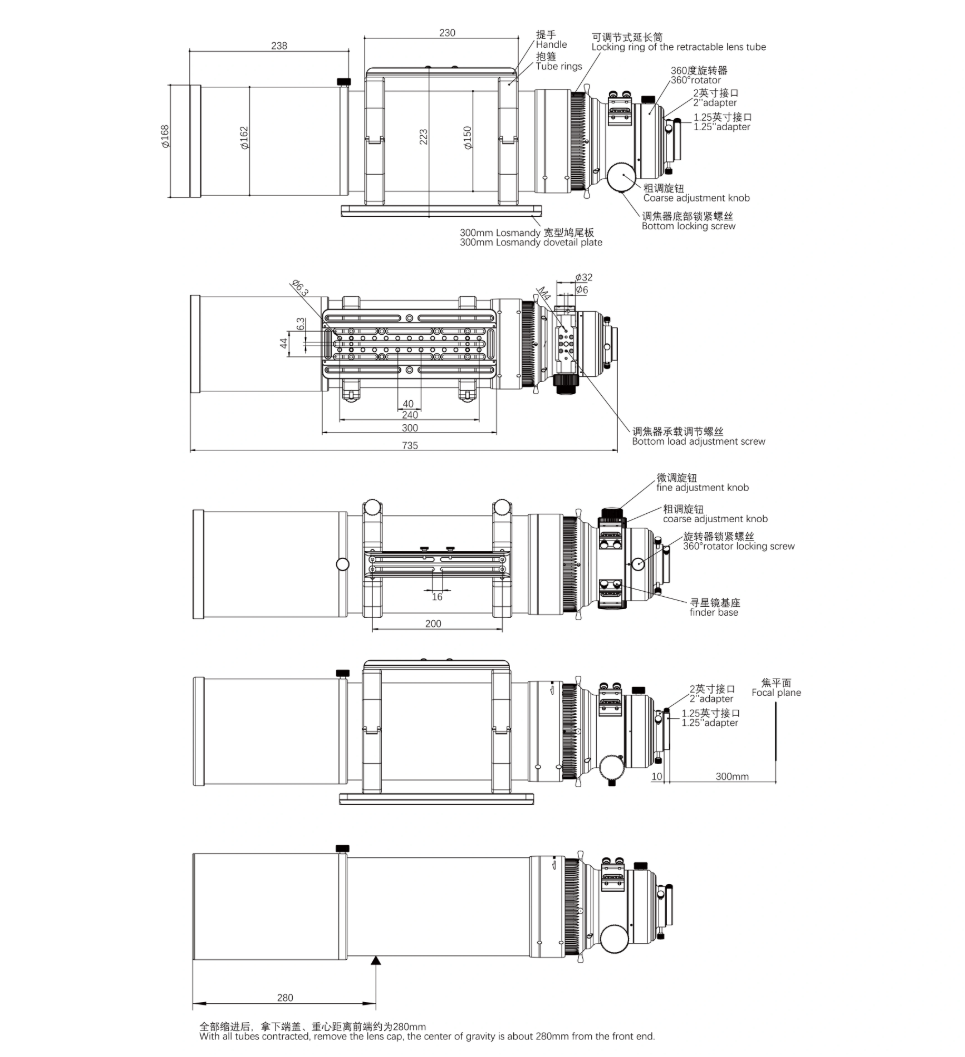

Dimensional Diagram

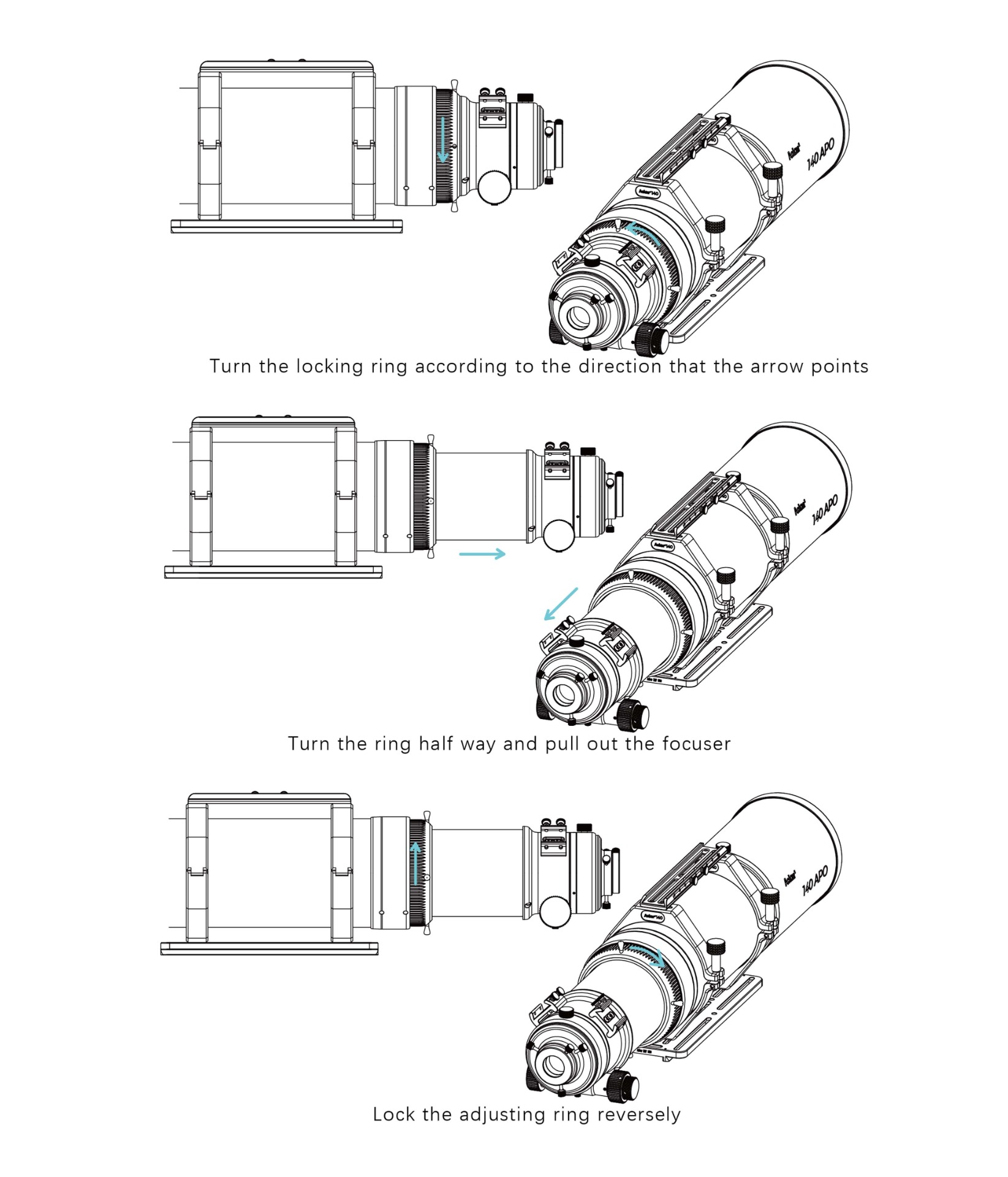

Retractable Lens Tube Graphic

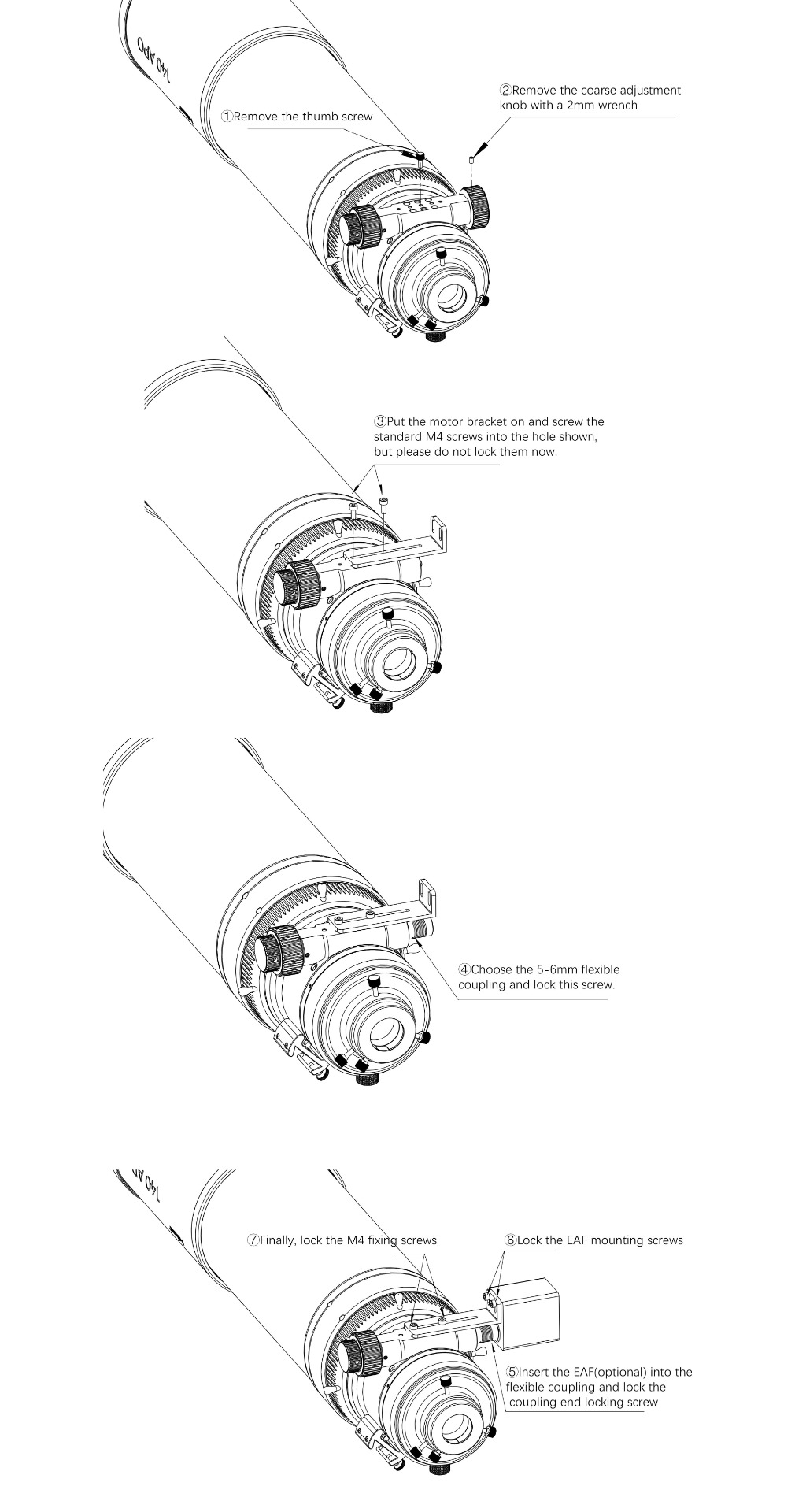

EAF Installation

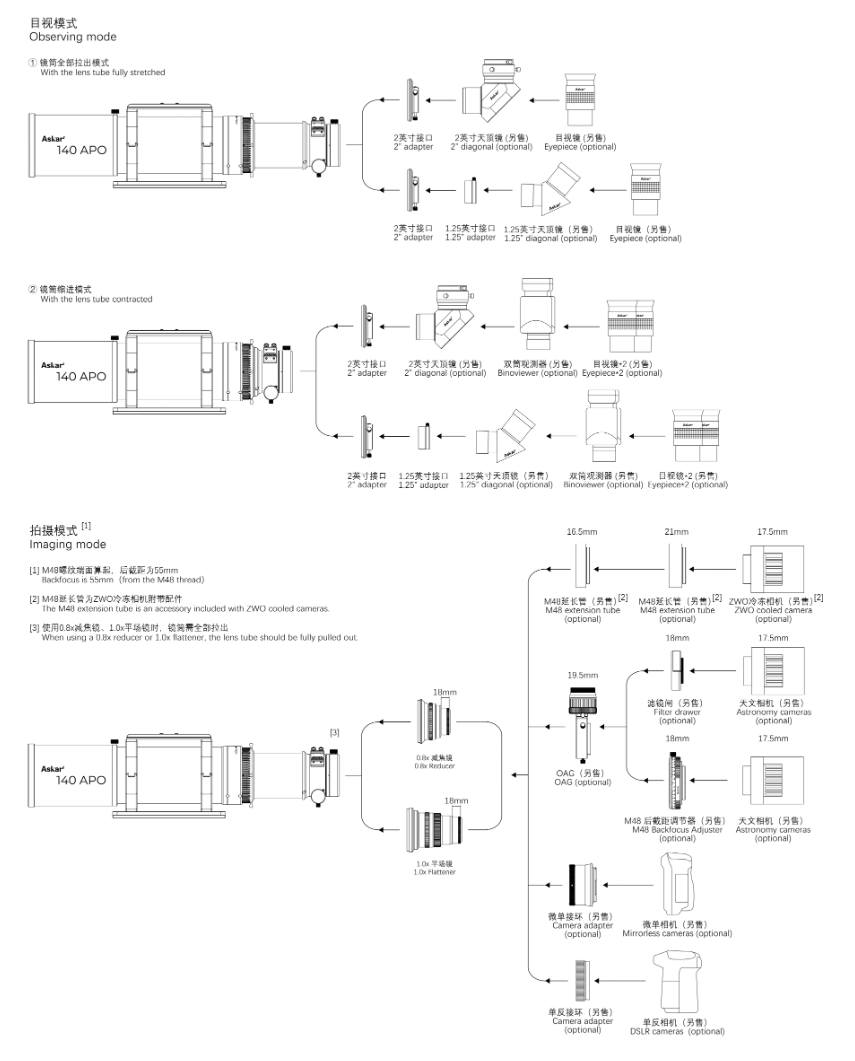

Imaging + Visual Connections
Other Information
- Country of Manufacture: China
Big Optics, Brilliant Views: Askar 140 APO
The Askar 140 APO combines a large 140mm aperture with a 980mm focal length and f/7 focal ratio, delivering excellent light-gathering power and resolution for both visual observing and astrophotography. Its air-spaced triplet APO objective with ED glass provides sharp, high-contrast views with excellent color correction, while the large 3.5-inch rack-and-pinion focuser comfortably supports demanding imaging setups. A retractable dew shield and rear tube, 1.25-inch and 2-inch visual compatibility, and optional reducer/flattener support make the 140 APO a versatile refractor for a wide range of observing and imaging applications.
Standout Features of the Askar 140 APO!
Versatile Imaging Configurations
At its native 980mm focal length and f/7, the 140 APO provides the image scale needed for smaller and mid-size deep-sky targets. Add the optional 0.8x reducer/flattener to transform it into a faster 784mm f/5.6 system with a wider field of view, or use the optional 1.0x flattener to retain the native 980mm focal length. Correctors sold separately
Thoughtful Add-ons
The 140 APO features a retractable dew shield and rear tube to keep its large optical system more manageable during setup and transport. Dual finder bases on the focuser provide convenient mounting points for finders and other accessories, while internal anti-reflective treatment helps suppress stray light for better contrast
Prime Visual Experiences
This isn't just an imaging refractor. The 140 APO includes 2-inch and 1.25-inch adapters for easy use with standard diagonals and eyepieces. Its 125mm retractable rear tube also provides additional flexibility for reaching focus with binoviewers, making the scope well suited for immersive two-eyed observing. Diagonal and binoveiwers sold separately.
Askar 140APO in Action!
Theta Tauri
Gear: 140APO, 1x Flattener, ZWO ASI2400MC
IC434
Gear: 140APO, 0.8x Reducer, ZWO ASI2400MC
IC 1396
Gear: 140APO, 0.8x Reducer, ZWO ASI2600MM Pro
The Triplet Advantage
The large perture of 140mm provides increased resolution, brightness, and contrast over smaller aperture telescopes. The Askar 140APO uses a triplet air-spaced APO lens design, including one piece of ED (Extra-low dispersion) glass. While the triplet lens design corrects chromatic aberration providing higher-quality object details and color accuracy.
Built-in Features for Easy Imaging
The Askar 140 APO is loaded with thoughtful hardware additions! A retractable dew shield with enlarged locking screw, provide easy adjustment. An 8.6" (220mm) long carry handle with convenient mounting base for a finder scope or other finder show accessories. The dovetail plate is a standard Losmandy, making it compatible with most mount saddles on the market. With the slotted handle, the spacing between the tube rings can be adjusted as desired!
An integrated retractable rear tube maintains optical alignment and stability whether extended or shortened, with a captain’s wheel-style locking ring for quick adjustment. Shorten the tube for binoviewer use, or extend it to accommodate optional reducers and flatteners for imaging or standard 1.25"/2" diagonals and eyepieces, with a 1.25"/2" adapter included.
Enhance your Imaging
The Askar 140APO has two optional correctors: a 1x flattener and a 0.8x reducer. Both accessories come with a built-in 2" filter thread for direct filter mounting. The 0.8x reducer is equipped with M54/M48 adapters, and the 1x flattener is equipped with M68/M54/M48 adapters for easy connection!
The 1x flattener does not change the telescope's focal ratio itself, it corrects field curvature and coma, resulting in flatter field edges and finer star points. The 0.8x reducer brings the 140APO's focal ratio down to f/5.6 and length to 784mm; making it suitable for capturing larger nebulae, star clusters, and fast-moving objects. Please note: these are not included and sold seperately
Robust 3.5-inch Focuser
The Askar 140 APO features a robust 3.5" dual-speed rack-and-pinion focuser with 100mm of travel, a precision scale, and compatibility with most motorized focusers. Its CNC-machined, matte-black interior helps reduce reflections and stray light, while dual finder bases provide flexible mounting points for finders and other accessories. A 360° precision rotator with engraved scales and an oversized locking screw makes framing and securing even heavier imaging setups quick and reliable.
Serious Imaging on the Go
Despite its large 140mm aperture and 980mm focal length, the Askar 140 APO is designed with portability in mind, measuring just 735mm at its shortest and weighing 20.3 lb (9.2 kg) for the OTA. With the handle, tube rings, and dovetail plate, the total weight is 24 lb (10.9 kg), while the lightweight 3.7 lb (1.7 kg) tube rings feature convenient thumb-screw locks and a raised base for additional mount clearance. An included protective carrying case makes storage and transportation easier between observing or imaging sessions.
Specifications
Optical Test
Optical Path Chart
Spot Diagram for 140APO + 1.0x Flattener
Spot Diagram for 140APO + 0.8x Reducer
Additional Mechanical Diagrams
Dimensional Diagram
Retractable Lens Tube Graphic
EAF Installation
Imaging + Visual Connections
- 1x Askar 140APO OTA
- 1x Pair of tube rings
- 1x Handle
- 1x Askar 300mm Losmandy dovetail plate

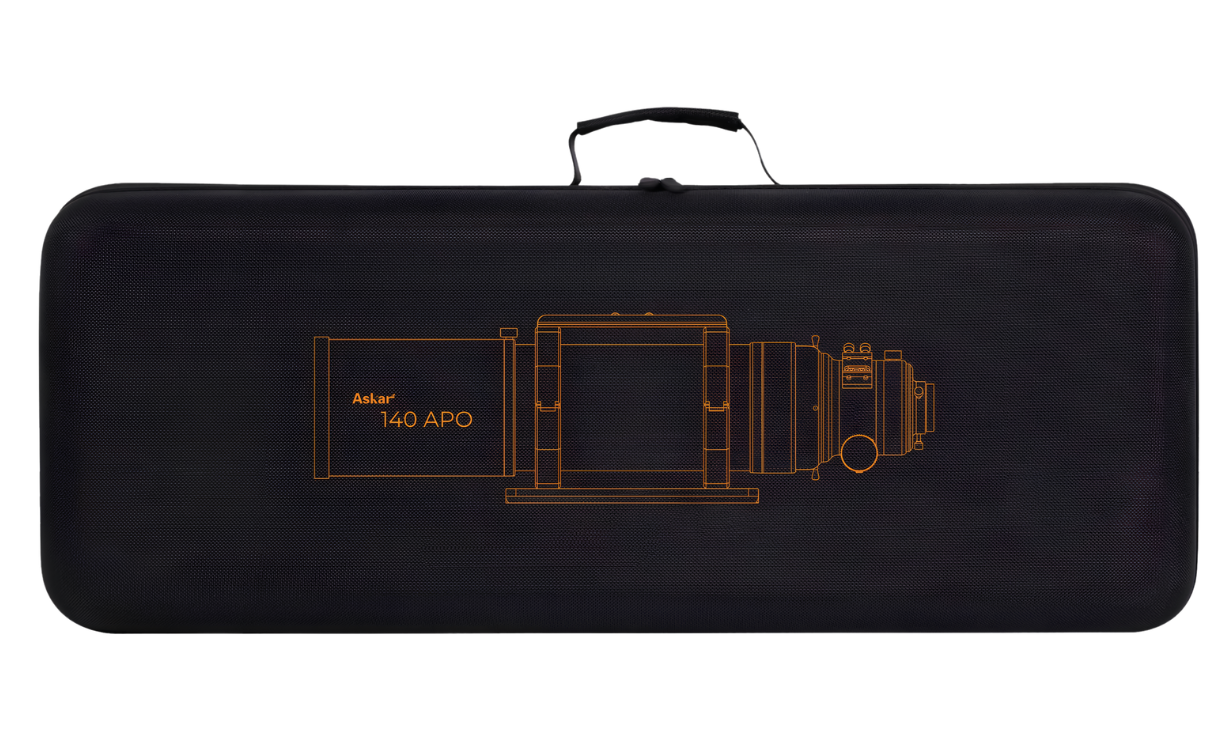

- 1x Oxford cloth case
- 1x Manual
- All Sharpstar/Askar refractors undergo physical, mechanical and optical QC inspections at the factory, and an inspection checklist is included with each telescope.
- We may partially open the scope boxes to ensure that the scope has been inspected/certified by the manufacturer but we do not open the scope and inspect it again.
- However, if you would like us to perform a mechanical and cosmetic inspection of your telescope again before we ship it, just request this in the comments field when you place your order. We will be happy to do this at no extra cost for this scope, but this will delay your shipment by 1-2 business days. Note that we are unable to perform optical tests/inspections.
- 140mm triplet air-spaced APO refractor with ED glass for superior chromatic correction
- 980mm focal length at f/7, reducible to 784mm at f/5.6 with the optional 0.8x reducer
- 3.5-inch dual-speed rack-and-pinion focuser with 360-degree rotator
- Segmented tube design supports 2-inch and 1.25-inch eyepieces plus binoviewer attachment
- Two finder scope bases and a slotted multi-function handle for flexible accessory mounting
- 300 mm extended Losmandy dovetail plate included for secure, balanced mounting
- Lightweight 20.3 lb (9.2 kg) total weight with retractable dew shield for easy transport
Big Optics, Brilliant Views: Askar 140 APO
The Askar 140 APO combines a large 140mm aperture with a 980mm focal length and f/7 focal ratio, delivering excellent light-gathering power and resolution for both visual observing and astrophotography. Its air-spaced triplet APO objective with ED glass provides sharp, high-contrast views with excellent color correction, while the large 3.5-inch rack-and-pinion focuser comfortably supports demanding imaging setups. A retractable dew shield and rear tube, 1.25-inch and 2-inch visual compatibility, and optional reducer/flattener support make the 140 APO a versatile refractor for a wide range of observing and imaging applications.
Standout Features of the Askar 140 APO!
Versatile Imaging Configurations
At its native 980mm focal length and f/7, the 140 APO provides the image scale needed for smaller and mid-size deep-sky targets. Add the optional 0.8x reducer/flattener to transform it into a faster 784mm f/5.6 system with a wider field of view, or use the optional 1.0x flattener to retain the native 980mm focal length. Correctors sold separately
Thoughtful Add-ons
The 140 APO features a retractable dew shield and rear tube to keep its large optical system more manageable during setup and transport. Dual finder bases on the focuser provide convenient mounting points for finders and other accessories, while internal anti-reflective treatment helps suppress stray light for better contrast
Prime Visual Experiences
This isn't just an imaging refractor. The 140 APO includes 2-inch and 1.25-inch adapters for easy use with standard diagonals and eyepieces. Its 125mm retractable rear tube also provides additional flexibility for reaching focus with binoviewers, making the scope well suited for immersive two-eyed observing. Diagonal and binoveiwers sold separately.
Askar 140APO in Action!
Theta Tauri
Gear: 140APO, 1x Flattener, ZWO ASI2400MC
IC434
Gear: 140APO, 0.8x Reducer, ZWO ASI2400MC
IC 1396
Gear: 140APO, 0.8x Reducer, ZWO ASI2600MM Pro
The Triplet Advantage
The large perture of 140mm provides increased resolution, brightness, and contrast over smaller aperture telescopes. The Askar 140APO uses a triplet air-spaced APO lens design, including one piece of ED (Extra-low dispersion) glass. While the triplet lens design corrects chromatic aberration providing higher-quality object details and color accuracy.
Built-in Features for Easy Imaging
The Askar 140 APO is loaded with thoughtful hardware additions! A retractable dew shield with enlarged locking screw, provide easy adjustment. An 8.6" (220mm) long carry handle with convenient mounting base for a finder scope or other finder show accessories. The dovetail plate is a standard Losmandy, making it compatible with most mount saddles on the market. With the slotted handle, the spacing between the tube rings can be adjusted as desired!
An integrated retractable rear tube maintains optical alignment and stability whether extended or shortened, with a captain’s wheel-style locking ring for quick adjustment. Shorten the tube for binoviewer use, or extend it to accommodate optional reducers and flatteners for imaging or standard 1.25"/2" diagonals and eyepieces, with a 1.25"/2" adapter included.
Enhance your Imaging
The Askar 140APO has two optional correctors: a 1x flattener and a 0.8x reducer. Both accessories come with a built-in 2" filter thread for direct filter mounting. The 0.8x reducer is equipped with M54/M48 adapters, and the 1x flattener is equipped with M68/M54/M48 adapters for easy connection!
The 1x flattener does not change the telescope's focal ratio itself, it corrects field curvature and coma, resulting in flatter field edges and finer star points. The 0.8x reducer brings the 140APO's focal ratio down to f/5.6 and length to 784mm; making it suitable for capturing larger nebulae, star clusters, and fast-moving objects. Please note: these are not included and sold seperately
Robust 3.5-inch Focuser
The Askar 140 APO features a robust 3.5" dual-speed rack-and-pinion focuser with 100mm of travel, a precision scale, and compatibility with most motorized focusers. Its CNC-machined, matte-black interior helps reduce reflections and stray light, while dual finder bases provide flexible mounting points for finders and other accessories. A 360° precision rotator with engraved scales and an oversized locking screw makes framing and securing even heavier imaging setups quick and reliable.
Serious Imaging on the Go
Despite its large 140mm aperture and 980mm focal length, the Askar 140 APO is designed with portability in mind, measuring just 735mm at its shortest and weighing 20.3 lb (9.2 kg) for the OTA. With the handle, tube rings, and dovetail plate, the total weight is 24 lb (10.9 kg), while the lightweight 3.7 lb (1.7 kg) tube rings feature convenient thumb-screw locks and a raised base for additional mount clearance. An included protective carrying case makes storage and transportation easier between observing or imaging sessions.
Specifications
Optical Test
Optical Path Chart
Spot Diagram for 140APO + 1.0x Flattener
Spot Diagram for 140APO + 0.8x Reducer
Additional Mechanical Diagrams
Dimensional Diagram
Retractable Lens Tube Graphic
EAF Installation
Imaging + Visual Connections
Other Information
- Country of Manufacture: China
| Telescope Focal Length | 901 - 1000mm |
|---|
- 1x Askar 140APO OTA
- 1x Pair of tube rings
- 1x Handle
- 1x Askar 300mm Losmandy dovetail plate
- 1x Oxford cloth case
- 1x Manual
