- Quadruplet APO Refractor with ED Glass
- 60mm Aperture, 408mm Focal Length
- Built-In Field Flattener
- Retractable Dew Shield
- Versatile Compatibility
A Compact, All-in-One Astrograph
The Askar 60F is a portable quadruplet refractor that delivers premium optical performance in a lightweight design. With a 60 mm aperture, 408 mm focal length, and f/6.8 focal ratio, it’s perfect for both visual astronomy and astrophotography. A built-in field flattener ensures sharp stars edge-to-edge across a full-frame sensor. Whether you’re observing through an eyepiece or capturing deep-sky images with your camera, the 60F makes the process simple and rewarding.
3 Ways to Use the Askar 60F Telescope

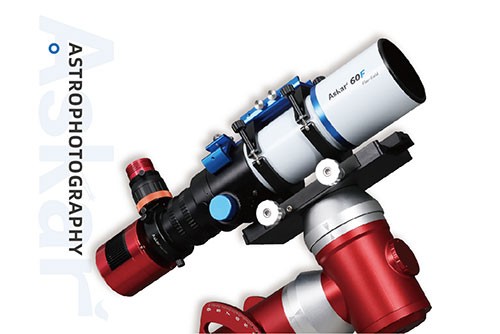

Wide-Field Astrophotography
Switch to astrophotography with ease using the included threaded adapters. The 60F supports M64, M54, and M48 connections, making it compatible with most dedicated astronomy cameras and DSLRs. Just attach your camera and you’re ready to capture stunning images of the night sky.

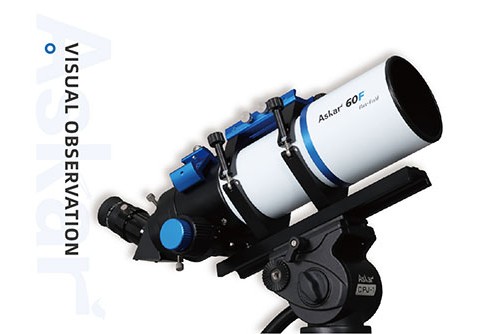

Visual Observing
The Askar 60F comes with a 1.25”/2” visual back, so you can use it with your favorite diagonals and eyepieces. This makes it a great choice for lunar, planetary, and deep-sky observing right out of the box.
Daytime Spotting Scope
Beyond astronomy, the 60F doubles as a compact spotting scope. Its sharp optics make it excellent for nature watching, birding, and daytime landscape photography. You’ll get more use out of your telescope across both day and night.

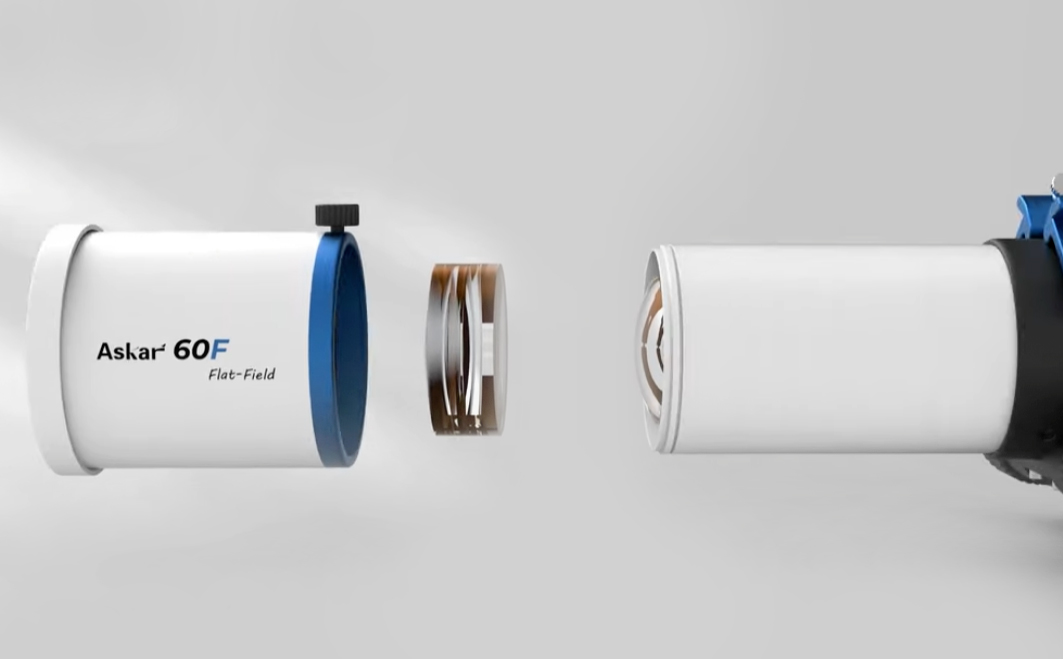

Quadruplet APO Optics
The 60F houses four precision lenses in a 3+1 configuration, including one ED glass element. This apochromatic design reduces chromatic aberration and delivers crisp, high-contrast views. With its built-in field flattener, you won’t need extra accessories or backfocus calculations. Just attach your camera and focus.
Wide, Flat Imaging Field
Designed for today’s large sensors, the 60F supports a 44-millimetre image circle. It produces pinpoint stars across the frame, making it an excellent match for full-frame astrophotography cameras. The wide field pairs beautifully with medium-sized deep-sky targets like the Orion Nebula, Andromeda Galaxy, and the Pleiades Cluster.

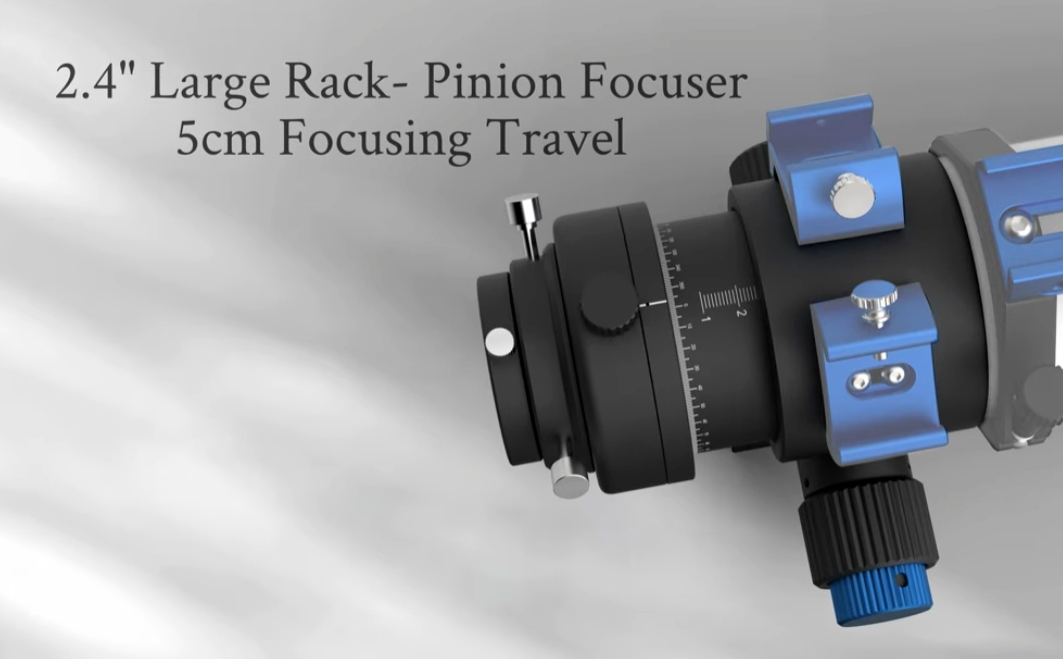

Rock-Solid Focusing
The 60F features a 2.4” dual-speed Rack & Pinion focuser with a 1:10 fine adjustment. The smooth action makes it easy to achieve sharp focus, even at high magnification. The focuser is EAF-compatible for motorized focusing, ideal for long astrophotography sessions. A 360° rotator helps you frame your target with precision.

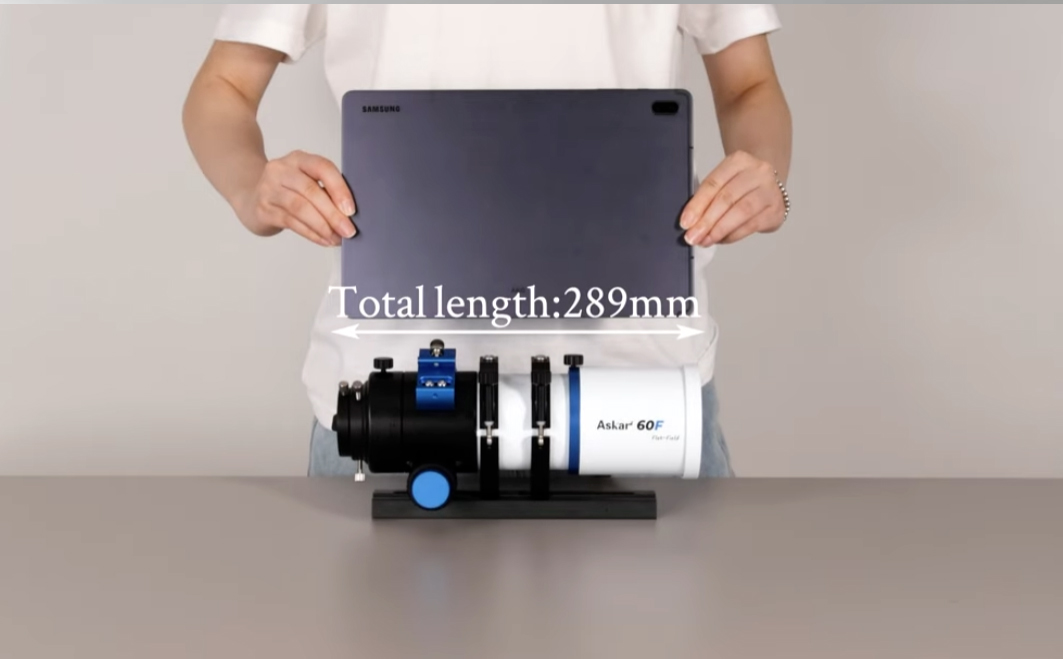

Lightweight & Portable
Weighing just 5.2 lbs (2.36 kg) for the OTA, or 6.3 lbs (2.86 kg) with rings and dovetail, the 60F is easy to carry. Its retractable dew shield makes it even more compact for travel. The CNC-machined body has a sleek blue-and-white finish that’s durable and stylish.
Smart Durable Design
The Askar 60F’s retractable dew shield and mat-lined tube make it compact, portable, and stray-light free. Multiple finder bases let you mount scopes and accessories easily without disassembly, while the sleek blue-and-white CNC finish adds style and durability.

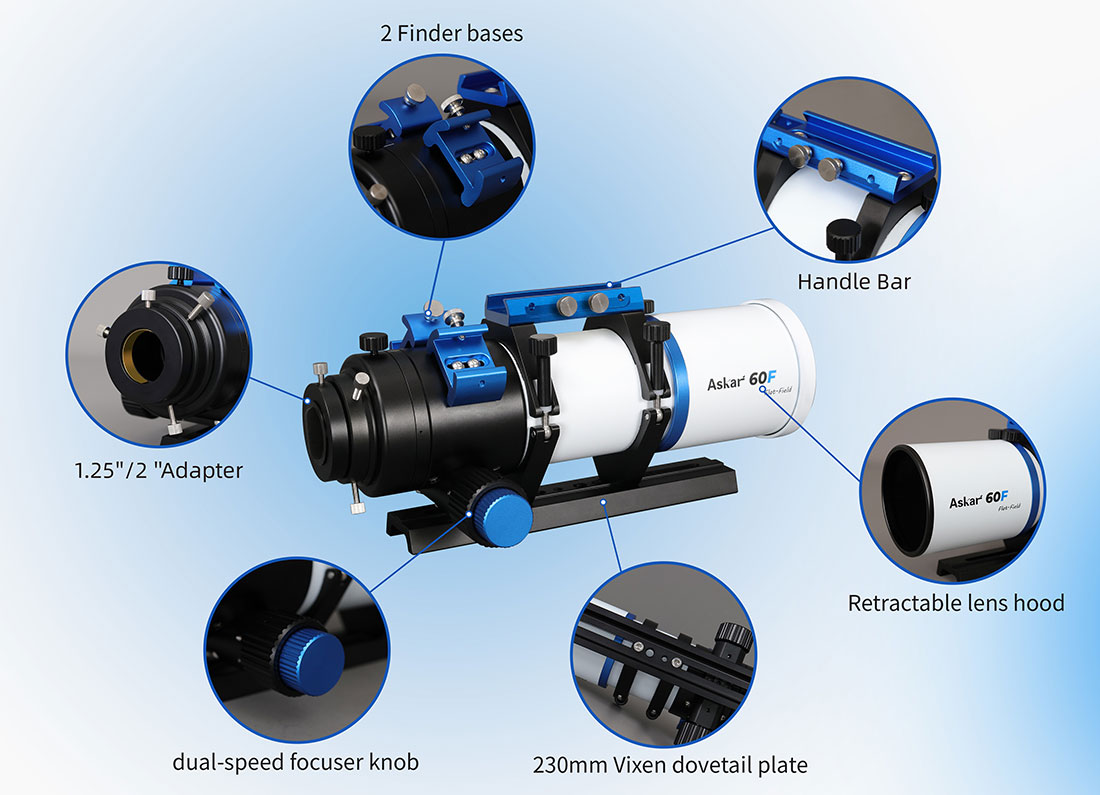

Complete Accessory Package
The 60F includes everything you need to get started. You’ll receive a set of threaded photographic adapters, a 1.25”/2” visual back, sturdy tube rings, a dual-purpose handle, and a 230 mm Vixen-style dovetail plate. Two extra finder bases give you multiple mounting options for accessories.
Specifications
- Aperture Size: 60 mm
- Focal Length: 408 mm
- Focal Ratio: f/6.8
- Objective Lens: Quadruplet Air-Spaced APO (Including One ED Glass)
- Image Circle: 44 mm
- Maximum Accessory Connection (With the Focuser Fully Retreated):
- Imaging Mode:
- 81 mm (From the Base of M48×0.75 Male Thread)
- 99 mm (From the Base of M54×0.75 Male Thread)
- Observing Mode:
- 120 mm (From the End of 1.25" Eyepiece Holder)
- 130 mm (From the End of 2" Eyepiece Holder)
- Total Length:
- 289 mm (Including 1.25" Adapter as Dew Shield Contracted)
- 323 mm (Including 1.25" Adapter as Dew Shield Fully Stretched)
- 336 mm (Including the Photographic Adapter as Dew Shield Contracted)
- 369 mm (Including the Photographic Adapter as Dew Shield Fully Stretched)
- Net Weight: 2.36 kg
- Gross Weight (Including Tube Ring & Dovetail Plate): 2.86 kg
- Rear-End Thread Type:
- M64×0.75 – M54×0.75
- M54×0.75 – M54×0.75
- M54×0.75 – M48×0.75 (With M48×0.75 Filter Thread)
- Standard Package Items: A 60F OTA, a Pair of Tube Rings, a Handle, a Vixen Dovetail Plate, a Set of Photographic Adapters

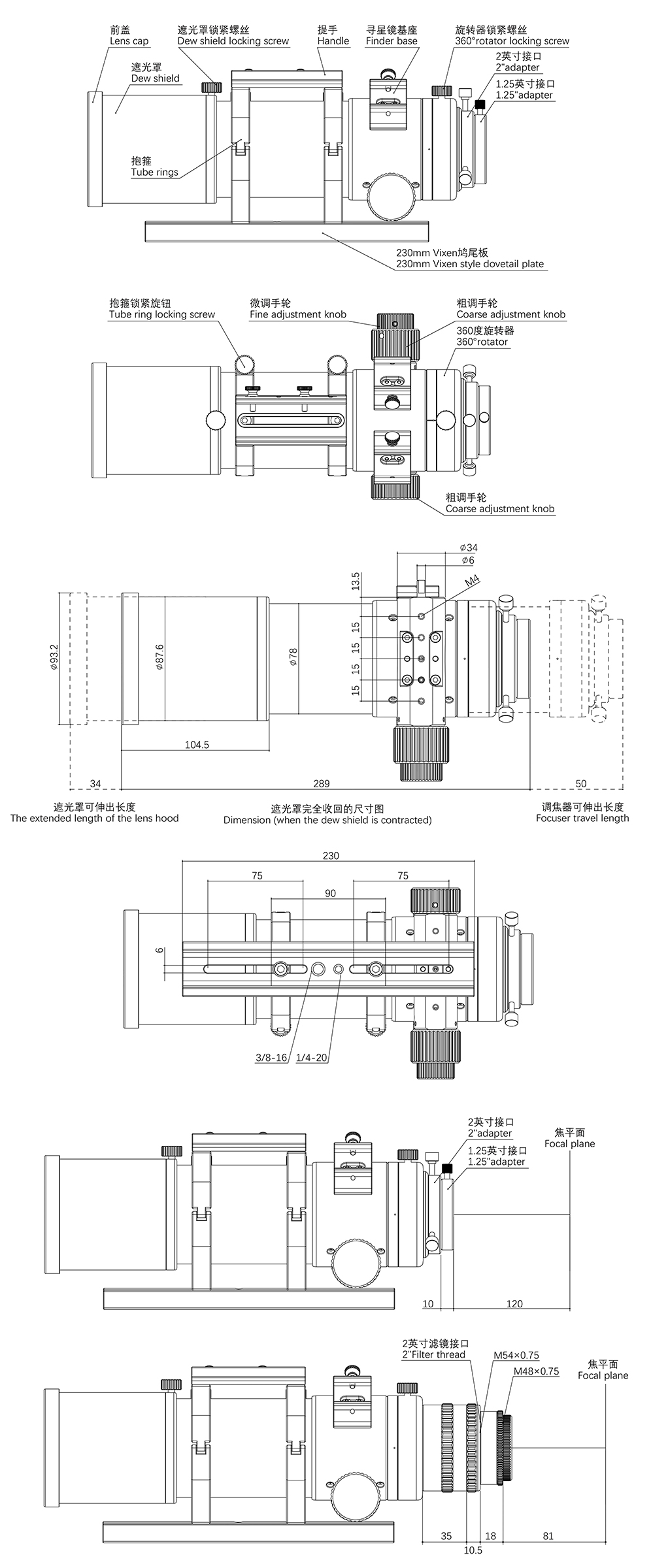

Mechanical Diagram

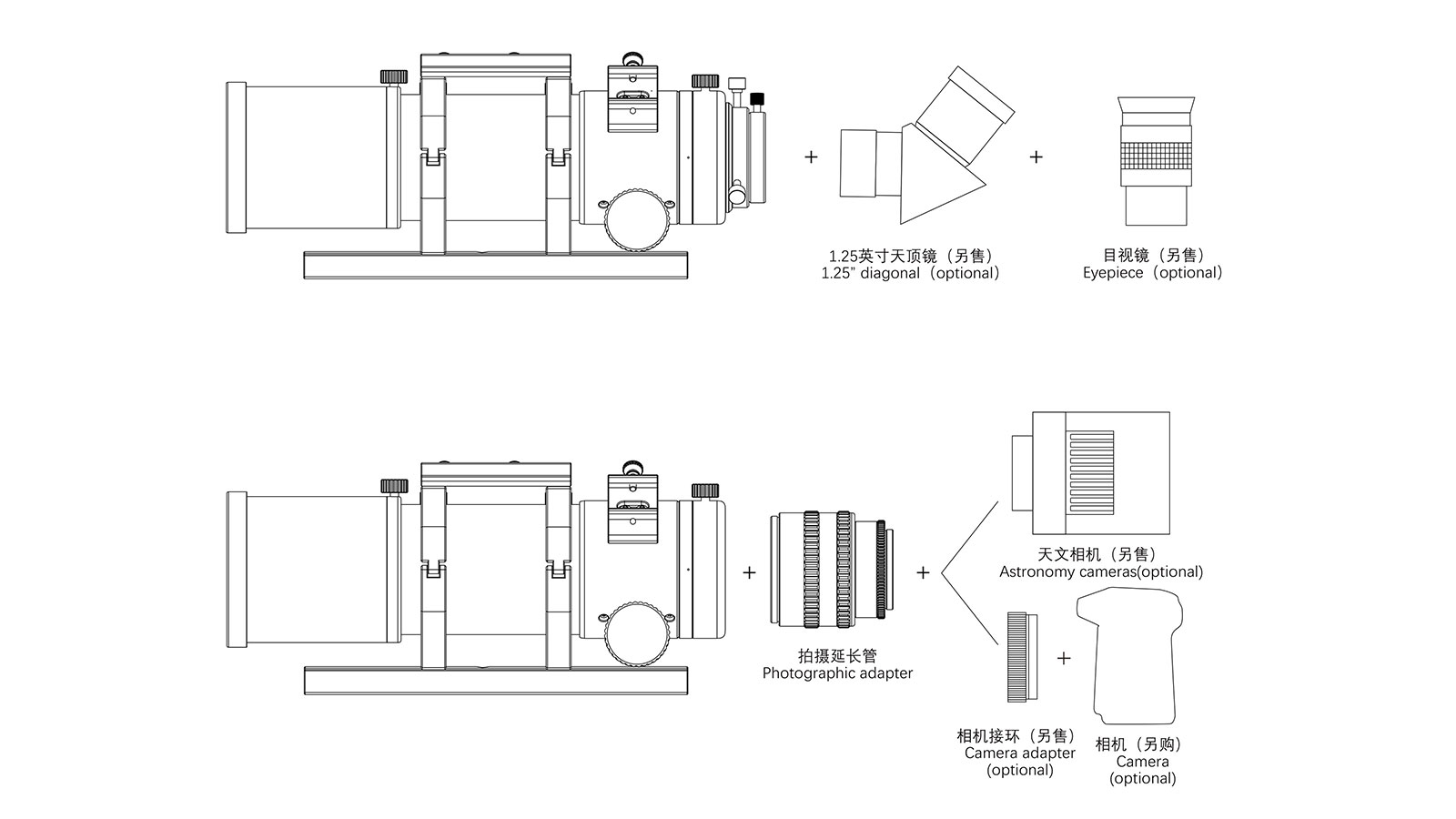

Camera & Visual Back Connection Diagram

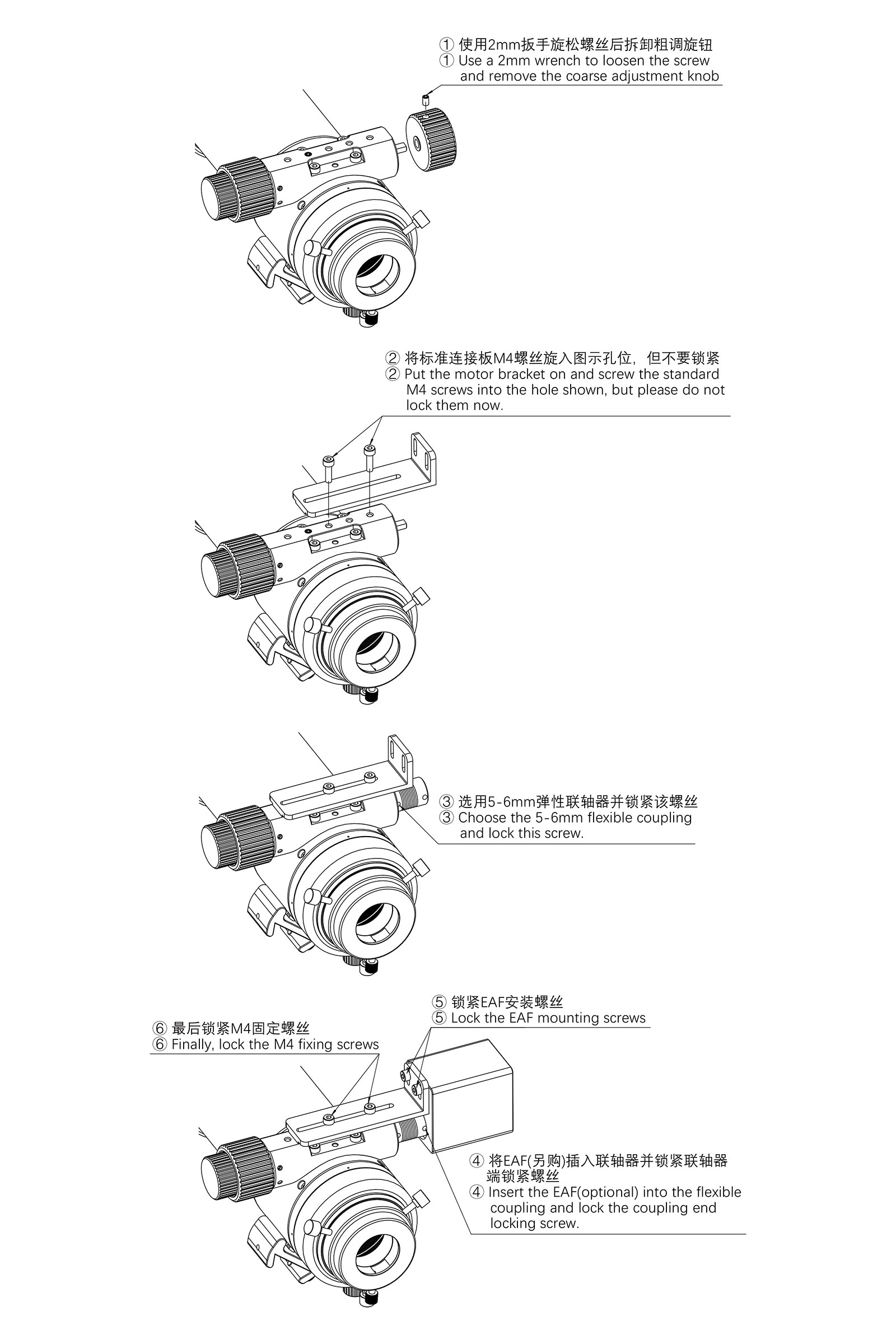

Electronic Focuser Installation

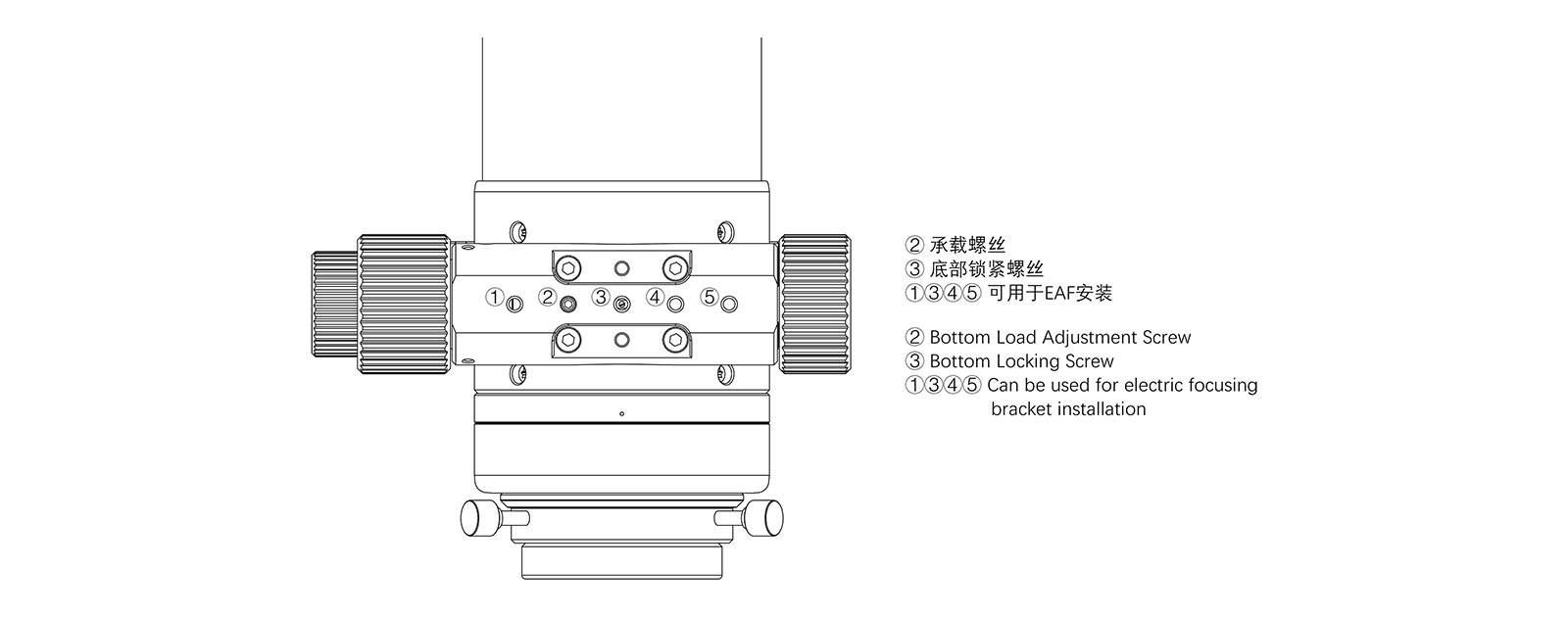

Locking Screw Position Diagram

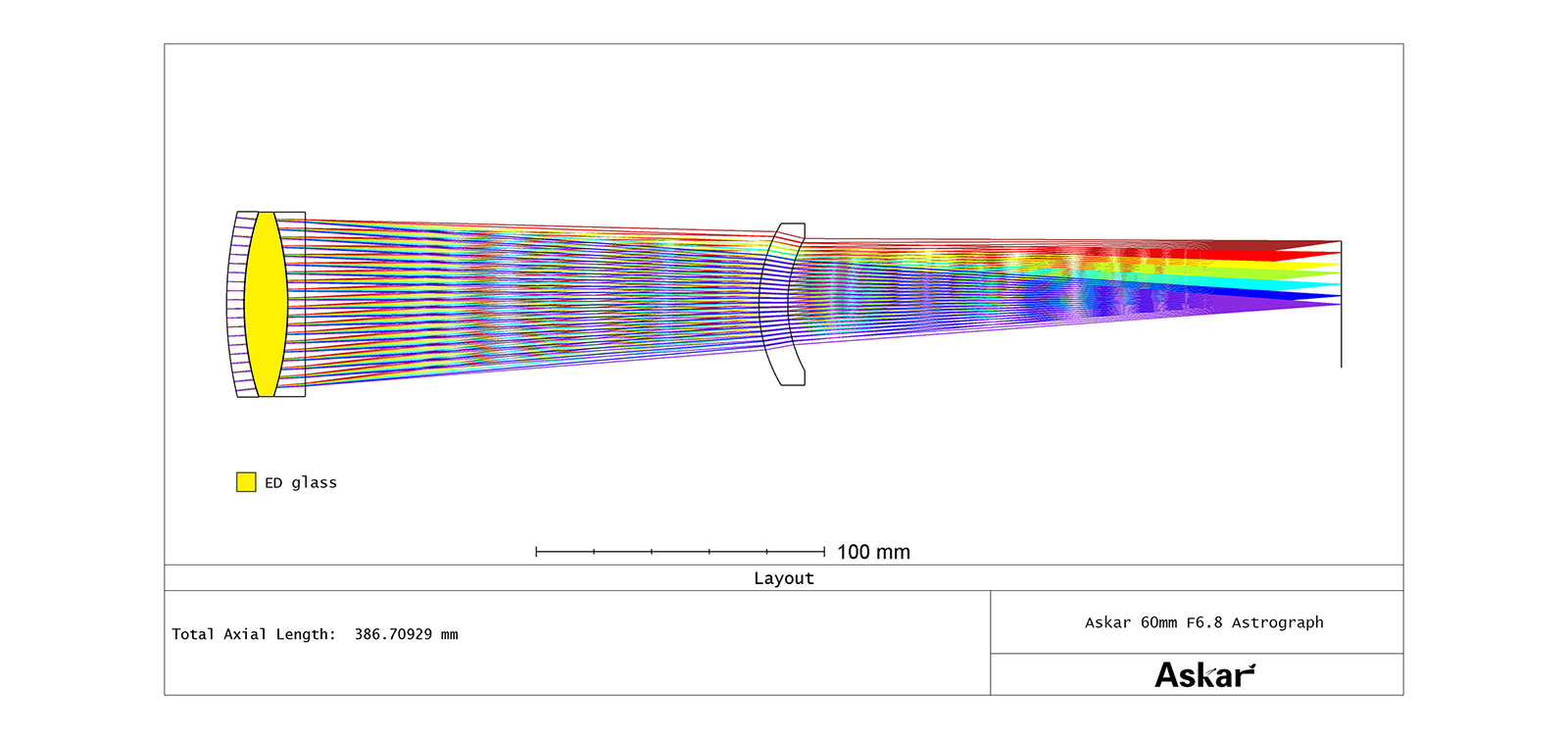

Optical Path

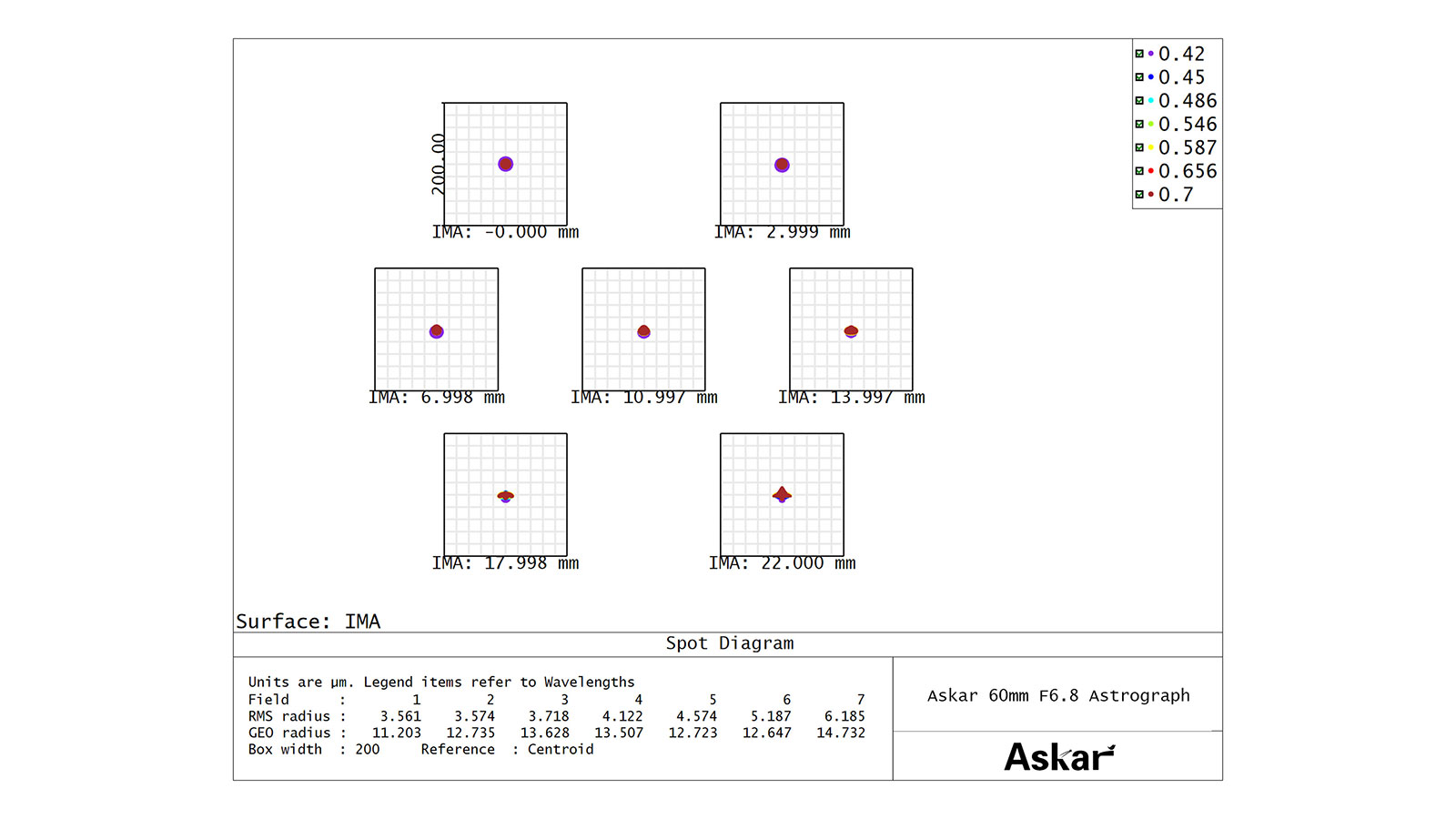

Spot Diagram
Frequently Asked Questions (FAQ)
What can I see with the Askar 60F?
The Askar 60F is excellent for bright deep-sky objects like the Orion Nebula, the Andromeda Galaxy, and star clusters such as the Pleiades. You’ll also enjoy sharp, detailed views of the Moon and planets. Its optics make faint details easier to spot, especially under dark skies.
Is the Askar 60F good for astrophotography?
Yes! It supports full-frame sensors, delivering pinpoint stars across the image. Just attach your camera, focus, and you’re ready to capture.
Does the Askar 60F need a separate field flattener?
No. The Askar 60F has a built-in field flattener, so there’s no need for a separate one. It provides a flat, distortion-free field right out of the box, even with full-frame cameras.
Can I attach a filter wheel?
Yes, the Askar 60F supports filter wheels and filter drawers through its M48, M54, and M64 threaded connections. This makes it easy to integrate filters for monochrome or narrowband imaging setups.
Can I use the 60F for visual observing?
Absolutely. The included 1.25”/2” visual back lets you use diagonals and eyepieces for comfortable visual observing. You can easily switch between imaging and visual modes.
How portable is this Askar telescope?
The Askar 60F is lightweight and compact, weighing only about 5 lbs (2.36 kg). With tube rings and dovetail, it’s about 6.3 lbs (2.86 kg). Its retractable dew shield makes it easy to transport for travel or field use.
Does the Askar 60F need a tracking mount?
For visual observing, a tracking mount isn’t required. But for astrophotography, a tracking or GoTo equatorial mount is highly recommended to keep your target centered during long exposures.
Does it work with the Sky-Watcher Star Adventurer and other portable tracking mounts?
Yes, the Askar 60F pairs well with the Sky-Watcher Star Adventurer, iOptron SkyGuider Pro, and other compact tracking mounts. Its light weight makes it ideal for travel-friendly imaging setups.
What mount do I need?
You can use either an alt-azimuth mount for casual viewing or an equatorial mount for imaging. For astrophotography, a tracking equatorial mount is recommended. The included Vixen-style dovetail makes it simple to attach to most mounts.
Do I need to calculate backfocus?
No. The 60F’s built-in field flattener removes the need for complex backfocus spacing. As long as your camera or eyepiece reaches focus, the field will stay sharp from edge to edge.
Can I use this telescope during the day?
Yes, the 60F doubles as a spotting scope for terrestrial use. It’s great for birdwatching, landscapes, and daytime photography. The optics deliver clear and bright daytime views.
How does it handle color and distortion?
With its ED glass element, the 60F minimizes chromatic aberration and color fringing. Stars and bright objects remain crisp, even at the edge of the field. The quadruplet design ensures a flat, distortion-free image.
Other Information
- Country of Manufacture: China
