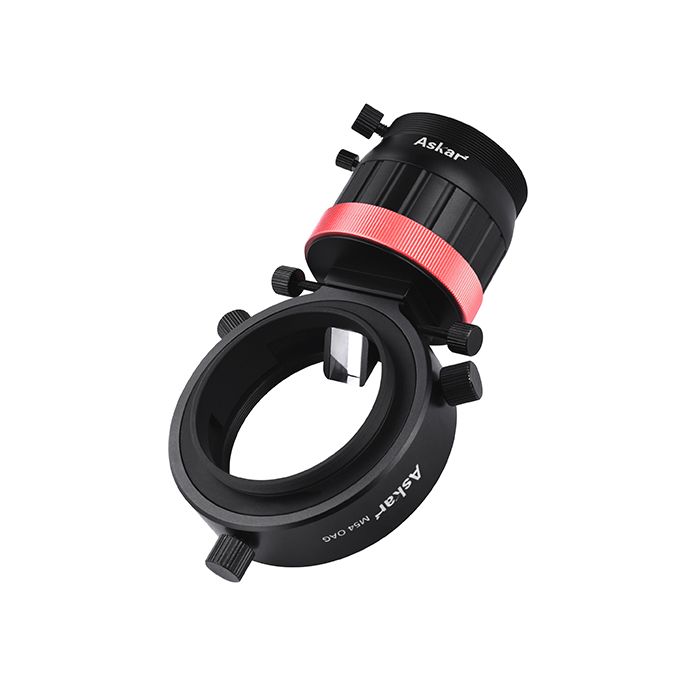

Askar Off-Axis Guider with 1.25" Holder and M42, M48 & M54 Threads
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Askar M54 off-axis guider supports imaging with up to full-frame astronomy cameras
- Includes M42, M48, and M54 adapters and extension rings to attach to a wide range of cameras
- Interfaces with guide camera with included 1.25” adapter or standard M42 thread
- Large 10mm x 10mm prism makes it easier to select guide stars
- Made from black-anodized CNC-machined aluminum
The Askar M54 off-axis guider (OAG) offers a premium autoguiding solution for astrophotographers. This versatile OAG supports full-frame astronomy cameras and features a large 10mm x 10mm prism which gives a larger field of view that makes it easier to select a guide star.
The Askar M54 OAG includes threaded M42, M48, and M54 adapters to easily interface with a wide range of cameras. It also includes M42 and M48 adapters and an M54 gasket for use on the telescope side. The top of the OAG has a 1.25” adapter and M42x0.75 threads to give you two options to attach the guide camera (sold separately). It also features a scaled helical focuser with 10mm of travel to help you easily achieve focus with the guide cam.
The Askar OAG has a thickness of 19.5mm. It includes three threaded 18mm extender rings to match the M42, M48, and M54 camera adapters to help achieve a 55mm back focus when using cameras with a sensor recessed by 17.5mm. The extender rings can be replaced by a filter wheel of the appropriate thickness and thread size (sold separately). If a camera with a back focus other than 17.5mm is used, other extender rings will be required (sold separately).
Like all Askar products, this M54 off-axis guider is also attractively constructed with a delicate matte black anodized finish on a precision CNC-machined aluminum body. Weight = 0.36 kg / 12.7oz.
Other Information
- Country of Manufacture: China
The Askar M54 off-axis guider (OAG) offers a premium autoguiding solution for astrophotographers. This versatile OAG supports full-frame astronomy cameras and features a large 10mm x 10mm prism which gives a larger field of view that makes it easier to select a guide star.
The Askar M54 OAG includes threaded M42, M48, and M54 adapters to easily interface with a wide range of cameras. It also includes M42 and M48 adapters and an M54 gasket for use on the telescope side. The top of the OAG has a 1.25” adapter and M42x0.75 threads to give you two options to attach the guide camera (sold separately). It also features a scaled helical focuser with 10mm of travel to help you easily achieve focus with the guide cam.
The Askar OAG has a thickness of 19.5mm. It includes three threaded 18mm extender rings to match the M42, M48, and M54 camera adapters to help achieve a 55mm back focus when using cameras with a sensor recessed by 17.5mm. The extender rings can be replaced by a filter wheel of the appropriate thickness and thread size (sold separately). If a camera with a back focus other than 17.5mm is used, other extender rings will be required (sold separately).
Like all Askar products, this M54 off-axis guider is also attractively constructed with a delicate matte black anodized finish on a precision CNC-machined aluminum body. Weight = 0.36 kg / 12.7oz.
- Askar M54 off-axis guider supports imaging with up to full-frame astronomy cameras
- Includes M42, M48, and M54 adapters and extension rings to attach to a wide range of cameras
- Interfaces with guide camera with included 1.25” adapter or standard M42 thread
- Large 10mm x 10mm prism makes it easier to select guide stars
- Made from black-anodized CNC-machined aluminum
The Askar M54 off-axis guider (OAG) offers a premium autoguiding solution for astrophotographers. This versatile OAG supports full-frame astronomy cameras and features a large 10mm x 10mm prism which gives a larger field of view that makes it easier to select a guide star.
The Askar M54 OAG includes threaded M42, M48, and M54 adapters to easily interface with a wide range of cameras. It also includes M42 and M48 adapters and an M54 gasket for use on the telescope side. The top of the OAG has a 1.25” adapter and M42x0.75 threads to give you two options to attach the guide camera (sold separately). It also features a scaled helical focuser with 10mm of travel to help you easily achieve focus with the guide cam.
The Askar OAG has a thickness of 19.5mm. It includes three threaded 18mm extender rings to match the M42, M48, and M54 camera adapters to help achieve a 55mm back focus when using cameras with a sensor recessed by 17.5mm. The extender rings can be replaced by a filter wheel of the appropriate thickness and thread size (sold separately). If a camera with a back focus other than 17.5mm is used, other extender rings will be required (sold separately).
Like all Askar products, this M54 off-axis guider is also attractively constructed with a delicate matte black anodized finish on a precision CNC-machined aluminum body. Weight = 0.36 kg / 12.7oz.
Other Information
- Country of Manufacture: China
Askar Off-Axis Guider with 1.25" Holder and M42, M48 & M54 Threads
