Askar SQA106: Experience the Super Fine Quintuplet Design
The SharpStar SQA106 is a premium 106mm aperture, f/4.8 quintuplet Petzval astrograph designed to deliver exceptional wide-field astrophotography performance with minimal setup complexity. Its advanced five-element optical design incorporates two SD glass elements for outstanding color correction and sharp, high-contrast images. Unlike traditional refractors, the integrated Petzval design provides a fully corrected field without requiring an additional field flattener, producing pinpoint stars across a generous 55mm image circle that can accommodate everything from full-frame to medium-format cameras.
With a focal length of 509mm and a fast f/4.8 focal ratio, the SQA106 is ideally suited for capturing nebulae, galaxies, star clusters, and expansive nightscapes. A robust 2.8-inch rack-and-pinion focuser provides the stability needed for heavy imaging accessories, while the precision-machined aluminum tube, retractable dew shield, and versatile camera adapter system make integration with modern astrophotography equipment simple and reliable. Whether you're building a high-end imaging rig or upgrading your current setup, the SQA106 offers professional-grade optical performance in a streamlined, user-friendly package.
Take a Closer Look at the Askar SQA106
Explore the Askar SQA106 in our latest product overview! We highlight its quintuplet Petzval optics, fast f/4.8 focal ratio, 55mm image circle, integrated field flattener, and design features built for wide-field deep-sky astrophotography.
SAQ106 Standout Features!
Dual-Speed Focuser
Featuring a large 2.8-inch, dual-speed rack-and-pinion that is compatibile with most motorized focusers on the market currently! Providing a focuse travel of 30mm and engraved with a high-percision scale. The entire focusr barrel is CNC machined with an anti-reflective internal design providing extra measures to eliminate stray light.
Petzval Design
The SQA106 supports a 55mm image circle. The central star point has an RMS radius of less than 1.7 µm, and the star point at 55 mm is less than 2.2 µm, showing a super-fine star point. It also has excellent full-field illumination and MTF data. The relative illumination can be higher than 90% at 44 mm image circle. No need for additional calculation of the back focus. Between 48mm and 78mm connection distance, you can start shooting once the target is in focus.

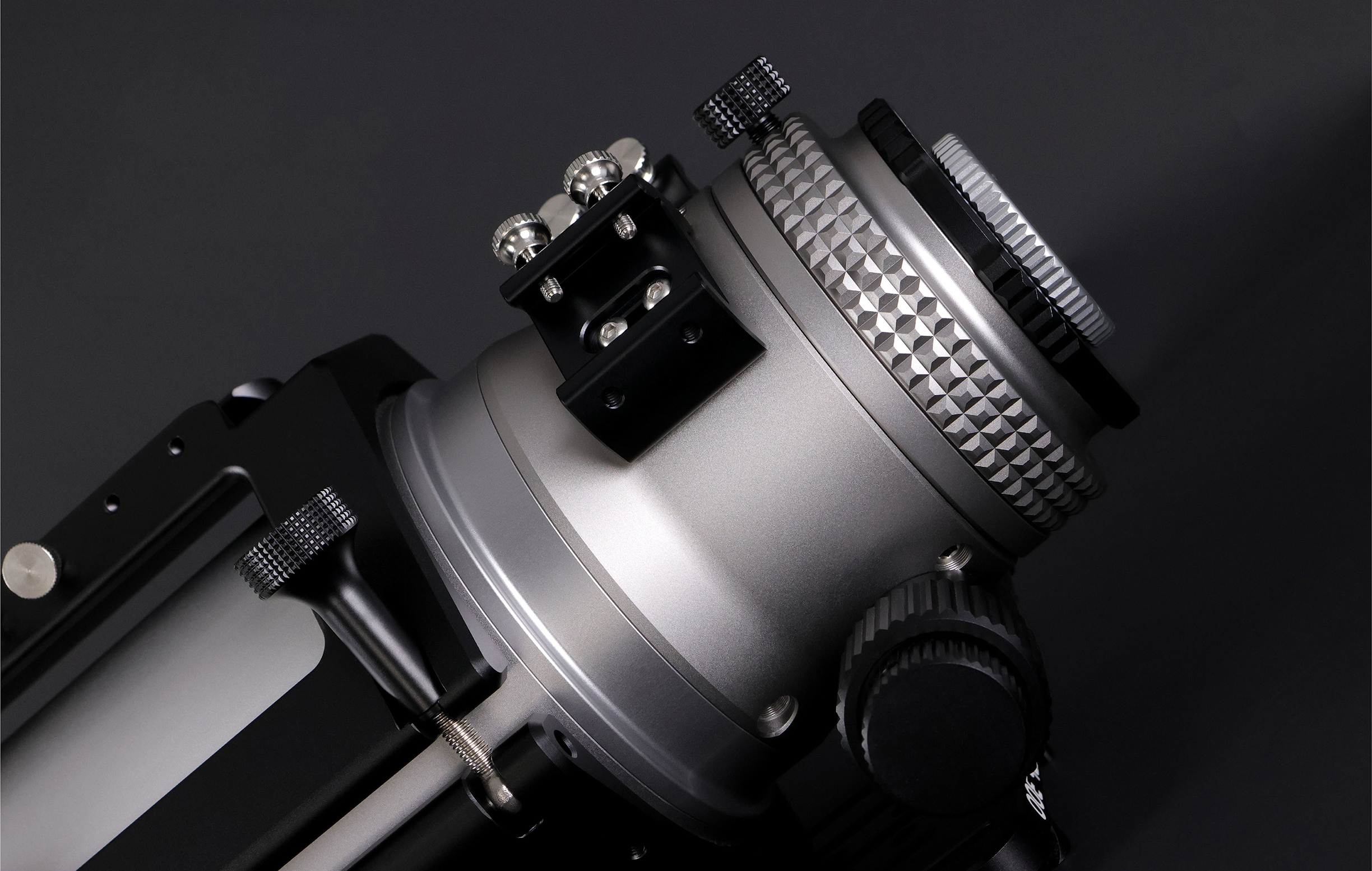

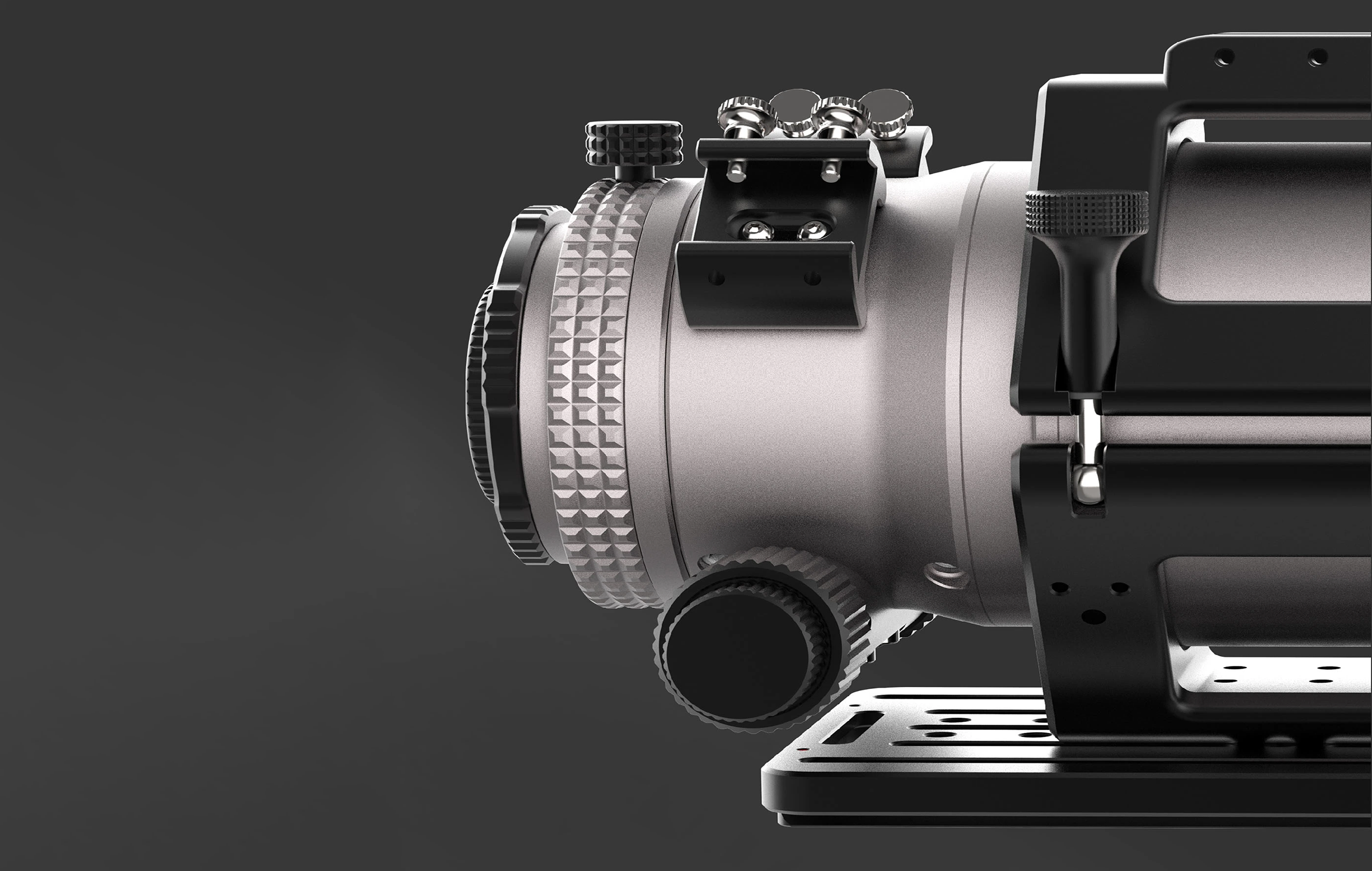

Finder-Bases
Two finder bases are included on both sides of the focuser. Not only eliminating the need for disassembling when changing positions of the finder scope, but also providing additional mounting positions for other added accessories!

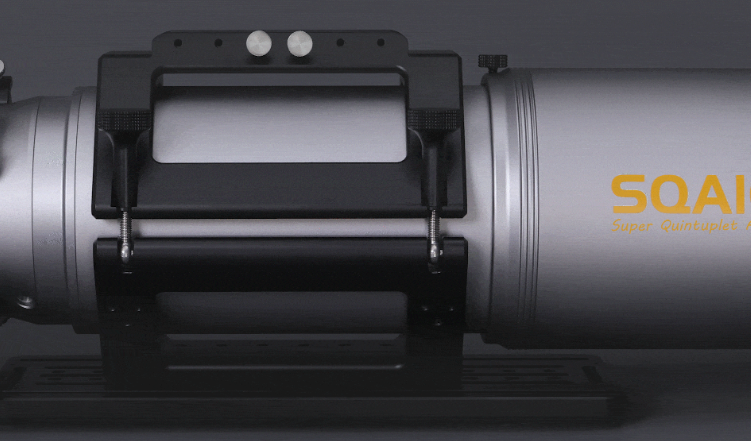

Integrated Tube Ring
Enlarged hand screws allow users to open and close the tube ring without additional tools. There are 6 M4 and M6 threaded holes on both sides of the tube ring, which are convenient for installing the base or dovetail plate and connecting different accessories. You can even set up another set of OTA for shooting. Integrated pair of tube ring sets, with a hollow design in the middle to reduce overall weight.
The handle on the top of the tube ring is slotted with a multifunctional finder base, which can be used to install astronomical accessories.

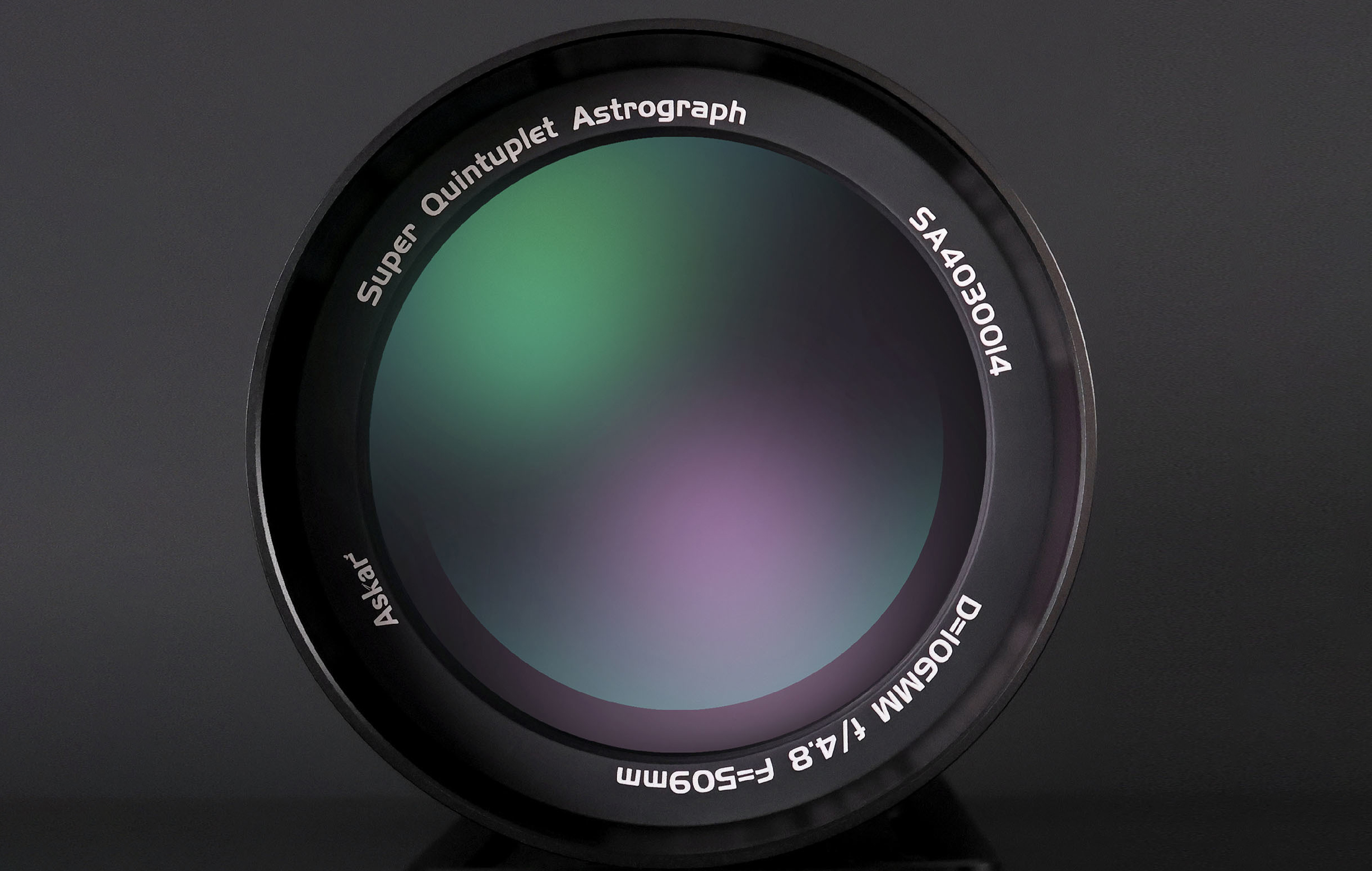

Excellent star point performance
Quintuplet air-spaced lens design, including 2 pieces of SD glass. The central star point has an RMS radius of less than 1.7 μm, and the star point at 55 mm is less than 2.2 μm, showing a super-fine star point. It also has excellent full-field illumination and MTF data. The relative illumination can be higher than 90% at 44 mm image circle.
Retractable Dew Shield
The dew shield is a retractable design that can be pulled out when used. It protects the lens from the impact of external and internal light and protects the lens itself.
Askar SQA106 in Action!
Specifications
-
Aperture Size: 106 mm
-
Focal Length: 509 mm
-
Focal Ratio: f/4.8
-
Objective Lens: Quintuplet Petzval APO (including two pieces of SD glass)
-
Total Length: 516 mm (Dew shield contracted) / 586 mm (Dew shield stretched) | (20.31 in / 23.07 in)
-
Format Specifications: Full-frame (44 mm), upgrade to the medium format (55 mm)
-
Optical Tube Assembly (OTA) Weight: 5.82 kg (12.83 lb)
-
Gross Weight: 8.12 kg (17.90 lb) (including tube ring and dovetail plate)
-
Rear-End Thread Type: M48 / M54 / M68 Adapters
-
Rear-End Connection Distance: Support 40–70 mm range (Recommended connection length is 55 mm) / (1.57 in – 2.76 in / 2.17 in)

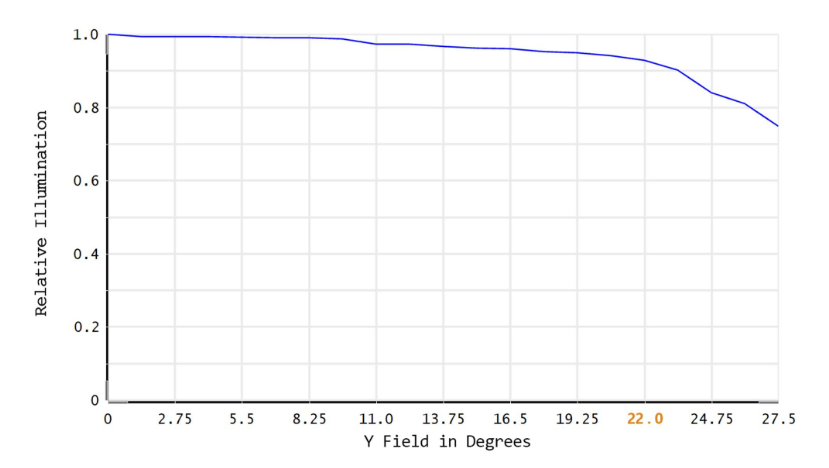

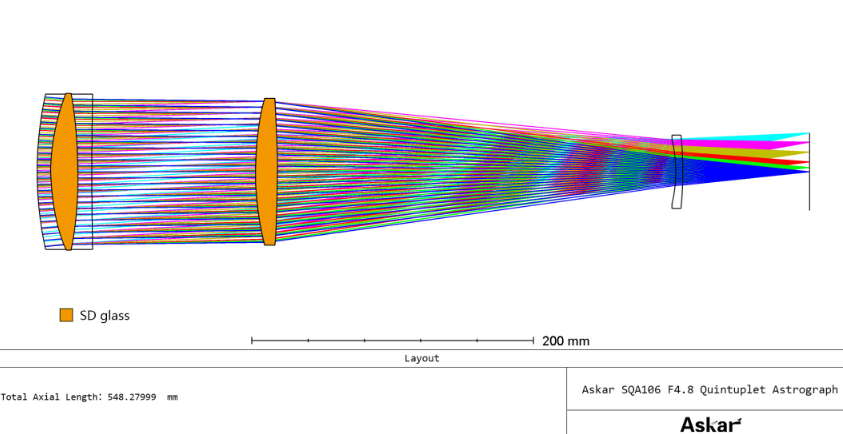

Optical Path & Illumination

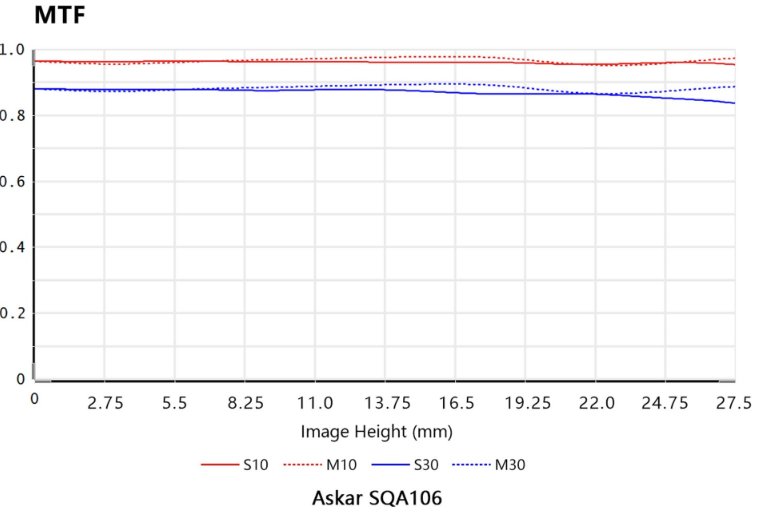

MFT

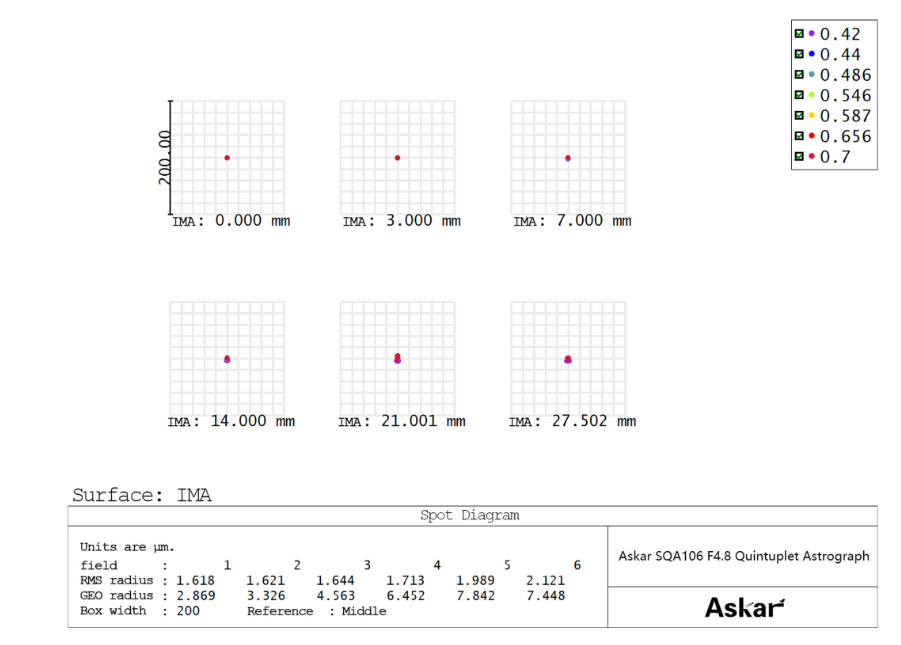

Spot Diagram

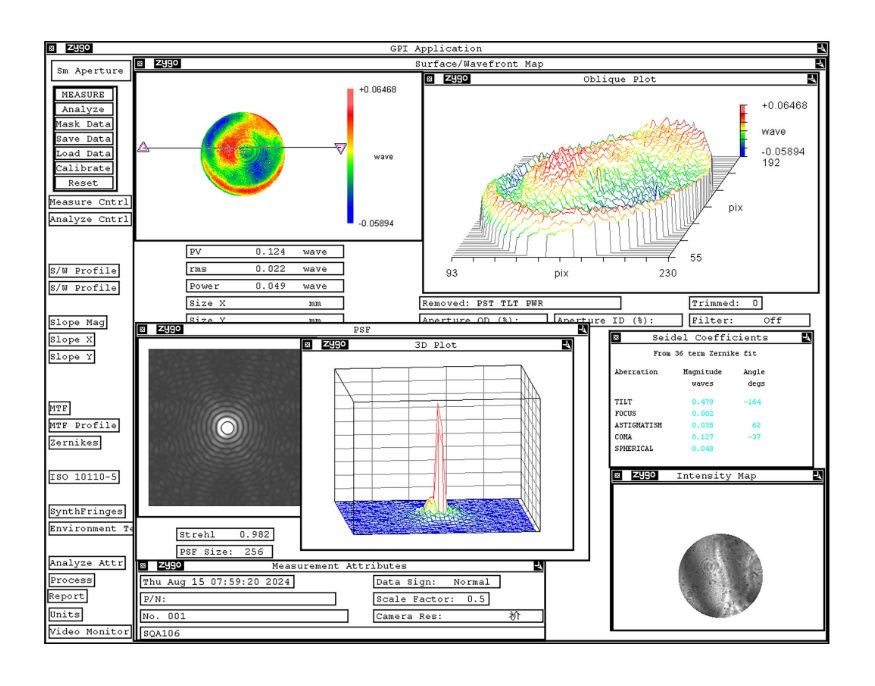

Zygo Objective

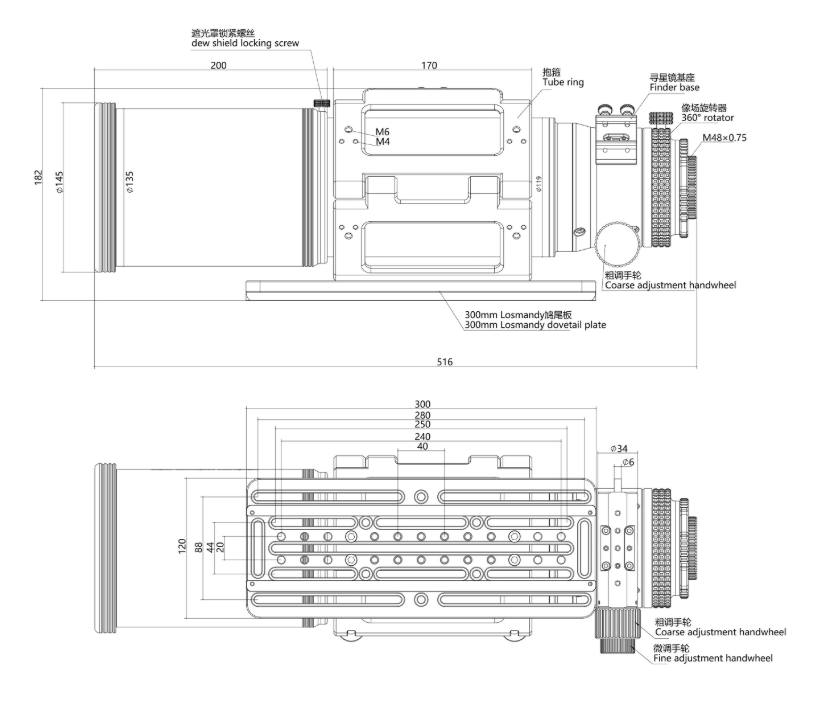

Dimensions

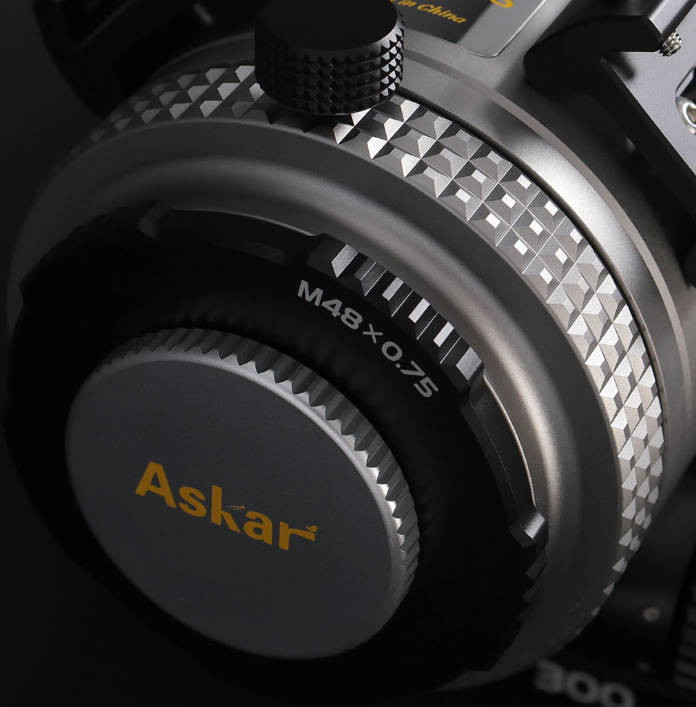

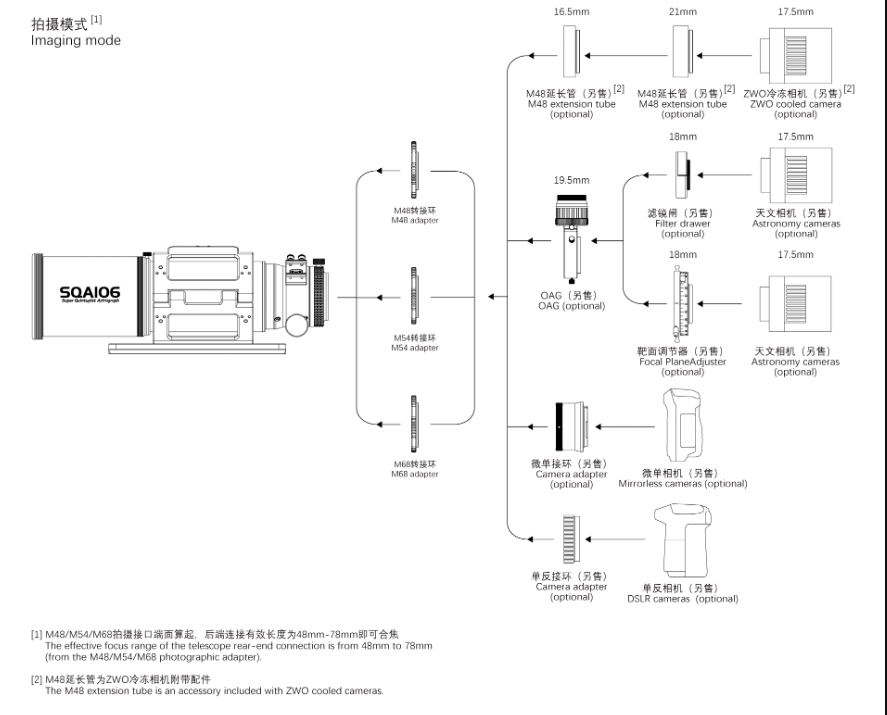

Camera Connection

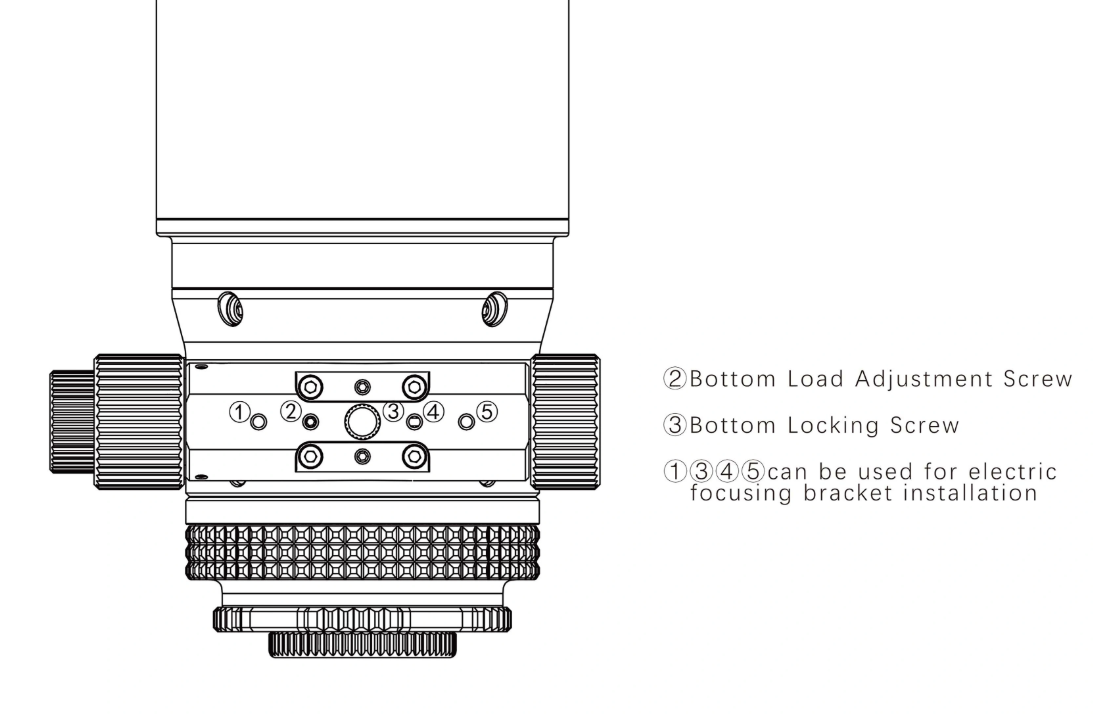

Focuser Lock

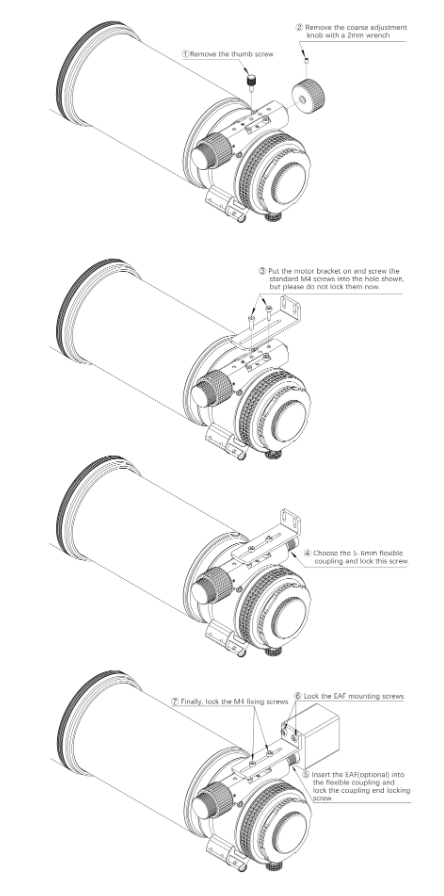

EAF Attachment
Other Information
- Country of Manufacture: China
Askar SQA106: Experience the Super Fine Quintuplet Design
The SharpStar SQA106 is a premium 106mm aperture, f/4.8 quintuplet Petzval astrograph designed to deliver exceptional wide-field astrophotography performance with minimal setup complexity. Its advanced five-element optical design incorporates two SD glass elements for outstanding color correction and sharp, high-contrast images. Unlike traditional refractors, the integrated Petzval design provides a fully corrected field without requiring an additional field flattener, producing pinpoint stars across a generous 55mm image circle that can accommodate everything from full-frame to medium-format cameras.
With a focal length of 509mm and a fast f/4.8 focal ratio, the SQA106 is ideally suited for capturing nebulae, galaxies, star clusters, and expansive nightscapes. A robust 2.8-inch rack-and-pinion focuser provides the stability needed for heavy imaging accessories, while the precision-machined aluminum tube, retractable dew shield, and versatile camera adapter system make integration with modern astrophotography equipment simple and reliable. Whether you're building a high-end imaging rig or upgrading your current setup, the SQA106 offers professional-grade optical performance in a streamlined, user-friendly package.
Take a Closer Look at the Askar SQA106
Explore the Askar SQA106 in our latest product overview! We highlight its quintuplet Petzval optics, fast f/4.8 focal ratio, 55mm image circle, integrated field flattener, and design features built for wide-field deep-sky astrophotography.
SAQ106 Standout Features!
Dual-Speed Focuser
Featuring a large 2.8-inch, dual-speed rack-and-pinion that is compatibile with most motorized focusers on the market currently! Providing a focuse travel of 30mm and engraved with a high-percision scale. The entire focusr barrel is CNC machined with an anti-reflective internal design providing extra measures to eliminate stray light.
Petzval Design
The SQA106 supports a 55mm image circle. The central star point has an RMS radius of less than 1.7 µm, and the star point at 55 mm is less than 2.2 µm, showing a super-fine star point. It also has excellent full-field illumination and MTF data. The relative illumination can be higher than 90% at 44 mm image circle. No need for additional calculation of the back focus. Between 48mm and 78mm connection distance, you can start shooting once the target is in focus.
Finder-Bases
Two finder bases are included on both sides of the focuser. Not only eliminating the need for disassembling when changing positions of the finder scope, but also providing additional mounting positions for other added accessories!
Integrated Tube Ring
Enlarged hand screws allow users to open and close the tube ring without additional tools. There are 6 M4 and M6 threaded holes on both sides of the tube ring, which are convenient for installing the base or dovetail plate and connecting different accessories. You can even set up another set of OTA for shooting. Integrated pair of tube ring sets, with a hollow design in the middle to reduce overall weight.
The handle on the top of the tube ring is slotted with a multifunctional finder base, which can be used to install astronomical accessories.
Excellent star point performance
Quintuplet air-spaced lens design, including 2 pieces of SD glass. The central star point has an RMS radius of less than 1.7 μm, and the star point at 55 mm is less than 2.2 μm, showing a super-fine star point. It also has excellent full-field illumination and MTF data. The relative illumination can be higher than 90% at 44 mm image circle.
Retractable Dew Shield
The dew shield is a retractable design that can be pulled out when used. It protects the lens from the impact of external and internal light and protects the lens itself.
Askar SQA106 in Action!
Specifications
-
Aperture Size: 106 mm
-
Focal Length: 509 mm
-
Focal Ratio: f/4.8
-
Objective Lens: Quintuplet Petzval APO (including two pieces of SD glass)
-
Total Length: 516 mm (Dew shield contracted) / 586 mm (Dew shield stretched) | (20.31 in / 23.07 in)
-
Format Specifications: Full-frame (44 mm), upgrade to the medium format (55 mm)
-
Optical Tube Assembly (OTA) Weight: 5.82 kg (12.83 lb)
-
Gross Weight: 8.12 kg (17.90 lb) (including tube ring and dovetail plate)
-
Rear-End Thread Type: M48 / M54 / M68 Adapters
-
Rear-End Connection Distance: Support 40–70 mm range (Recommended connection length is 55 mm) / (1.57 in – 2.76 in / 2.17 in)
Optical Path & Illumination
MFT
Spot Diagram
Zygo Objective
Dimensions
Camera Connection
Focuser Lock
EAF Attachment
- 1x SQA106 OTA
- 1x Oxford cloth case
