New version (September 2025): This item now comes with two couplers with different inside diameters (4mm and 5mm).
- 4mm coupler: Compatible with the latest EAFN and EAF-Pro models
- 5mm coupler: Compatible with the previous-generation EAF-5V model
Please note: This kit is compatible with the current FMA180-Pro ONLY. It cannot be used with the original FMA180.
With the upgrading of electronic astronomical accessories, electronic devices are more and more widely used in astronomical observation and astrophotography. To better meet the needs of astronomy amateurs, Askar launched the FMA180 PRO AF Kit.
The FMA180 PRO AF Kit is an astronomical accessory designed specifically for the FMA180 PRO lens to work with ZWO's EAF (electronic automatic focuser) to realize auto and more accurate focusing. By using this kit, astronomy amateurs can more easily focus the astrograph, thus improving the accuracy and efficiency of astronomical observation or astrophotography. The EAF holder is CNC-machined aluminum and black anodized.

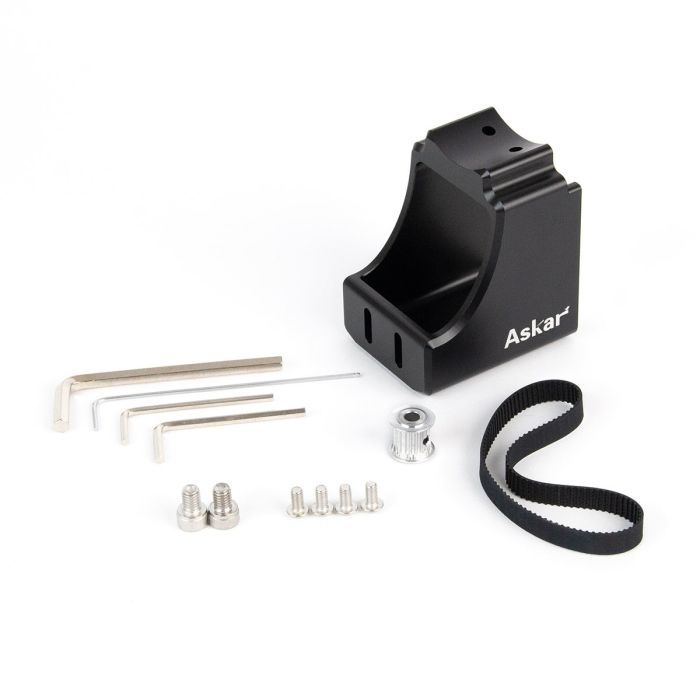

Components
The FMA180 PRO AF Kit contains the following parts:
- A black square bracket to support the EAF

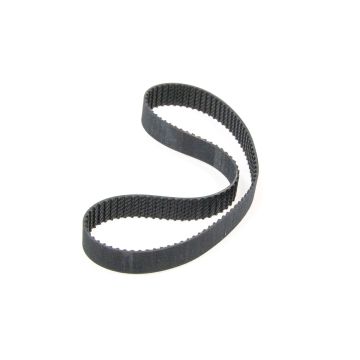

- A synchronous belt
- Two synchronous pulleys
- Locking screws
- Two M6x8 socket head cap screws
- Four M4x8 button head screws
*Note: the FMA180 PRO and the ZWO's EAF appearing in the photos are not included in this kit and are for demonstration only.

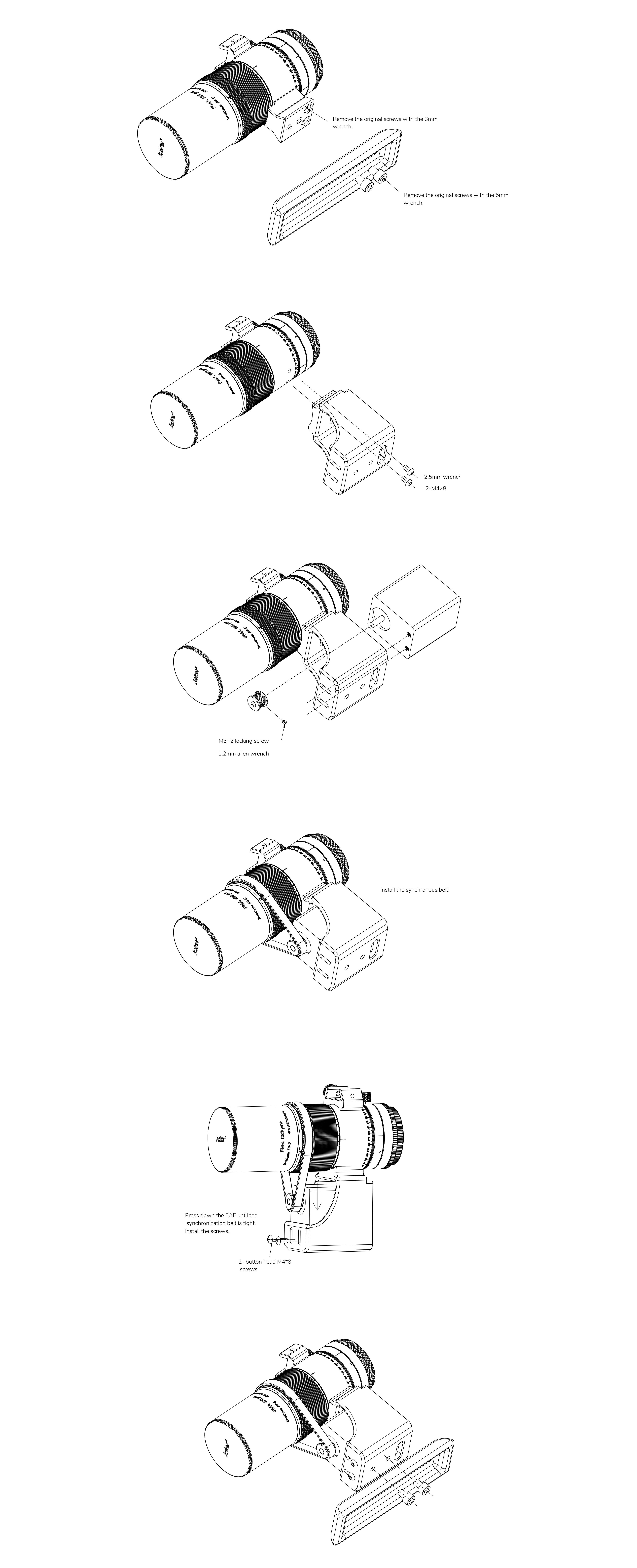

Installation Steps
- Remove the original black dovetail plate and finder base from the FMA180 PRO. There are two screw holes on one side of the black bracket, corresponding to the two screw holes on the bottom of the FMA180 PRO.
- Use a 2.5mm wrench to screw the two M4x8 button head screws to connect the EAF bracket and the FMA180 PRO.
- Use a 1.2mm allen wrench to screw the M3x2 locking screws to connect the synchronous pulley and EAF, and put the EAF with the synchronous pulley into the bracket.
- Install the synchronous belt with one end over the FMA180 PRO and the other end over the synchronous pulley.
- Adjust and fix the position of the EAF, and then use two M4x8 button head screws to fix the EAF and the bracket. Place the FMA180 PRO with the bracket on the vixen dovetail plate and secure it with two M6x8 socket head cap screws. The installation of the FMA180 PRO AF Kit is done.
Other Information
- Country of Manufacture: China
