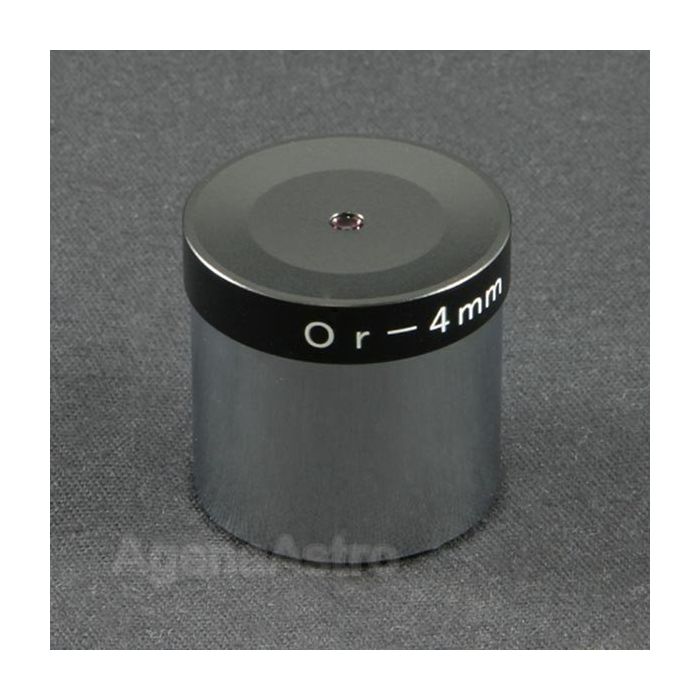

Astro Hutech 1.25" Abbe Orthoscopic Eyepiece (Japan) - 4mm
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
* Closeout * All sales final. No returns accepted.
Astro Hutech has resurrected the famed orthoscopic eyepiece series that was sold under the label of Kasai Trading Company of Japan for many years. These eyepieces are based on the classic Abbe Orthoscopic (3 + 1 element) design. The true Abbe Orthoscopic has long been recognized for its ability to deliver the highest resolution, contrast and light throughput of any modern eyepiece design.
The three cemented elements are hand-aligned by Japanese craftsmen. All components of this eyepiece, including all glass and other materials, are manufactured and assembled fully in Japan.
Fully multicoated lenses provide clean, high-contrast images suitable for optimum planetary and lunar viewing. On-axis images are essentially perfect and the orthoscopic design ensures freedom from distortion. Contrast and throughput are maximized by its minimum of lens elements, coatings, and only 4 air-to-glass surfaces.
Features:
- Fully multi-coated optics
- 42 degree apparent field of view.
- Eye relief: ~80% of focal length
- Smooth-sided 1.25" eyepiece barrels
* Closeout * All sales final. No returns accepted.
Astro Hutech has resurrected the famed orthoscopic eyepiece series that was sold under the label of Kasai Trading Company of Japan for many years. These eyepieces are based on the classic Abbe Orthoscopic (3 + 1 element) design. The true Abbe Orthoscopic has long been recognized for its ability to deliver the highest resolution, contrast and light throughput of any modern eyepiece design.
The three cemented elements are hand-aligned by Japanese craftsmen. All components of this eyepiece, including all glass and other materials, are manufactured and assembled fully in Japan.
Fully multicoated lenses provide clean, high-contrast images suitable for optimum planetary and lunar viewing. On-axis images are essentially perfect and the orthoscopic design ensures freedom from distortion. Contrast and throughput are maximized by its minimum of lens elements, coatings, and only 4 air-to-glass surfaces.
Features:
- Fully multi-coated optics
- 42 degree apparent field of view.
- Eye relief: ~80% of focal length
- Smooth-sided 1.25" eyepiece barrels
| Manufacturer | Astro Hutech |
|---|---|
| Eyepiece Series | Abbe Orthoscopic |
| Focal Length | 4mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 42° |
| Eye Relief (Designed) | 3.2mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Multi-Coated |
| Lens Elements | 4 |
| Lens Groups | 2 |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Storage Container Included | Yes - Free Agena Eyepiece Container |
| Protective Plastic Storage Container Size (Sold Separately) | Agena 37x60mm |
| Optical Design | Abbe Orthoscopic |
| Height (Without Eyeguard) | 1.50" (38.0mm) To be updated |
| Maximum Width | 1.34" (34.0mm) To be updated |
| End Caps | 2 |
| Eye Lens Diameter | 0.15" (3.9mm) To be updated |
| Rubber Eye Guard | No |
| Weight | 2.2 oz (62g) To be updated |
| Country of Manufacture | Japan |
