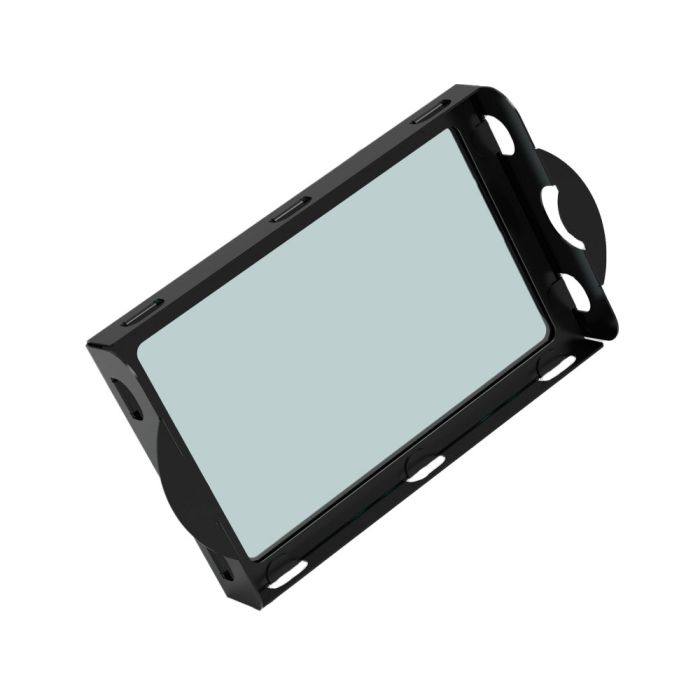

Astronomik L-3 UV-IR Cut L-Filter - Canon EOS XL Clip Filter
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Astronomik offers a range of three different ultraviolet (UV) and infrared (IR) blocking filters for the Luminance channel. These filters are designed to help you tune your setup to produce the sharpest, most contrast-rich images possible. The luminance channel is critical to a great final image because it provides the most signal, which means the filter should have the highest transmission possible with a wide spectral bandpass across the entire visible spectrum. This combination ensures the highest sensitivity and photon counts on your pixels.
However, not all optical instruments or additional optical elements like correctors, field-flatteners, or reducers have a perfect color correction. A Luminance filter with too wide a bandpass can show chromatic aberration of the optical system, resulting in soft or bloated stars and making image processing difficult. To address this, Astronomik offers its line of Luminance filters: the L-1 filter with the widest spectral window, the L-2 filter with a standard spectral window, and the L-3 filter with the narrowest spectral window.
Depending on the color errors of the instruments used, the Astronomik Luminance filter with the widest spectral window should be used.
- L-1 UV-IR Block filter: Ideal for chromatic aberration-free optical systems such as reflector telescopes, where additional lenses are only used to correct image errors, not to change the focal ratio.
- L-2 UV-IR Block filter: Suitable for APO refractors or very good doublets used with their native focal length, reflecting telescopes with focal reducers and RASA telescopes. The transmission is very close to the UV-IR blocking filters used by companies such as Canon and Nikon in their cameras.
- L-3 UV-IR Block filter: Designed for refractors and camera lenses with less-than-perfect color correction to minimize bluish halos around stars.
The transmission characteristics and coatings on the Astronomik Luminance filters are engineered to eliminate halos and reflections. Even with bright stars in the field of view, nebulae and galaxies are imaged with the finest structures and maximum contrast.
Additional note for photographers under light-polluted skies
The Astronomik CLS CCD filter is recommended as a replacement for the Astronomik Luminance filter. The Astronomik CLS CCD filter provides approximately the same amount of light in all three color channels while blocking nearly all unwanted light pollution, resulting in much deeper images with much less background noise from light-polluted observing sites.
Clip-Filters for Canon EOS full-frame DSLR cameras
Since 2007 we offer our extremely popular Astronomik Clip-Filters. The complete range of Astronomik filters is available as Clip-Filters for the Canon EOS full-frame DSLR cameras.
The Astronomik Clip-Filters offer a number of practical advantages that make them an ideal choice for astrophotographers:
- Installing and removing the Astronomik Clip-Filter is very quick and easy and requires no extra tools or modifications to the camera body. They can be changed at any time, even at night.
- All lens functions, such as focus, aperture, and image stabilization remain fully functional.
- The Astronomik Clip-Filters are held securely in place without stressing the high-quality glass.
- The Astronomik Clip-Filters are designed and optimized for use with both standard camera lenses and telescopes.
Through the Astronomik Clip-Filters, we were able to solve several common issues faced by astrophotographers:
- Large filters for large camera lenses are very expensive.
- Using a filter holder between the camera body and the lens prevents focusing to infinity.
- For very fast telescopes (low f-number) like the Vixen R200SS or the Takahashi "Epsilon" astrograph, a filter drawer or filter wheel cannot be used because the distance to the corrector lenses would be changed.
- Long exposure times lead to dust settling on the camera's sensor chip.
Due to the very tight bayonet and the limited space inside the camera, the Astronomik EOS XL Clip-Filters cause a minimal obstruction in the corners. But this can be easily corrected by flatfielding.
Use Astronomik filters for your Canon EOS full-frame DSLR camera and enjoy marvelous images with an ultra-light equipment!
Compatible Canon EOS full-frame DSLR cameras
| Model | Compatibility |
|---|---|
| Canon EOS-1D (all variants) | No |
| Canon EOS 5D | Yes, but no LiveView |
| Canon EOS 5D Mark II | Yes |
| Canon EOS 5D Mark III | Yes |
| Canon EOS 5D Mark IV | No |
| Canon EOS 5DS | No |
| Canon EOS 5DS R | No |
| Canon EOS 6D | Yes |
| Canon EOS 6D Mark II | No |
Technical data
- Glass thickness: 1mm (except Astronomik OWB Type 3 and XT filters)
- Finely polished optical glass, free of any striae, residual stresses, and bubbles
- Extremely scratch-resistant and durable coating
- Completely resistant against high humidity and aging effects
- Astronomik MFR coating (Astronomik Deep-Sky RGB, UV-IR Block L-1, L-2, L-3, and Narrowband-Emissionline filters)
- Parfocal with other Astronomik filters
- Diffraction-limited
- Optimized spectral windows
- Delivered in a high-quality, long-lasting filter box
Due to the high-precision machining of the carrier substrate, all Astronomik filters are parfocal with wedge errors far below all common tolerances. Astronomik filters are diffraction-limited, ensuring that the optical performance (resolution and contrast) of your telescope is not compromised. Issues concerning focal distances and the exact alignment of images from each color channel are therefore effectively eliminated.
All Astronomik filters are ideal for modern cameras, including both CMOS- and CCD-based models, ensuring you capture the best possible images with your equipment. Sharpness, contrast, and the absence of any reflections and halos are guaranteed. Even with bright stars in the field of view, nebulae and galaxies will be captured with the finest structures. The Astronomik MFR coating is designed for optimal performance across a wide range of focal ratios of the optics used.
Every Astronomik filter undergoes a rigorous quality control process before delivery.
Other Information
- Country of Manufacture: Germany
