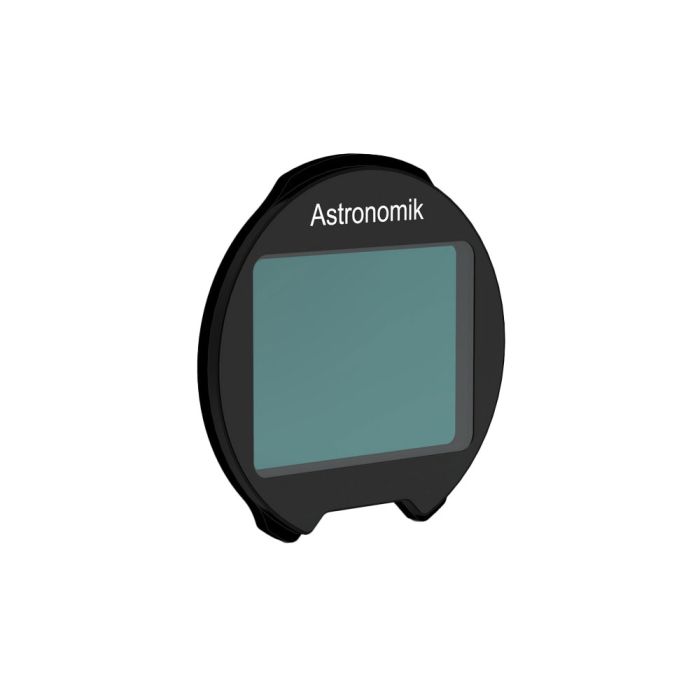

Astronomik UHC Filter - Canon EOS M Clip Filter
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
The Astronomik UHC filter stands out as the first choice for visual observation, offering enhanced contrast and detail in deep-sky objects that surpasses other filters on the market. With its Ultra High Contrast (UHC) design, the filter allows nearly 100% transmission of OIII and H-beta lines, effectively eliminating scattered light from various sources, including light pollution. This results in a significant enhancement of detail for gaseous and planetary nebulae against the sky background.
Designed for versatility, the Astronomik UHC filter is effective in both urban and dark sky conditions, improving contrast for emission nebulae and other celestial objects for medium to large telescopes. It dramatically increases the visibility and detail of objects that are otherwise faint or obscured.
The filter's application spans aperture ratios from 1:3 to 1:15, suitable for a wide range of telescopes. Compared to filters from other manufacturers, the Astronomik UHC filter excels in revealing more stars and finer details in celestial objects, maintaining the sharpness and optical quality expected from high-performance astronomical instruments.
The filter works by blocking emission lines from high- and low-pressure sodium (Na)- and mercury (Hg)-vapor lamps and all lines of natural airglow, while allowing H-beta and OIII lines to pass through. This selective transmission enhances the contrast between the sky background and observed objects.
Additionally, the Astronomik UHC filter is recommended for observation of Jupiter's clouds and offers improved separation of double stars.
In summary, the Astronomik UHC filter is indispensable for astronomers seeking to maximize visual clarity and contrast in deep-sky observation, making it an essential tool for all deep-sky observers alike.
Alternatives
- For telescopes smaller than 5" (125mm), the Astronomik UHC-E filter with its wider pass band is more suitable.
- Telescopes with apertures exceeding 10" (250mm) may benefit from an Astronomik OIII visual filter as first filter.
Suitability of the Astronomik UHC filters
- Visual observation (dark skies): Very good, for telescopes of all aperture ratios
- Visual observation (urban skies): Very good, for telescopes from 4" (100mm) aperture
Clip-Filters for mirrorless Canon EOS M cameras
Since 2007 we offer our extremely popular Astronomik Clip-Filters. The complete range of Astronomik filters is available as Clip-Filters for the compact mirrorless Canon EOS M series.
The Astronomik Clip-Filters offer a number of practical advantages that make them an ideal choice for astrophotographers:
- Installing and removing the Astronomik Clip-Filter is very quick and easy and requires no extra tools or modifications to the camera body. They can be changed at any time, even at night.
- All lens functions, such as focus, aperture, and image stabilization remain fully functional.
- The Astronomik Clip-Filters are held securely in place without stressing the high-quality glass.
- The Astronomik Clip-Filters are designed and optimized for use with both standard camera lenses and telescopes.
Through the Astronomik Clip-Filters, we were able to solve several common issues faced by astrophotographers:
- Large filters for large camera lenses are very expensive.
- Using a filter holder between the camera body and the lens prevents focusing to infinity.
- For very fast telescopes (low f-number) like the Vixen R200SS or the Takahashi "Epsilon" astrograph, a filter drawer or filter wheel can not be used because the distance to the corrector lenses would be changed.
- Long exposure times lead to dust settling on the camera's sensor chip.
Additionally, all Astronomik EOS M Clip-Filters serve as an excellent dust shield, protecting the sensor during long exposures. If you only need a dust shield without filtering effects, the Astronomik MC-Clear EOS M Clip-Filter is the right choice.
Use Astronomik filters for your Canon EOS M camera and enjoy marvelous images with an ultra light equipment!
Compatible Canon EOS M cameras
| Compatible | Compatibility |
|---|---|
| Canon EOS M | Yes |
| Canon EOS M2 | Yes |
| Canon EOS M3 | Yes |
| Canon EOS M5 | Yes |
| Canon EOS M6 | Yes |
| Canon EOS M6 Mark II | Yes |
| Canon EOS M10 | Yes |
| Canon EOS M50 / Kiss M | Yes |
| Canon EOS M50 Mark II / Kiss M2 | Yes |
| Canon EOS M100 | Yes |
| Canon EOS M200 | Yes |
The Astronomik EOS APS-C Clip-Filters fit into the original Canon EF to EF-M bayonet adapter and can be used with all variants of the Canon EOS M camera.
Compatible lenses
| Model | Compatibility |
|---|---|
| Lenses with EF-M bayonet | Yes |
| Lenses with EF-S or EF bayonet (with Canon EF-M to EF/EF-S adapter) | Yes |
| Lenses from other manufacturers with Canon bayonet | Yes |
Technical Data
- Typical transmission of 95% at 486nm (H-beta)
- Typical transmission of 95% at 496nm and 501nm (OIII)
- Typical transmission of 95% at 656nm (H alpha)
- Transmission range: 480nm to 505nm and above 645nm
- Full-Width-Half Maximum (FWHM): 25nm
- Glass thickness: 1mm (except Astronomik OWB Type 3 and XT filters)
- Finely polished optical glass, free of any striae, residual stresses, and bubbles
- Extremely scratch-resistant and durable coating
- Completely resistant against high humidity and aging effects
- Parfocal with other Astronomik filters
- Diffraction-limited
- Optimized spectral windows
- Delivered in a high-quality, long-lasting filter box
Due to the high-precision machining of the carrier substrate, all Astronomik filters are parfocal with wedge errors far below all common tolerances. Astronomik filters are diffraction-limited, ensuring that the optical performance (resolution and contrast) of your telescope is not compromised. Issues concerning focal distances and the exact alignment of images from each color channel are therefore effectively eliminated.
All Astronomik filters are ideal for modern cameras, including both CMOS- and CCD-based models, ensuring you capture the best possible images with your equipment. Sharpness, contrast, and the absence of any reflections and halos are guaranteed. Even with bright stars in the field of view, nebulae and galaxies will be captured with the finest structures.
Every Astronomik filter undergoes a rigorous quality control process before delivery. Additionally, each Astronomik Narrowband-Emissionline filter is measured using a high-end PerkinElmer Spectrophotometer to ensure it meets the specifications published on our website. On the back of each Narrowband-Emissionline filter box, you will find a label detailing the precise spectral data for that specific filter, including the maximum transmission and the recommended range of focal ratios.
Other Information
- Country of Manufacture: Germany
The Astronomik UHC filter stands out as the first choice for visual observation, offering enhanced contrast and detail in deep-sky objects that surpasses other filters on the market. With its Ultra High Contrast (UHC) design, the filter allows nearly 100% transmission of OIII and H-beta lines, effectively eliminating scattered light from various sources, including light pollution. This results in a significant enhancement of detail for gaseous and planetary nebulae against the sky background.
Designed for versatility, the Astronomik UHC filter is effective in both urban and dark sky conditions, improving contrast for emission nebulae and other celestial objects for medium to large telescopes. It dramatically increases the visibility and detail of objects that are otherwise faint or obscured.
The filter's application spans aperture ratios from 1:3 to 1:15, suitable for a wide range of telescopes. Compared to filters from other manufacturers, the Astronomik UHC filter excels in revealing more stars and finer details in celestial objects, maintaining the sharpness and optical quality expected from high-performance astronomical instruments.
The filter works by blocking emission lines from high- and low-pressure sodium (Na)- and mercury (Hg)-vapor lamps and all lines of natural airglow, while allowing H-beta and OIII lines to pass through. This selective transmission enhances the contrast between the sky background and observed objects.
Additionally, the Astronomik UHC filter is recommended for observation of Jupiter's clouds and offers improved separation of double stars.
In summary, the Astronomik UHC filter is indispensable for astronomers seeking to maximize visual clarity and contrast in deep-sky observation, making it an essential tool for all deep-sky observers alike.
Alternatives
- For telescopes smaller than 5" (125mm), the Astronomik UHC-E filter with its wider pass band is more suitable.
- Telescopes with apertures exceeding 10" (250mm) may benefit from an Astronomik OIII visual filter as first filter.
Suitability of the Astronomik UHC filters
- Visual observation (dark skies): Very good, for telescopes of all aperture ratios
- Visual observation (urban skies): Very good, for telescopes from 4" (100mm) aperture
Clip-Filters for mirrorless Canon EOS M cameras
Since 2007 we offer our extremely popular Astronomik Clip-Filters. The complete range of Astronomik filters is available as Clip-Filters for the compact mirrorless Canon EOS M series.
The Astronomik Clip-Filters offer a number of practical advantages that make them an ideal choice for astrophotographers:
- Installing and removing the Astronomik Clip-Filter is very quick and easy and requires no extra tools or modifications to the camera body. They can be changed at any time, even at night.
- All lens functions, such as focus, aperture, and image stabilization remain fully functional.
- The Astronomik Clip-Filters are held securely in place without stressing the high-quality glass.
- The Astronomik Clip-Filters are designed and optimized for use with both standard camera lenses and telescopes.
Through the Astronomik Clip-Filters, we were able to solve several common issues faced by astrophotographers:
- Large filters for large camera lenses are very expensive.
- Using a filter holder between the camera body and the lens prevents focusing to infinity.
- For very fast telescopes (low f-number) like the Vixen R200SS or the Takahashi "Epsilon" astrograph, a filter drawer or filter wheel can not be used because the distance to the corrector lenses would be changed.
- Long exposure times lead to dust settling on the camera's sensor chip.
Additionally, all Astronomik EOS M Clip-Filters serve as an excellent dust shield, protecting the sensor during long exposures. If you only need a dust shield without filtering effects, the Astronomik MC-Clear EOS M Clip-Filter is the right choice.
Use Astronomik filters for your Canon EOS M camera and enjoy marvelous images with an ultra light equipment!
Compatible Canon EOS M cameras
| Compatible | Compatibility |
|---|---|
| Canon EOS M | Yes |
| Canon EOS M2 | Yes |
| Canon EOS M3 | Yes |
| Canon EOS M5 | Yes |
| Canon EOS M6 | Yes |
| Canon EOS M6 Mark II | Yes |
| Canon EOS M10 | Yes |
| Canon EOS M50 / Kiss M | Yes |
| Canon EOS M50 Mark II / Kiss M2 | Yes |
| Canon EOS M100 | Yes |
| Canon EOS M200 | Yes |
The Astronomik EOS APS-C Clip-Filters fit into the original Canon EF to EF-M bayonet adapter and can be used with all variants of the Canon EOS M camera.
Compatible lenses
| Model | Compatibility |
|---|---|
| Lenses with EF-M bayonet | Yes |
| Lenses with EF-S or EF bayonet (with Canon EF-M to EF/EF-S adapter) | Yes |
| Lenses from other manufacturers with Canon bayonet | Yes |
Technical Data
- Typical transmission of 95% at 486nm (H-beta)
- Typical transmission of 95% at 496nm and 501nm (OIII)
- Typical transmission of 95% at 656nm (H alpha)
- Transmission range: 480nm to 505nm and above 645nm
- Full-Width-Half Maximum (FWHM): 25nm
- Glass thickness: 1mm (except Astronomik OWB Type 3 and XT filters)
- Finely polished optical glass, free of any striae, residual stresses, and bubbles
- Extremely scratch-resistant and durable coating
- Completely resistant against high humidity and aging effects
- Parfocal with other Astronomik filters
- Diffraction-limited
- Optimized spectral windows
- Delivered in a high-quality, long-lasting filter box
Due to the high-precision machining of the carrier substrate, all Astronomik filters are parfocal with wedge errors far below all common tolerances. Astronomik filters are diffraction-limited, ensuring that the optical performance (resolution and contrast) of your telescope is not compromised. Issues concerning focal distances and the exact alignment of images from each color channel are therefore effectively eliminated.
All Astronomik filters are ideal for modern cameras, including both CMOS- and CCD-based models, ensuring you capture the best possible images with your equipment. Sharpness, contrast, and the absence of any reflections and halos are guaranteed. Even with bright stars in the field of view, nebulae and galaxies will be captured with the finest structures.
Every Astronomik filter undergoes a rigorous quality control process before delivery. Additionally, each Astronomik Narrowband-Emissionline filter is measured using a high-end PerkinElmer Spectrophotometer to ensure it meets the specifications published on our website. On the back of each Narrowband-Emissionline filter box, you will find a label detailing the precise spectral data for that specific filter, including the maximum transmission and the recommended range of focal ratios.
The Astronomik UHC filter stands out as the first choice for visual observation, offering enhanced contrast and detail in deep-sky objects that surpasses other filters on the market. With its Ultra High Contrast (UHC) design, the filter allows nearly 100% transmission of OIII and H-beta lines, effectively eliminating scattered light from various sources, including light pollution. This results in a significant enhancement of detail for gaseous and planetary nebulae against the sky background.
Designed for versatility, the Astronomik UHC filter is effective in both urban and dark sky conditions, improving contrast for emission nebulae and other celestial objects for medium to large telescopes. It dramatically increases the visibility and detail of objects that are otherwise faint or obscured.
The filter's application spans aperture ratios from 1:3 to 1:15, suitable for a wide range of telescopes. Compared to filters from other manufacturers, the Astronomik UHC filter excels in revealing more stars and finer details in celestial objects, maintaining the sharpness and optical quality expected from high-performance astronomical instruments.
The filter works by blocking emission lines from high- and low-pressure sodium (Na)- and mercury (Hg)-vapor lamps and all lines of natural airglow, while allowing H-beta and OIII lines to pass through. This selective transmission enhances the contrast between the sky background and observed objects.
Additionally, the Astronomik UHC filter is recommended for observation of Jupiter's clouds and offers improved separation of double stars.
In summary, the Astronomik UHC filter is indispensable for astronomers seeking to maximize visual clarity and contrast in deep-sky observation, making it an essential tool for all deep-sky observers alike.
Alternatives
- For telescopes smaller than 5" (125mm), the Astronomik UHC-E filter with its wider pass band is more suitable.
- Telescopes with apertures exceeding 10" (250mm) may benefit from an Astronomik OIII visual filter as first filter.
Suitability of the Astronomik UHC filters
- Visual observation (dark skies): Very good, for telescopes of all aperture ratios
- Visual observation (urban skies): Very good, for telescopes from 4" (100mm) aperture
Clip-Filters for mirrorless Canon EOS M cameras
Since 2007 we offer our extremely popular Astronomik Clip-Filters. The complete range of Astronomik filters is available as Clip-Filters for the compact mirrorless Canon EOS M series.
The Astronomik Clip-Filters offer a number of practical advantages that make them an ideal choice for astrophotographers:
- Installing and removing the Astronomik Clip-Filter is very quick and easy and requires no extra tools or modifications to the camera body. They can be changed at any time, even at night.
- All lens functions, such as focus, aperture, and image stabilization remain fully functional.
- The Astronomik Clip-Filters are held securely in place without stressing the high-quality glass.
- The Astronomik Clip-Filters are designed and optimized for use with both standard camera lenses and telescopes.
Through the Astronomik Clip-Filters, we were able to solve several common issues faced by astrophotographers:
- Large filters for large camera lenses are very expensive.
- Using a filter holder between the camera body and the lens prevents focusing to infinity.
- For very fast telescopes (low f-number) like the Vixen R200SS or the Takahashi "Epsilon" astrograph, a filter drawer or filter wheel can not be used because the distance to the corrector lenses would be changed.
- Long exposure times lead to dust settling on the camera's sensor chip.
Additionally, all Astronomik EOS M Clip-Filters serve as an excellent dust shield, protecting the sensor during long exposures. If you only need a dust shield without filtering effects, the Astronomik MC-Clear EOS M Clip-Filter is the right choice.
Use Astronomik filters for your Canon EOS M camera and enjoy marvelous images with an ultra light equipment!
Compatible Canon EOS M cameras
| Compatible | Compatibility |
|---|---|
| Canon EOS M | Yes |
| Canon EOS M2 | Yes |
| Canon EOS M3 | Yes |
| Canon EOS M5 | Yes |
| Canon EOS M6 | Yes |
| Canon EOS M6 Mark II | Yes |
| Canon EOS M10 | Yes |
| Canon EOS M50 / Kiss M | Yes |
| Canon EOS M50 Mark II / Kiss M2 | Yes |
| Canon EOS M100 | Yes |
| Canon EOS M200 | Yes |
The Astronomik EOS APS-C Clip-Filters fit into the original Canon EF to EF-M bayonet adapter and can be used with all variants of the Canon EOS M camera.
Compatible lenses
| Model | Compatibility |
|---|---|
| Lenses with EF-M bayonet | Yes |
| Lenses with EF-S or EF bayonet (with Canon EF-M to EF/EF-S adapter) | Yes |
| Lenses from other manufacturers with Canon bayonet | Yes |
Technical Data
- Typical transmission of 95% at 486nm (H-beta)
- Typical transmission of 95% at 496nm and 501nm (OIII)
- Typical transmission of 95% at 656nm (H alpha)
- Transmission range: 480nm to 505nm and above 645nm
- Full-Width-Half Maximum (FWHM): 25nm
- Glass thickness: 1mm (except Astronomik OWB Type 3 and XT filters)
- Finely polished optical glass, free of any striae, residual stresses, and bubbles
- Extremely scratch-resistant and durable coating
- Completely resistant against high humidity and aging effects
- Parfocal with other Astronomik filters
- Diffraction-limited
- Optimized spectral windows
- Delivered in a high-quality, long-lasting filter box
Due to the high-precision machining of the carrier substrate, all Astronomik filters are parfocal with wedge errors far below all common tolerances. Astronomik filters are diffraction-limited, ensuring that the optical performance (resolution and contrast) of your telescope is not compromised. Issues concerning focal distances and the exact alignment of images from each color channel are therefore effectively eliminated.
All Astronomik filters are ideal for modern cameras, including both CMOS- and CCD-based models, ensuring you capture the best possible images with your equipment. Sharpness, contrast, and the absence of any reflections and halos are guaranteed. Even with bright stars in the field of view, nebulae and galaxies will be captured with the finest structures.
Every Astronomik filter undergoes a rigorous quality control process before delivery. Additionally, each Astronomik Narrowband-Emissionline filter is measured using a high-end PerkinElmer Spectrophotometer to ensure it meets the specifications published on our website. On the back of each Narrowband-Emissionline filter box, you will find a label detailing the precise spectral data for that specific filter, including the maximum transmission and the recommended range of focal ratios.
Other Information
- Country of Manufacture: Germany
Astronomik UHC Filter - Canon EOS M Clip Filter
