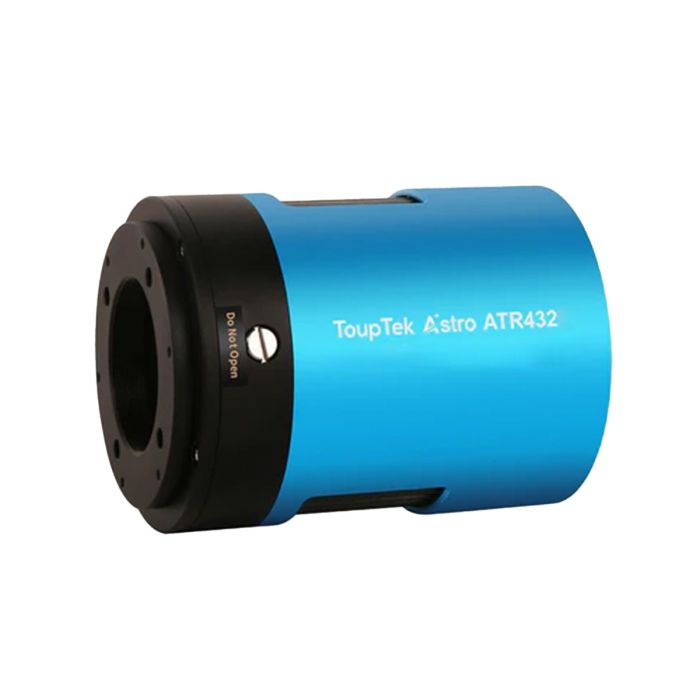

ToupTek ATR432C Cooled Color Astronomy Camera
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Captures the entire frame at once to eliminate rolling shutter artifacts, delivering distortion-free images
- Combines ultra-large pixels for high light sensitivity with a built-in IR-cut filter, capturing faint deep-sky details without clipping bright star cores
- Cools the sensor up to 42°C below ambient temperature, reducing thermal noise during long exposures
- Prevent condensation buildup on humid nights with the adjustable power levels built-in dew heater
ToupTek ATR Series DeepSky Astrophotography Camera!
ATR432C features a resolution of 1600x1100 pixels, 9 μm pixels and a 1.1-inch optical format.It offers support for high frame rate mode (109FPS at all Pixel Readout 12 bit), and has a readout noise level as low as 2.4e. Additionally ,the camera have an excellent TEC cooling system maintains precise temperature control within a deviation of 0.1℃, while the dew prevention heater (window heating) further enhances performance.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications
- ATR432C features Sony IMX 432C 1.1inch Format sensor
- Diagonal: 17.5mm
- Pixel Size: 9μm x 9μm
Fast DDR3 Memory
ATR432C camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.
TEC cooling system
ATR432C is designed with an integrated heat dissipation structure and an efficient cooling module. The ATR432C cooling system uses two-stage Thermoelectric Cooling (TEC) with a controllable electric fan to help dissipate heat. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Anti-dew technology
ATR432C adopts the new anti-dew technology , which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power.
Additionally, the dew heater on the protective window has four adjustable levels. Users can choose the heating power that best suits their needs.
Specifications
-
Sensor: Sony IMX432C
-
Format: 1.1-inch
-
Sensor Dimensions: 14.4x9.9 mm (0.57x0.39 in)
-
Diagonal: 17.5 mm (0.69 in)
-
MAX fps: 109 fps (at full resolution, 12-bit RAW)
-

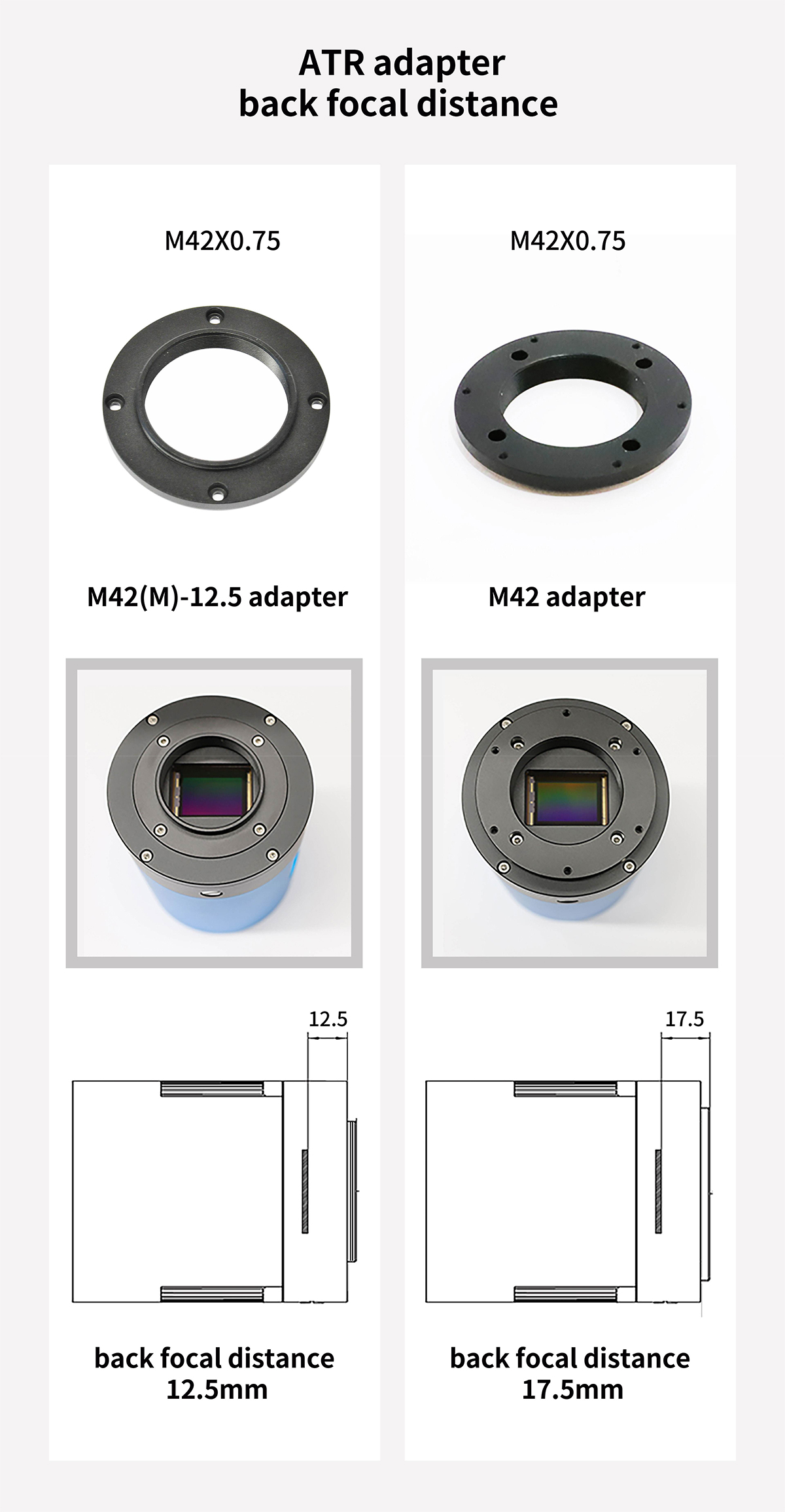

Back Focus: 17.5 mm (reducible to 12.5 mm by removing the T2 front ring)
-
Resolution: 1.7 MP (1600 × 1100 px)
-
Pixel size: 9.0 µm x 9.0 µm
-
ADC: 12-bit
-
Peak Quantum Efficiency (QE): ~79%
-
Full-Well: Up to 150 Ke- (in Low Conversion Gain mode)
-
DDR Memory: 512MB DDR3
-
Readout noise: 2.4e - 4.1e
-
Backlit: No (Front-illuminated)
-
Weight: 1.25 lb (0.57 kg) (Camera body only)
-
Protective Window: AR Anti-Reflective Coating glass (380-1100nm)

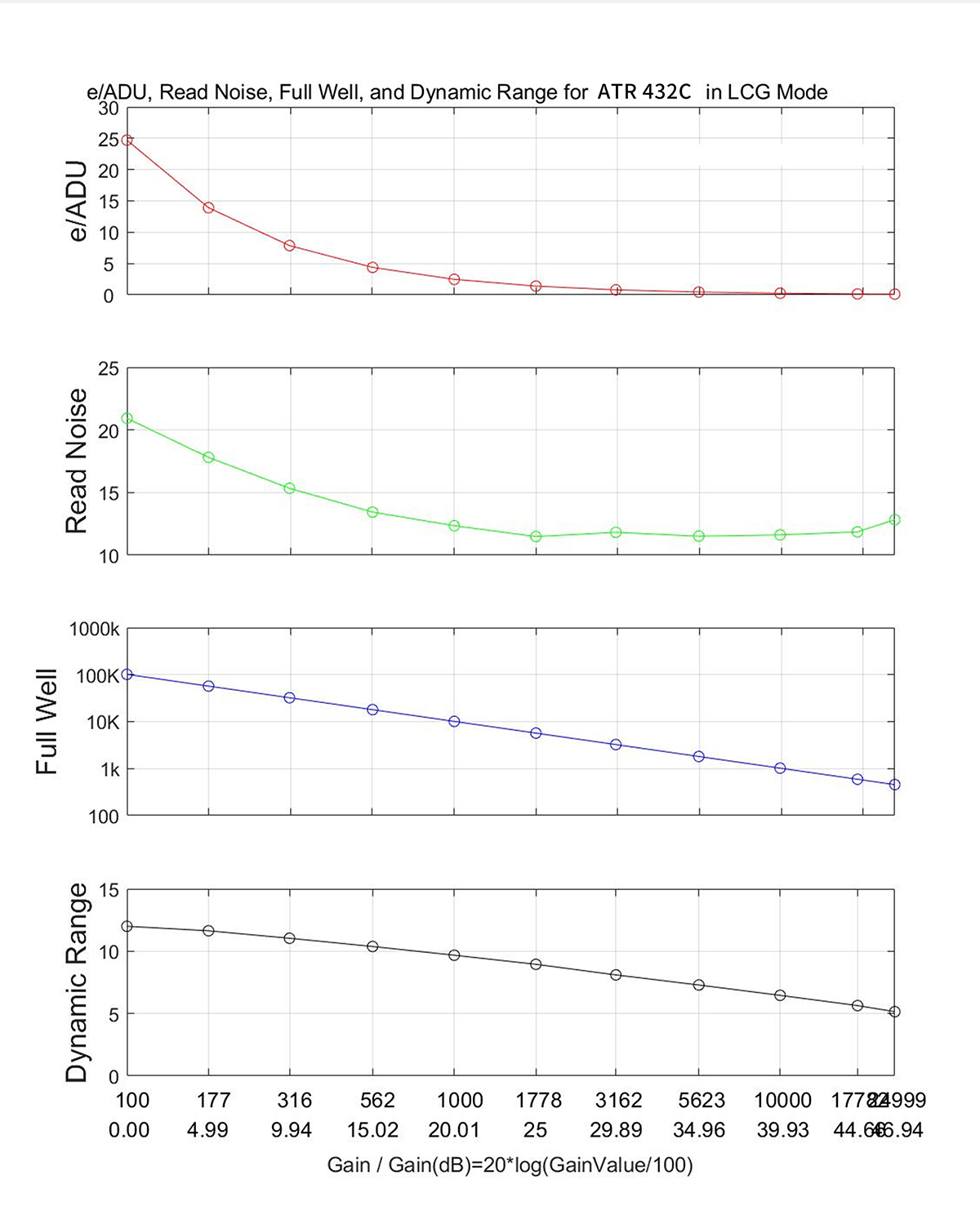

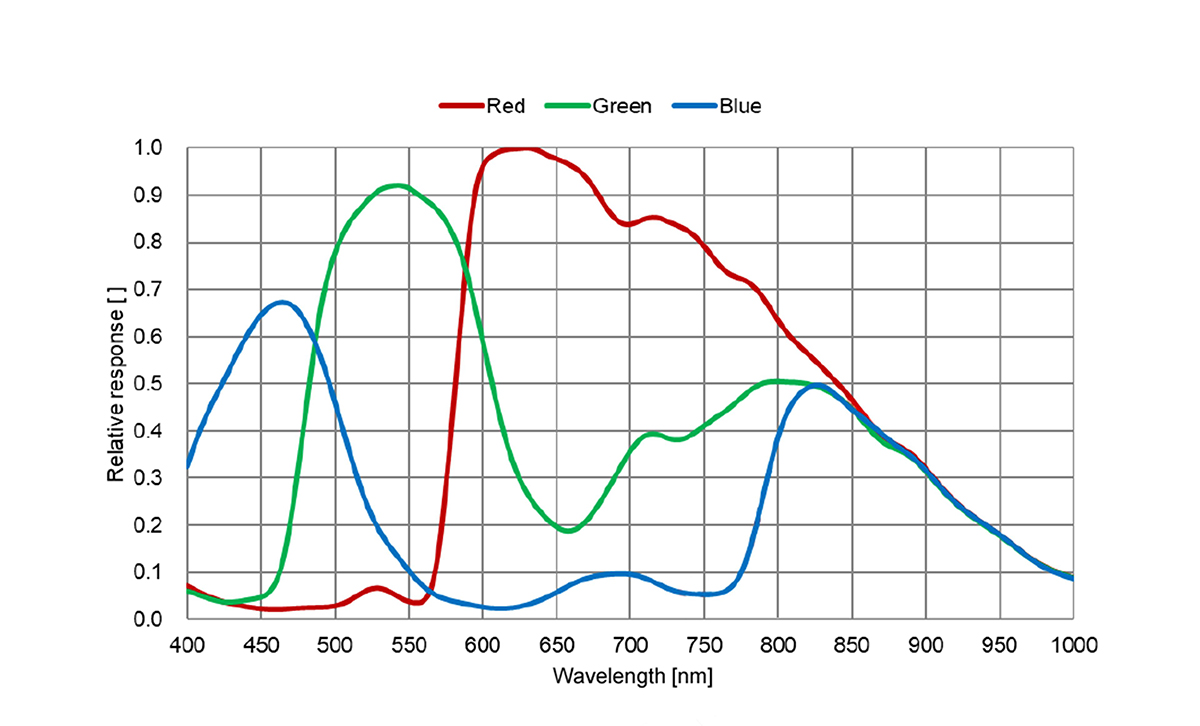

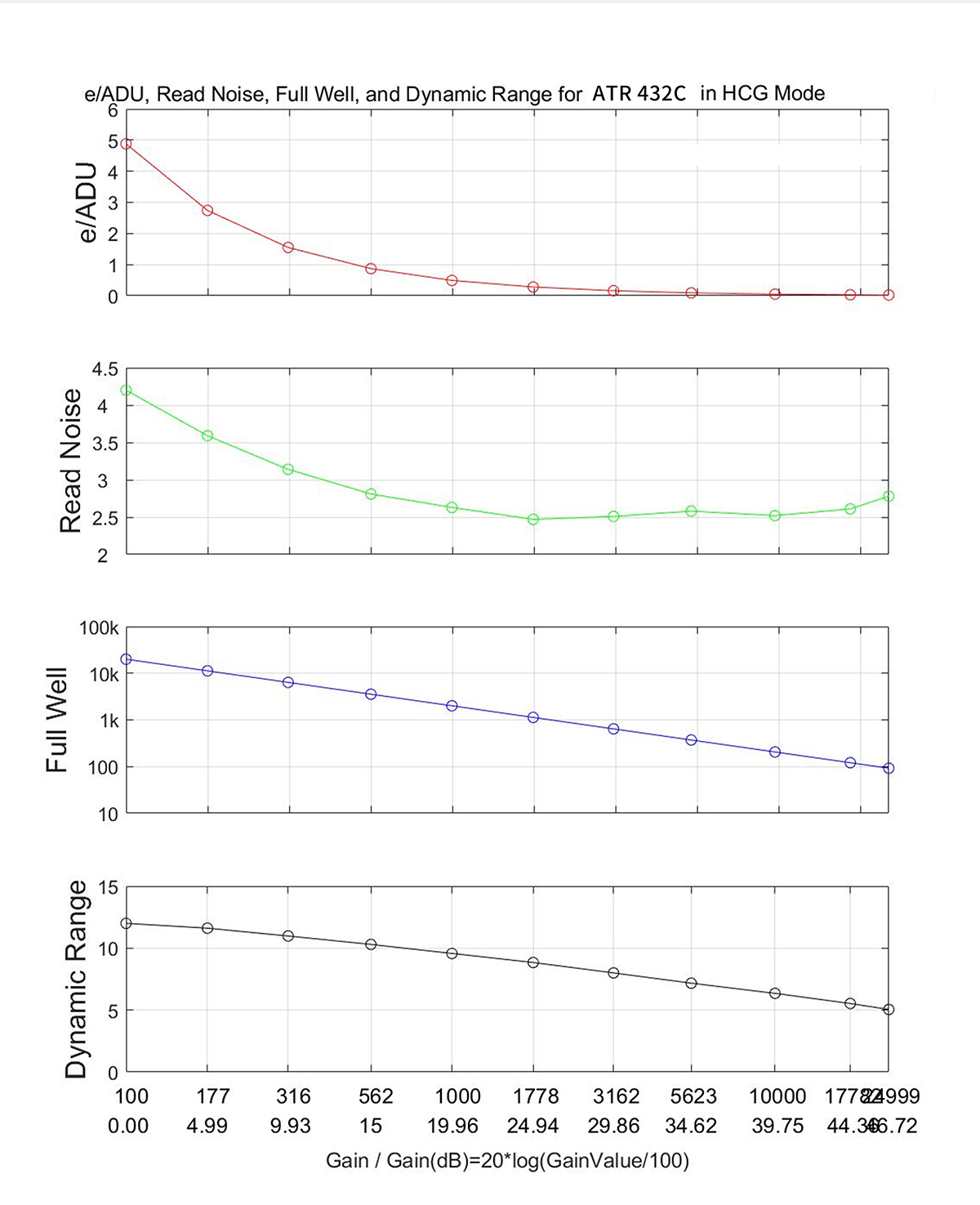

Performance Analysis Charts

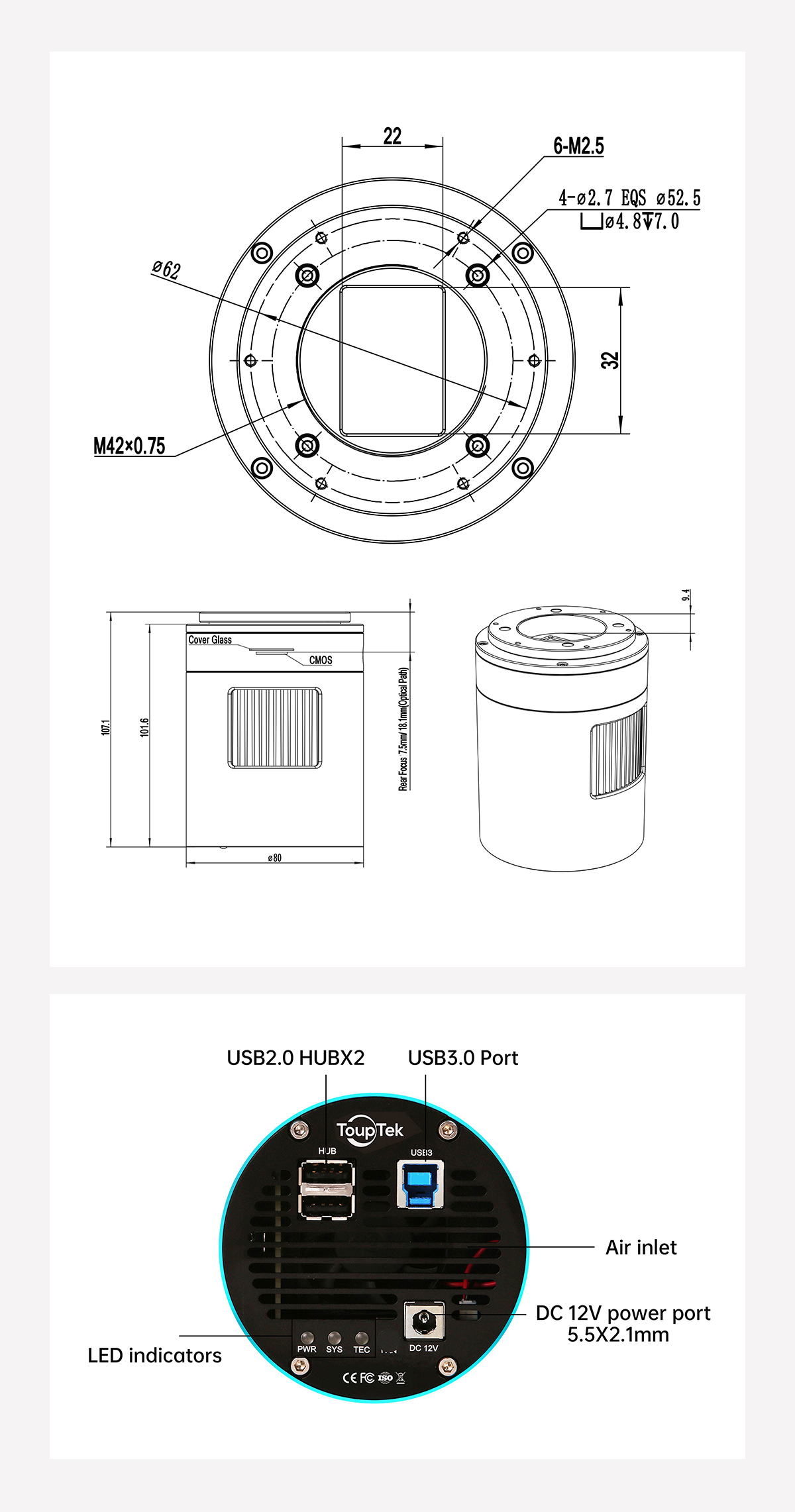

Mechanical Diagram
Back Focus Distance

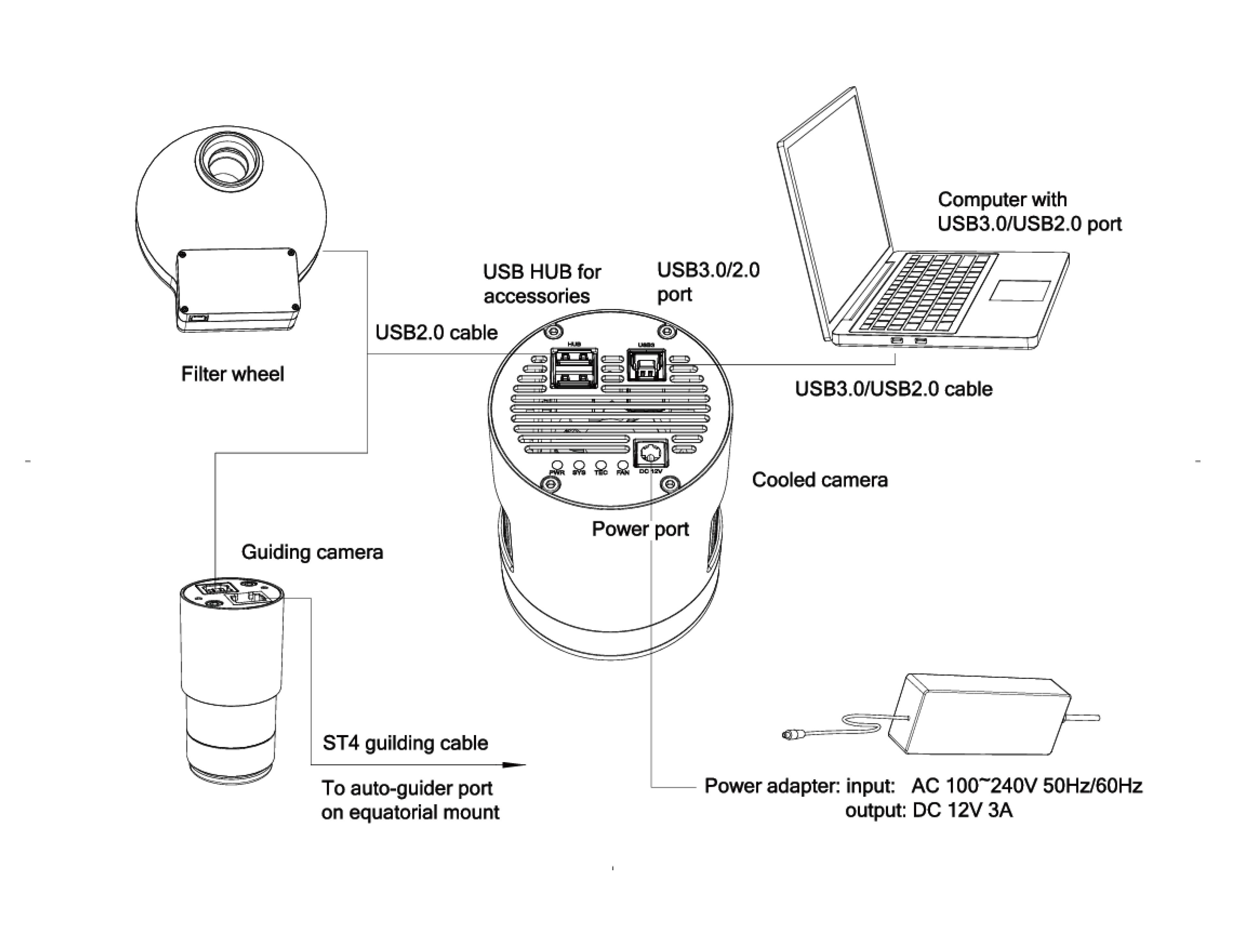

Connection w/ Accessories

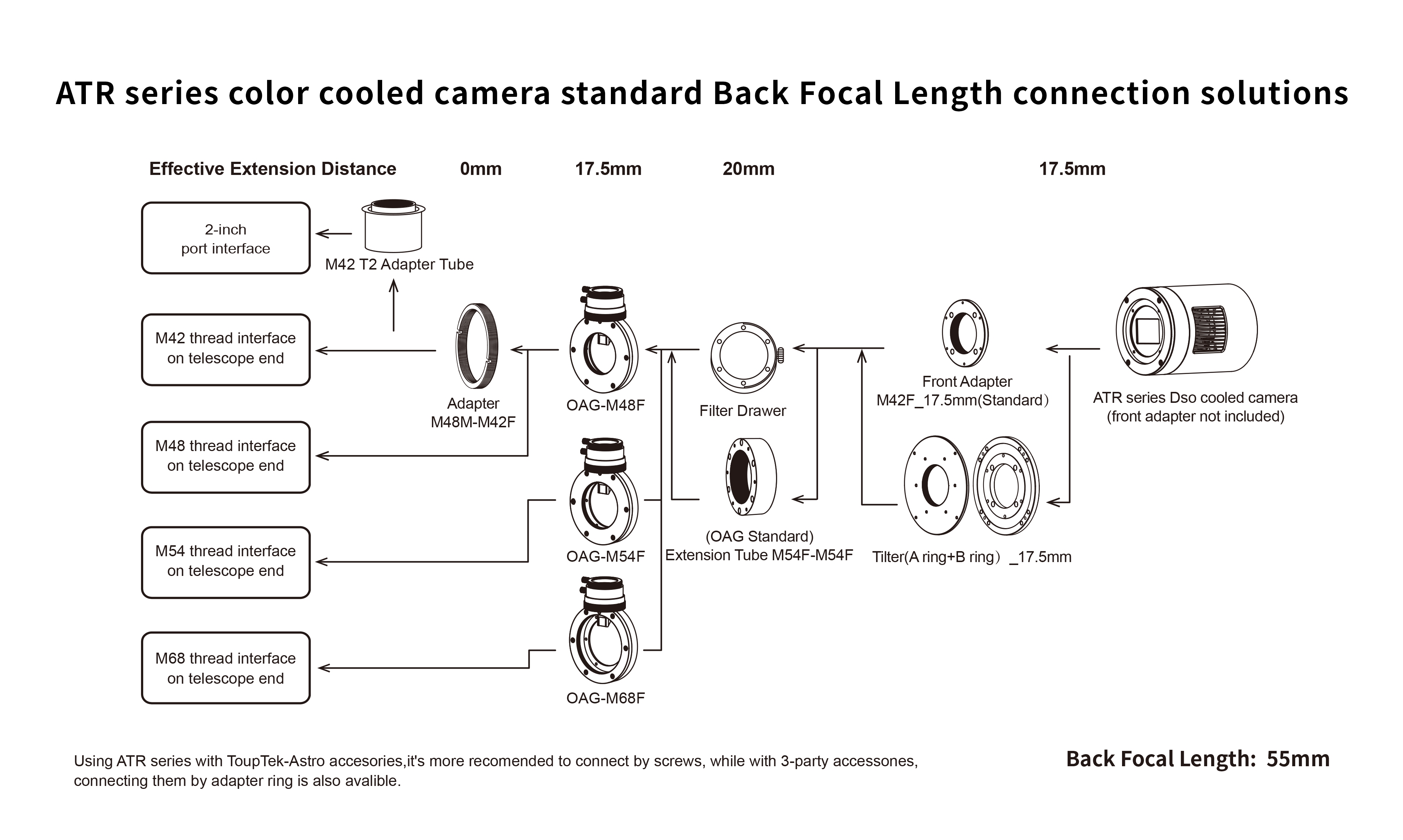

Imaging Train
Other Information
- Country of Manufacture: China
ToupTek ATR Series DeepSky Astrophotography Camera!
ATR432C features a resolution of 1600x1100 pixels, 9 μm pixels and a 1.1-inch optical format.It offers support for high frame rate mode (109FPS at all Pixel Readout 12 bit), and has a readout noise level as low as 2.4e. Additionally ,the camera have an excellent TEC cooling system maintains precise temperature control within a deviation of 0.1℃, while the dew prevention heater (window heating) further enhances performance.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications
- ATR432C features Sony IMX 432C 1.1inch Format sensor
- Diagonal: 17.5mm
- Pixel Size: 9μm x 9μm
Fast DDR3 Memory
ATR432C camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.
TEC cooling system
ATR432C is designed with an integrated heat dissipation structure and an efficient cooling module. The ATR432C cooling system uses two-stage Thermoelectric Cooling (TEC) with a controllable electric fan to help dissipate heat. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Anti-dew technology
ATR432C adopts the new anti-dew technology , which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power.
Additionally, the dew heater on the protective window has four adjustable levels. Users can choose the heating power that best suits their needs.
Specifications
-
Sensor: Sony IMX432C
-
Format: 1.1-inch
-
Sensor Dimensions: 14.4x9.9 mm (0.57x0.39 in)
-
Diagonal: 17.5 mm (0.69 in)
-
MAX fps: 109 fps (at full resolution, 12-bit RAW)
-
Back Focus: 17.5 mm (reducible to 12.5 mm by removing the T2 front ring)
-
Resolution: 1.7 MP (1600 × 1100 px)
-
Pixel size: 9.0 µm x 9.0 µm
-
ADC: 12-bit
-
Peak Quantum Efficiency (QE): ~79%
-
Full-Well: Up to 150 Ke- (in Low Conversion Gain mode)
-
DDR Memory: 512MB DDR3
-
Readout noise: 2.4e - 4.1e
-
Backlit: No (Front-illuminated)
-
Weight: 1.25 lb (0.57 kg) (Camera body only)
-
Protective Window: AR Anti-Reflective Coating glass (380-1100nm)
Performance Analysis Charts
Mechanical Diagram
Back Focus Distance
Connection w/ Accessories
Imaging Train
- 1x Camera Body
- 1x M42 adapter (12.5mm)
- 1x Extender (16.5mm)
- 1x Extender (21mm)
- 1x M48-M42 Extender (0mm)
- 1x Power Adapter
- 1x Power Cable
- 1x USB 3.0 Cable (1.5mm)
