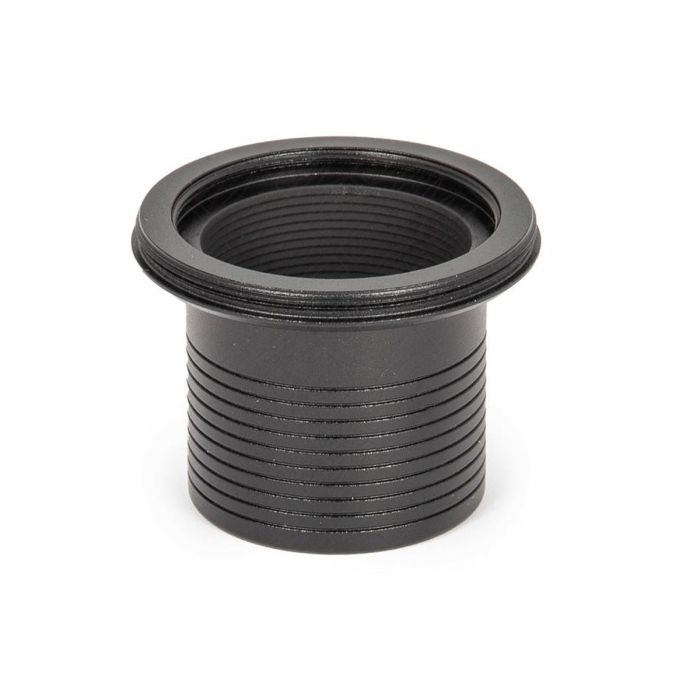

Baader 1.25" Nosepiece with Safety Kerfs and T2 Male Threads
- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Nosepiece with 28mm insertion length, with Baader proprietory Safety Kerfs
- With only 3mm long T-2 thread for modern CMOS cameras
- Eyepiece side with T-2 male thread, telescope side with 1¼" outer diameter
- Includes filter thread M28.5 for all 1¼" filters
- Optical path length: 1.5mm
Modern cameras are usually characterized by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3mm standard.
Specifications:
- Optical length: 1.5mm
- Inner Diameter / Clear Aperture: 28mm
- Outer Diameter: 43mm
- Inner Connection (lens sided): Thread
- Outer Connection (lens sided): Barrel, 1¼"
- Inner Connection (eyepiece/-camera-sided): Thread
- Outer Connection (eyepiece/-camera-sided): Thread, T-2 (M42 x 0.75)
- Compatible Brands: Astro T-2, Baader Planetarium, Celestron
- Type of Adapter: Barrel, Expanding piece, Filter holder
Please note: This item comes with one lower 1.25" plastic end cap. Contrary to what is misprinted on the item box, no cover is included for the T-threaded end.
Manufacturer part number: 2458106 or T2-14A
Other Information
- Country of Manufacture: Germany
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
Modern cameras are usually characterized by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3mm standard.
Specifications:
- Optical length: 1.5mm
- Inner Diameter / Clear Aperture: 28mm
- Outer Diameter: 43mm
- Inner Connection (lens sided): Thread
- Outer Connection (lens sided): Barrel, 1¼"
- Inner Connection (eyepiece/-camera-sided): Thread
- Outer Connection (eyepiece/-camera-sided): Thread, T-2 (M42 x 0.75)
- Compatible Brands: Astro T-2, Baader Planetarium, Celestron
- Type of Adapter: Barrel, Expanding piece, Filter holder
Please note: This item comes with one lower 1.25" plastic end cap. Contrary to what is misprinted on the item box, no cover is included for the T-threaded end.
Manufacturer part number: 2458106 or T2-14A
- Nosepiece with 28mm insertion length, with Baader proprietory Safety Kerfs
- With only 3mm long T-2 thread for modern CMOS cameras
- Eyepiece side with T-2 male thread, telescope side with 1¼" outer diameter
- Includes filter thread M28.5 for all 1¼" filters
- Optical path length: 1.5mm
Modern cameras are usually characterized by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3mm standard.
Specifications:
- Optical length: 1.5mm
- Inner Diameter / Clear Aperture: 28mm
- Outer Diameter: 43mm
- Inner Connection (lens sided): Thread
- Outer Connection (lens sided): Barrel, 1¼"
- Inner Connection (eyepiece/-camera-sided): Thread
- Outer Connection (eyepiece/-camera-sided): Thread, T-2 (M42 x 0.75)
- Compatible Brands: Astro T-2, Baader Planetarium, Celestron
- Type of Adapter: Barrel, Expanding piece, Filter holder
Please note: This item comes with one lower 1.25" plastic end cap. Contrary to what is misprinted on the item box, no cover is included for the T-threaded end.
Manufacturer part number: 2458106 or T2-14A
Other Information
- Country of Manufacture: Germany
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
