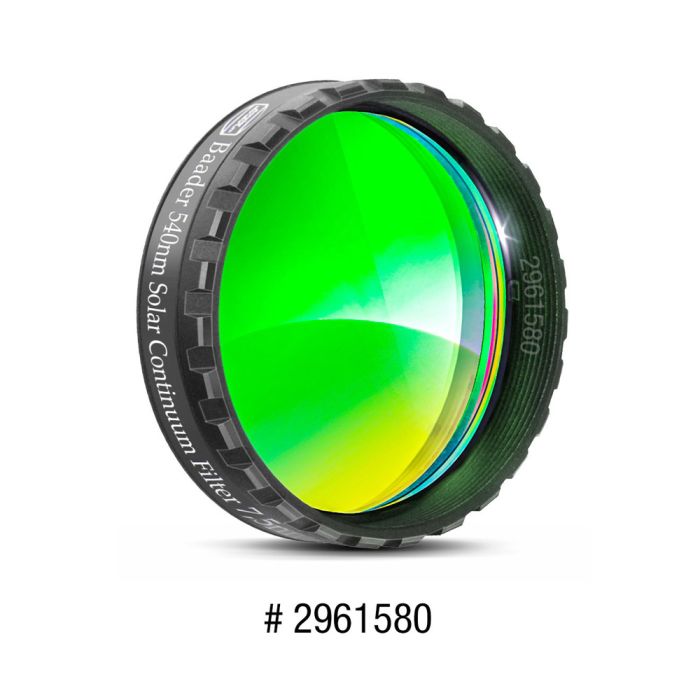

Baader 7.5nm Solar Continuum Filter - 1.25"
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- 7.5 nm Solar Continuum 1¼" Filter, CWL 540nm with 1¼" screw-in thread
- A must for owners of achromatic refractors. This narrowband-filter cuts the spectral range where lens optics draw sharpest and contrastiest. The Solar Continuum Filter brings power back to you.
- Enhances contrast and reduces the effect of atmospheric turbulence (in combination with white light solar filters)
- Enormous contrast gain in monochrome photography even on pure color systems
- Important note: The Solar Continuum Filter must be used for purely VISUAL solar observation ONLY with additional filtering (e.g. Baader Herschel prism or AstroSolar Safety Film)
Baader 7.5nm Solar Continuum Filter – for Visual and Photographic Observations of the Sun
The Solar Continuum Filter is practically a narrow band photosphere filter for solar observation in white light. It provides the highest contrast in the photosphere of the sun. The filter works as a monochromator: suppressing the effects of the atmospheric turbulence and delivering images that are significantly sharper.
Lens systems - including those of apochromats, catadiopters or eyepieces - are traditionally optimized for the spectral range around 540nm, since this is where our eye has the highest sensitivity. This narrowband filter therefore blocks everthing with the exception of the spectral range in which a lens optic works most sharply and with the highest contrast. The effect is greatest on achromatic lens telescopes; but there is also an effect on apochromatic telescopes, catadioptric systems, and even pure mirror systems by reducing air turbulence.
As a monochromatic filter, it is ideal for use on monochromatic cameras and can even provide a tremendous gain on pure color systems.
With a colour camera, as with deep-sky narrow-band photography, it is less effective as only the green pixels are used. Thus, although you still benefit from the improved image sharpness of the telescope that is optimised for green wavelengths (and the reduction of the influences of air turbulence), with a colour camera you cannot fully exploit the better image quality compared to monochrome cameras, as you are effectively working with reduced camera resolution.
Compared to the previous model with a 10nm half-band-width, this filter has a half-band-width of only 7.5nm, which increases the contrast even more. It thus replaces both the previous Baader 10nm Solar Continuum filter and the stacked 1 ¼" filter #2458392. The single filter is so good that stacking is no longer necessary - the contrast gain of a single 7.5nm filter makes stacking unnecessary, and this performance is now also available in 2".
The Baader 7.5 nm Solar Continuum also offers all the advantages of the CMOS-optimized Baader filters:
- Increased contrast, matched for typical CMOS quantum efficiency and s/n ratio
- Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
- Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed)
- Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
Specifications:
- Manufacturer: Baader Planetarium
- Net Weight (kg): 0.06
- Transmission Range: 535 – 545 nm
- Filter Thickness (Without cell): 2 mm
- HBW (Halfbandwith): 7.5 nm
- CWL (Central Wavelength): 540 nm
- AR-Coating: Reflex-Blocker™ hard coated, planeoptically polished
- Filter Size: 1.25 inch
- Filter Usage: CMOS, Contrast Enhancement, Solar
- Filter Mounted: Mounted (LPFC 6mm)
- Type of Filter: Narrowband
- Single or Set: Single Filter
- Filter Shape: round
Manufacturer part number: 2961580 or FSOL-1N
Useful Resources
Filter Cell Specifications
D = Filter Cell Diameter = 30.9 mm / 1.21 in
T = Total Filter Height = 7.6 mm / 0.29 in
C = Filter Cell Height (Excluding Male Thread) = 5.9 mm / 0.23 in
M = Male Thread Length = 1.7 mm / 0.06 in
F = USABLE Female Filter Thread Length = 2.5 mm / 0.09 in
S = Glass Substrate Thickness = 2.0 mm / 0.07 in
CA = Clear Aperture = 26.5 mm / 1.04 in
Other Information
- Country of Manufacture: Germany
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
Baader 7.5nm Solar Continuum Filter – for Visual and Photographic Observations of the Sun
The Solar Continuum Filter is practically a narrow band photosphere filter for solar observation in white light. It provides the highest contrast in the photosphere of the sun. The filter works as a monochromator: suppressing the effects of the atmospheric turbulence and delivering images that are significantly sharper.
Lens systems - including those of apochromats, catadiopters or eyepieces - are traditionally optimized for the spectral range around 540nm, since this is where our eye has the highest sensitivity. This narrowband filter therefore blocks everthing with the exception of the spectral range in which a lens optic works most sharply and with the highest contrast. The effect is greatest on achromatic lens telescopes; but there is also an effect on apochromatic telescopes, catadioptric systems, and even pure mirror systems by reducing air turbulence.
As a monochromatic filter, it is ideal for use on monochromatic cameras and can even provide a tremendous gain on pure color systems.
With a colour camera, as with deep-sky narrow-band photography, it is less effective as only the green pixels are used. Thus, although you still benefit from the improved image sharpness of the telescope that is optimised for green wavelengths (and the reduction of the influences of air turbulence), with a colour camera you cannot fully exploit the better image quality compared to monochrome cameras, as you are effectively working with reduced camera resolution.
Compared to the previous model with a 10nm half-band-width, this filter has a half-band-width of only 7.5nm, which increases the contrast even more. It thus replaces both the previous Baader 10nm Solar Continuum filter and the stacked 1 ¼" filter #2458392. The single filter is so good that stacking is no longer necessary - the contrast gain of a single 7.5nm filter makes stacking unnecessary, and this performance is now also available in 2".
The Baader 7.5 nm Solar Continuum also offers all the advantages of the CMOS-optimized Baader filters:
- Increased contrast, matched for typical CMOS quantum efficiency and s/n ratio
- Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
- Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed)
- Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
Specifications:
- Manufacturer: Baader Planetarium
- Net Weight (kg): 0.06
- Transmission Range: 535 – 545 nm
- Filter Thickness (Without cell): 2 mm
- HBW (Halfbandwith): 7.5 nm
- CWL (Central Wavelength): 540 nm
- AR-Coating: Reflex-Blocker™ hard coated, planeoptically polished
- Filter Size: 1.25 inch
- Filter Usage: CMOS, Contrast Enhancement, Solar
- Filter Mounted: Mounted (LPFC 6mm)
- Type of Filter: Narrowband
- Single or Set: Single Filter
- Filter Shape: round
Manufacturer part number: 2961580 or FSOL-1N
- 7.5 nm Solar Continuum 1¼" Filter, CWL 540nm with 1¼" screw-in thread
- A must for owners of achromatic refractors. This narrowband-filter cuts the spectral range where lens optics draw sharpest and contrastiest. The Solar Continuum Filter brings power back to you.
- Enhances contrast and reduces the effect of atmospheric turbulence (in combination with white light solar filters)
- Enormous contrast gain in monochrome photography even on pure color systems
- Important note: The Solar Continuum Filter must be used for purely VISUAL solar observation ONLY with additional filtering (e.g. Baader Herschel prism or AstroSolar Safety Film)
Baader 7.5nm Solar Continuum Filter – for Visual and Photographic Observations of the Sun
The Solar Continuum Filter is practically a narrow band photosphere filter for solar observation in white light. It provides the highest contrast in the photosphere of the sun. The filter works as a monochromator: suppressing the effects of the atmospheric turbulence and delivering images that are significantly sharper.
Lens systems - including those of apochromats, catadiopters or eyepieces - are traditionally optimized for the spectral range around 540nm, since this is where our eye has the highest sensitivity. This narrowband filter therefore blocks everthing with the exception of the spectral range in which a lens optic works most sharply and with the highest contrast. The effect is greatest on achromatic lens telescopes; but there is also an effect on apochromatic telescopes, catadioptric systems, and even pure mirror systems by reducing air turbulence.
As a monochromatic filter, it is ideal for use on monochromatic cameras and can even provide a tremendous gain on pure color systems.
With a colour camera, as with deep-sky narrow-band photography, it is less effective as only the green pixels are used. Thus, although you still benefit from the improved image sharpness of the telescope that is optimised for green wavelengths (and the reduction of the influences of air turbulence), with a colour camera you cannot fully exploit the better image quality compared to monochrome cameras, as you are effectively working with reduced camera resolution.
Compared to the previous model with a 10nm half-band-width, this filter has a half-band-width of only 7.5nm, which increases the contrast even more. It thus replaces both the previous Baader 10nm Solar Continuum filter and the stacked 1 ¼" filter #2458392. The single filter is so good that stacking is no longer necessary - the contrast gain of a single 7.5nm filter makes stacking unnecessary, and this performance is now also available in 2".
The Baader 7.5 nm Solar Continuum also offers all the advantages of the CMOS-optimized Baader filters:
- Increased contrast, matched for typical CMOS quantum efficiency and s/n ratio
- Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
- Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed)
- Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
Specifications:
- Manufacturer: Baader Planetarium
- Net Weight (kg): 0.06
- Transmission Range: 535 – 545 nm
- Filter Thickness (Without cell): 2 mm
- HBW (Halfbandwith): 7.5 nm
- CWL (Central Wavelength): 540 nm
- AR-Coating: Reflex-Blocker™ hard coated, planeoptically polished
- Filter Size: 1.25 inch
- Filter Usage: CMOS, Contrast Enhancement, Solar
- Filter Mounted: Mounted (LPFC 6mm)
- Type of Filter: Narrowband
- Single or Set: Single Filter
- Filter Shape: round
Manufacturer part number: 2961580 or FSOL-1N
Useful Resources
Filter Cell Specifications
D = Filter Cell Diameter = 30.9 mm / 1.21 in
T = Total Filter Height = 7.6 mm / 0.29 in
C = Filter Cell Height (Excluding Male Thread) = 5.9 mm / 0.23 in
M = Male Thread Length = 1.7 mm / 0.06 in
F = USABLE Female Filter Thread Length = 2.5 mm / 0.09 in
S = Glass Substrate Thickness = 2.0 mm / 0.07 in
CA = Clear Aperture = 26.5 mm / 1.04 in
Other Information
- Country of Manufacture: Germany
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
