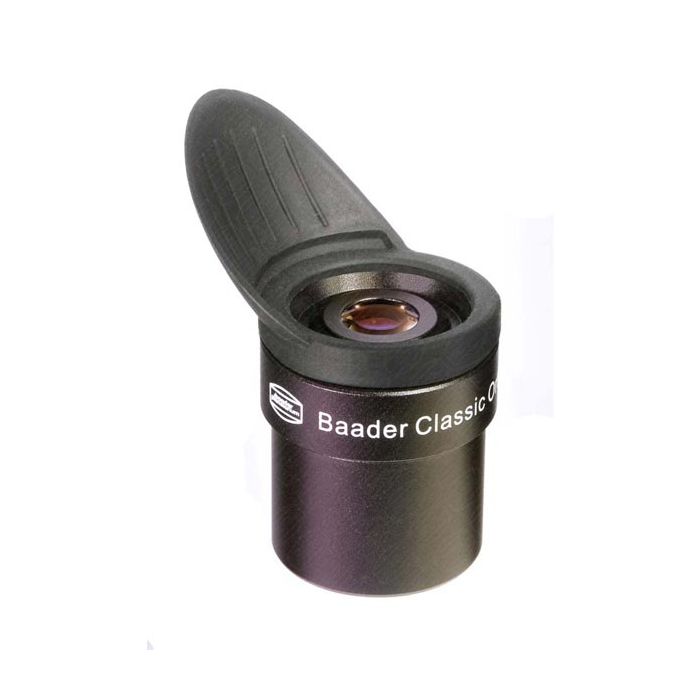

Baader 1.25" Classic Orthoscopic Eyepiece - 10mm
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- 10 mm orthoscopic eyepiece based on classic Zeiss design offers high-contrast and razor-sharp images of Moon and planets
- Innovative ergonomic design for comfortable viewing position and elimination of stray side light
- Wider 52 degree apparent field of view to make it easy to locate target
- Ideal for use in binoviewers
Even before the disappearance of the famed Baader Genuine Orthoscopics in mid-2012, Baader Planetarium sought to develop a set of true Planetary eyepieces that was accessible for any amateur - without breaking their bank. Foregoing fancy (and costly) cosmetics, the new Classic Eyepieces deliver where it counts - performance. Their sharpness and contrast rival other 'planetary' eyepieces costing much more. To achieve this performance and value, Baader drew upon their extensive in-house knowledge and experience, combined with optical designs and processes leveraged from Zeiss.
Features of the new Classic Eyepieces:
- Optical design and manufacturing specs based on the highly regarded Zeiss Jena 0.965" orthoscopics (not any Japanese or Chinese makes).
- Fully multi-coated: All air-to-glass surfaces are coated with Baader's HT MultiCoatings, specifically matched to each substrate.
- Excellent ergonomics: The innovative recessed volcano top provides clearance for eyelashes and enables a comfortably located eyepoint without the stray light problems of a full volcano top.
- Integrated winged folding rubber eyecup: Eliminates distracting stray side-light, enabling full concentration on the object, as well as providing a thermally insulating and soft non-scratching top surface (ie, for eyeglass wearers). Also outstanding for BinoViewing. Rubber eyecup may be folded down or removed, if needed .
- 52-deg apparent field of view (6/10/18mm Orthoscopics): Makes finding and centering objects at high powers easier than typical 40-45deg eyepieces.
- Blackened lens edges; Parfocal.
- Threaded to accept standard 1.25" astronomy filters.
Other Information
- Country of Manufacture: China
Even before the disappearance of the famed Baader Genuine Orthoscopics in mid-2012, Baader Planetarium sought to develop a set of true Planetary eyepieces that was accessible for any amateur - without breaking their bank. Foregoing fancy (and costly) cosmetics, the new Classic Eyepieces deliver where it counts - performance. Their sharpness and contrast rival other 'planetary' eyepieces costing much more. To achieve this performance and value, Baader drew upon their extensive in-house knowledge and experience, combined with optical designs and processes leveraged from Zeiss.
Features of the new Classic Eyepieces:
- Optical design and manufacturing specs based on the highly regarded Zeiss Jena 0.965" orthoscopics (not any Japanese or Chinese makes).
- Fully multi-coated: All air-to-glass surfaces are coated with Baader's HT MultiCoatings, specifically matched to each substrate.
- Excellent ergonomics: The innovative recessed volcano top provides clearance for eyelashes and enables a comfortably located eyepoint without the stray light problems of a full volcano top.
- Integrated winged folding rubber eyecup: Eliminates distracting stray side-light, enabling full concentration on the object, as well as providing a thermally insulating and soft non-scratching top surface (ie, for eyeglass wearers). Also outstanding for BinoViewing. Rubber eyecup may be folded down or removed, if needed .
- 52-deg apparent field of view (6/10/18mm Orthoscopics): Makes finding and centering objects at high powers easier than typical 40-45deg eyepieces.
- Blackened lens edges; Parfocal.
- Threaded to accept standard 1.25" astronomy filters.
| Manufacturer | Baader Planetarium |
|---|---|
| Eyepiece Series | Baader Classic Orthoscopic |
| Focal Length | 10mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 52° |
| Eye Relief (Designed) | 8mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | HT Multi-Coated |
| Lens Elements | 4 |
| Lens Groups | 2 |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Storage Container Included | No |
| Protective Plastic Storage Container Size (Sold Separately) | Agena 42x60mm |
| Optical Design | Orthoscopic |
| Height (With Eyeguard Extended) | 1.61" (40.9mm) |
| Maximum Width | 1.37" (34.8mm) |
| End Caps | 2 |
| Eye Lens Diameter | 0.43" (11.0mm) |
| Field Stop Diameter | 8.7mm |
| Parfocal | Yes |
| Rubber Eye Guard | Yes (Winged) |
| Weight | 1.69 oz (48 g) |
- 10 mm orthoscopic eyepiece based on classic Zeiss design offers high-contrast and razor-sharp images of Moon and planets
- Innovative ergonomic design for comfortable viewing position and elimination of stray side light
- Wider 52 degree apparent field of view to make it easy to locate target
- Ideal for use in binoviewers
Even before the disappearance of the famed Baader Genuine Orthoscopics in mid-2012, Baader Planetarium sought to develop a set of true Planetary eyepieces that was accessible for any amateur - without breaking their bank. Foregoing fancy (and costly) cosmetics, the new Classic Eyepieces deliver where it counts - performance. Their sharpness and contrast rival other 'planetary' eyepieces costing much more. To achieve this performance and value, Baader drew upon their extensive in-house knowledge and experience, combined with optical designs and processes leveraged from Zeiss.
Features of the new Classic Eyepieces:
- Optical design and manufacturing specs based on the highly regarded Zeiss Jena 0.965" orthoscopics (not any Japanese or Chinese makes).
- Fully multi-coated: All air-to-glass surfaces are coated with Baader's HT MultiCoatings, specifically matched to each substrate.
- Excellent ergonomics: The innovative recessed volcano top provides clearance for eyelashes and enables a comfortably located eyepoint without the stray light problems of a full volcano top.
- Integrated winged folding rubber eyecup: Eliminates distracting stray side-light, enabling full concentration on the object, as well as providing a thermally insulating and soft non-scratching top surface (ie, for eyeglass wearers). Also outstanding for BinoViewing. Rubber eyecup may be folded down or removed, if needed .
- 52-deg apparent field of view (6/10/18mm Orthoscopics): Makes finding and centering objects at high powers easier than typical 40-45deg eyepieces.
- Blackened lens edges; Parfocal.
- Threaded to accept standard 1.25" astronomy filters.
Other Information
- Country of Manufacture: China
| Manufacturer | Baader Planetarium |
|---|---|
| Eyepiece Series | Baader Classic Orthoscopic |
| Focal Length | 10mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 52° |
| Eye Relief (Designed) | 8mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | HT Multi-Coated |
| Lens Elements | 4 |
| Lens Groups | 2 |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Storage Container Included | No |
| Protective Plastic Storage Container Size (Sold Separately) | Agena 42x60mm |
| Optical Design | Orthoscopic |
| Height (With Eyeguard Extended) | 1.61" (40.9mm) |
| Maximum Width | 1.37" (34.8mm) |
| End Caps | 2 |
| Eye Lens Diameter | 0.43" (11.0mm) |
| Field Stop Diameter | 8.7mm |
| Parfocal | Yes |
| Rubber Eye Guard | Yes (Winged) |
| Weight | 1.69 oz (48 g) |
Baader 1.25" Classic Orthoscopic Eyepiece - 10mm
