Baader CMOS-Optimized 3.5nm H-Alpha f/2 Ultra Highspeed Filter for FCCT - 47.4mm Round Unmounted
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.

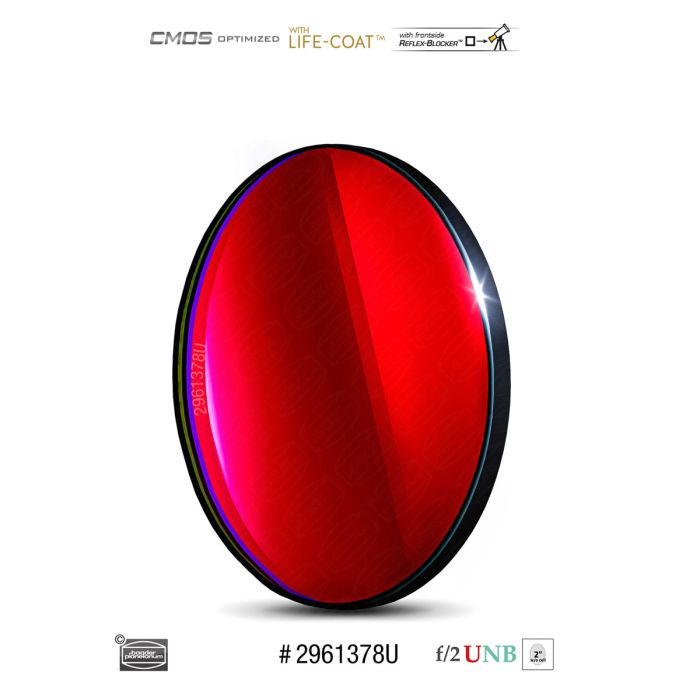

Baader CMOS-Optimized 3.5nm H-Alpha f/2 Ultra-Highspeed Filter for FCCT # FCHALHSU-2U or 2961378U
- 47.4 mm (2" w/o cell) x 2 mm Baader H-alpha f/2 Ultra-Highspeed Filter – Premium Grade
- 3.5 nm FWHM (to harmonize the exposure time with O-III / S-II), recommended for extremely fast optical systems from f/1.8 to f/2.2
- Specially designed for the special filter requirements when used with extremely fast f/2 optics like the Celestron RASA astrographs
- For highest contrast even at strongest light pollution, minimizes star size, emphasizes finest nebula detail – indispensable under Bortle 9/8/7/(6) skies
- Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
- Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
- Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies
Specifications:
- Net weight (kg): 0.07
- Suitable for f/ratio: f/1.8 to f/2.2
- Colour: Black
- Transmission Range: H-alpha
- Filter Thickness (without cell): 2 mm
- HBW (Half bandwidth): 3.5 nm
- CWL (Central Wavelength): 656.3 nm
- AR-Coating: Reflex-Blocker™ hard coated, planeoptically polished
- Special Features: CMOS-optimized with Life-Coat™
- Filter size: 47.4 mm (2" w/o cell)
- Filter Usage: CMOS, CCD, H-alpha
- Filter mounted: Unmounted
- Type of Filter: f/2 Ultra-Highspeed
- Single or Set?: Single Filter
- Filter shape: round
Life-Coat™: Limited-Lifetime-Warranty for CMOS-optimized Baader filters
A Baader Planetarium exclusive. Filters incorporating Baader Planetarium’s Life-Coat™ technology are so durable that Baader Planetarium warrants the coatings for the life of the filter. Baader Planetarium has developed Life-Coat™ using materials and processes that result in coatings which will not degrade or fail for a lifetime. Life-Coat™ coatings resist moisture, temperature extremes, and are hardened to withstand normal cleanings.
Baader Planetarium guarantees their Life-Coat™ coatings will not peel, flake or physically degrade and will withstand repeated cleaning with fine optical cleaning equipment. The Limited Lifetime Warranty applies to the original purchaser and does not cover failure from mis-use, physical damage through improper handling, or improper cleaning.
Other Information
- Country of Manufacture: Germany
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
