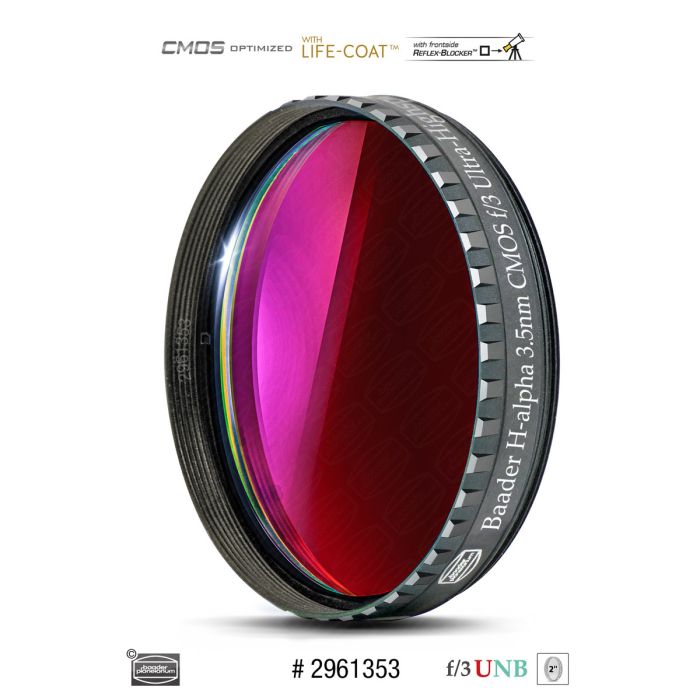

Baader CMOS-Optimized 3.5nm H-Alpha f/3 Ultra-Highspeed Filter 2" Mounted
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Baader H-alpha f/3 Ultra-Highspeed Filter – Premium Grade
- 3.5 nm FWHM (to harmonize the exposure time with O-III / S-II), recommended for extremely fast optical systems from f/2.3 to f/3.4
- Specially designed for the special filter requirements when used with fast optics
- For highest contrast even at strongest light pollution, minimizes star size, emphasizes finest nebula detail – indispensable under Bortle 9/8/7/(6) skies
- Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
- Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim
- Optimized for modern CMOS cameras, but excellent for CCD camera technologies
This new generation of Baader CMOS-filters features:
- Increased contrast
- Ever more narrow passbands
- Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- FWHM on each filter category carefully designed to allow for 1:1:1 exposures, matched for typical CMOS quantum efficiency and s/n ratio
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
- Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
- Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
Useful Resources
Filter Cell Specifications
D = Filter Cell Diameter = 49.7 mm / 1.95 in
T = Total Filter Height = 8.1 mm / 0.31 in
C = Filter Cell Height (Excluding Male Thread) = 5.8 mm / 0.22 in
M = Male Thread Length = 2.3 mm / 0.09 in
F = USABLE Female Filter Thread Length = 2.9 mm / 0.11 in
S = Glass Substrate Thickness = 1.1 mm / 0.04 in
CA = Clear Aperture = 45.8 mm / 1.80 in
Other Information
- Country of Manufacture: Germany
- Baader H-alpha f/3 Ultra-Highspeed Filter – Premium Grade
- 3.5 nm FWHM (to harmonize the exposure time with O-III / S-II), recommended for extremely fast optical systems from f/2.3 to f/3.4
- Specially designed for the special filter requirements when used with fast optics
- For highest contrast even at strongest light pollution, minimizes star size, emphasizes finest nebula detail – indispensable under Bortle 9/8/7/(6) skies
- Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
- Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim
- Optimized for modern CMOS cameras, but excellent for CCD camera technologies
This new generation of Baader CMOS-filters features:
- Increased contrast
- Ever more narrow passbands
- Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- FWHM on each filter category carefully designed to allow for 1:1:1 exposures, matched for typical CMOS quantum efficiency and s/n ratio
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
- Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
- Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
- Baader H-alpha f/3 Ultra-Highspeed Filter – Premium Grade
- 3.5 nm FWHM (to harmonize the exposure time with O-III / S-II), recommended for extremely fast optical systems from f/2.3 to f/3.4
- Specially designed for the special filter requirements when used with fast optics
- For highest contrast even at strongest light pollution, minimizes star size, emphasizes finest nebula detail – indispensable under Bortle 9/8/7/(6) skies
- Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
- Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim
- Optimized for modern CMOS cameras, but excellent for CCD camera technologies
This new generation of Baader CMOS-filters features:
- Increased contrast
- Ever more narrow passbands
- Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- FWHM on each filter category carefully designed to allow for 1:1:1 exposures, matched for typical CMOS quantum efficiency and s/n ratio
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
- Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
- Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
Useful Resources
Filter Cell Specifications
D = Filter Cell Diameter = 49.7 mm / 1.95 in
T = Total Filter Height = 8.1 mm / 0.31 in
C = Filter Cell Height (Excluding Male Thread) = 5.8 mm / 0.22 in
M = Male Thread Length = 2.3 mm / 0.09 in
F = USABLE Female Filter Thread Length = 2.9 mm / 0.11 in
S = Glass Substrate Thickness = 1.1 mm / 0.04 in
CA = Clear Aperture = 45.8 mm / 1.80 in
Other Information
- Country of Manufacture: Germany
Baader CMOS-Optimized 3.5nm H-Alpha f/3 Ultra-Highspeed Filter 2" Mounted
