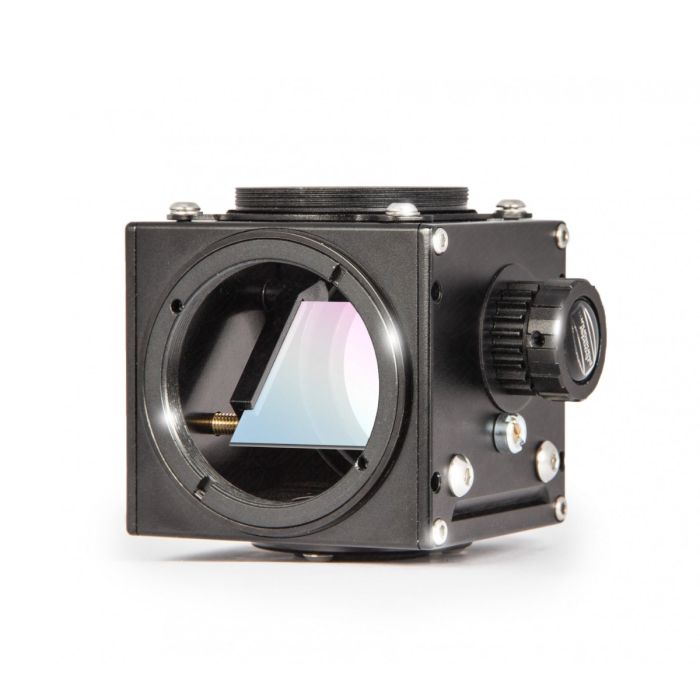

Baader Flip Mirror II Star Diagonal
- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Please note: Page 1 of Baader's manual for this item states the following: "Please note: There is a protective film on the mirror. We recommend to remove it only after all accessories have been installed at the adjustable T-2 top ring."
However, note that his is no longer correct. There is no such protective film on the mirror in most batches that we receive from Baader.
Various ports – variable work
Telescope auxillary instruments cover a wide range of interests, from a sole eyepiece, via camera use, to high end spectroscopy. Unfortunately every telescope just features one exit port. This causes relentless manual exchange of parts in the dark, causing huge time loss, wear on the parts - and "nerves". And whenever you start controlling your telescope remotely - the single port becomes a painful reality.
Improving workflow, especially during astrophotography is the goal set out for the BFM II. This is not just a simple flip mirror but much more, as there are three ports to be put into action.
General Function of the FlipMirror II Star Diagonal
The BFM II lets you switch between a straight light path for a camera or other measuring instruments and an angled light path, e.g.
for an eyepiece. In addition, a calibration lamp for spectrographs or an Off-Axis-Guider pickoff-prism (that is not affected by the mirror position) can be connected at the AUX-port on the bottom
Specifications:
- Sku (#) 2458055
- Optical Length (mm) 55 Mm With S52, 59 Mm With M48/t-2
- Dimensions 63 X 77 X 69 Mm
- Inner Connection (lens Sided) thread, Dovetail Ring Clamp, S52, T-2 (m42 X 0,75), M48
- Weight (kg) 195 G
- Inner Connection (eyepiece/-camera-sided) thread, Dovetail Ring Clamp, M48, S52
- Outer Connection (eyepiece/-camera-sided) thread, M48
- Type Of Adapter variable
What's in the box:
- Baader FlipMirror II Star Diagonal – with fine-optically polished, movable mirror
- Laterally adjustable T-2a top ring
- 2x M48i / S52 Dovetail ring made of hardened stainless steel # 2958552
- Reducing ring M48a / T-2i # 2958553
- Reducing ring M48a / T-2a # 2958554
- Inverter ring M48a / M48a # 2958555
- Pin type face wrench for M48 / T-2 and M4 counter nuts
- 3 mm screwdriver for M 4 brass adjustment screws
- 4x hex keys (2.5 / 2.0 / 1.5 / 1.3 mm). The 2.0 mm wrench has a ball head to reach screws even when accessories are mounted by holding the wrench at an angle.
- Bottom flange (laterally adjustable 1mm) for off-axis guide or calibration lamp for spectroscopy
- Dust cap for bottom flange
- 2 x M48 dust caps
- T-2 dust cap
Manufacturer part number: BFM-II or 2458055
