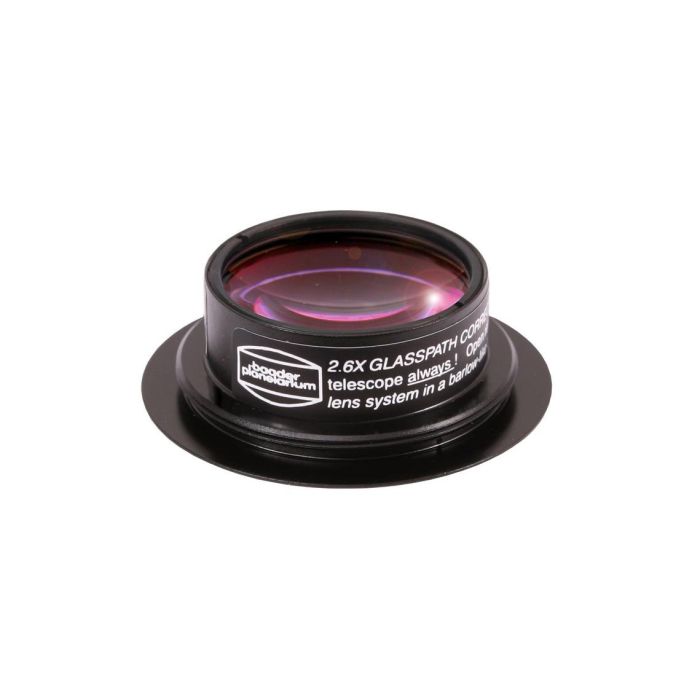

Baader Glasspath Corrector / Compensator for Maxbright / Maxbright II Binoviewer - 2.6x # GLASS-3 2456317
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Product Details
The Baader Glasspath Compensator/Corrector may be useful for binoviewing with refractor or Newtonian telescopes. Unlike other viewers, this corrector is not just a Barlow or other simply aplifier lens!
These proprietary multi-coated doublet compensators were specially designed for astronomical binoviewers by Carl Zeiss and AstroPhysics to actually compensate for the chromatic aberration, or color fringing, that exists in all binocular viewers, as well as the spherical aberration caused by binoviewers (from the long lightpath through the glass in the prisms). In addition to correcting these color and spherical errors, the Baader Glasspath Compensators also reduce the amount of telescope back-focus (in-travel) needed by extending the focal point of the telescope. This is especially critical in reflectors and many refractors.
A secondary benefit of the compensator is to provide additional magnification - ahead of the binoviewer. For high magnifications (ie, planetary observation), it is generally preferable to magnify the image before the binoviewer, rather than to use shorter focal length eyepieces.
It is also less expensive to purchase an additional compensator (to provide additional magnifications), rather than to purchase additional sets of eyepieces. We recommend first choosing the lowest powered compensator that will allow your scope to reach focus. This will permit the widest possible fields of view. In addition, one or more higher powered compensators can be added to give a greater range of magnifications.
For more information about how to select a Glasspath Corrector for your specific telescope, please see the related article on the "Additional Resources" tab.
Specifications:
- Glasspath corrector: Factor 2.6x. Optical path length: ≥ -65 mm
- Insertion diameter: ∅ 38 mm
- Suitable to insert into the Baader MaxBright (Classic and MaxBright II) binoviewers
- EAN Code: 4047825011039
- Manufacturer: Baader Planetarium
- Sku #: 2456317
- Weight (kg): 0.034
- Outer Connection (eyepiece/camera-side): Barrel, Thread, M34, T-2 (M42x0.75)
- Magnification (x): 1:2.6
- Optical Length (mm): -120
- Optical Design: Glasspath Corrector
- Compatible Telescopes: Refractors, Schmidt-Cassegrain, Newtonian Reflectors
Manufacturer part number:2456317 or GLASS3
Other Information
- Country of Manufacture: Germany
