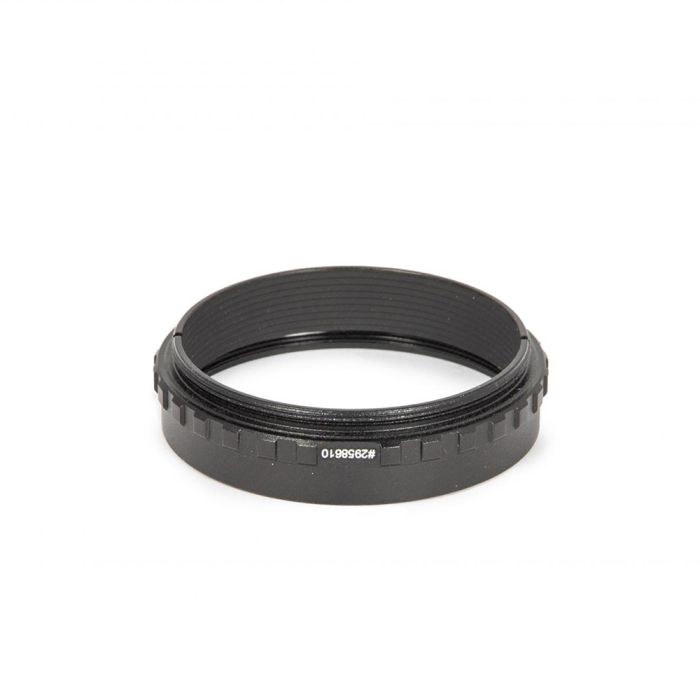

Baader M48 Extension Tube - 10mm
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard.
- Used to adjust the working distance of larger cameras and similar accessories with M48 thread
- Telescope side M48 internal thread, 3.5 mm depth
- Eyepiece-/camera side M48 external thread, 3 mm depth
- 10 mm optical path length
- Aluminium
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 2958610
- EAN Code: 4047825042835
- Net weight (kg): 0.01
- Optical length (mm): 10
- Clamping System: No clamp
- Usage: Adjusting the distances of accessories with M48 thread
- Inner Diameter / Clear Aperture (mm): 45 mm
- Outer Diameter: 53 mm
- Inner Connection (lens sided): Thread, M48
- Outer Connection (eyepiece/camera-sided): Thread, M48
- Type of Adapter: Extension
Other Information
- Country of Manufacture: China
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard.
- Used to adjust the working distance of larger cameras and similar accessories with M48 thread
- Telescope side M48 internal thread, 3.5 mm depth
- Eyepiece-/camera side M48 external thread, 3 mm depth
- 10 mm optical path length
- Aluminium
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 2958610
- EAN Code: 4047825042835
- Net weight (kg): 0.01
- Optical length (mm): 10
- Clamping System: No clamp
- Usage: Adjusting the distances of accessories with M48 thread
- Inner Diameter / Clear Aperture (mm): 45 mm
- Outer Diameter: 53 mm
- Inner Connection (lens sided): Thread, M48
- Outer Connection (eyepiece/camera-sided): Thread, M48
- Type of Adapter: Extension
Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard.
- Used to adjust the working distance of larger cameras and similar accessories with M48 thread
- Telescope side M48 internal thread, 3.5 mm depth
- Eyepiece-/camera side M48 external thread, 3 mm depth
- 10 mm optical path length
- Aluminium
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 2958610
- EAN Code: 4047825042835
- Net weight (kg): 0.01
- Optical length (mm): 10
- Clamping System: No clamp
- Usage: Adjusting the distances of accessories with M48 thread
- Inner Diameter / Clear Aperture (mm): 45 mm
- Outer Diameter: 53 mm
- Inner Connection (lens sided): Thread, M48
- Outer Connection (eyepiece/camera-sided): Thread, M48
- Type of Adapter: Extension
Other Information
- Country of Manufacture: China
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
