Baader M48 Heavy Duty Quick Change System
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Heavy Duty M48 Quick Changing System enables lightning-fast changes between cameras, filter wheels or ClickLock eyepiece clamps, for example.
- Optical path length 15mm
- Consists of Baader M48 Heavy Duty Quick Changer (#2958590) and Baader M48 Quick Changing Ring (#2958595) with 50mm dovetail
- Quick-change and rotating device with maximum load capacity
- Dustcaps not included
- Heavy Duty M48 Quick Changing System enables lightning-fast changes between cameras, filter wheels or ClickLock eyepiece clamps, for example.
- Optical path length 15mm
- Consists of Baader M48 Heavy Duty Quick Changer (#2958590) and Baader M48 Quick Changing Ring (#2958595) with 50mm dovetail
- Quick-change and rotating device with maximum load capacity
- Dustcaps not included
A helpful addition to the M48 system is the Heavy Duty M48 Quick Changing System. A combination of quick changer and dovetail will carry any load with maximum safety. It enables the rotation-proof and repeatable holding of heavy accessories.
M48 Quick Changing Ring
The quick changing ring made of high-quality steel has an M48 external thread on one side and a 50mm dovetail on the other. The Baader M48 Quick Changing Ring (#2958595) is also available separately.

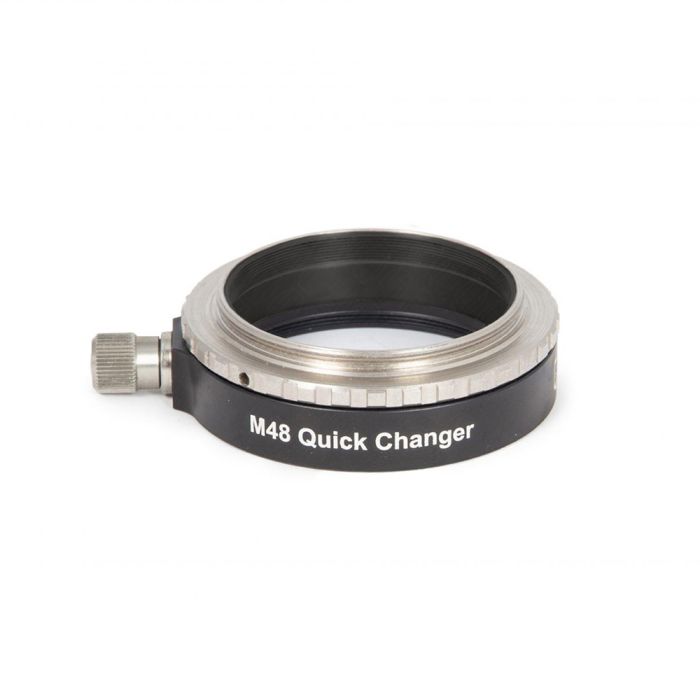

M48 Quick Changer
The Quick Changer has a built-in M48 female thread and a high-quality brass pressure piece, so that even very heavy accessories are carried safely and stably. It holds the quick changing ring with dovetail firmly in place. The Baader M48 Heavy Duty Quick Changer (#2958590) is also available separately.
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 2958593
- EAN Code: 4047825048516
- Net weight (kg): 0.07
- Optical length (mm): 15
- Clamping System: Dovetail clamp
- Screw Type: Large clamping screw with brass thrust piece
- Inner Diameter / Clear Aperture (mm): 44 mm
- Outer Diameter: 59 x 75mm
- Inner Connection (lens sided): Thread, M48
- Outer Connection (lens sided): Dovetail ring, M48
- Inner Connection (eyepiece/-camera-sided): Dovetail ring clamp, M48
- Outer Connection (eyepiece/-camera-sided): Thread, Dovetail ring, M48
- Compatible Brands: Astro T-2, Baader Planetarium
- Type of Adapter: Quick Changer
Other Information
- Country of Manufacture: Germany
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
A helpful addition to the M48 system is the Heavy Duty M48 Quick Changing System. A combination of quick changer and dovetail will carry any load with maximum safety. It enables the rotation-proof and repeatable holding of heavy accessories.
M48 Quick Changing Ring
The quick changing ring made of high-quality steel has an M48 external thread on one side and a 50mm dovetail on the other. The Baader M48 Quick Changing Ring (#2958595) is also available separately.
M48 Quick Changer
The Quick Changer has a built-in M48 female thread and a high-quality brass pressure piece, so that even very heavy accessories are carried safely and stably. It holds the quick changing ring with dovetail firmly in place. The Baader M48 Heavy Duty Quick Changer (#2958590) is also available separately.
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 2958593
- EAN Code: 4047825048516
- Net weight (kg): 0.07
- Optical length (mm): 15
- Clamping System: Dovetail clamp
- Screw Type: Large clamping screw with brass thrust piece
- Inner Diameter / Clear Aperture (mm): 44 mm
- Outer Diameter: 59 x 75mm
- Inner Connection (lens sided): Thread, M48
- Outer Connection (lens sided): Dovetail ring, M48
- Inner Connection (eyepiece/-camera-sided): Dovetail ring clamp, M48
- Outer Connection (eyepiece/-camera-sided): Thread, Dovetail ring, M48
- Compatible Brands: Astro T-2, Baader Planetarium
- Type of Adapter: Quick Changer
- Heavy Duty M48 Quick Changing System enables lightning-fast changes between cameras, filter wheels or ClickLock eyepiece clamps, for example.
- Optical path length 15mm
- Consists of Baader M48 Heavy Duty Quick Changer (#2958590) and Baader M48 Quick Changing Ring (#2958595) with 50mm dovetail
- Quick-change and rotating device with maximum load capacity
- Dustcaps not included
- Heavy Duty M48 Quick Changing System enables lightning-fast changes between cameras, filter wheels or ClickLock eyepiece clamps, for example.
- Optical path length 15mm
- Consists of Baader M48 Heavy Duty Quick Changer (#2958590) and Baader M48 Quick Changing Ring (#2958595) with 50mm dovetail
- Quick-change and rotating device with maximum load capacity
- Dustcaps not included
A helpful addition to the M48 system is the Heavy Duty M48 Quick Changing System. A combination of quick changer and dovetail will carry any load with maximum safety. It enables the rotation-proof and repeatable holding of heavy accessories.
M48 Quick Changing Ring
The quick changing ring made of high-quality steel has an M48 external thread on one side and a 50mm dovetail on the other. The Baader M48 Quick Changing Ring (#2958595) is also available separately.
M48 Quick Changer
The Quick Changer has a built-in M48 female thread and a high-quality brass pressure piece, so that even very heavy accessories are carried safely and stably. It holds the quick changing ring with dovetail firmly in place. The Baader M48 Heavy Duty Quick Changer (#2958590) is also available separately.
Specifications:
- Manufacturer: Baader Planetarium
- SKU (#): 2958593
- EAN Code: 4047825048516
- Net weight (kg): 0.07
- Optical length (mm): 15
- Clamping System: Dovetail clamp
- Screw Type: Large clamping screw with brass thrust piece
- Inner Diameter / Clear Aperture (mm): 44 mm
- Outer Diameter: 59 x 75mm
- Inner Connection (lens sided): Thread, M48
- Outer Connection (lens sided): Dovetail ring, M48
- Inner Connection (eyepiece/-camera-sided): Dovetail ring clamp, M48
- Outer Connection (eyepiece/-camera-sided): Thread, Dovetail ring, M48
- Compatible Brands: Astro T-2, Baader Planetarium
- Type of Adapter: Quick Changer
Other Information
- Country of Manufacture: Germany
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
