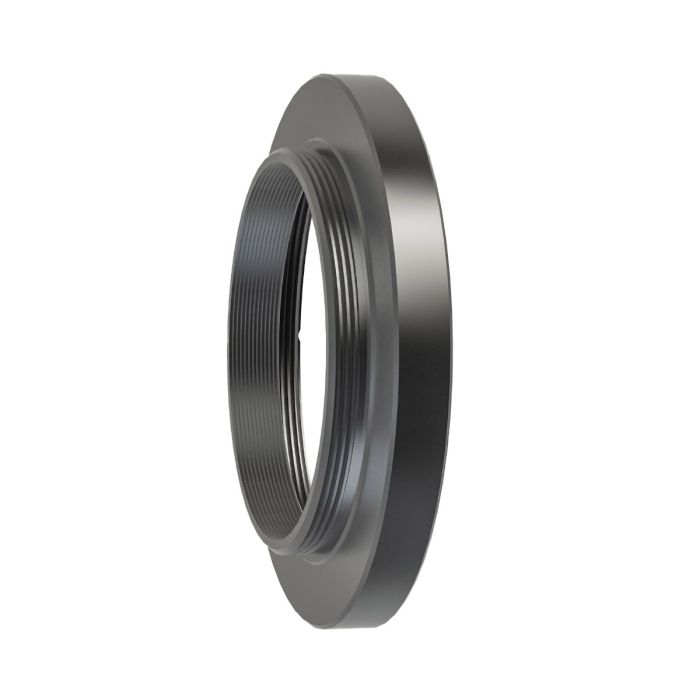

Baader M55 Male to M68 Female Expansion Adapter
- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Expansion Ring M55a to M68i
This adapter allows you to change your Baader 2" Diagonal Mirror (# 2456115, 2456117, 2456100) or Prism from M55 Female Thread (# 2456120) to M68 female thread. This allows you to integrate the mirror without reduction to 2" in an M68 light path ,
To attach the adapter to your mirror you must first remove the 2" barrel and the M55 / 2" UNC threaded ring from the housing of the mirror. For this, the face spanner # 2450062 is recommended (not included).
Specifications:
- Manufacturer: Baader Planetarium
- Sku (#): 2458234
- Ean Code: 4047825039187
- Optical Length (mm): 8
- Inner Diameter / Clear Aperture (mm): 51
- Weight (kg): 0.030
- Outer Connection (lens Sided): Thread, M55
- Inner Connection (eyepiece/-camera-sided): Thread, M68 X 1
- Compatible Brands: Baader Planetarium
- Type Of Adapter: Reducing Piece
Manufacturer part number: 2458234
Other Information
- Country of Manufacture: China
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
Expansion Ring M55a to M68i
This adapter allows you to change your Baader 2" Diagonal Mirror (# 2456115, 2456117, 2456100) or Prism from M55 Female Thread (# 2456120) to M68 female thread. This allows you to integrate the mirror without reduction to 2" in an M68 light path ,
To attach the adapter to your mirror you must first remove the 2" barrel and the M55 / 2" UNC threaded ring from the housing of the mirror. For this, the face spanner # 2450062 is recommended (not included).
Specifications:
- Manufacturer: Baader Planetarium
- Sku (#): 2458234
- Ean Code: 4047825039187
- Optical Length (mm): 8
- Inner Diameter / Clear Aperture (mm): 51
- Weight (kg): 0.030
- Outer Connection (lens Sided): Thread, M55
- Inner Connection (eyepiece/-camera-sided): Thread, M68 X 1
- Compatible Brands: Baader Planetarium
- Type Of Adapter: Reducing Piece
Manufacturer part number: 2458234
Expansion Ring M55a to M68i
This adapter allows you to change your Baader 2" Diagonal Mirror (# 2456115, 2456117, 2456100) or Prism from M55 Female Thread (# 2456120) to M68 female thread. This allows you to integrate the mirror without reduction to 2" in an M68 light path ,
To attach the adapter to your mirror you must first remove the 2" barrel and the M55 / 2" UNC threaded ring from the housing of the mirror. For this, the face spanner # 2450062 is recommended (not included).
Specifications:
- Manufacturer: Baader Planetarium
- Sku (#): 2458234
- Ean Code: 4047825039187
- Optical Length (mm): 8
- Inner Diameter / Clear Aperture (mm): 51
- Weight (kg): 0.030
- Outer Connection (lens Sided): Thread, M55
- Inner Connection (eyepiece/-camera-sided): Thread, M68 X 1
- Compatible Brands: Baader Planetarium
- Type Of Adapter: Reducing Piece
Manufacturer part number: 2458234
Other Information
- Country of Manufacture: China
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
