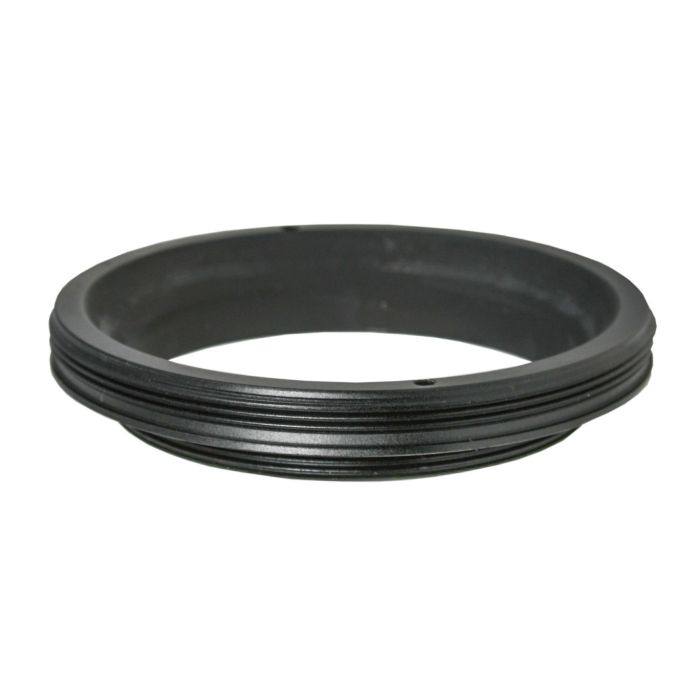

Baader M55 Male to M68 Male Thread Adapter for Baader Clicklock Diagonals
Sku:
PAAR-BP-CL-M55-M68
Mfg #:
2956110
Item Can Ship:
Worldwide
$77.00
In Stock
(Only 3 left)
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
SKU:
PAAR-BP-CL-M55-M68
Mfg #:
2956110
Item Can Ship:
Worldwide
Description
Description
- Baader M55a / M68a (Zeiss) adapter for all Baader 2" mirror and prism star diagonals, for direct connection to the M68 Zeiss thread
- With this adapter you can convert your Baader 2" Diagonal on both sides to M68 thread connection. To do so, remove the 2" nosepiece or ClickLock® and the M55/2"/S58 ring from the housing of the star diagonal and screw in the M55/M68 Adaper instead.
- To remove the black 2 "SC / S58 threaded ring from the housing and expose the M55 thread, you will need the Adjustable pin type face wrench ø 2mm (#2450062)
- Suitable for the following 2" mirrors/prisms (already included in the delivery of Baader 2" ClickLock Diagonal Mirror M68 thread (Zeiss) (#2956100Z) ):
- Baader 2" ClickLock Diagonal Mirror (#2956100)
- Baader 2" BBHS ® Mirror Diagonal with 2" ClickLock Clamp (#2456115)
- Baader 2" BBHS ® Prism Star Diagonal Prism with 2" ClickLock Clamp (#2456117)
Specifications:
- Manufacturer: Baader Planetarium
- Sku (#): 2956110
- Ean Code: 4047825022523
- Weight (kg): 0.027
- Optical Length (mm): 1
- Inner Diameter / Clear Aperture (mm): 50.8 (2")
- Outer Diameter: 68
- Outer Connection (lens Sided): Thread, M68 X 1
- Outer Connection (eyepiece/-camera-sided): Thread, M55
- Compatible Brands: Baader Planetarium, Zeiss
- Type Of Adapter: Expanding Piece
Manufacturer part number: CL-M55/M68 or 2956110
Other Information
- Country of Manufacture: China
- Baader Planetarium Warranty: Baader products are warranted for two years for flawless optical function (not necessarily cosmetic optical appearance).
- Baader M55a / M68a (Zeiss) adapter for all Baader 2" mirror and prism star diagonals, for direct connection to the M68 Zeiss thread
- With this adapter you can convert your Baader 2" Diagonal on both sides to M68 thread connection. To do so, remove the 2" nosepiece or ClickLock® and the M55/2"/S58 ring from the housing of the star diagonal and screw in the M55/M68 Adaper instead.
- To remove the black 2 "SC / S58 threaded ring from the housing and expose the M55 thread, you will need the Adjustable pin type face wrench ø 2mm (#2450062)
- Suitable for the following 2" mirrors/prisms (already included in the delivery of Baader 2" ClickLock Diagonal Mirror M68 thread (Zeiss) (#2956100Z) ):
- Baader 2" ClickLock Diagonal Mirror (#2956100)
- Baader 2" BBHS ® Mirror Diagonal with 2" ClickLock Clamp (#2456115)
- Baader 2" BBHS ® Prism Star Diagonal Prism with 2" ClickLock Clamp (#2456117)
Specifications:
- Manufacturer: Baader Planetarium
- Sku (#): 2956110
- Ean Code: 4047825022523
- Weight (kg): 0.027
- Optical Length (mm): 1
- Inner Diameter / Clear Aperture (mm): 50.8 (2")
- Outer Diameter: 68
- Outer Connection (lens Sided): Thread, M68 X 1
- Outer Connection (eyepiece/-camera-sided): Thread, M55
- Compatible Brands: Baader Planetarium, Zeiss
- Type Of Adapter: Expanding Piece
Manufacturer part number: CL-M55/M68 or 2956110
