Baader M68 Tele-Compendium Set of Connectors and Spacers # M68-CONN 2459258
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Product Details
Telescopes which are used for photography on a professional level need to avoid any deflexure under load. This flexure is not a problem if you observe only visually but for photography or spectroscopy, any deficiencies will make your results unusable. So, you do not only need a sturdy mount with a robust connection to the telescope, but also a very good focusser – with a sturdy connection to equipment like cameras or others sensors, especially if they are used with long accessories like telecentric systems. Usually, these accessories are only attached with a simple plug-in connection. Even with good, self-centering eyepiece-holders with brass clamping ring long accessories can tilt because of the long lever. This tilt will impair professional operation. There is no better adaption than a generously sized screw coupling.

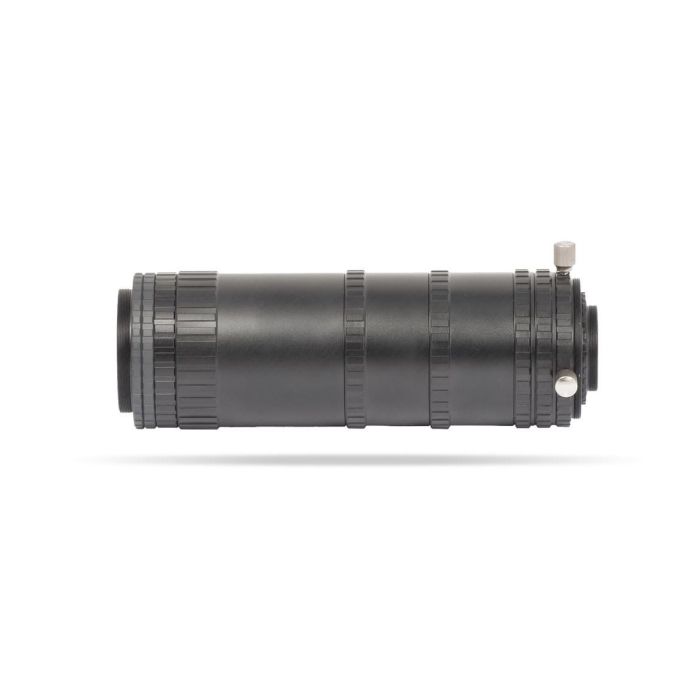

The Baader M68 Tele-Compendium solves this problem. It combines the function of a photographic compendium or matte box, which is a versatile lens hood, with a very sturdy and variable telecope adapter – that's why we have chosen the name Tele-Kompendium. This set is based on the M68-thread which is also used on the large Zeisstelescopes. Because of this, M68 is quite common and perfect for a sturdy connection of optical accessories like the Fluorit Flatfield Converter (FFC) for photographung the planets or a Telecentric System together with H-alphasytems for solar observation.
Connections of the Baader Tele-Compendium
The Tele-Kompendium is screwed onto the telescope. On the telescope side, there are threads for 2,7" (Astro Physics), M68 (Zeiss), M60 (Vixen) and a female M56-thread (Synta). There are optional adapters for the following systems avaiable:
- TEC/Feathertouch-focusers
- Baader 3" Steeltrack- und Hyperion-focusers
- Pentax-SD-telescopes
- Takahashi
- Celestron (3,3"-SC-thread)
- Zeiss (M68 quick changer)
FFC or Telecentric System are coupled by a T-2-thread at the telescope-side of the Tele-Kompendiums. On the eyepiece side there is the Baader Ultrashort Adapter, which offers a M68-thread as well as standard 2“ eyepiece holder with brass ring and two locking screws to avoid tilting. A 2“/T2 nosepiece is also included – there are many accessories avaiable which use the T-2-thread. Because the 2“-connection is at the far end of the setup, the leverage effect is reduced – and brass clamping ring and two locking screws hold the accessories firmly in place.
The seperate extension tubes enable you to use the system with variable length according to the needs of your setup to achieve the best resultsuse every distance. At the same time, stray light is blocked – no light from the outside can diminish the contrast, and the inside of the telecompendium is carefully blacked.
Specifications:
- Manufacturer: Baader Planetarium
- Sku (#): 2459258
- Ean Code: 4047825008688
- Weight (kg): 0.646
- Optical Length (mm): Variabel
- Clamping System: Screw Clamps
- Screw Type: 2x M4 Clamping Screws
- Inner Diameter / Clear Aperture (mm): 39
- Outer Diameter: 75
- Inner Connection (lens Sided): Thread, M56 X 1
- Outer Connection (lens Sided): Thread, M60, M68 X 1, 2,7"
- Inner Connection (eyepiece/-camera-sided): Thread, Clamp, M48, 2" (50,8mm)
- Outer Connection (eyepiece/-camera-sided): Thread, T-2 (m42 X 0,75), M68 X 1
- Compatible Brands: Baader Planetarium, Zeiss
- Type Of Adapter: Camera Adapter, Extension, Eyepiece Clamp
Manufacturer part number: M68-CONN or 2459258
Other Information
- Country of Manufacture: Taiwan
