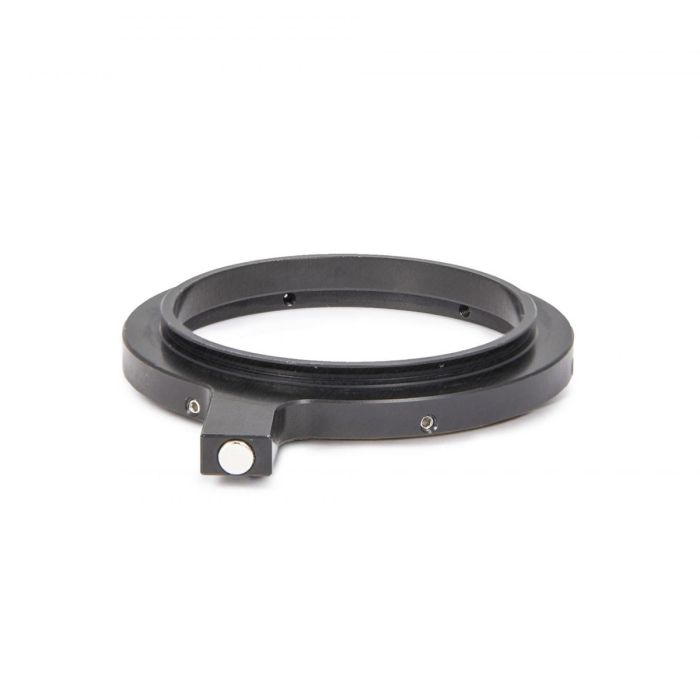

Baader Metal Magnet Ring for Homing Sensor of Steeldrive II Controller
Sku:
PAOA-BP-STL-MAG
Mfg #:
2957264
Item Can Ship:
Worldwide
$91.00
In Stock
(Only 1 left)
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
SKU:
PAOA-BP-STL-MAG
Mfg #:
2957264
Item Can Ship:
Worldwide
Description
Description
- Metal Magnet Ring for Homing-Sensor of Steeldrive II - fitting for Baader Diamond Steeltrack focusers
- If you have upgraded your Diamond Steeltrack e.g. with a 2" Clicklock S58 eyepiece holder (#2956258) or if you use an adapter to a thread (T-2, M48 or M68), the Metal Magnet Ring is an alternative to the simple magnet holder which is included in the scope of delivery of the Steeldrive II (#2957165).
- The Steeldrive II motor unit features a contactless (wearfree) homing sensor (hall-effect sensor). It is activated by a magnet attached to the moving part of the focuser. It enables precise homing and repeatable approach of saved absolute positions as well as reference of the mechanical endstop.
- The Metal Magnet Ring is attached between the eyepiece clamp and the eyepiece extension. To install the magnet ring, at first you need to remove the 2" eyepiece holder or the thread adapter for e.g. T-2, M48 or M68. It must be installed parallel to the Steeldrive II.
Manufacturer part number: STL-MAG (formerly BDS-MAG) or 2957264
Other Information
- Country of Manufacture: Germany
- Metal Magnet Ring for Homing-Sensor of Steeldrive II - fitting for Baader Diamond Steeltrack focusers
- If you have upgraded your Diamond Steeltrack e.g. with a 2" Clicklock S58 eyepiece holder (#2956258) or if you use an adapter to a thread (T-2, M48 or M68), the Metal Magnet Ring is an alternative to the simple magnet holder which is included in the scope of delivery of the Steeldrive II (#2957165).
- The Steeldrive II motor unit features a contactless (wearfree) homing sensor (hall-effect sensor). It is activated by a magnet attached to the moving part of the focuser. It enables precise homing and repeatable approach of saved absolute positions as well as reference of the mechanical endstop.
- The Metal Magnet Ring is attached between the eyepiece clamp and the eyepiece extension. To install the magnet ring, at first you need to remove the 2" eyepiece holder or the thread adapter for e.g. T-2, M48 or M68. It must be installed parallel to the Steeldrive II.
Manufacturer part number: STL-MAG (formerly BDS-MAG) or 2957264
