Baader UBVRI Photometric Bessel Filter Set - 2" Mounted
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Important Note About Torn Baader Filter Seals:
Recently, Baader started applying a new filter label on many filters that goes over the edge of the case and also acts as a seal. Unfortunately, these labels rip far too easily during transport, giving the false appearance that the filter case has been previously opened. Many filters we now get from Baader arrive like the ones shown in the photos below, and many others will rip en route from us to you. Rest assured that ALL filters we ship to you are brand new and unopened as received from Baader, whether the seal is intact or partially/completely ripped.
 |
 |
Baader has agreed to revert to their old design of 2-piece labels, but until they use up their current labels, we will continue to have this problem for a while and you might also get a mix of different filter label types. Thank you for your understanding.

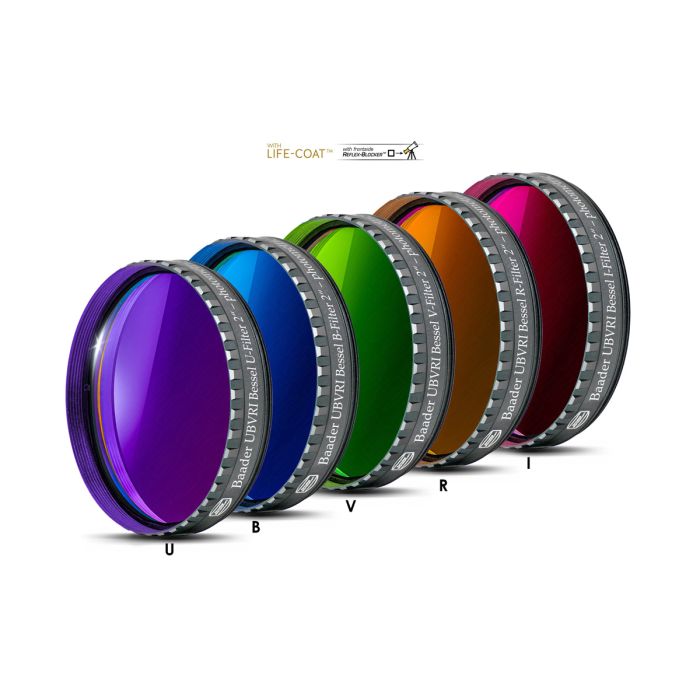

- Baader Bessel-UBVRI Bandpass Filter Set, suitable from f/15 to f/1.8
- Classic photometric filters with transmission according to Bessel – parfocal with all Baader filters of the same size
- Manufactured with most advanced ion beam coating technology / Daylight-Proof
- Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
- Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
- Equally suitable for modern CMOS cameras as well as for older CCD camera technologies
Baader could not further improve the characteristics of their previous, Bessel-compatible UBVRI filters - but they could make the filters better. The new generation of Baader Planetarium UBVRI filters is a modern filter set that is both fully compatible with the characteristics of the original Bessel filters and at the same time meets modern demands for contemporary filters:
- The photometric filters now have the same thicknesses as all other Baader filters:
- 2 mm filter thickness for all filters up to size 2" mounted (1.25", 31 mm, 36 mm, 2")
- 3 mm filter thickness for all sizes above (50.4 mm, 50 x 50 mm, 65 x 65 mm)
- This means that they fit into any commercially available filter wheel, for which the original filters were often simply too thick and could not be fixed securely.
- They are parfocal with all other Baader filters of the same size and now also available in sizes up to 100x100mm - large enough even for modern, professional sensors, or optimal for easy handling in the common filter mounts for amateur telescopes.
- The coating of all photometric filters is manufactured in the same technology as the CMOS-optimized narrowband and LRGB filters. The lifetime Life-Coat™ guarantee also applies here.
The new generation of Baader filters feature:
- Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
- Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed)
- Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
Specifications
- Filter thickness (without cell): 2mm
- AR Coating: Reflex-Blocker™ hard coated, planeoptically polished
- Special features: CMOS-optimized with Life-Coat™
- Filter mount choice: 2" round mounted in LPFC 6mm cell
Life-Coat™: Limited-Lifetime-Warranty for CMOS-optimized Baader filters
A Baader Planetarium exclusive. Filters incorporating Baader Planetarium’s Life-Coat™ technology are so durable that Baader Planetarium warrants the coatings for the life of the filter. Baader Planetarium has developed Life-Coat™ using materials and processes that result in coatings which will not degrade or fail for a lifetime. Life-Coat™ coatings resist moisture, temperature extremes, and are hardened to withstand normal cleanings.
Baader Planetarium guarantees their Life-Coat™ coatings will not peel, flake or physically degrade and will withstand repeated cleaning with fine optical cleaning equipment. The Limited Lifetime Warranty applies to the original purchaser and does not cover failure from mis-use, physical damage through improper handling, or improper cleaning.
Useful Resources
Filter Cell Specifications
D = Filter Cell Diameter = 49.7 mm / 1.95 in
T = Total Filter Height = 8.1 mm / 0.31 in
C = Filter Cell Height (Excluding Male Thread) = 5.8 mm / 0.22 in
M = Male Thread Length = 2.3 mm / 0.09 in
F = USABLE Female Filter Thread Length = 2.9 mm / 0.11 in
S = Glass Substrate Thickness = 1.1 mm / 0.04 in
CA = Clear Aperture = 45.8 mm / 1.80 in
Other Information
- Country of Manufacture: Germany
Baader could not further improve the characteristics of their previous, Bessel-compatible UBVRI filters - but they could make the filters better. The new generation of Baader Planetarium UBVRI filters is a modern filter set that is both fully compatible with the characteristics of the original Bessel filters and at the same time meets modern demands for contemporary filters:
- The photometric filters now have the same thicknesses as all other Baader filters:
- 2 mm filter thickness for all filters up to size 2" mounted (1.25", 31 mm, 36 mm, 2")
- 3 mm filter thickness for all sizes above (50.4 mm, 50 x 50 mm, 65 x 65 mm)
- This means that they fit into any commercially available filter wheel, for which the original filters were often simply too thick and could not be fixed securely.
- They are parfocal with all other Baader filters of the same size and now also available in sizes up to 100x100mm - large enough even for modern, professional sensors, or optimal for easy handling in the common filter mounts for amateur telescopes.
- The coating of all photometric filters is manufactured in the same technology as the CMOS-optimized narrowband and LRGB filters. The lifetime Life-Coat™ guarantee also applies here.
The new generation of Baader filters feature:
- Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
- Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed)
- Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
Specifications
- Filter thickness (without cell): 2mm
- AR Coating: Reflex-Blocker™ hard coated, planeoptically polished
- Special features: CMOS-optimized with Life-Coat™
- Filter mount choice: 2" round mounted in LPFC 6mm cell
Life-Coat™: Limited-Lifetime-Warranty for CMOS-optimized Baader filters
A Baader Planetarium exclusive. Filters incorporating Baader Planetarium’s Life-Coat™ technology are so durable that Baader Planetarium warrants the coatings for the life of the filter. Baader Planetarium has developed Life-Coat™ using materials and processes that result in coatings which will not degrade or fail for a lifetime. Life-Coat™ coatings resist moisture, temperature extremes, and are hardened to withstand normal cleanings.
Baader Planetarium guarantees their Life-Coat™ coatings will not peel, flake or physically degrade and will withstand repeated cleaning with fine optical cleaning equipment. The Limited Lifetime Warranty applies to the original purchaser and does not cover failure from mis-use, physical damage through improper handling, or improper cleaning.
Important Note About Torn Baader Filter Seals:
Recently, Baader started applying a new filter label on many filters that goes over the edge of the case and also acts as a seal. Unfortunately, these labels rip far too easily during transport, giving the false appearance that the filter case has been previously opened. Many filters we now get from Baader arrive like the ones shown in the photos below, and many others will rip en route from us to you. Rest assured that ALL filters we ship to you are brand new and unopened as received from Baader, whether the seal is intact or partially/completely ripped.
|
|
Baader has agreed to revert to their old design of 2-piece labels, but until they use up their current labels, we will continue to have this problem for a while and you might also get a mix of different filter label types. Thank you for your understanding.
- Baader Bessel-UBVRI Bandpass Filter Set, suitable from f/15 to f/1.8
- Classic photometric filters with transmission according to Bessel – parfocal with all Baader filters of the same size
- Manufactured with most advanced ion beam coating technology / Daylight-Proof
- Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
- Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
- Equally suitable for modern CMOS cameras as well as for older CCD camera technologies
Baader could not further improve the characteristics of their previous, Bessel-compatible UBVRI filters - but they could make the filters better. The new generation of Baader Planetarium UBVRI filters is a modern filter set that is both fully compatible with the characteristics of the original Bessel filters and at the same time meets modern demands for contemporary filters:
- The photometric filters now have the same thicknesses as all other Baader filters:
- 2 mm filter thickness for all filters up to size 2" mounted (1.25", 31 mm, 36 mm, 2")
- 3 mm filter thickness for all sizes above (50.4 mm, 50 x 50 mm, 65 x 65 mm)
- This means that they fit into any commercially available filter wheel, for which the original filters were often simply too thick and could not be fixed securely.
- They are parfocal with all other Baader filters of the same size and now also available in sizes up to 100x100mm - large enough even for modern, professional sensors, or optimal for easy handling in the common filter mounts for amateur telescopes.
- The coating of all photometric filters is manufactured in the same technology as the CMOS-optimized narrowband and LRGB filters. The lifetime Life-Coat™ guarantee also applies here.
The new generation of Baader filters feature:
- Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most adverse conditions concerning aux-optics
- Identical filter thickness to existing standards, with utmost care for parfocality
- Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
- Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed)
- Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
Specifications
- Filter thickness (without cell): 2mm
- AR Coating: Reflex-Blocker™ hard coated, planeoptically polished
- Special features: CMOS-optimized with Life-Coat™
- Filter mount choice: 2" round mounted in LPFC 6mm cell
Life-Coat™: Limited-Lifetime-Warranty for CMOS-optimized Baader filters
A Baader Planetarium exclusive. Filters incorporating Baader Planetarium’s Life-Coat™ technology are so durable that Baader Planetarium warrants the coatings for the life of the filter. Baader Planetarium has developed Life-Coat™ using materials and processes that result in coatings which will not degrade or fail for a lifetime. Life-Coat™ coatings resist moisture, temperature extremes, and are hardened to withstand normal cleanings.
Baader Planetarium guarantees their Life-Coat™ coatings will not peel, flake or physically degrade and will withstand repeated cleaning with fine optical cleaning equipment. The Limited Lifetime Warranty applies to the original purchaser and does not cover failure from mis-use, physical damage through improper handling, or improper cleaning.
Useful Resources
Filter Cell Specifications
D = Filter Cell Diameter = 49.7 mm / 1.95 in
T = Total Filter Height = 8.1 mm / 0.31 in
C = Filter Cell Height (Excluding Male Thread) = 5.8 mm / 0.22 in
M = Male Thread Length = 2.3 mm / 0.09 in
F = USABLE Female Filter Thread Length = 2.9 mm / 0.11 in
S = Glass Substrate Thickness = 1.1 mm / 0.04 in
CA = Clear Aperture = 45.8 mm / 1.80 in
Other Information
- Country of Manufacture: Germany
