Berlebach Dovetail Plate for WEGA/OMEGA Mounts - 120mm (4.7") Length
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.

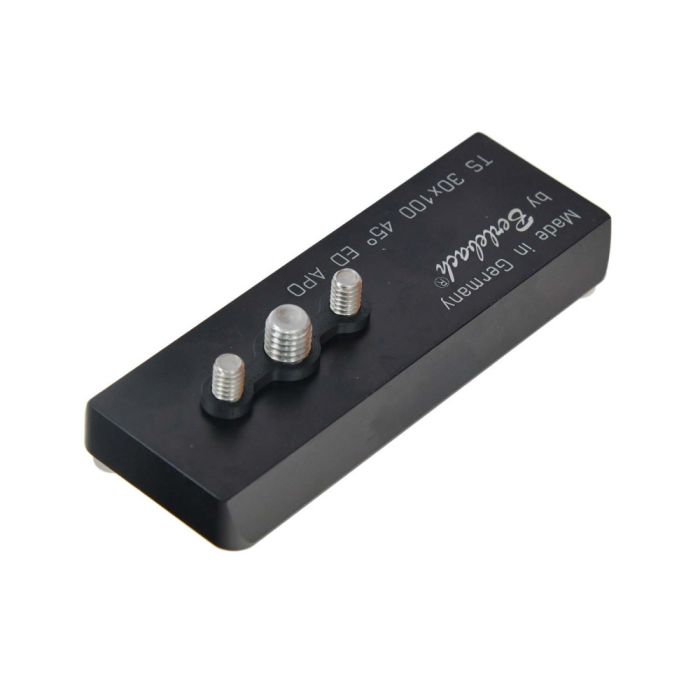

- Versatile dovetail plate designed for the Berlebach WEGA or OMEGA mounts.
- Compatible with the TS-Optics 30x100 ED APO binoculars.
- Integrated 10mm-deep anti-slip safety groove.
- Dual M5 stop screws to prevent accidental slide-out from clamps.
Berlebach Prism Plate for WEGA/OMEGA Mounts
Designed specifically for the TS-Optics 30x100 ED APO, the Berlebach Prism Rail provides a versatile mounting solution for your setup. Thoughtfully engineered, this 120 mm (4.7 in) dovetail plate offers reliable support whether you're mounting to a tripod, head, or compatible clamp system. The 14 mm (0.6 in) low-profile design measures 45 mm (1.8 in) in width, with a 15° dovetail profile for secure clamping. A 4mm hex key is included for easy installation and adjustments.
The integrated 10 mm-deep safety groove helps prevent accidental slippage from prism clamps, while two included M5 safety stop screws provide additional protection against unwanted movement. When paired with the Berlebach Omega Wega head, the integrated clamp screw engages directly with the safety groove, making the additional stop screws unnecessary. The rail features dual 1/4"-20 UNC threads and a central 3/8"-16 UNC thread. When using both 1/4"-20 screws, the 3/8" thread is not required—giving you adaptable compatibility with a wide range of tripod heads and mounting systems (please verify compatibility of your system before purchasing). Whether you’re upgrading your mounting setup or replacing an existing rail, the Prism Plate delivers dependable performance!

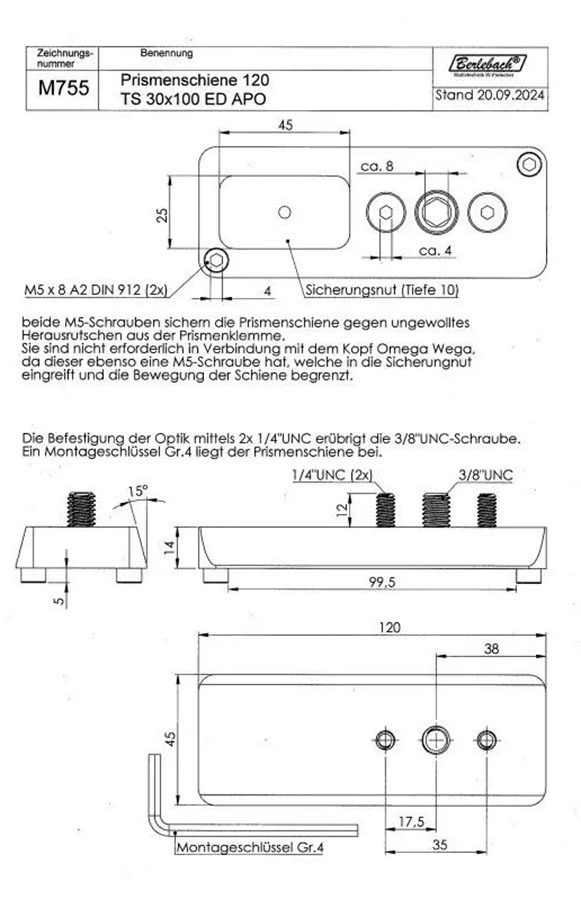

Technical Drawings
Specifications
- Model: M755
- Type: Prism Rail / Dovetail Plate
- Compatibility: TS 30x100 ED APO
- Gross length: 120 mm (4.7 in)
- Usable mounting length: 99.5 m (4.0 in)
- Width: 45 mm (1.8 in)
- Height: 14 mm (0.6 in)
- Lower lip thickness: 5 mm (0.2 in)
- Dovetail angle: 15°
- Right section length: 38 mm (1.5 in)
- Hole spacing (outer to outer): 35 mm
- Center hole offset: 17.5 mm (0.79 in)
- Safety groove depth: 10 mm (0.4 in)
- Weight: 0.14 kg (0.31 lb)
- Threads:
-
- 2x 1/4"-20 UNC Threads
- 1x 3/8"-16 UNC Thread
-
Other Information
- Country of Manufacture: Germany
Berlebach Prism Plate for WEGA/OMEGA Mounts
Designed specifically for the TS-Optics 30x100 ED APO, the Berlebach Prism Rail provides a versatile mounting solution for your setup. Thoughtfully engineered, this 120 mm (4.7 in) dovetail plate offers reliable support whether you're mounting to a tripod, head, or compatible clamp system. The 14 mm (0.6 in) low-profile design measures 45 mm (1.8 in) in width, with a 15° dovetail profile for secure clamping. A 4mm hex key is included for easy installation and adjustments.
The integrated 10 mm-deep safety groove helps prevent accidental slippage from prism clamps, while two included M5 safety stop screws provide additional protection against unwanted movement. When paired with the Berlebach Omega Wega head, the integrated clamp screw engages directly with the safety groove, making the additional stop screws unnecessary. The rail features dual 1/4"-20 UNC threads and a central 3/8"-16 UNC thread. When using both 1/4"-20 screws, the 3/8" thread is not required—giving you adaptable compatibility with a wide range of tripod heads and mounting systems (please verify compatibility of your system before purchasing). Whether you’re upgrading your mounting setup or replacing an existing rail, the Prism Plate delivers dependable performance!

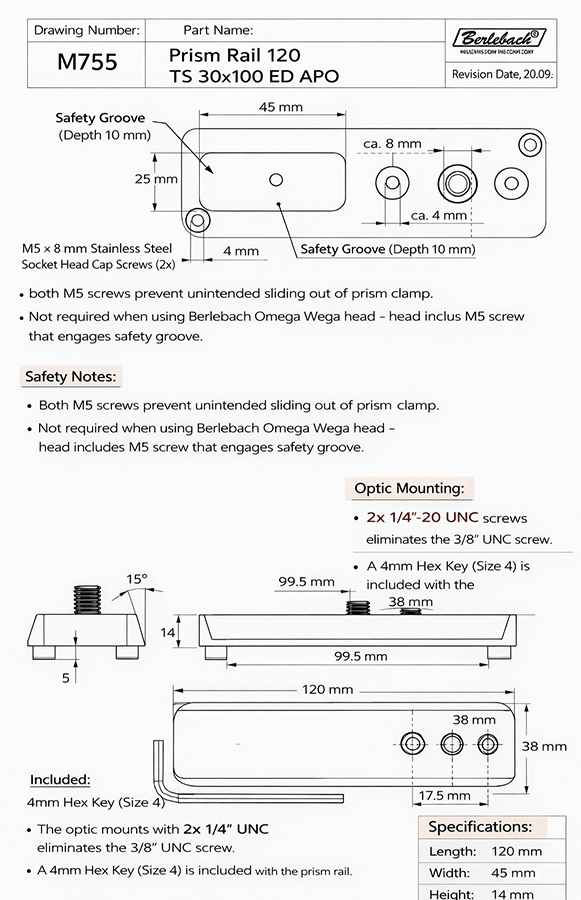

Technical Drawings
Specifications
- Model: M755
- Type: Prism Rail / Dovetail Plate
- Compatibility: TS 30x100 ED APO
- Gross length: 120 mm (4.7 in)
- Usable mounting length: 99.5 m (4.0 in)
- Width: 45 mm (1.8 in)
- Height: 14 mm (0.6 in)
- Lower lip thickness: 5 mm (0.2 in)
- Dovetail angle: 15°
- Right section length: 38 mm (1.5 in)
- Hole spacing (outer to outer): 35 mm
- Center hole offset: 17.5 mm (0.79 in)
- Safety groove depth: 10 mm (0.4 in)
- Weight: 0.14 kg (0.31 lb)
- Threads:
-
- 2x 1/4"-20 UNC Threads
- 1x 3/8"-16 UNC Thread
-
- 1x 120 mm dovetail plate
- 2x M5x8 A2 stainless steel screws
- 1x 4 mm hex key
- Versatile dovetail plate designed for the Berlebach WEGA or OMEGA mounts.
- Compatible with the TS-Optics 30x100 ED APO binoculars.
- Integrated 10mm-deep anti-slip safety groove.
- Dual M5 stop screws to prevent accidental slide-out from clamps.
Berlebach Prism Plate for WEGA/OMEGA Mounts
Designed specifically for the TS-Optics 30x100 ED APO, the Berlebach Prism Rail provides a versatile mounting solution for your setup. Thoughtfully engineered, this 120 mm (4.7 in) dovetail plate offers reliable support whether you're mounting to a tripod, head, or compatible clamp system. The 14 mm (0.6 in) low-profile design measures 45 mm (1.8 in) in width, with a 15° dovetail profile for secure clamping. A 4mm hex key is included for easy installation and adjustments.
The integrated 10 mm-deep safety groove helps prevent accidental slippage from prism clamps, while two included M5 safety stop screws provide additional protection against unwanted movement. When paired with the Berlebach Omega Wega head, the integrated clamp screw engages directly with the safety groove, making the additional stop screws unnecessary. The rail features dual 1/4"-20 UNC threads and a central 3/8"-16 UNC thread. When using both 1/4"-20 screws, the 3/8" thread is not required—giving you adaptable compatibility with a wide range of tripod heads and mounting systems (please verify compatibility of your system before purchasing). Whether you’re upgrading your mounting setup or replacing an existing rail, the Prism Plate delivers dependable performance!
Technical Drawings
Specifications
- Model: M755
- Type: Prism Rail / Dovetail Plate
- Compatibility: TS 30x100 ED APO
- Gross length: 120 mm (4.7 in)
- Usable mounting length: 99.5 m (4.0 in)
- Width: 45 mm (1.8 in)
- Height: 14 mm (0.6 in)
- Lower lip thickness: 5 mm (0.2 in)
- Dovetail angle: 15°
- Right section length: 38 mm (1.5 in)
- Hole spacing (outer to outer): 35 mm
- Center hole offset: 17.5 mm (0.79 in)
- Safety groove depth: 10 mm (0.4 in)
- Weight: 0.14 kg (0.31 lb)
- Threads:
-
- 2x 1/4"-20 UNC Threads
- 1x 3/8"-16 UNC Thread
-
Other Information
- Country of Manufacture: Germany
- 1x 120 mm dovetail plate
- 2x M5x8 A2 stainless steel screws
- 1x 4 mm hex key
