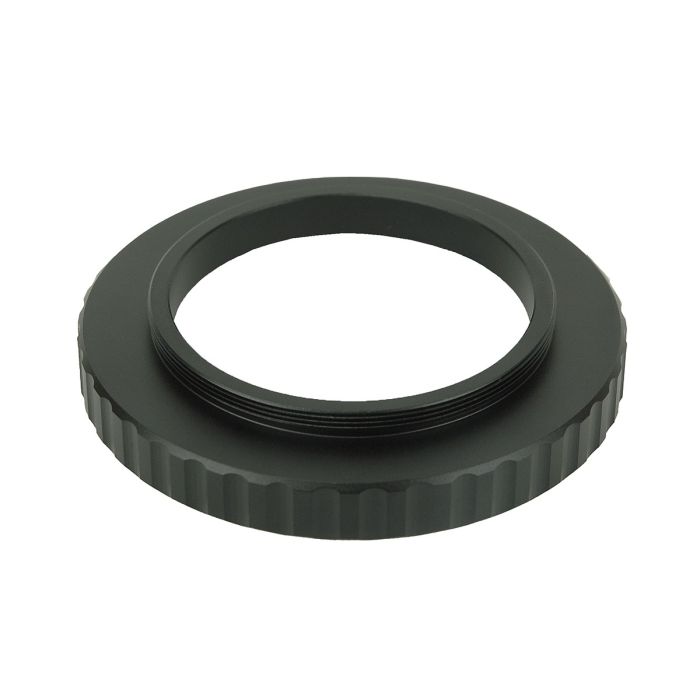

Blue Fireball M68x0.75 Female to M54x0.75 Male / M48x0.75 Female Thread Adapter # M-52
Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.
US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.
International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.
Product Details
Description/Uses:
- Many (but not all - check your telescope or with the manufacturer) Explore Scientific and Bresser telescopes have a telescope drawtube in which the 2" eyepiece/diagonal holder (visual back) is threaded on to the focuser drawtube via an M68x0.75 thread. Removing the visual back on the scope exposes a male thread on the drawtube.
- This adapter allows you to directly attach M54x0.75 threaded cameras and accessories to the focuser drawtube for a direct and more secure connection.
- Features an M68x0.75 female thread on one side and an M54x0.75 male thread on the other side
- Not for use with the more common M68x1 threads used by Zeiss, Baader and others or with M54x1 threads used by Sky-Watcher and others.
Features:
- Precision machined, black anodized aluminum
- Also features an M48x0.75 female thread on the inside of the M54 thread so you can attach 2" astronomy filters on the M68 side or use this adapter with the M48 female thread on the camera side instead of the M54 male thread.
Specifications:
- Weight = 1.1oz
- Total length/thickness = 13mm (0.51")
- M68 female thread specification = M68x0.75
- Length of M68 female thread (including unthreaded undercut) = 6mm (0.24")
- M54 male thread specification = M54x0.75
- Length of M54 male thread (including unthreaded undercut) = 4mm (0.16")
- M48 female thread specification = M48x0.75
- Length of M48 female thread = 7mm (0.28")
- Optical length = 9mm (0.35")
- Clear aperture = 47.3mm (1.86")
- Maximum outside diameter = 73mm (2.87")
Other Information
- Country of Manufacture: China
